Lian Li Edge Gold 850W White 80+ Gold Fully Modular ATX PSU (Boxed)
Lian Li Edge 850W White 80+ Gold PSU features L-shaped design for dual-chamber cases, detachable USB/PWM hub, 120mm PWM fan, magnetic dust filter, longer braided cables, ATX 3.1, PCIe 5.1 support. 10-year warranty.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 800 - 899 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Gold Cybenetics Gold |
| PSU (Power Supplies) - Color | White |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 12V-2x6 4x 8/6 pins |
| PSU (Power Supplies) - Length | 161-180 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 1x 4+4pin EPS/ATX12V |
The Lian Li Edge Gold 850W White PSU revolutionizes power delivery with its innovative L-shaped design, optimized for vertical installation in dual-chamber cases like the O11 series. This fully modular ATX 3.1 / PCIe 5.1 compatible unit simplifies cable management with longer, braided cables featuring combs for clean builds.
Key highlights include a detachable magnetic dust filter for easy maintenance, a relocatable USB hub with 5 headers (1 sync + 4 devices), and a quiet 120mm PWM fan with 66.9% porosity mesh for superior airflow and silence. It achieves 80+ Gold, Cybenetics Gold efficiency with industrial-grade EPCOS capacitors for reliability.
Equipped with stable dual-color 12V-2x6 connector and multiple PCIe options for high-end GPUs.
- L-Shape for Dual-Chamber: User-friendly outward-facing connectors
- USB/PWM Hub: 5 headers for fans/RGB

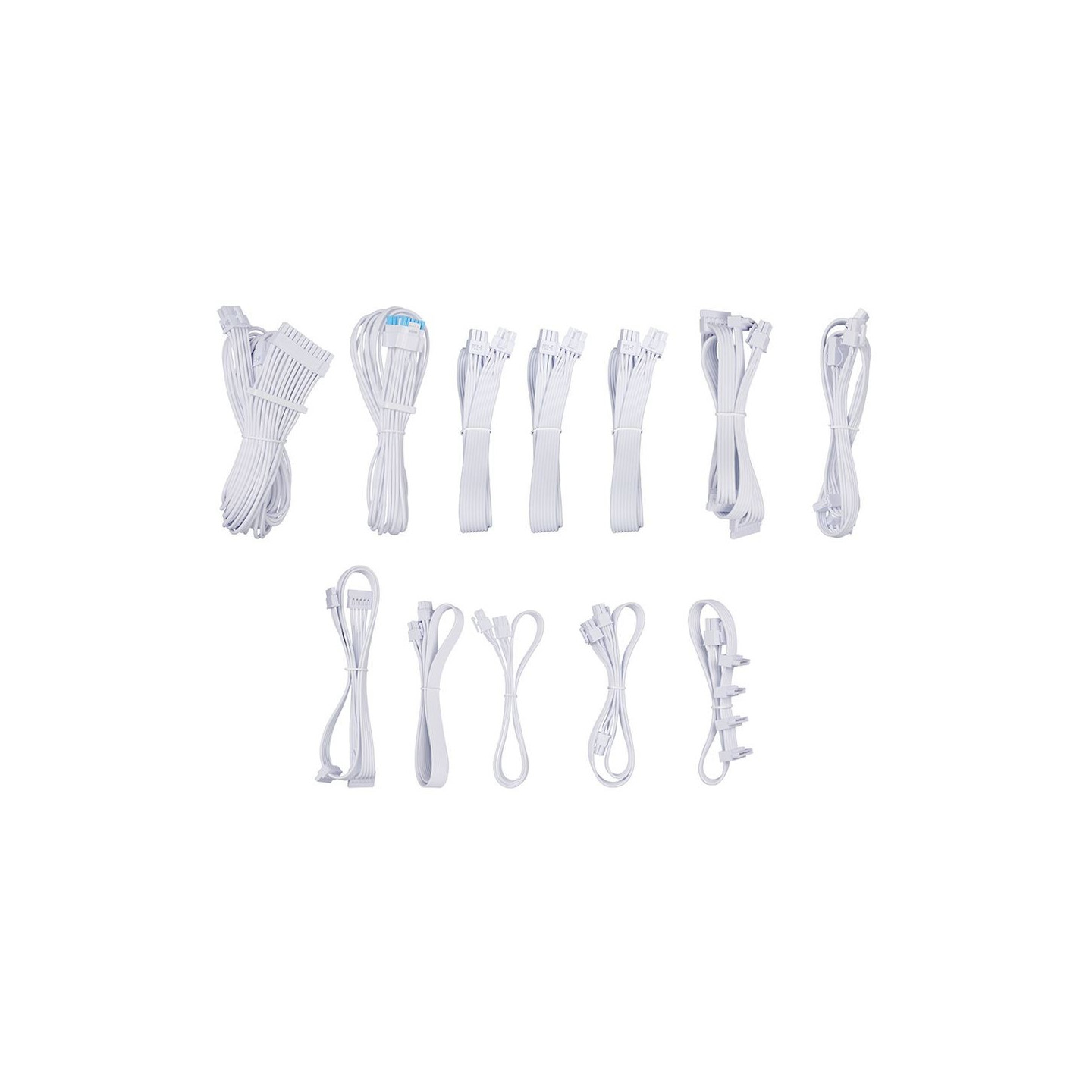

- Fully Modular: Braided cables with combs
- 80+ Gold Certified: High efficiency, 10-year warranty
- PCIe Connectors: 5x 6+2-pin + 1x 12V-2x6
| Model | EG0850G (White variant) |
| Wattage | 850W Continuous |
| Form Factor | ATX / L-Shape |
| Efficiency | 80+ Gold / Cybenetics Gold / PPLP Gold |
| Modularity | Fully Modular |
| Fan | 120mm PWM |
| ATX Standard | ATX 12V v3.1 / PCIe 5.1 |
| PCIe Connectors | 5x 6+2-pin + 1x 12V-2x6 (12+4-pin) |
| SATA Connectors | 12x |
| Molex Connectors | 4x |
| EPS/ATX12V | 1x 4+4 pin |
| Capacitors | Industrial-grade EPCOS (German) or equivalent Japanese |
| Warranty | 10 Years |
| Dimensions (Unit) | 160 x 150 x 86 mm (est.) |
| USB Hub | 5x USB 2.0 headers (1 sync + 4 devices) |
