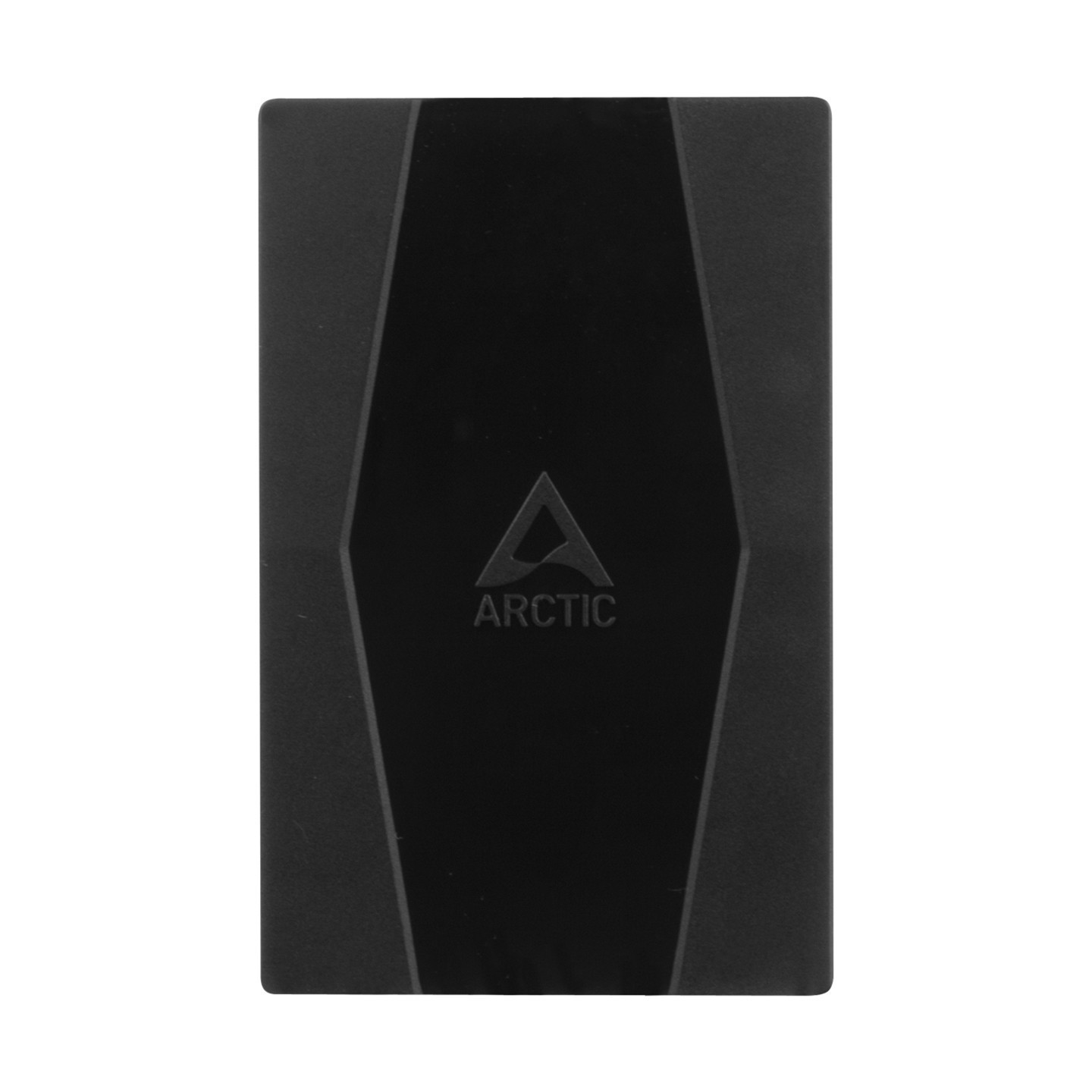

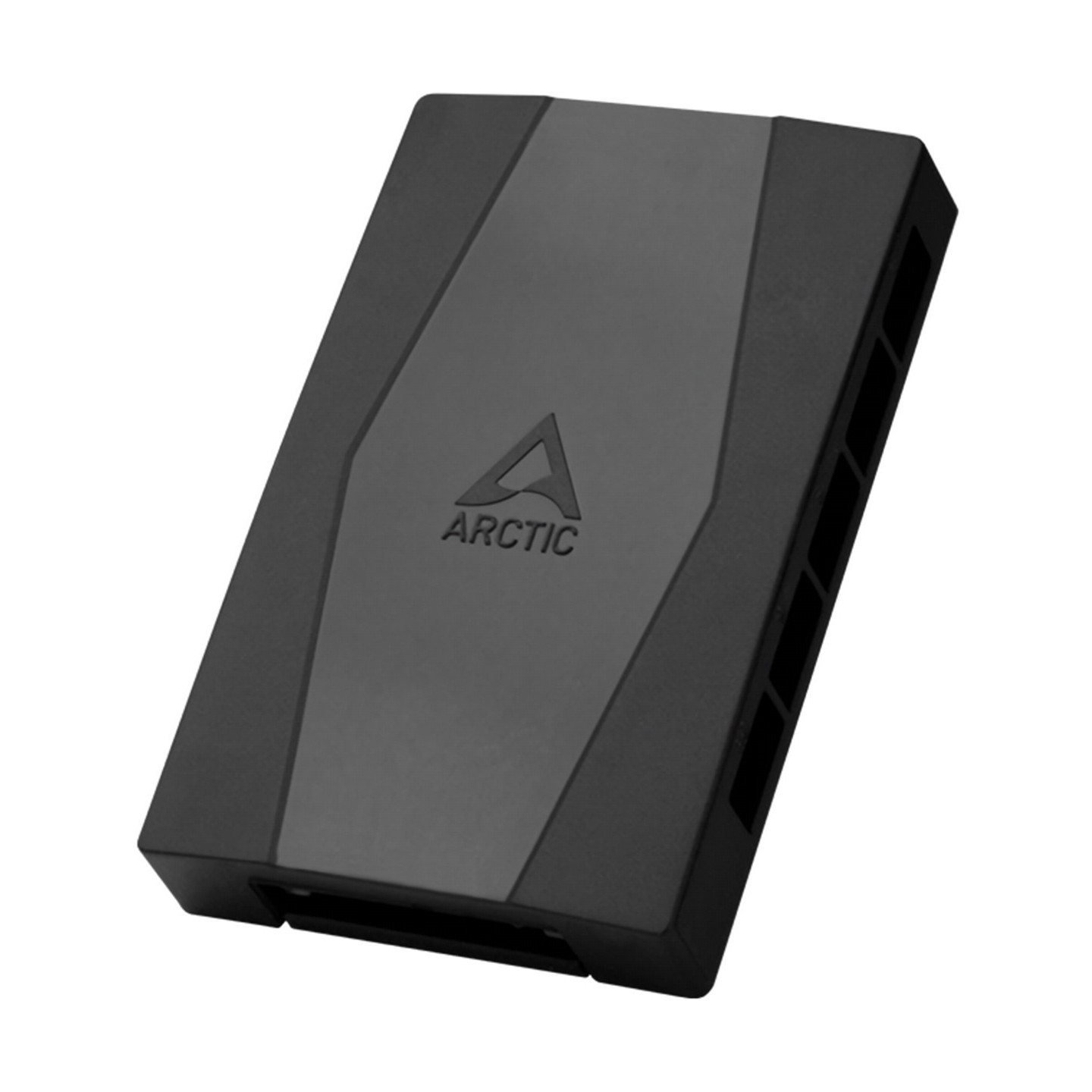

ARCTIC Case Fan Hub ACFAN00175A - 10-Port PWM 4-Pin SATA Power (Retail)
ARCTIC Case Fan Hub: 10-port PWM splitter connects to motherboard via single 4-pin header, SATA powered. Enables tidy cable management, synchronous fan control, reports RPM from first fan. 86x55x14mm, 50g.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Cooling (CPU & Case) - Device Type | Fan Hub Controller |
|---|---|
| Cooling (CPU & Case) - Connector | 4-Pin PWM SATA Power |
| Cooling (CPU & Case) - Color | Black |
| Cooling (CPU & Case) - Special Features | Cableless |
Cable-Management Focused Design
The ARCTIC Case Fan Hub features adhesive pads and magnetic strips for flexible placement inside your PC case. It connects to the motherboard with just one 4-pin PWM cable and draws power from SATA, eliminating cable clutter for cleaner builds.
Synchronous PWM Fan Control
The PWM signal from your motherboard is distributed identically to all 10 connected 4-pin PWM fans. RPM feedback from the first fan port is relayed back to the system for monitoring, while separate SATA power ensures no voltage drop or performance loss.

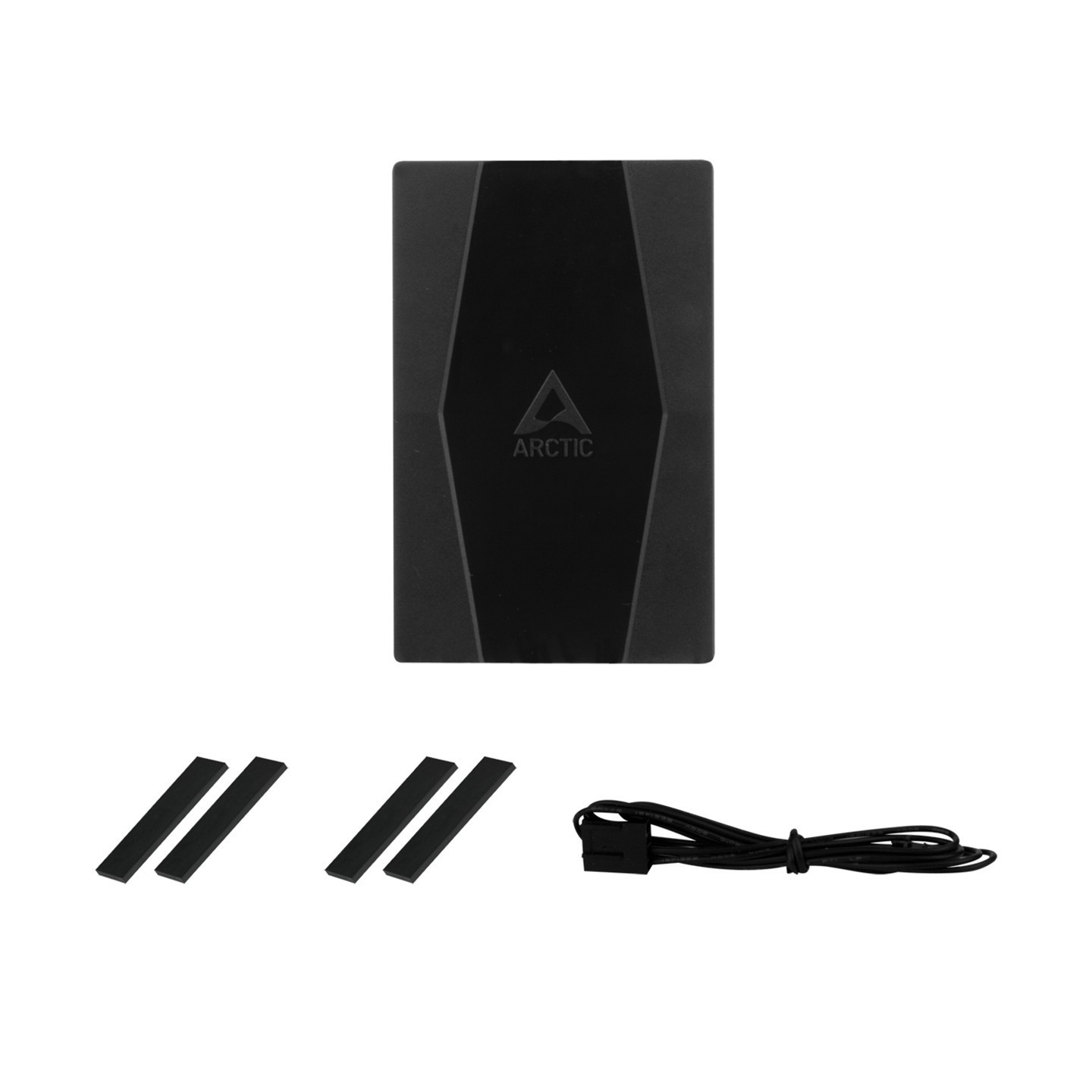

Package Contents & Installation
- ARCTIC Case Fan Hub
- Connection cable (4-pin PWM to hub)
- 2x Adhesive EVA pads
- 2x Magnetic pads
- User manual
Connect SATA power from PSU, link 4-pin header to motherboard fan socket. Supports up to 1A per port (total input ≤4.5A). 6-year warranty.
| MPN | ACFAN00175A |
| EAN | 4895213702522 |
| Warranty | 6 Years |
| Dimensions (LxWxH) | 86.3 x 55.6 x 14.3 mm |
| Weight | 50 g |
| Packaged Weight | 0.075 kg |
| Operating Temperature | 0 - 40 °C |

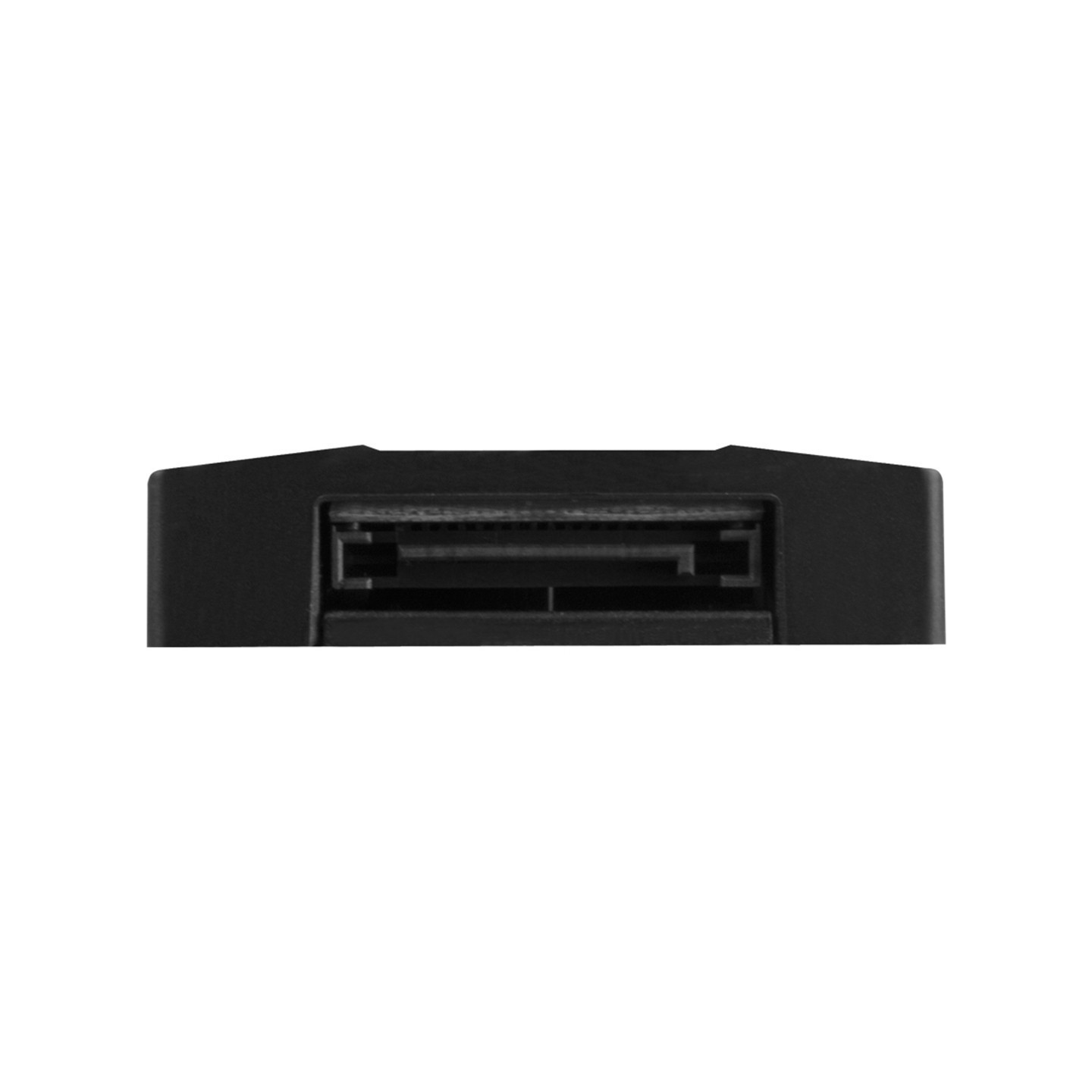

| Input | SATA Power (≤4.5 A) + 4-Pin PWM Fan Header |

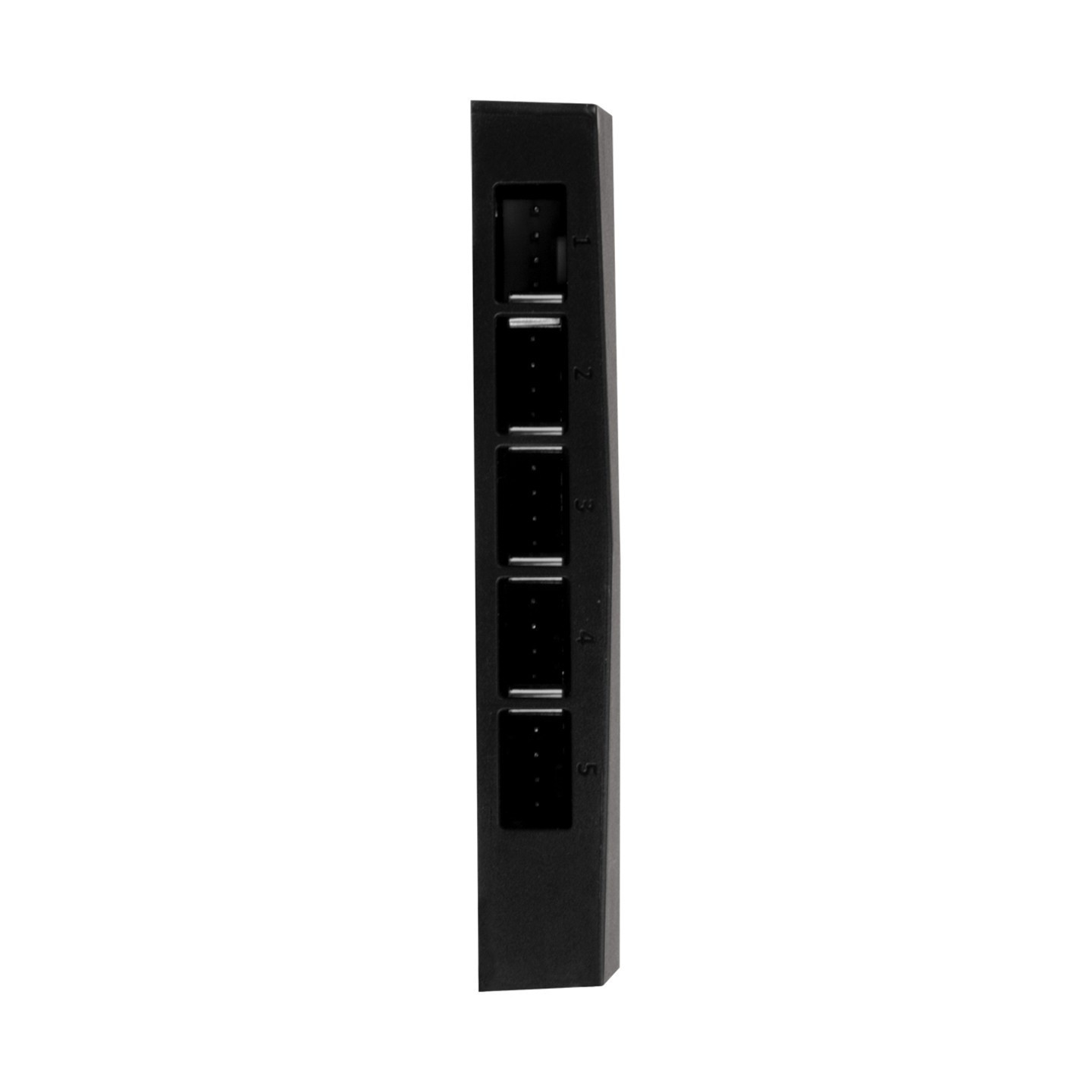

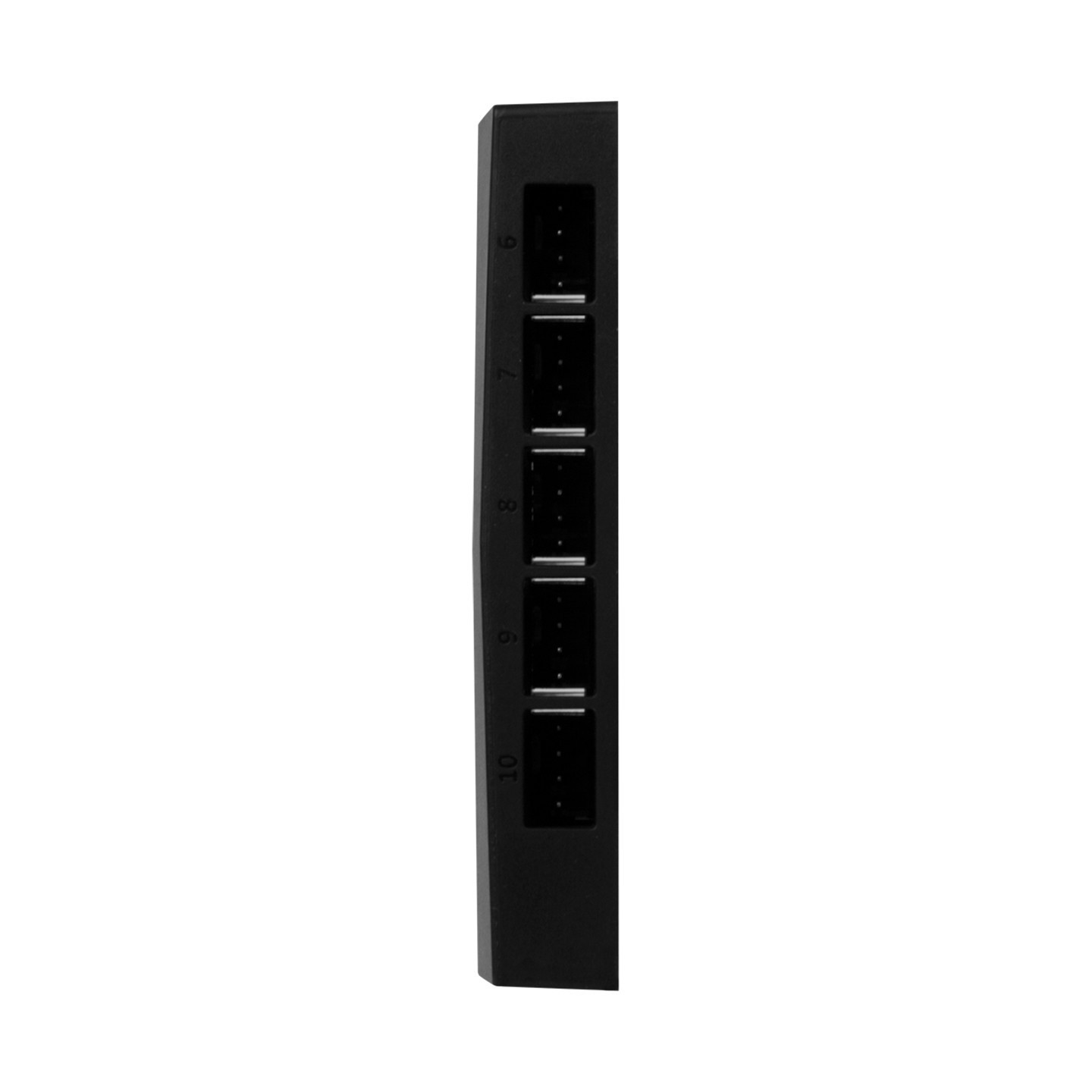

| Output | 10 x 4-Pin PWM (1 A per port) |
| Color | Black |
