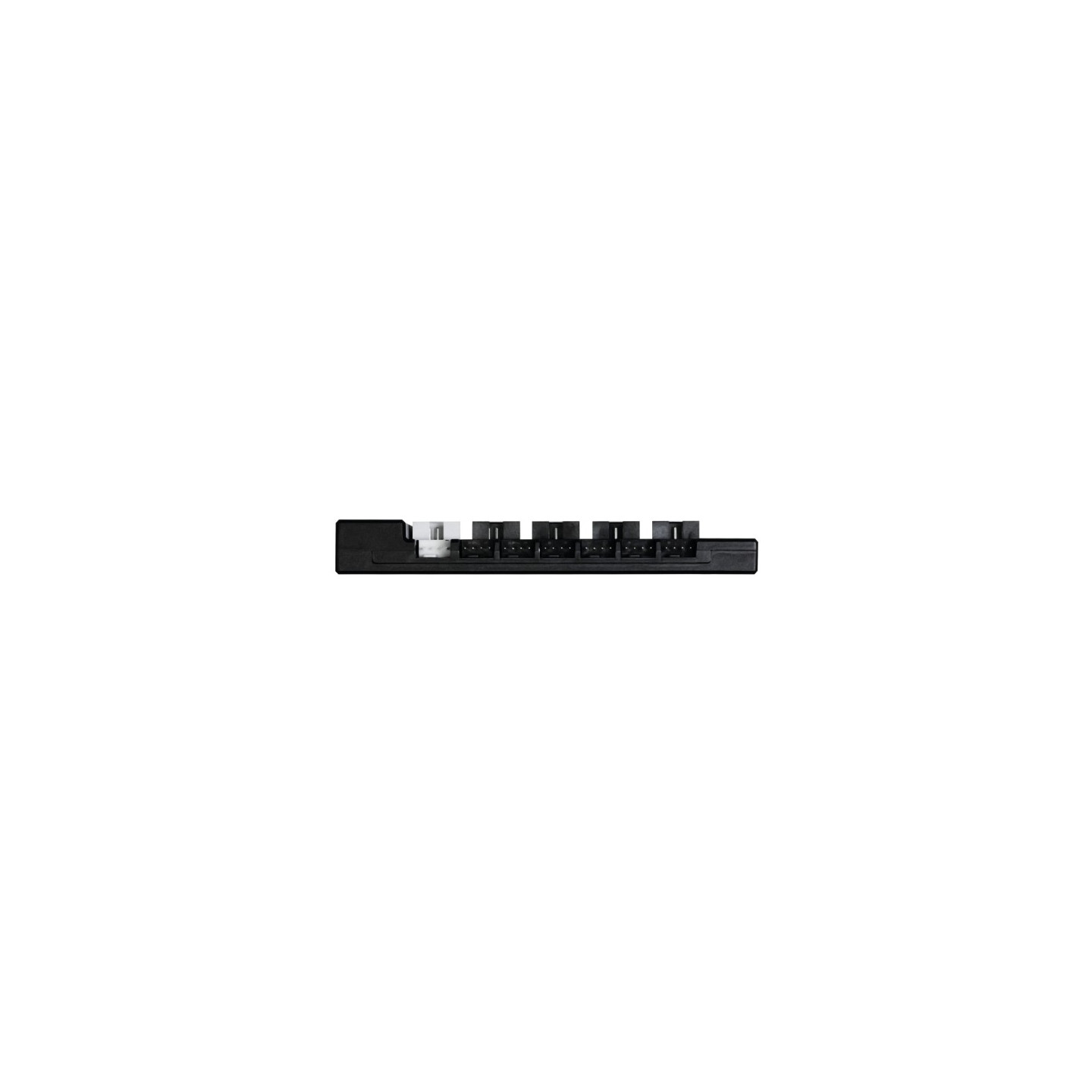

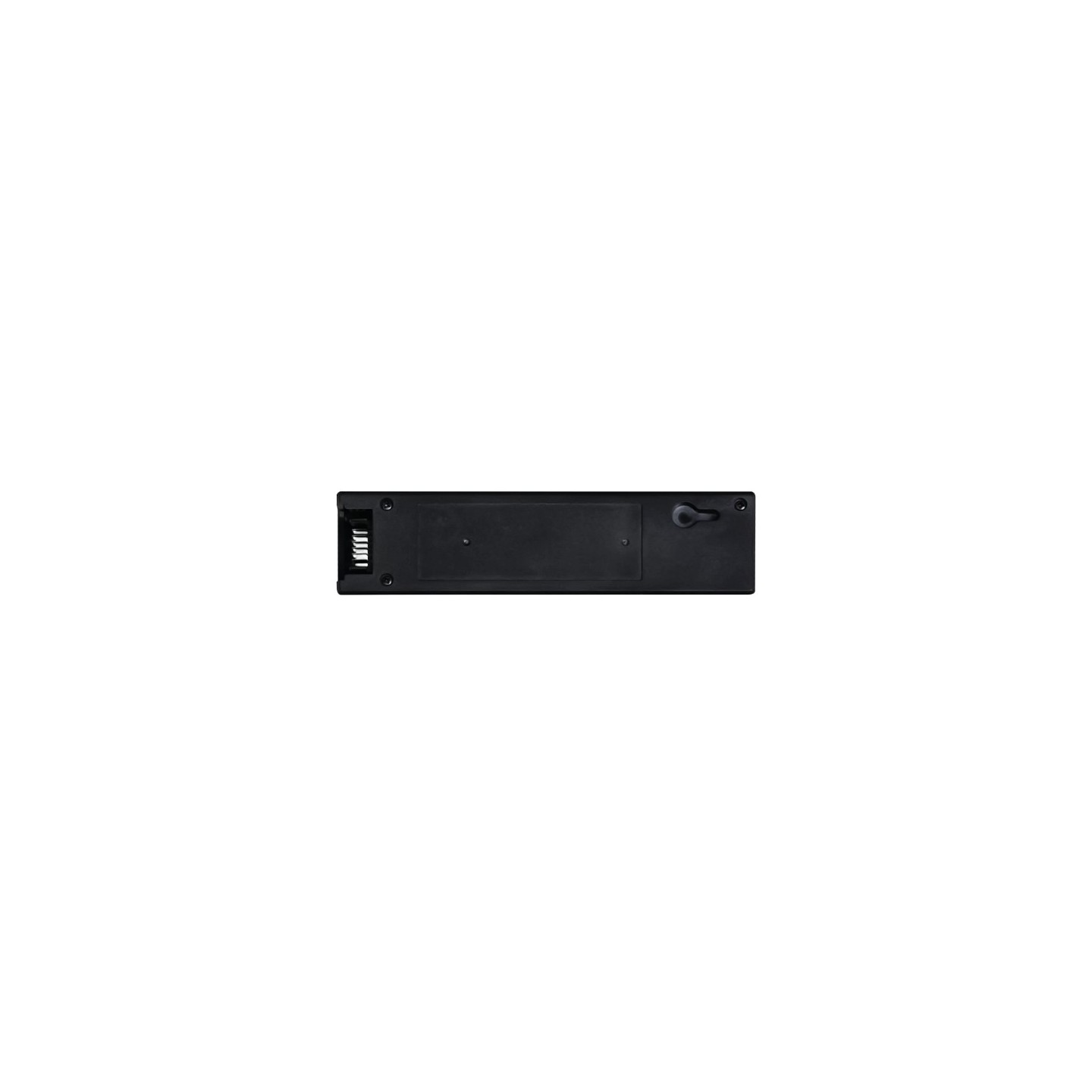

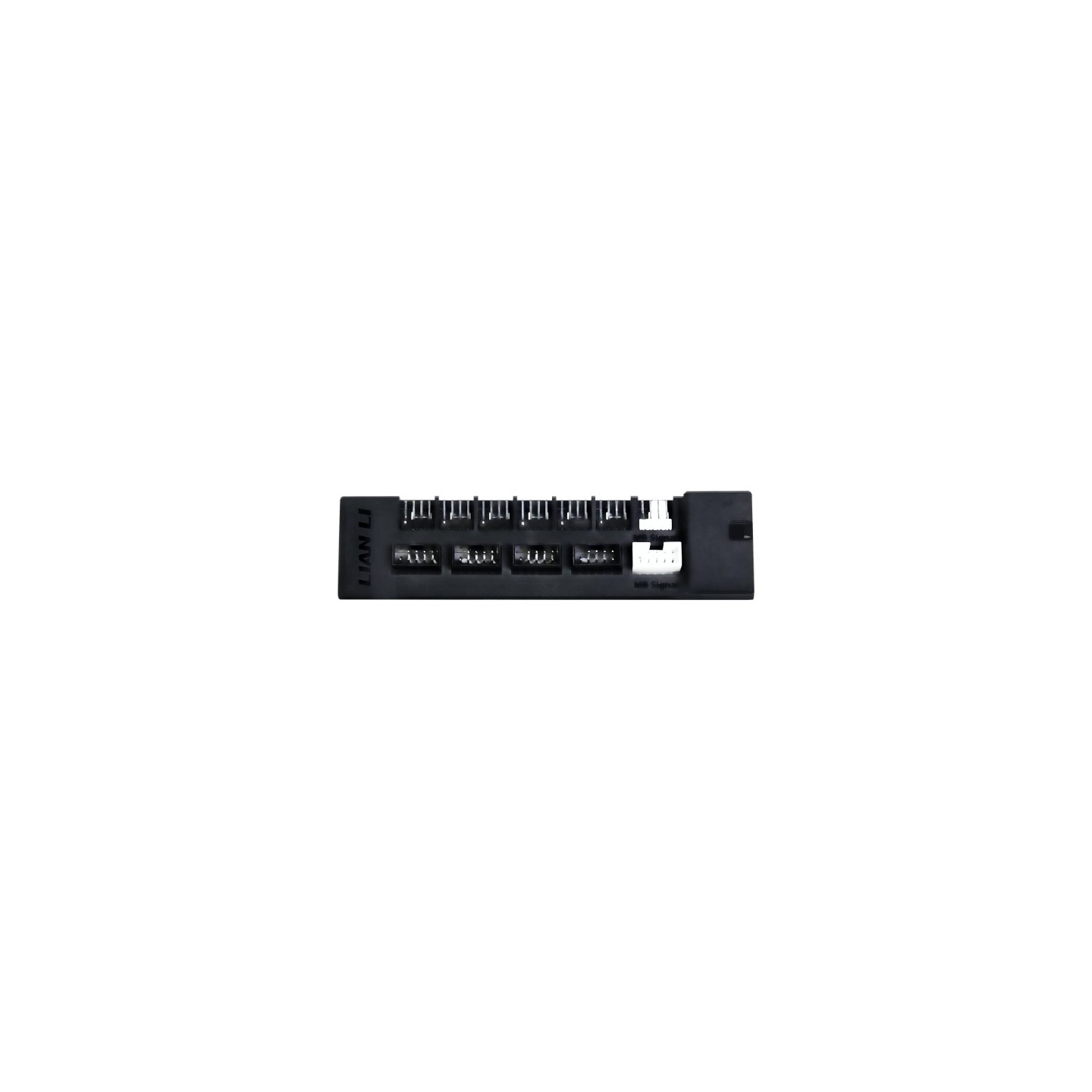

Lian Li EG-HUB01B Black Detachable PSU USB & Fan Hub (Boxed)
Lian Li EG-HUB01B is a detachable PWM fan hub with 6x 4-pin headers (2A each) and USB hub (4 ports, 500mA each, total 2.5A). Powers via PCIe 8-pin from Edge Gold PSU or case. Magnetic mount, ideal for RGB/USB expansion in dual-chamber builds.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Cooling (CPU & Case) - Device Type | Fan Hub Controller |
|---|---|
| Cooling (CPU & Case) - Lightning | None |
| Cooling (CPU & Case) - Connector | 4-Pin PWM |
| Cooling (CPU & Case) - Color | Black |
The Lian Li EG-HUB01B is a versatile detachable hub designed for the Edge Gold PSU series but usable independently. It combines a powerful PWM fan controller with a USB expansion hub, perfect for modern PC builds requiring extra connectivity.
Featuring 6 extended 4-pin PWM fan headers rated at 2A each (total 12A), it supports multiple high-performance fans like UNI FAN series. The USB hub provides 4 headers (500mA per port, total 2.5A), supporting up to 8 downstream connections for RGB controllers, USB devices, and more. Power is supplied via PCIe 8-pin connector, with magnetic mounting for easy case installation.

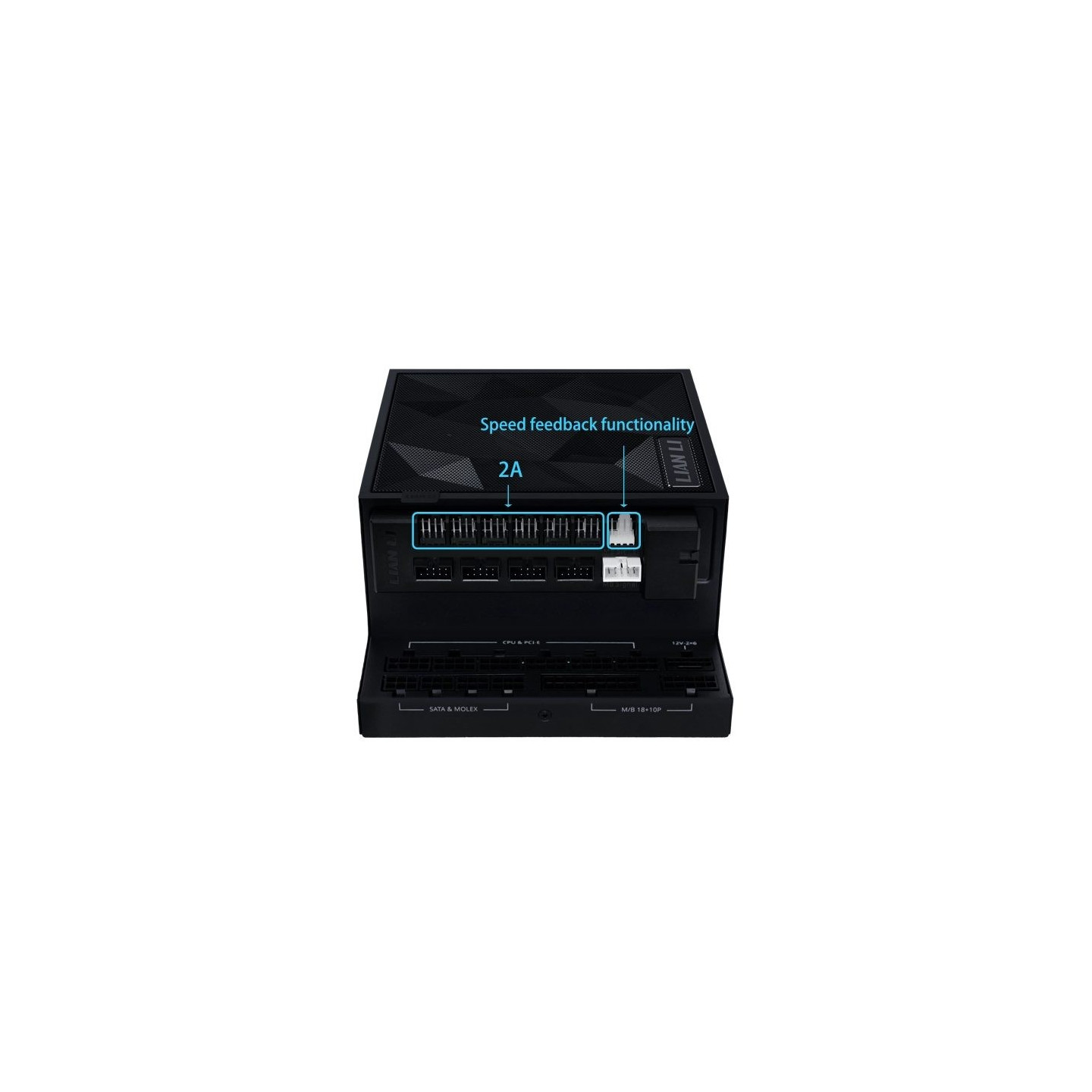

- 6x 4-pin PWM fan headers (2A each) + 1 speed feedback interface

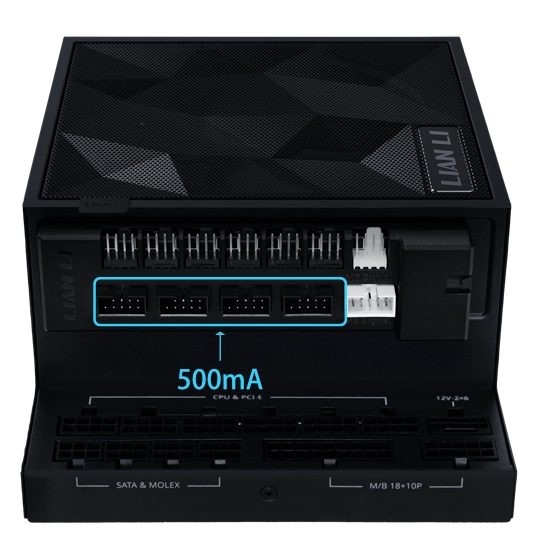

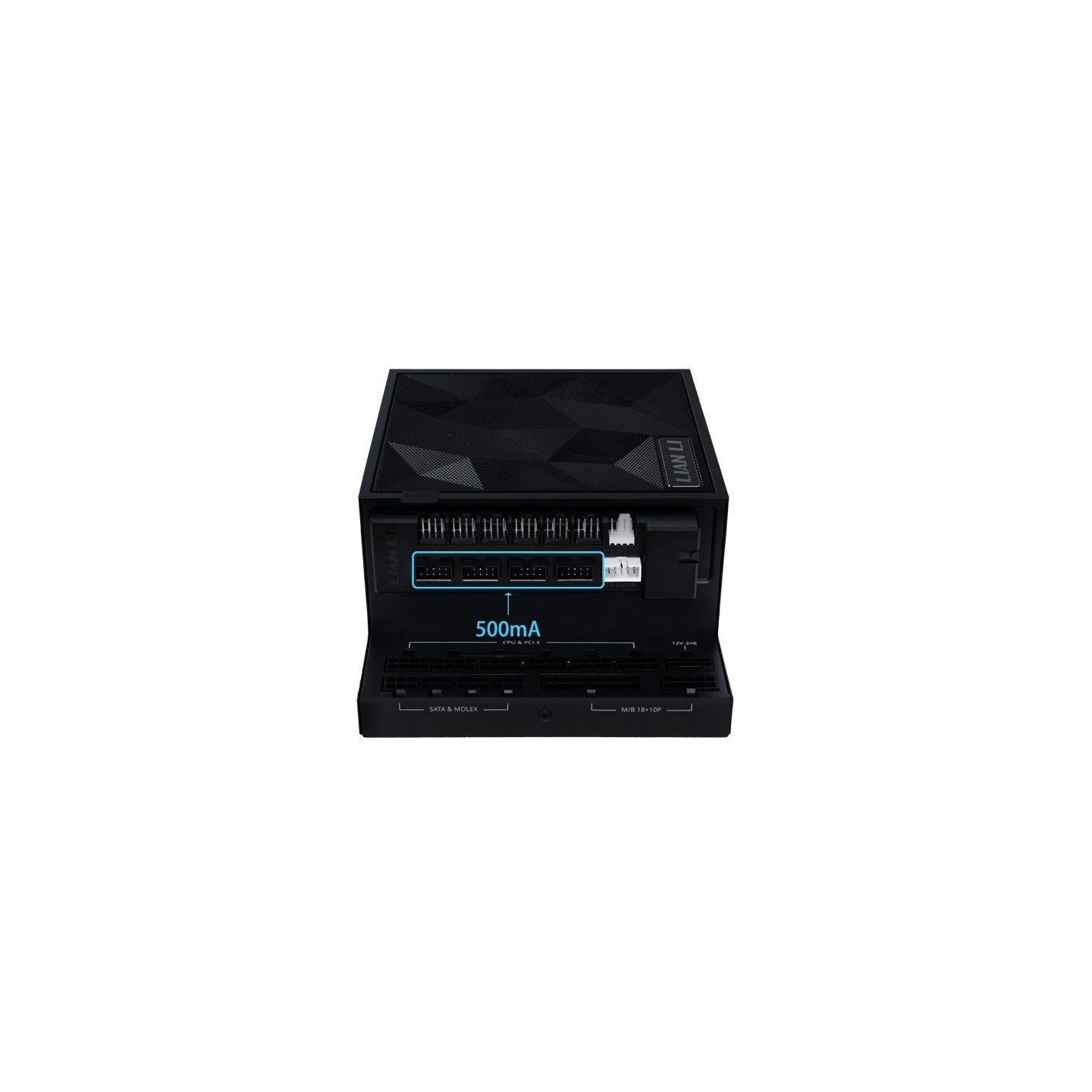

- 4x USB 2.0 headers (500mA each, total 2.5A)
- PCIe 8-pin power input from PSU
- Magnetic attachment for flexible positioning
- Compact size: 132 x 35 x 17 mm
- 2-year warranty
| Model | EG-HUB01B |
| Color | Black |
| Dimensions (L x D x H) | 132 x 35 x 17 mm |
| Fan Headers | 6 x 4-pin PWM, 2A each |
| Fan Input | 12Vdc 12.5A |
| USB Headers | 4 x headers, 500mA each (total 2.5A) |
| USB Input | 5Vdc 2.5A |
| Power Source | PCIe 8-pin (Edge Gold PSU Connector) |
| Speed Feedback | 1 interface |
| Warranty | 2 Years |
