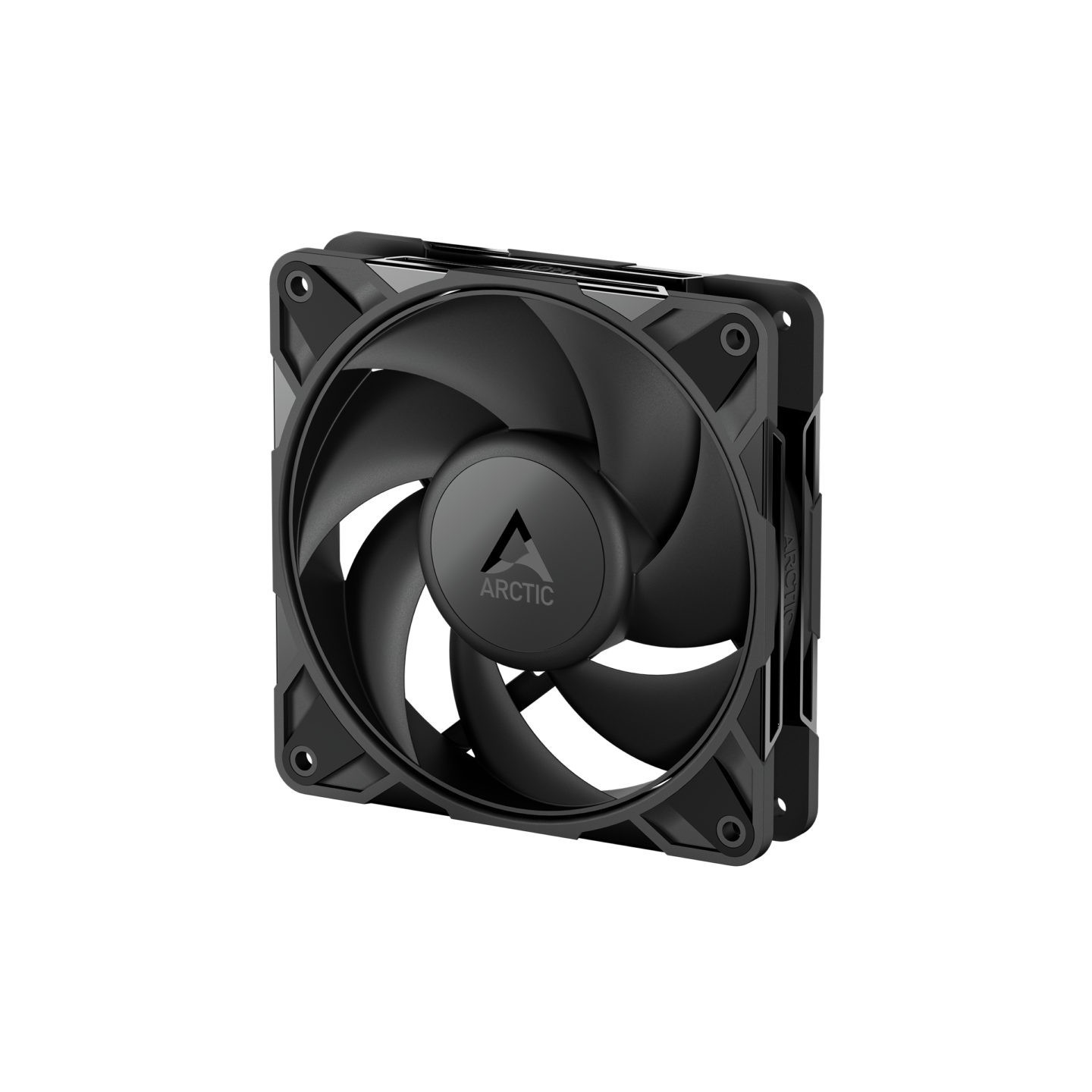

Arctic P12 Pro PST CO 120mm PWM Case Fan 4-Pin up to 3000 RPM Dual Ball (Boxed)
High-static pressure 120mm PWM case fan up to 3000 RPM with Dual Ball Bearing. Features PST daisy-chain, 77 CFM airflow, 6.9 mmH2O pressure for radiators. Quiet at 25 dB(A), 6-year warranty, ideal for 24/7 use.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Cooling (CPU & Case) - Device Type | Case Fan |
|---|---|
| Cooling (CPU & Case) - Fan Size | 120 mm |
| Cooling (CPU & Case) - Lightning | None |
| Cooling (CPU & Case) - Connector | 4-Pin PWM |
| Cooling (CPU & Case) - Color | Black |
| Cooling (CPU & Case) - Special Features | Daisy-Chain Industrial / High Speed Low Noise |
Arctic P12 Pro PST CO - 120mm PWM Pressure Fan with Cable Splitter
Optimized for high static pressure, the P12 Pro PST CO efficiently moves air through restrictive spaces like radiators, mesh filters, and heatsinks. Revised blade design balances high performance with smooth, quiet operation up to 3000 RPM PWM controlled. Dual Ball Bearing ensures durability for continuous 24/7 operation in servers or workstations.

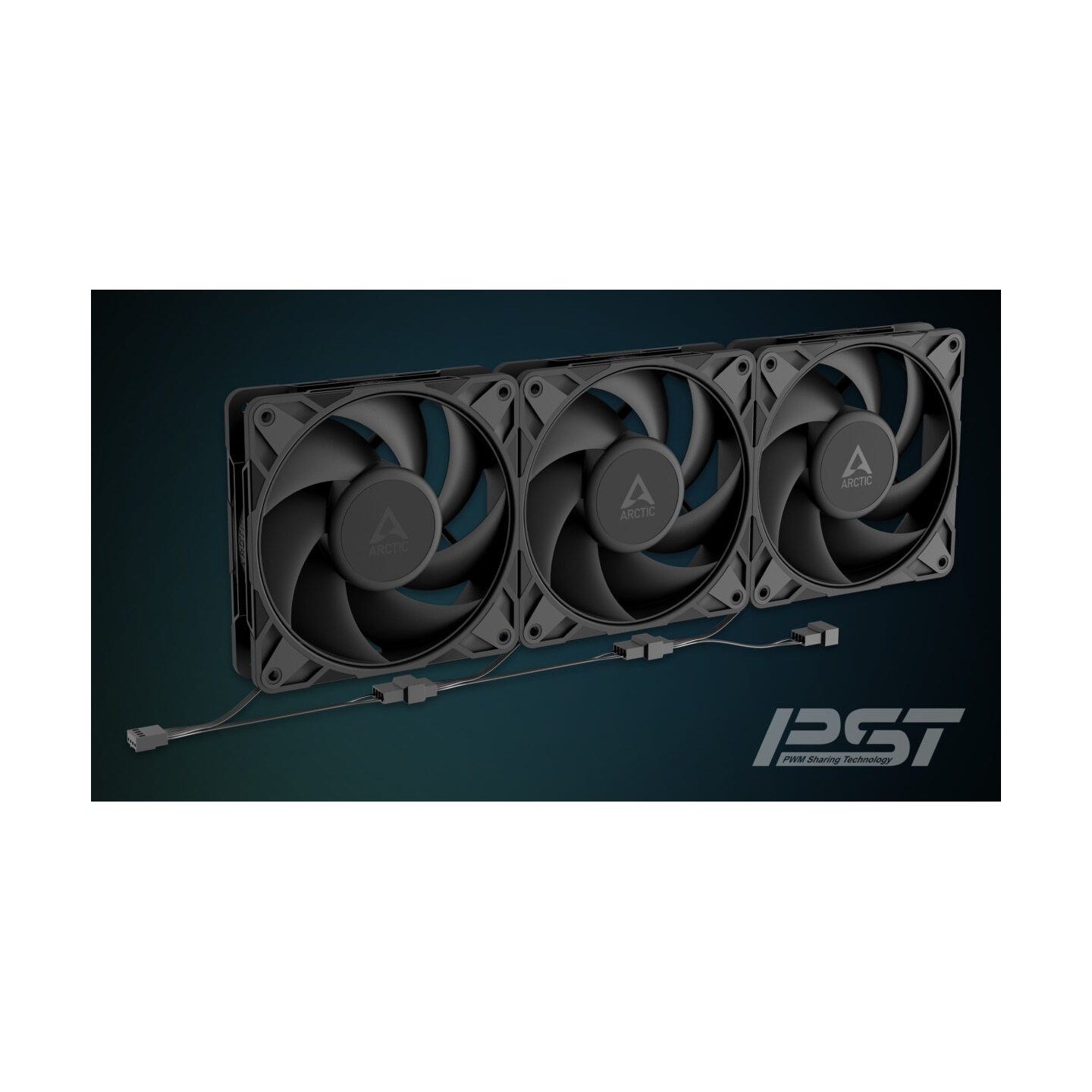

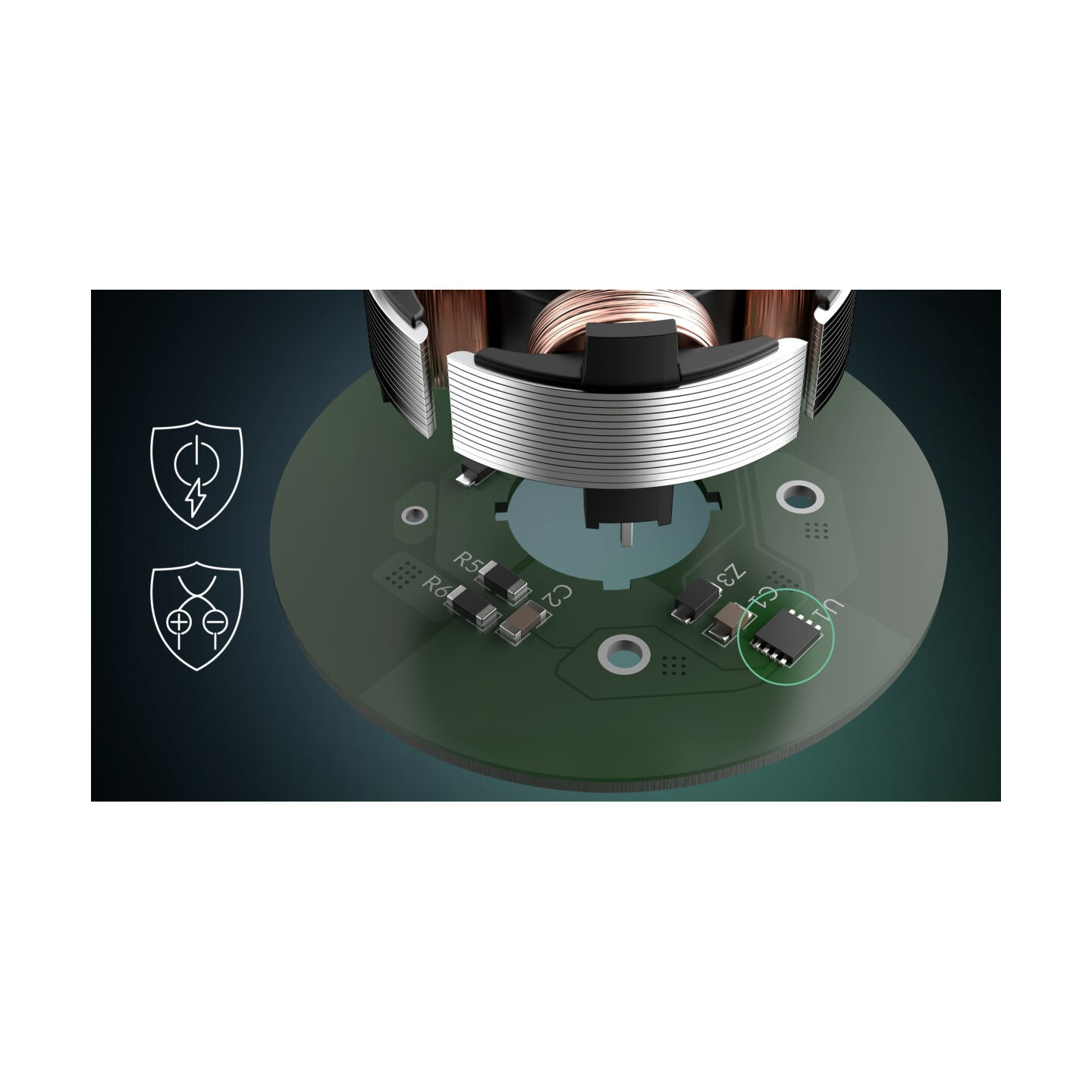

Equipped with PST technology and daisy-chain splitter, connect multiple fans to one header for synchronized control. Advanced SOTA microcontroller reduces motor noise, compensates load fluctuations, and protects against startup currents. Delivers 77 CFM airflow and 6.9 mmH2O pressure at just 25 dB(A) for powerful yet silent cooling.
- Speed: 600-3000 RPM (0 RPM <5% PWM)
- Static Pressure: 6.9 mmH2O
- Airflow: 77 CFM | 131 m³/h
- Bearing: Dual Ball Bearing
- Connector: 4-Pin PWM + Socket
- Warranty: 6 Years
| Warranty | 6 Years |
| Operating Ambient Temperature | 0–40 °C |
| Dimensions | 120 (L) x 120 (W) x 25 (H) mm |
| Net Weight | 185 g |
| Fan Speed | 600–3000 rpm, PWM controlled (0 rpm below 5 % PWM) |
| Airflow | 77 cfm | 131 m³/h |
| Static Pressure | 6.9 mmH₂O |
| Fan Bearing | Dual Ball Bearing |
| Typical Voltage | 12 V DC |
| Start Up Voltage | 3.3 V DC |
| Current | 0.33 A |
| Cable Length | 400 mm + 80 mm Daisy-Chain Cable |
| Connector | 4-Pin Fan Plug + 4-Pin Socket |
| Noise Level | 25 dB(A) |
| Manufacturer Part Number | ACFAN00312A |
