Lian Li Edge Gold EG0750G 750W 80+ Gold Fully Modular ATX PSU - Black (Boxed)
Lian Li Edge Gold 750W PSU features L-shaped design for dual-chamber cases, 80+ Gold efficiency, fully modular cables, 12V-2x6 connector, PWM fan, magnetic dust filter, and 10-year warranty.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 700 - 799 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Gold Cybenetics Gold |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 12V-2x6 3x 8/6 pins |
| PSU (Power Supplies) - Length | 141-160 mm Up to 140 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 2x 4+4pin EPS/ATX12V |

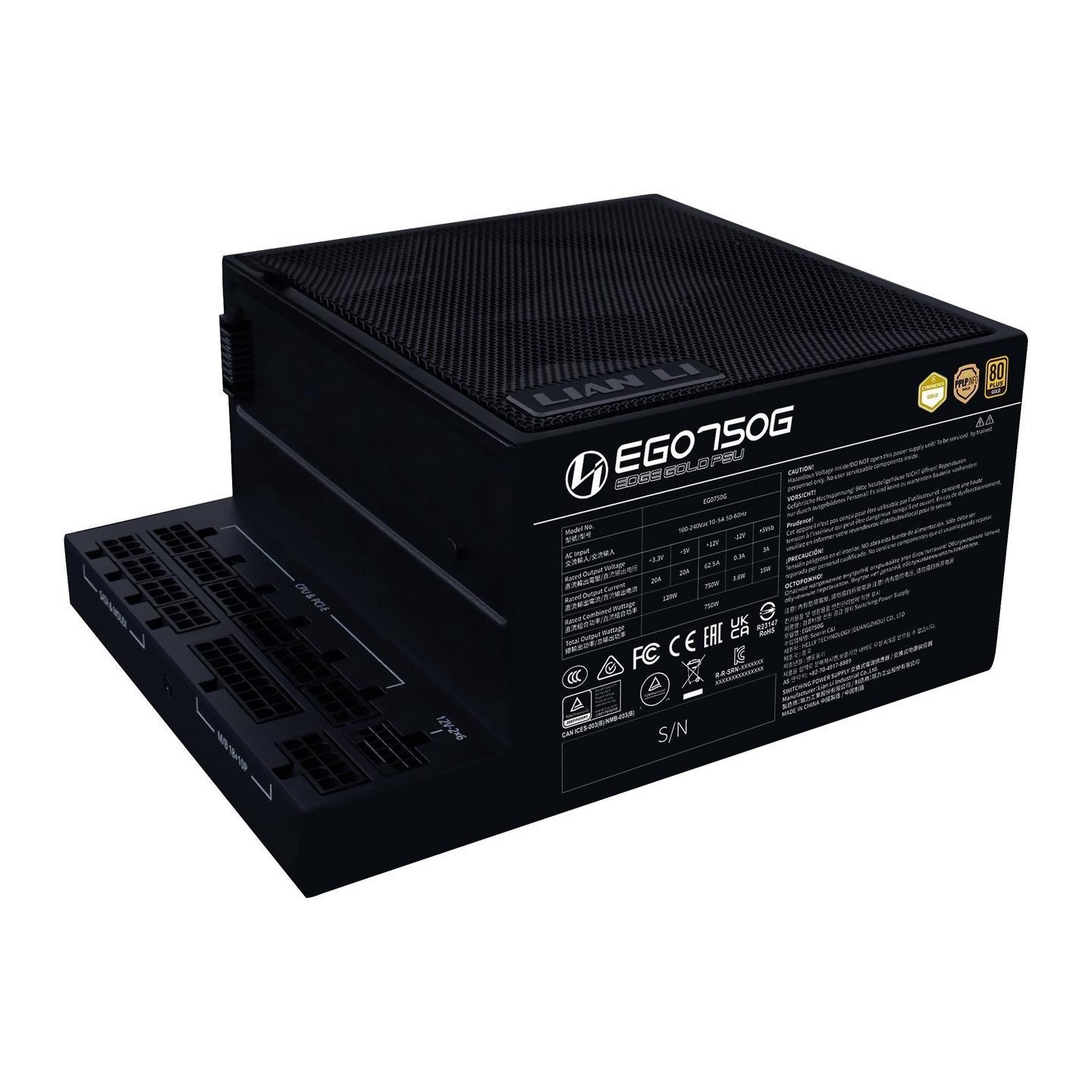

The Lian Li Edge Gold EG0750G is a 750W fully modular ATX power supply with a unique L-shaped design optimized for dual-chamber cases like the O11 series. It offers superior cable management with longer, sleeved modular cables and outward-facing connectors for easy access.

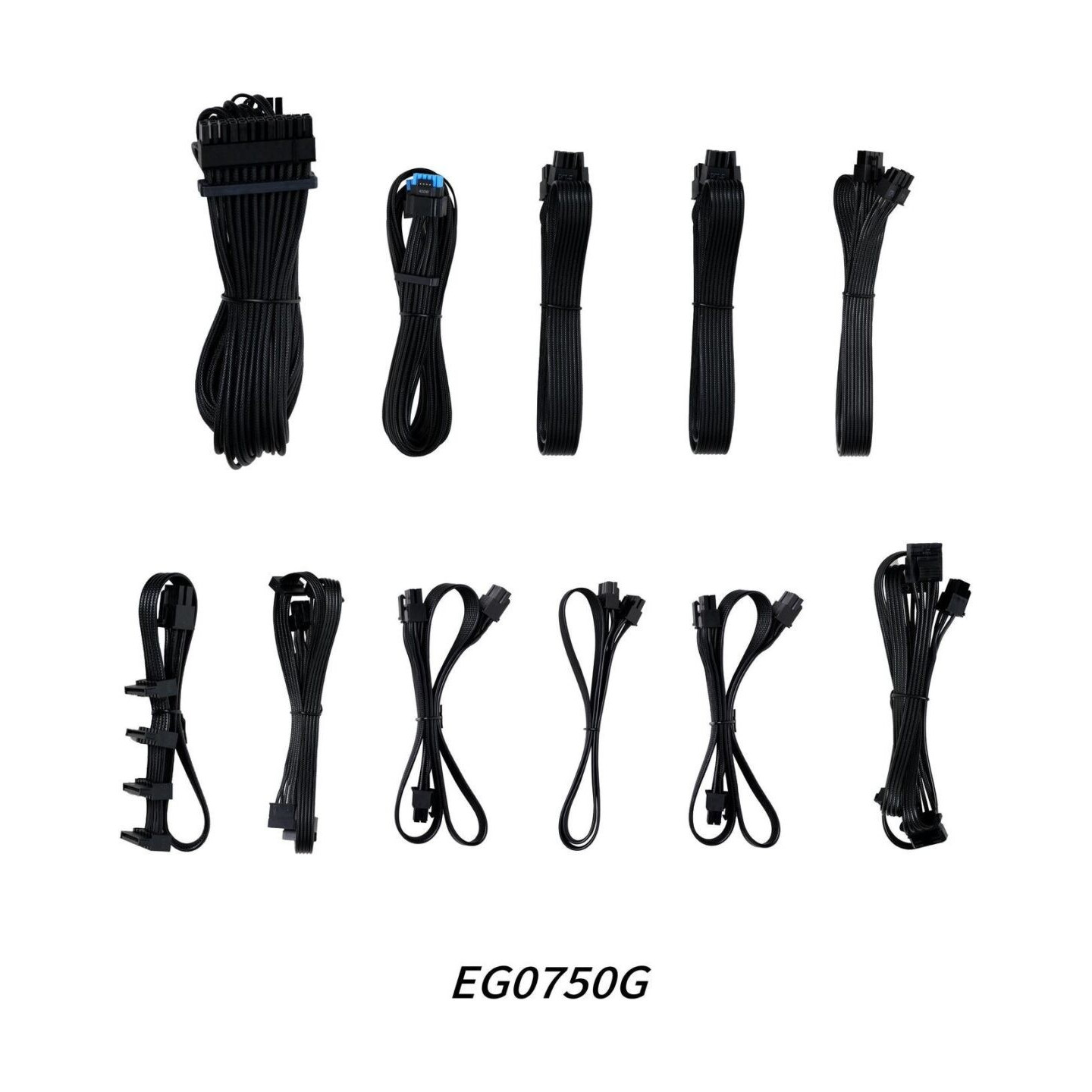

Certified 80 PLUS Gold, Cybenetics Gold, and PPLP Gold, it delivers up to 92% efficiency at half load, reducing heat and energy waste. Equipped with industrial-grade German EPCOS capacitors, a 120mm PWM fan for quiet cooling, and a removable magnetic dust filter for easy maintenance. Includes stable 12V-2x6 PCIe 5.1 connector and braided cables with combs for clean builds.
- Power Output: 750W continuous
- Efficiency: 80+ Gold / Cybenetics Gold
- Connectors: 1x 12V-2x6, 3x 6+2pin PCIe, 2x 4+4pin EPS
- Fan: 120mm PWM with magnetic filter
- Warranty: 10 years
- Form Factor: ATX, L-shaped, 140mm length
| Model | EG0750G |
| Power Output | 750W Continuous |
| Form Factor | ATX L-Shaped |
| Efficiency | 80 PLUS Gold, Cybenetics Gold, PPLP Gold |
| Fan | 120mm PWM |
| Modularity | Fully Modular |
| Main Power | 1x 20+4 pin |
| CPU/EPS | 2x 4+4 pin |
| PCIe 5.1 | 1x 12V-2x6 (600W) |
| PCIe 6+2 pin | 3x |
| SATA | 8x |
| Peripheral 4-pin | 4x |
| Length | 140mm |
| Capacitors | German EPCOS Industrial Grade |
| Warranty | 10 Years |
| Dimensions (Unit) | 140 x 150 x 86 mm |
| Weight (Unit) | 1.6 kg |
