Lian Li DAN A3-mATX Wood Edition - Micro-ATX Tower, All Mesh - A3X-WD (Boxed)
Compact 26.3L Micro-ATX tower with walnut wood front panel, all-mesh sides/top, tool-free modular design. Supports 415mm GPU, 165mm CPU cooler, 360mm AIO, flexible PSU mounting. Steel/wood build for high-airflow SFF builds.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PC Cases - Motherboard Support | Micro ATX Mini ITX |
|---|---|
| PC Cases - Radiator Support | 240 mm 280 mm 360 mm |
| PC Cases - Included Fans | 0 |
| PC Cases - Front I/O | Audio Jacks USB A USB C |
| PC Cases - GPU Orientation | Horizontal |
| PC Cases - Form Factor | Small Form Factor |
| PC Cases - Max GPU Length | 401–450 mm |
| PC Cases - Color | Wood Accent |
| PC Cases - CPU Cooler Clearance | 151-165 mm |
Compact 26.3L Design, Massive Capabilities

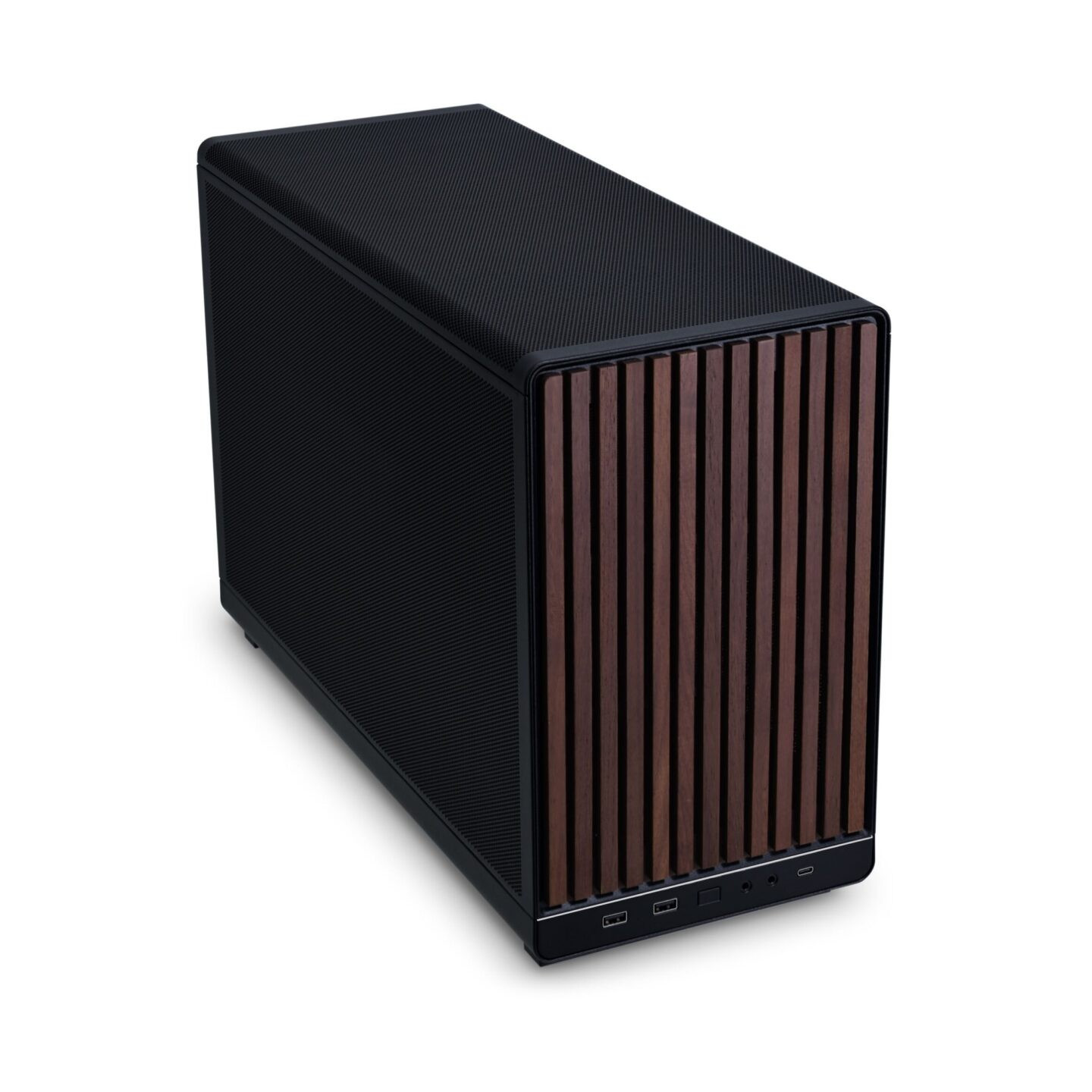

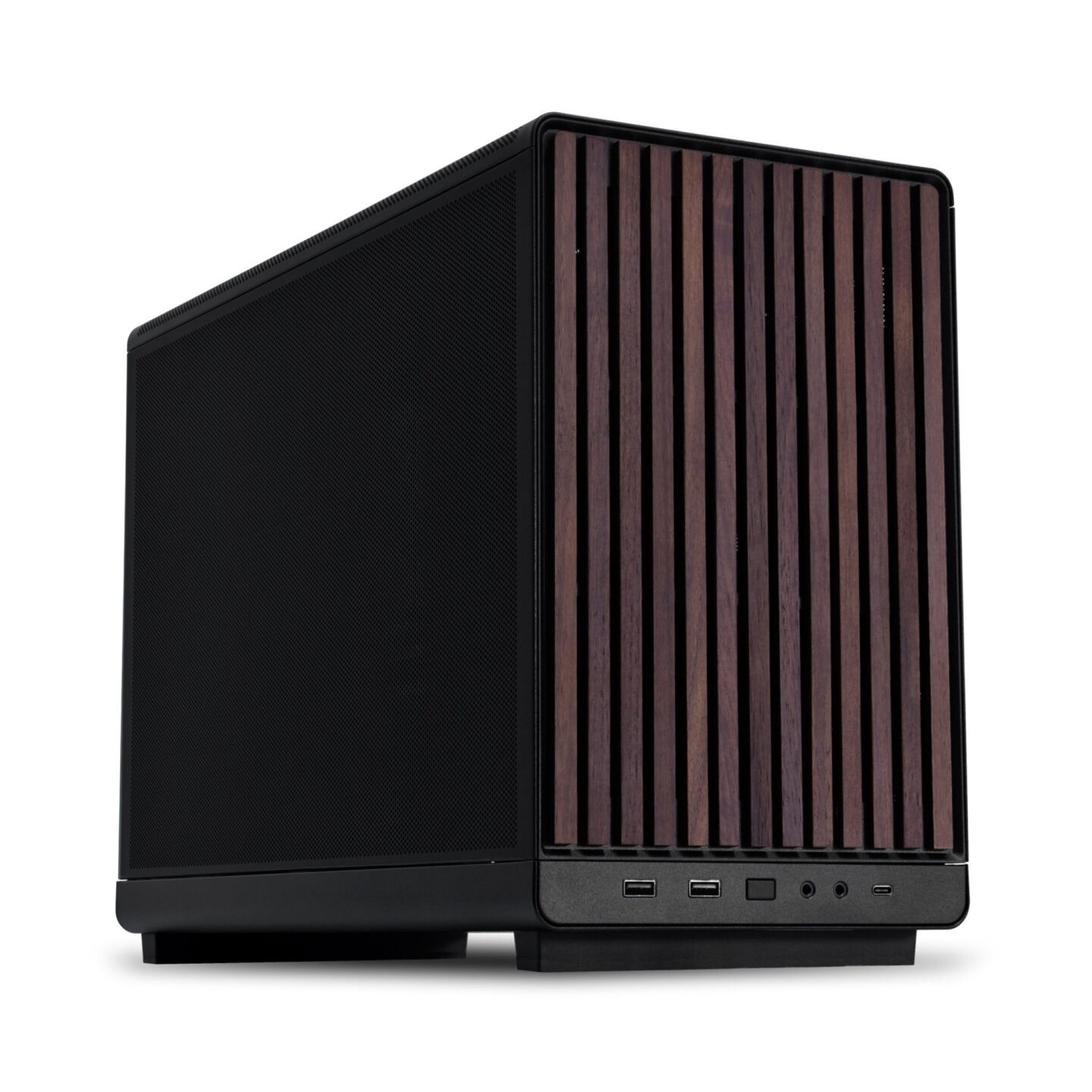

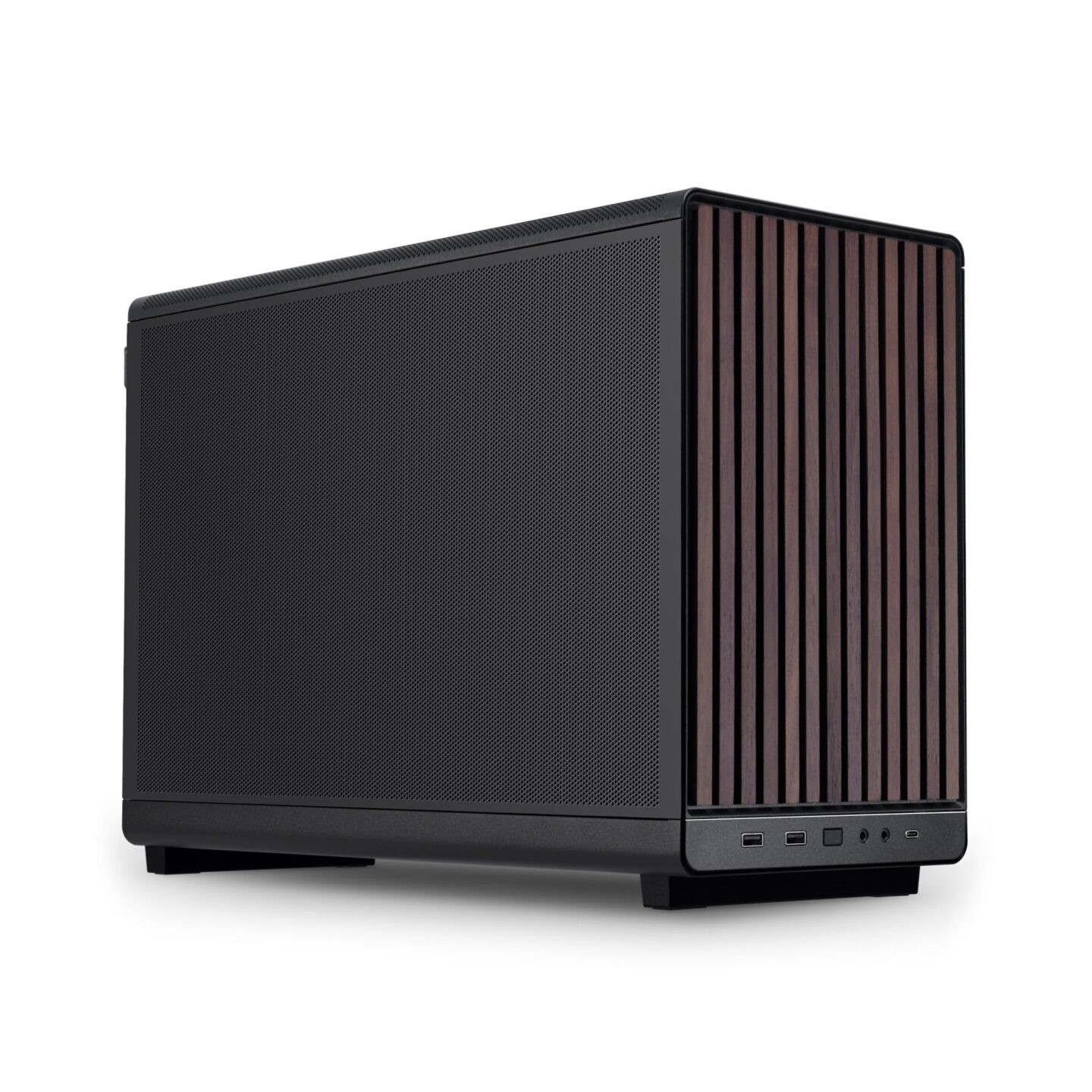

Dive into compact builds with the Lian Li DAN A3-mATX Wood Edition, unlocking small form factor potential for high-performance PCs. Featuring a premium walnut wood front panel with precision-cut slats for natural style and optimized airflow.
High-Airflow Minimalist Design

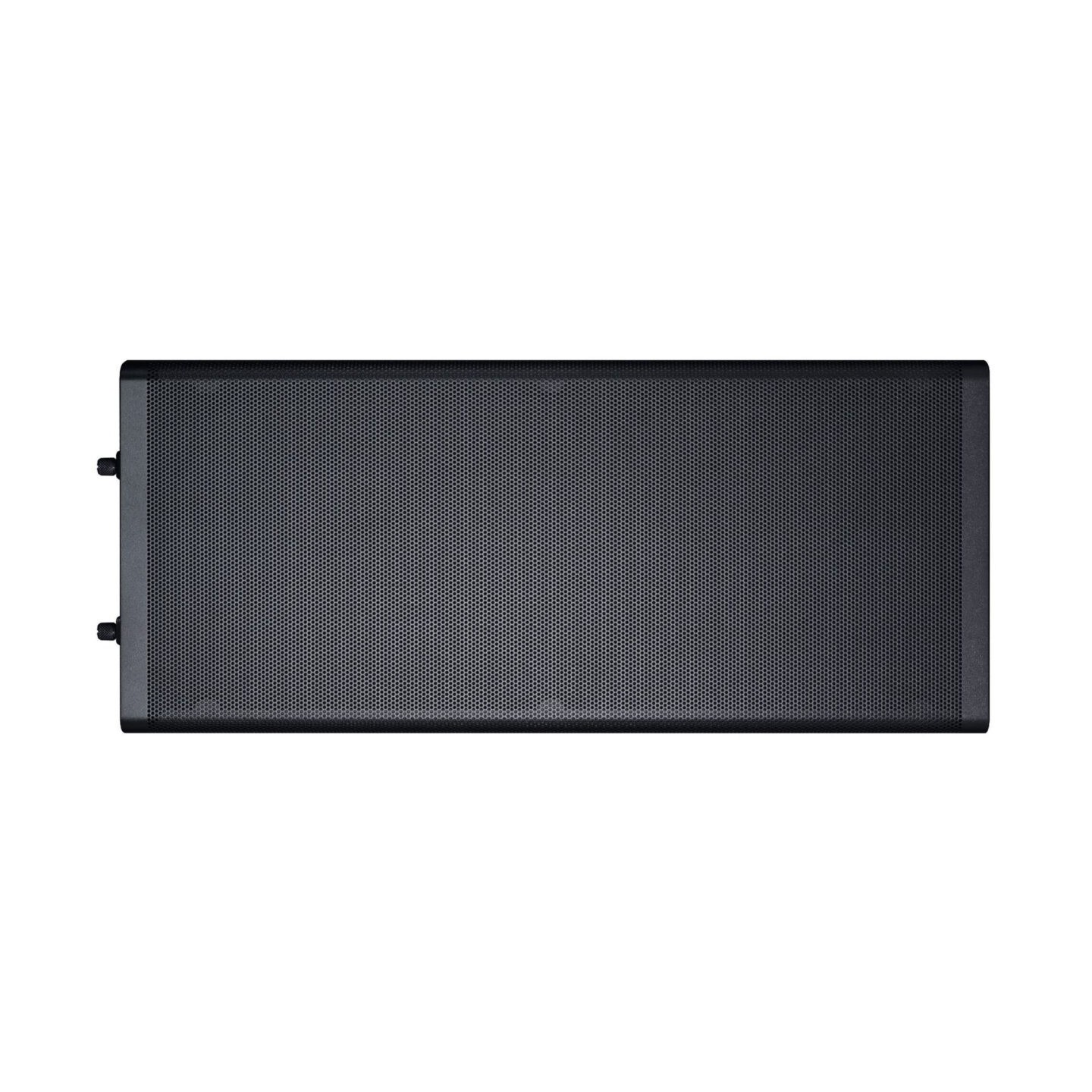

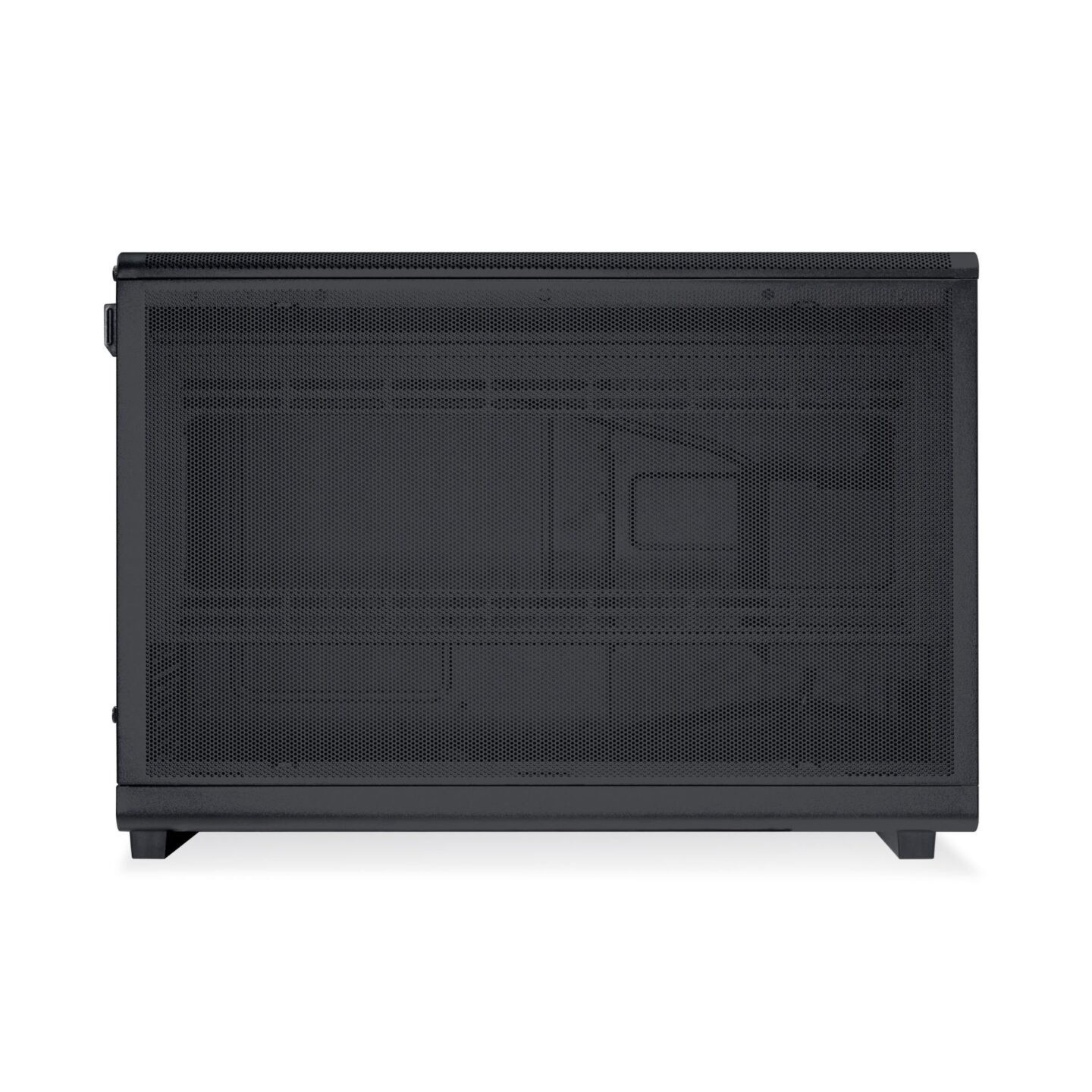

Three mesh panels (top, side, rear) combine with the open wood front for excellent ventilation. Tool-free removable panels and modular PSU brackets enable easy access, cable management, and dust-filtered bottom intake for clean, efficient cooling.
Flexible Compatibility
- CPU cooler max height: 165mm
- GPU max length: 415mm (4-slot thick; 3-slot with bottom fans)
- AIO radiator: 360mm top/side

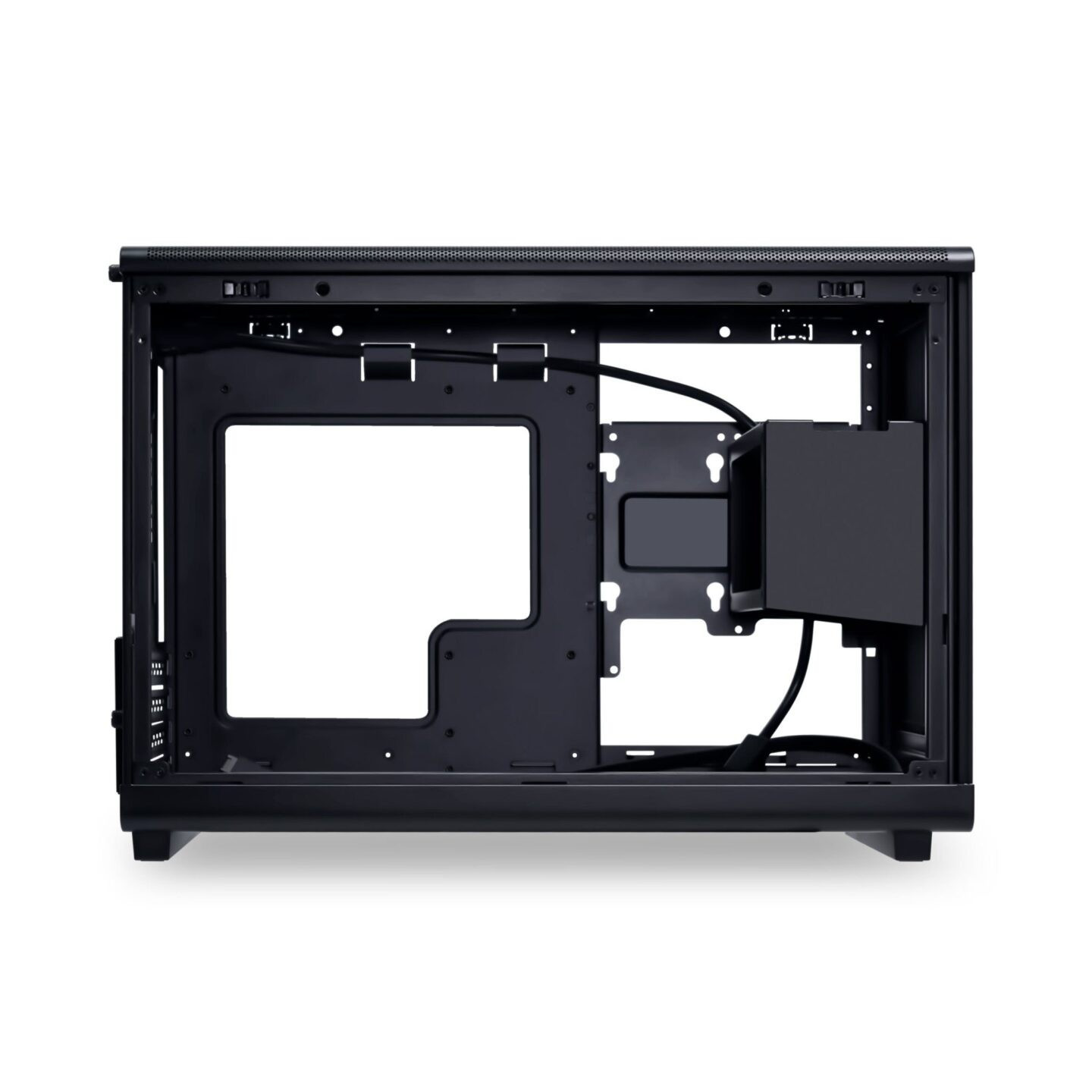

- PSU: ATX/SFX/SFX-L up to 220mm (front/side mounting)
- Motherboard: Micro-ATX / ITX
- Drives: 2x 2.5" SSD + 1x 2.5"/3.5"

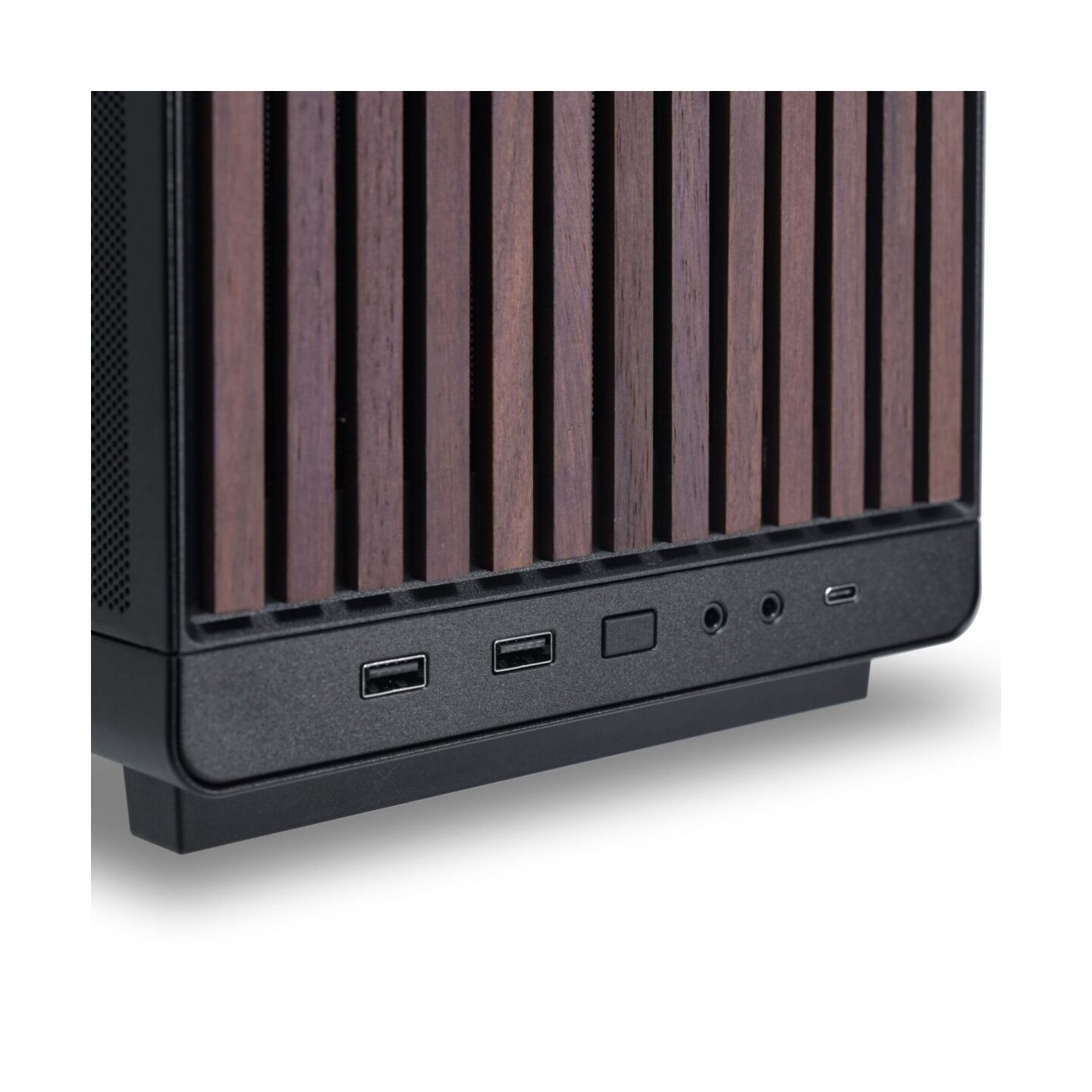

- I/O: Power btn, 2x USB 3.0-A, 1x USB-C, Audio/Mic
| Case Type | Micro-ATX Tower (MFF) |
| Dimensions | (D) 443mm x (W) 194mm x (H) 321.5mm |
| Dimensions w/o feet | (D) 443mm x (W) 194mm x (H) 306mm |
| Capacity | 26.3L |
| Material | Steel / Wood |
| Motherboard Support | M-ATX / ITX |
| PSU Support | ATX / SFX / SFX-L (Max 220mm) |
| Fan Support | Top: 3x120mm; Side: 3x120/2x140mm; Bottom: 3x120mm; Rear: 1x120mm |
| Radiator Support | Top: 360/240mm; Side: 360/280/240mm; Bottom: 240mm |
| Drive Support | 2x 2.5 |
| GPU Length Clearance | Max 415mm |
| CPU Height Clearance | Max 165mm |
| Expansion Slots | 4 |
| I/O Ports | 1x Power Button; 2x USB 3.0 Type-A; 1x USB 3.1 Type-C; 1x Mic; 1x HD Audio |
| Dust Filter | Bottom |
| Included Fans | 0 |
| Front Panel | Walnut Wood Slats |
| Weight (unboxed) | 5kg |
