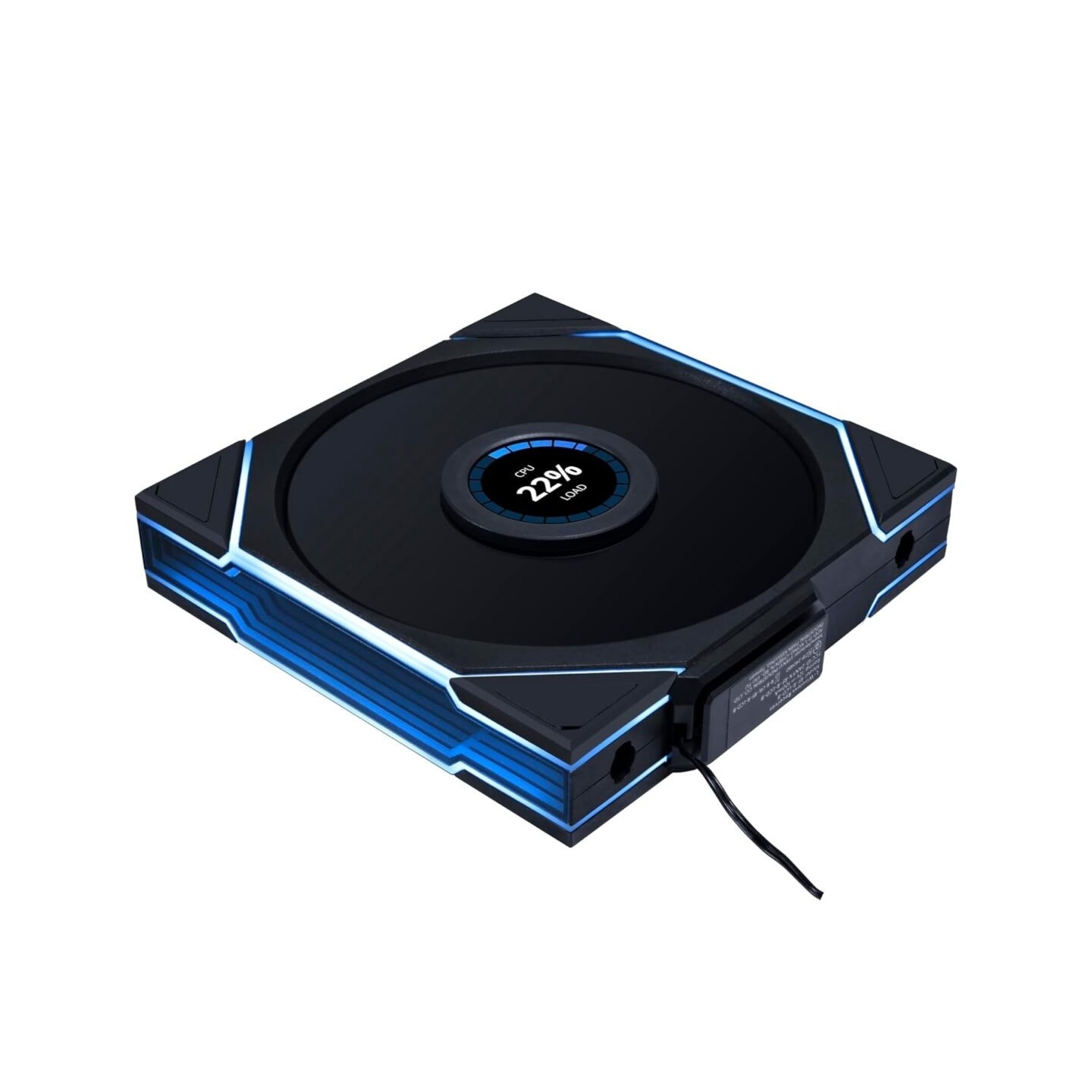

Lian Li UNI FAN TL LCD Wireless Reverse Blade 140 Black - 14RTLLCD1W1B (Boxed)
Wireless 140mm UNI FAN TL LCD Reverse Blade (Black). Daisy-chain up to 4 fans, 2.4GHz L-Wireless control for speed/RGB. 350-1600RPM, 68.1CFM, 3.1mmH2O, 29.4dBA. 1.6in IPS LCD, infinity mirror RGB. No controller incl.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Cooling (CPU & Case) - Device Type | Case Fan |
|---|---|
| Cooling (CPU & Case) - Fan Size | 140 mm |
| Cooling (CPU & Case) - Lightning | LCD Display RGB |
| Cooling (CPU & Case) - Connector | 4-Pin PWM Proprietary |
| Cooling (CPU & Case) - Color | Black |
| Cooling (CPU & Case) - Special Features | Cableless Daisy-Chain Low Noise Reverse Blade |
Eliminate Cable Clutter

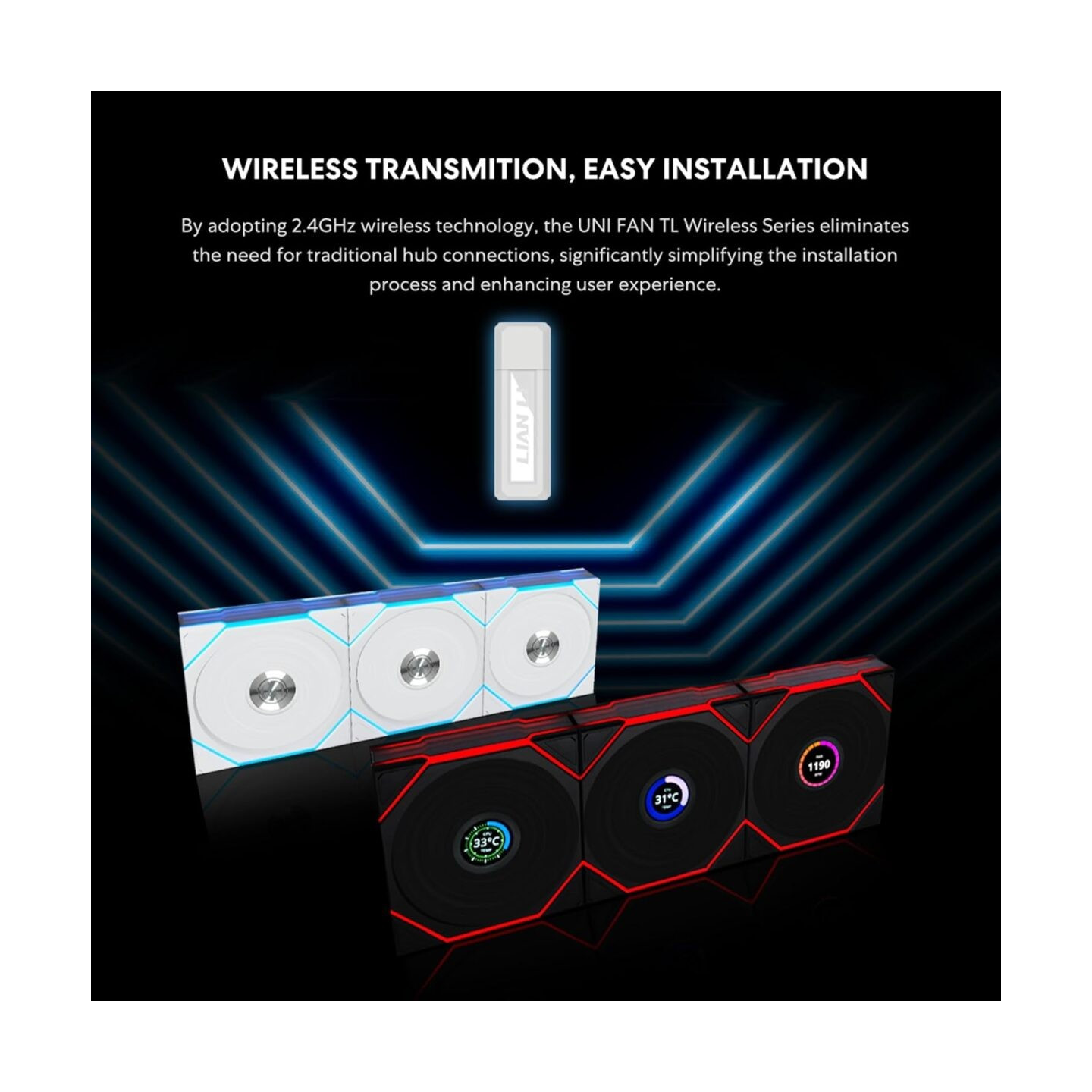

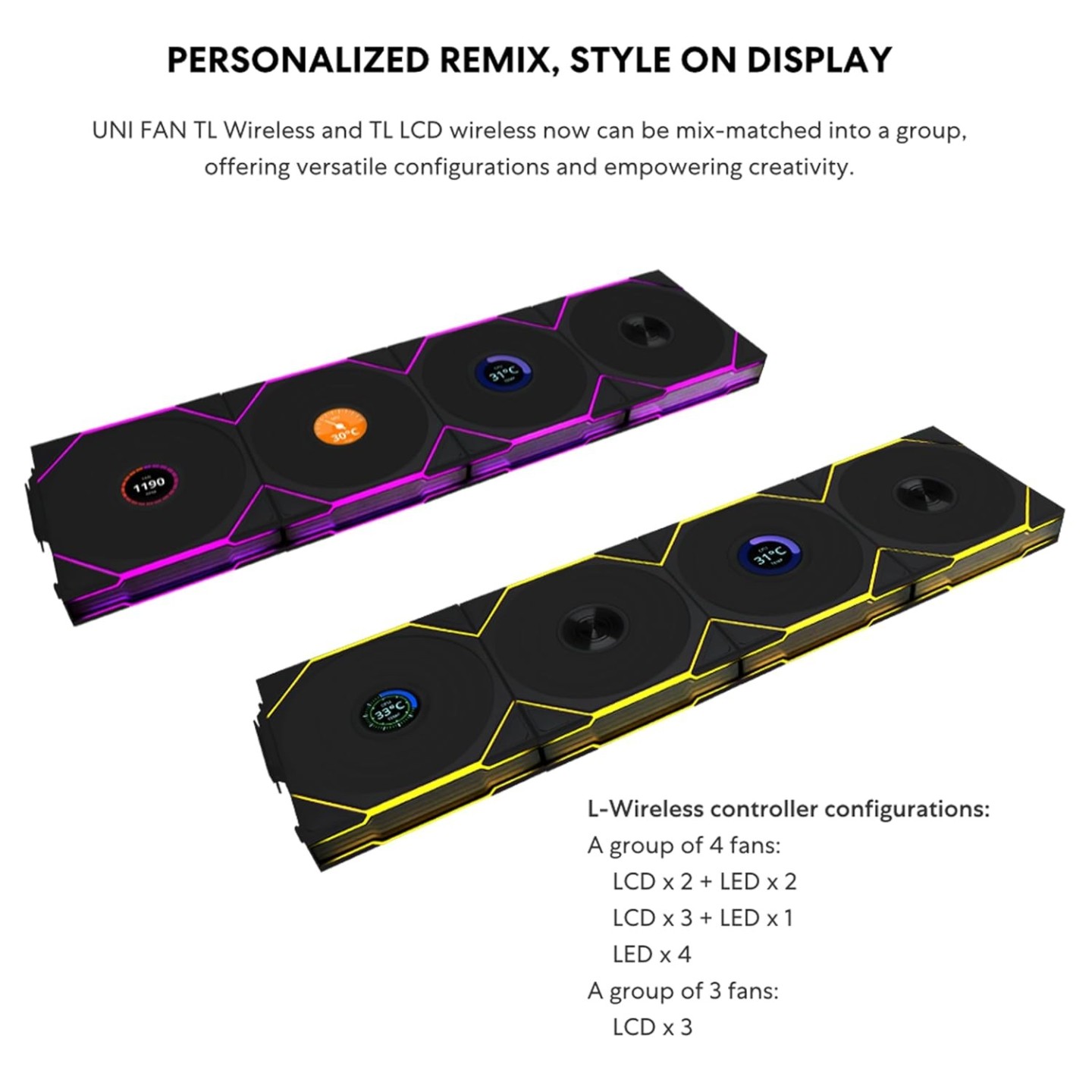

The Lian Li UNI FAN TL LCD Wireless Reverse 140mm features innovative 2.4GHz wireless control via L-Wireless hub for fan speed and RGB lighting. Daisy-chain up to 4 fans (mix LED/LCD) using proprietary connectors, requiring just one cable. Controlled via USB header or external port using L-Connect 3 software.
Superior Cooling Performance
Reverse blade design with Fluid Dynamic Bearing spins at 350-1600 RPM, delivering 68.1 CFM airflow and 3.1 mmH2O pressure at max 29.4 dBA noise. Rubber pads reduce vibrations for whisper-quiet operation.
Stylish Design

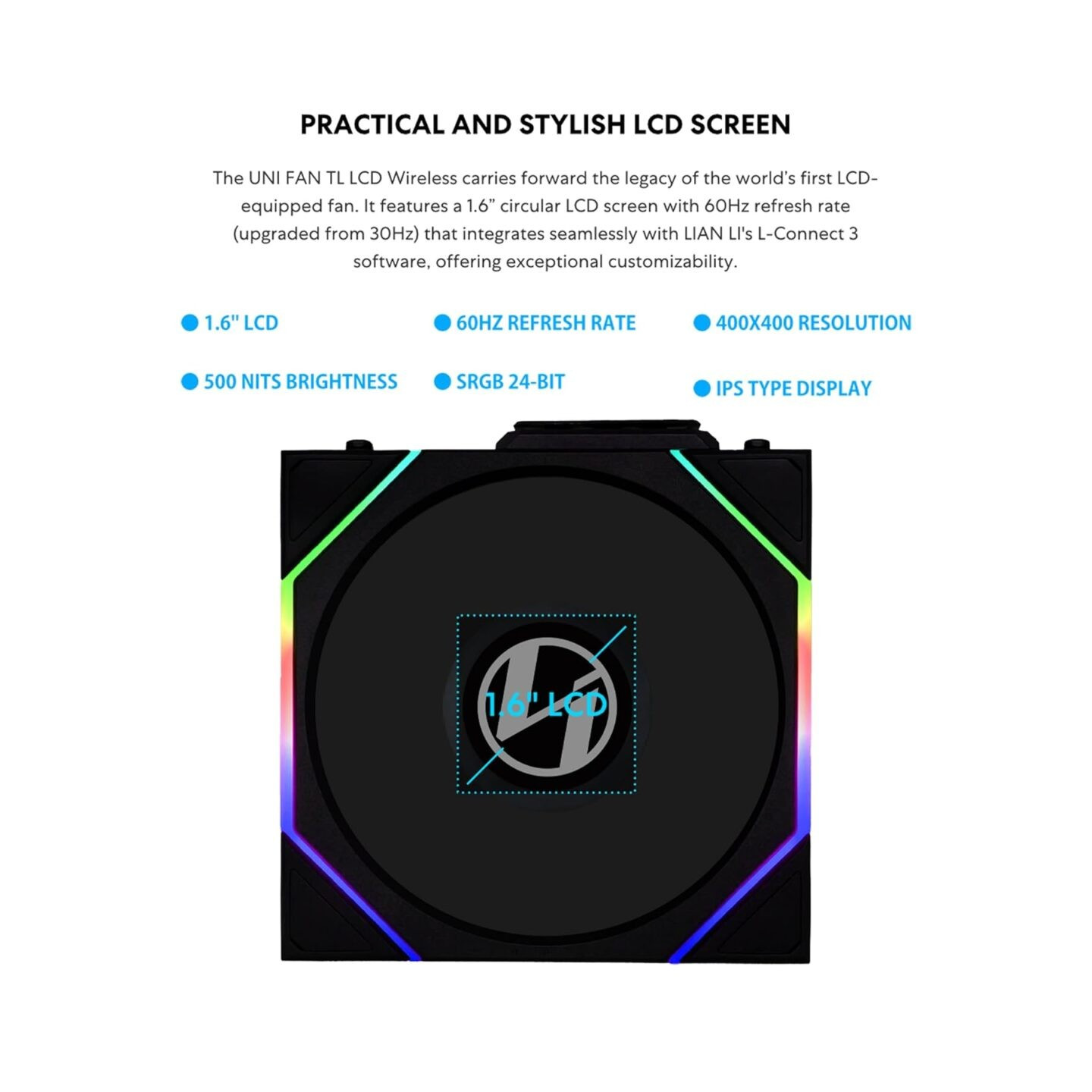

Infinity mirrors on both sides with 26 RGB LEDs and dual-zone lighting. Central 1.6" IPS LCD (400x400, 500 nits, 60Hz, 24-bit sRGB) displays system info, images, GIFs, or videos. Customize via L-Connect 3.
- Single fan pack, controller sold separately
- Model: 14RTLLCD1W1B (Black)
- Dimensions: 142 x 140 x 28 mm
- Connector: 4-PIN PWM + 9-PIN USB
- 3-Year Warranty
| Model | 14RTLLCD1W1B |
| Color | Black |
| Number of Fans | 1 |
| Controller Included | No |
| Fan Dimension | 142 x 140 x 28 mm |
| Fan Speed | 0, 350~1600 RPM |
| Max Air Pressure | 3.1 mmH2O |
| Max Airflow | 68.1 CFM |
| Acoustic Noise | 29.4 dBA (Maximum) |
| Input Power | 6.72W |
| Material | PA66 PBT |
| Bearing Type | Fluid Dynamic Bearing (FDB) |
| Operate Voltage | DC12V & 5V |
| Connector Type | 4-PIN PWM + 9-PIN USB x1 |
| LCD Screen | 1.6 inch IPS, 400x400, 60Hz, 500 nits, 24-bit sRGB |
| Warranty | 3 years |
