Lian Li DAN Case A3-mATX White Wood - Micro-ATX Small Form Factor PC Case
Compact 26.3L micro-ATX PC case with full mesh panels, wood front accent, tool-free access, and flexible cooling support for high-performance builds in minimal space.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PC Cases - Motherboard Support | Micro ATX Mini ITX |
|---|---|
| PC Cases - Radiator Support | 360 mm |
| PC Cases - Included Fans | 0 |
| PC Cases - Front I/O | Audio Jacks USB A USB C Gen2 |
| PC Cases - GPU Orientation | Horizontal Vertical Supported |
| PC Cases - Form Factor | Small Form Factor |
| PC Cases - Max GPU Length | 401–450 mm |
| PC Cases - Color | White Wood Accent |
| PC Cases - CPU Cooler Clearance | 151-165 mm |

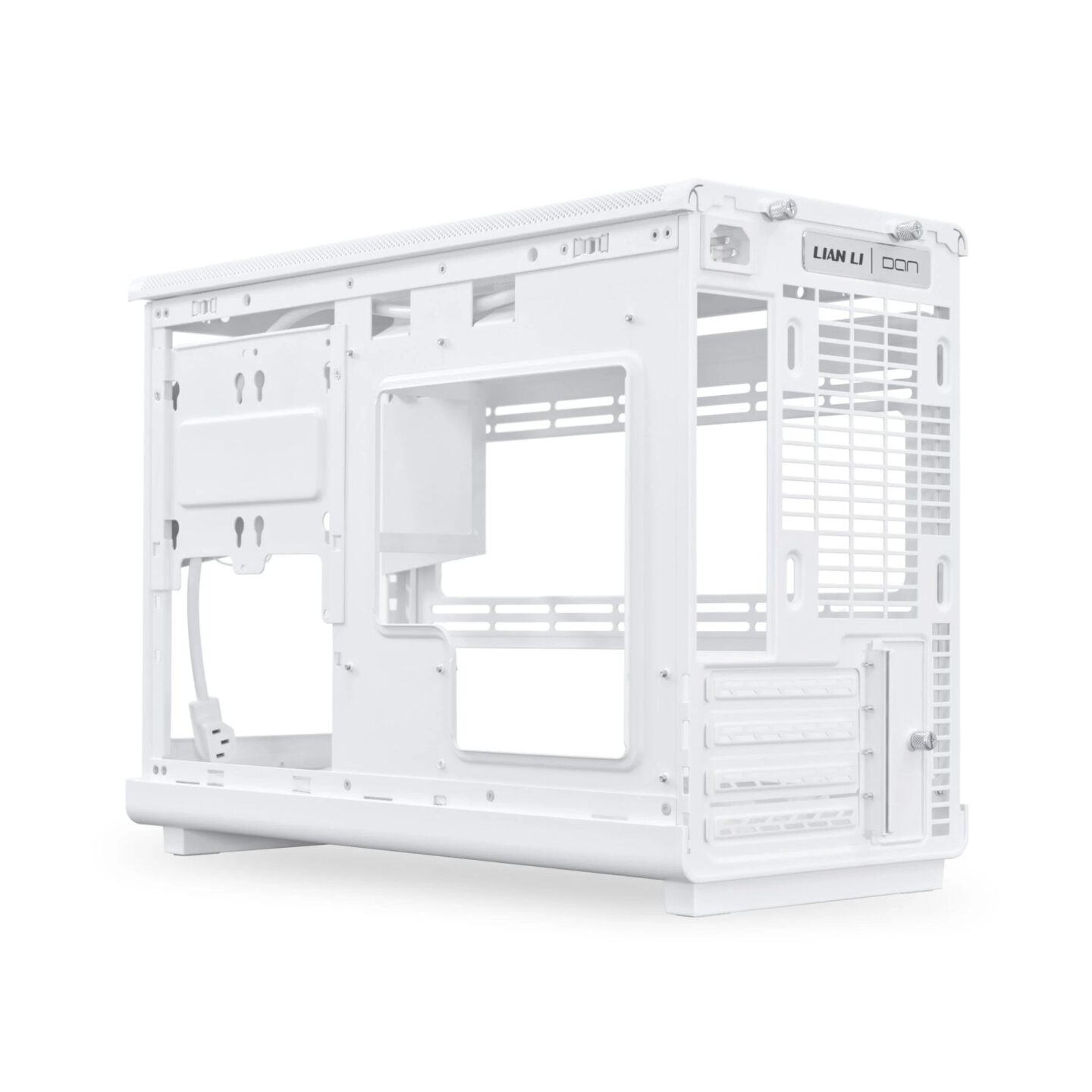

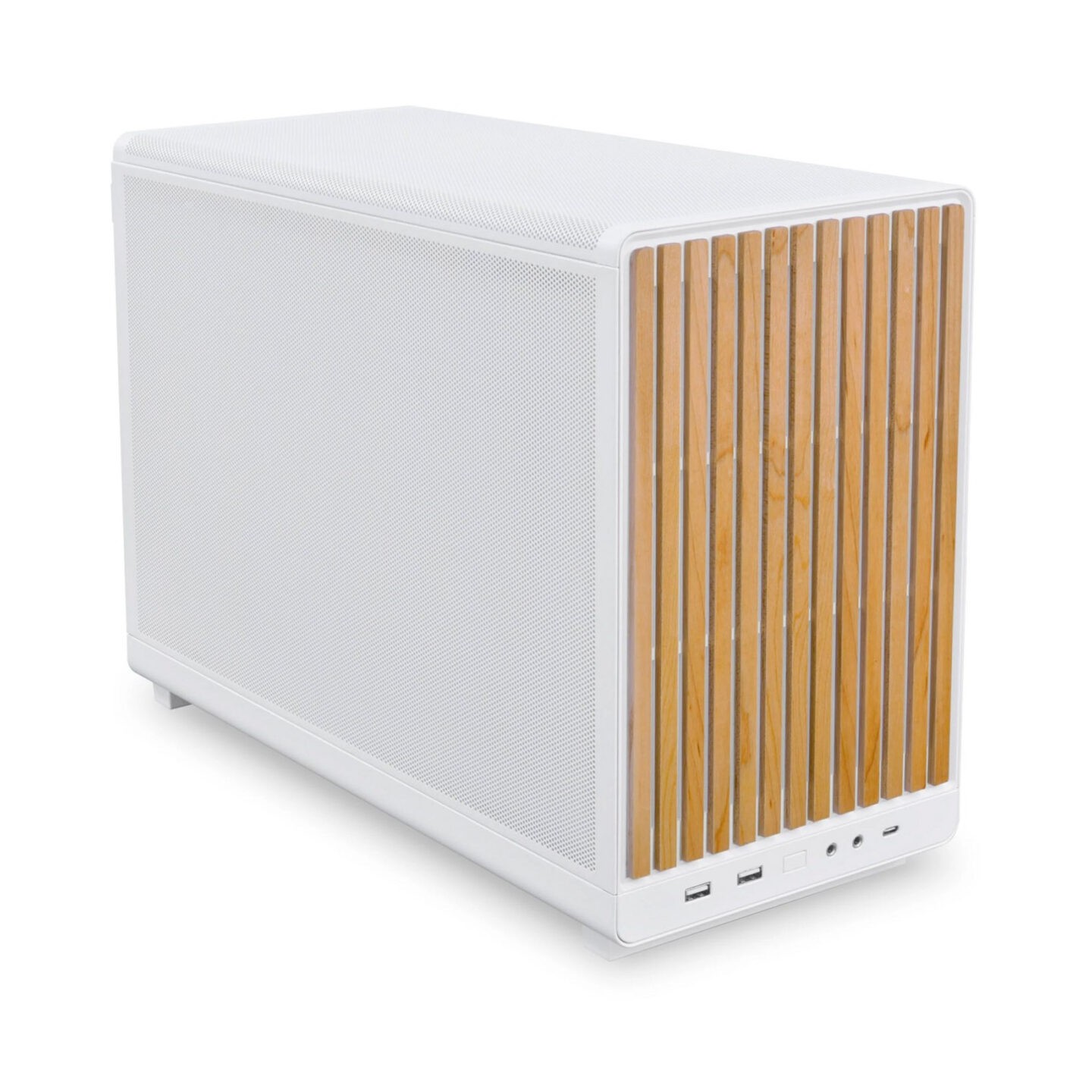

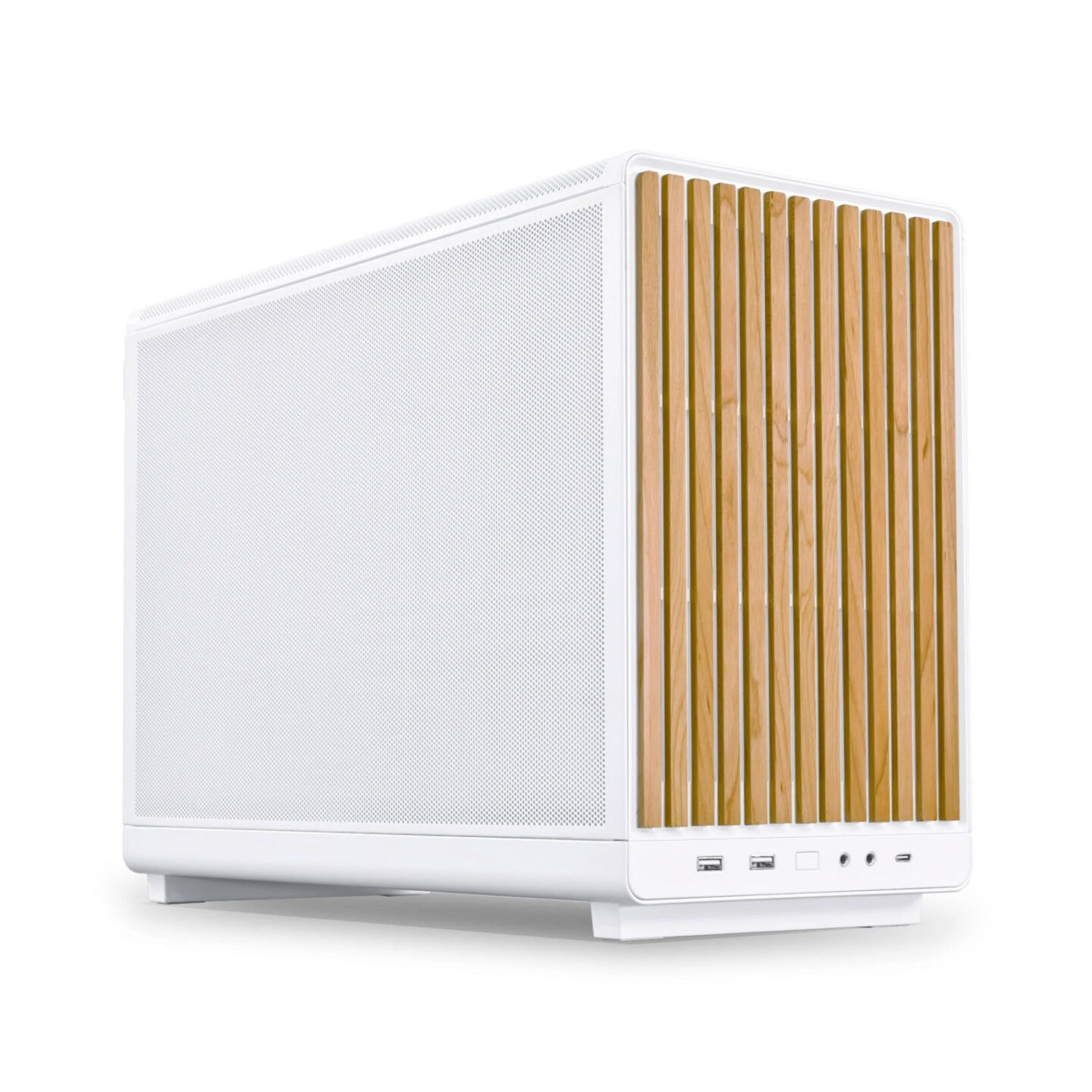

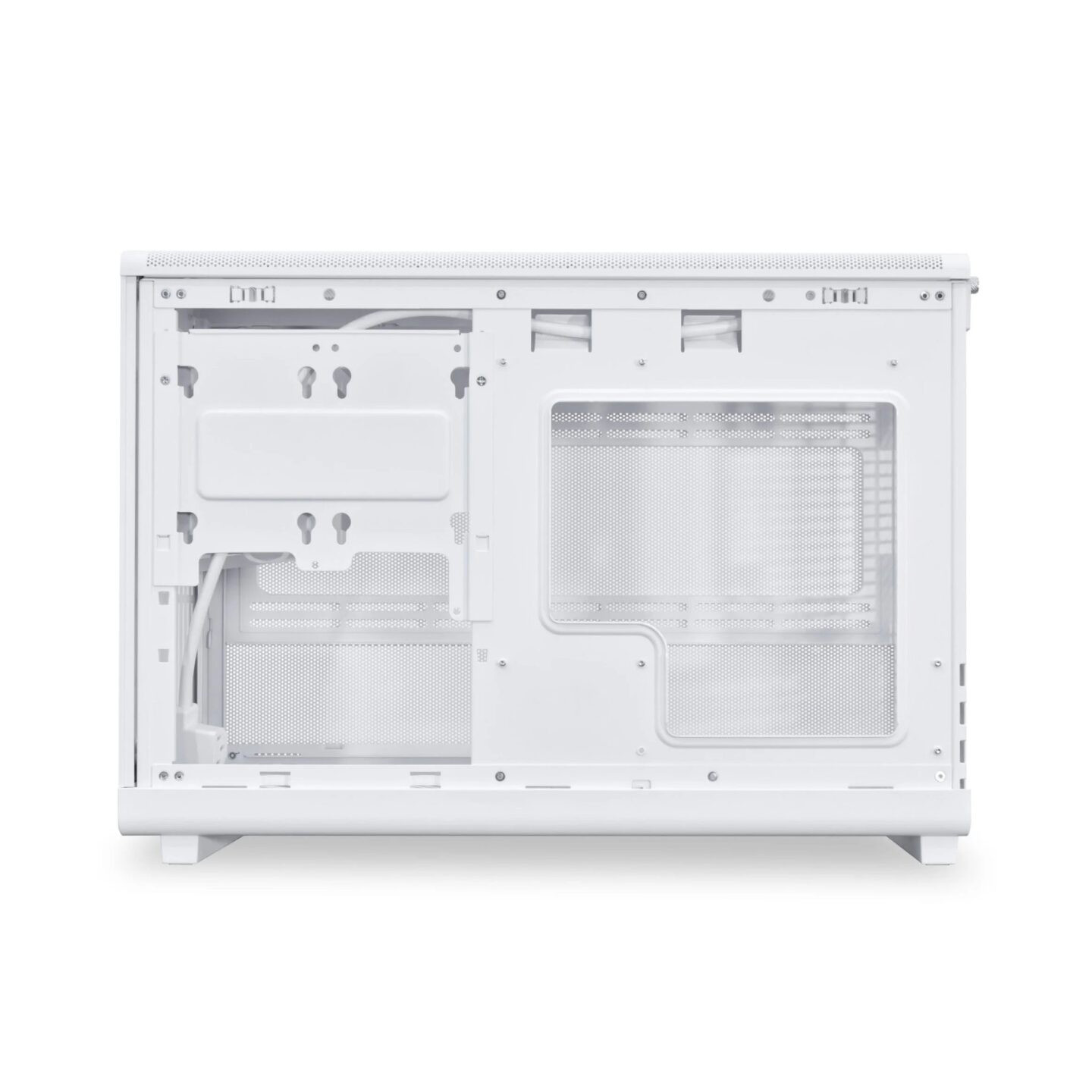

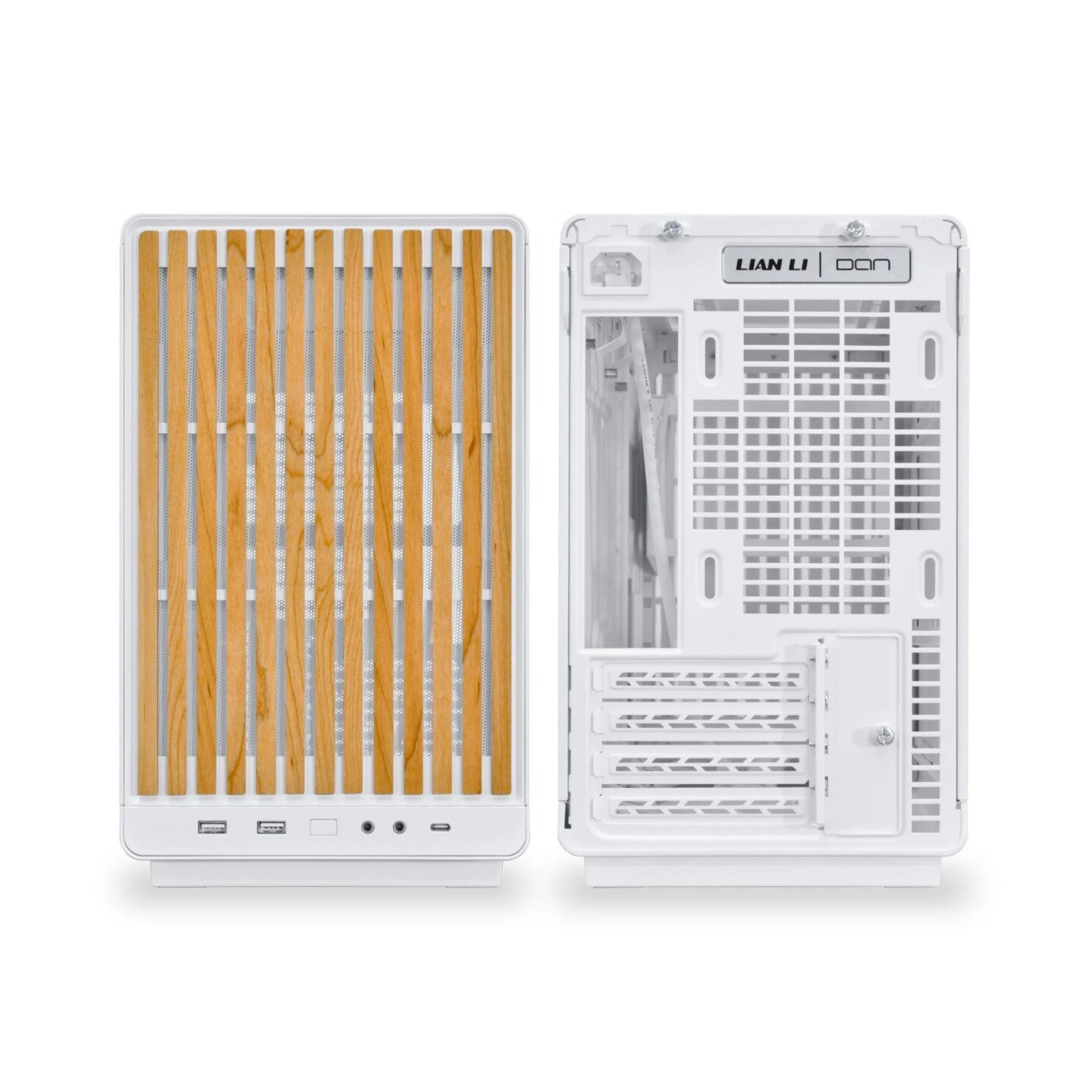

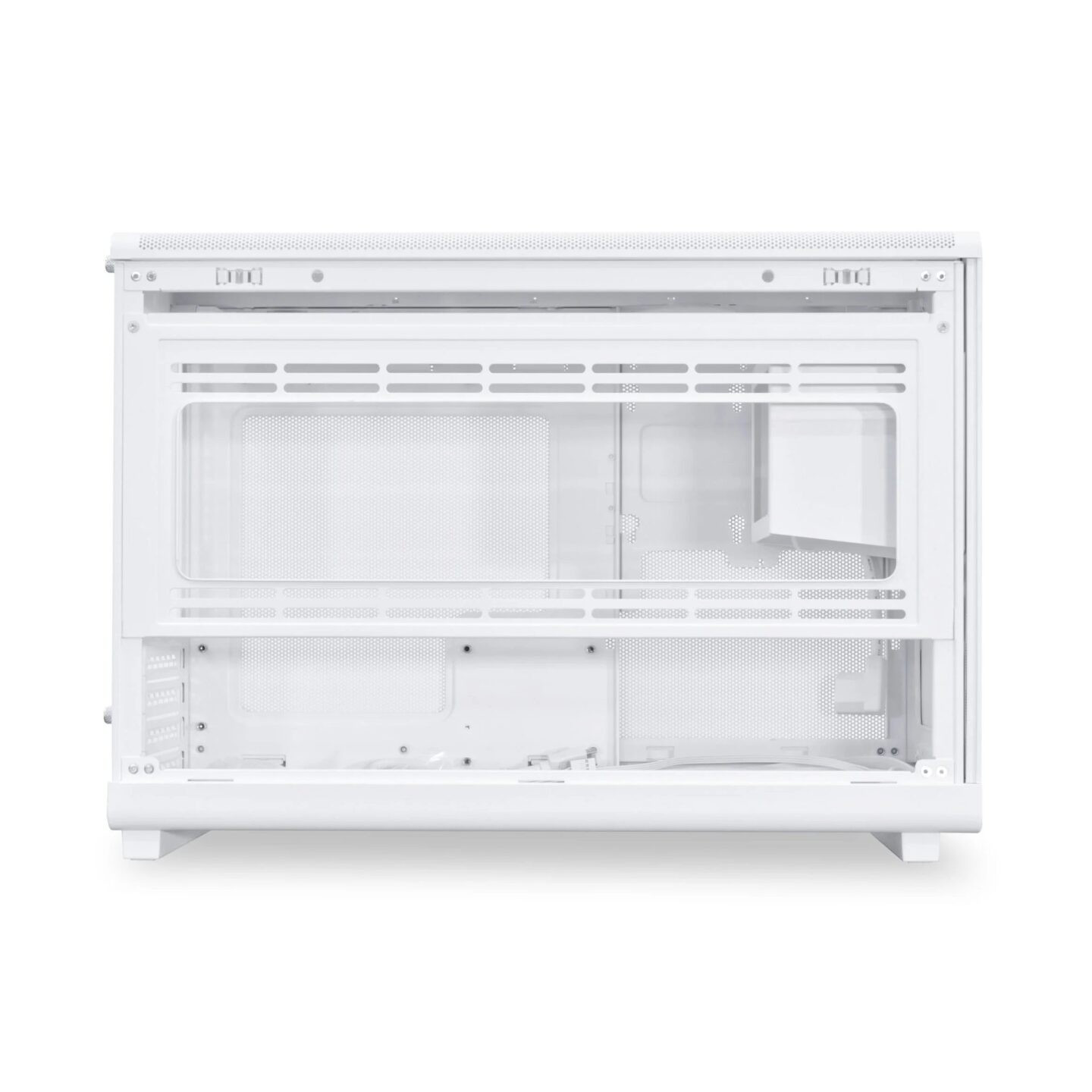

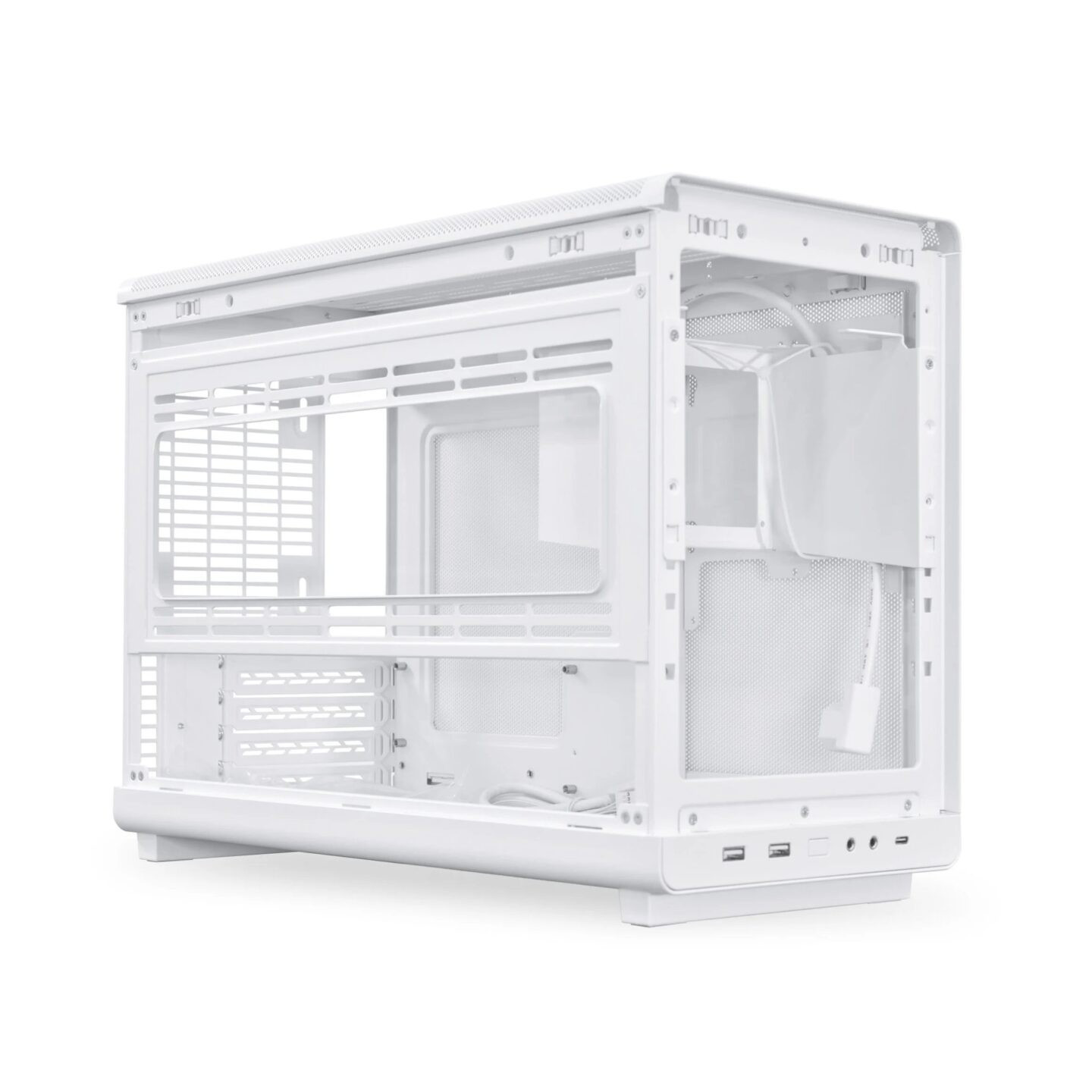

The Lian Li DAN Case A3-mATX is a compact 26.3-liter micro form factor PC case that combines minimalist design with powerful component compatibility. Featuring three sides of high-airflow steel mesh panels and an elegant walnut wood front panel, this case delivers both functionality and aesthetic appeal for modern desk setups. Developed through collaboration between Lian Li and DAN Cases designer Daniel Hansen, the A3-mATX unlocks the potential of small form factor computing without compromising on performance.
The case supports M-ATX and Mini-ITX motherboards with 4 PCI expansion slots, accommodating components typically found in mid-tower builds. It features flexible PSU mounting with support for ATX, SFX, and SFX-L power supplies up to 220mm in length, with two positioning options (front or side) and five mounting points for layout customization. The case supports CPU coolers up to 165mm in height and graphics cards up to 415mm in length (4-slot thick), with optional vertical GPU mounting available. Cooling capacity includes support for 360mm radiators on top or side, 280mm/240mm options, and 240mm bottom mounting (360mm with bottom fan placement).
Tool-free removal of all external panels and modular brackets enables easy installation and cable management. A removable bottom dust filter keeps the system clean and efficient. Storage options include two 2.5-inch SSD trays and one 3.5-inch or 2.5-inch drive bay on the bottom. Front I/O provides 2x USB 3.0 Type-A, 1x USB 3.1 Type-C, microphone input, and HD audio output for seamless connectivity.
- 26.3L capacity with dimensions (D) 443mm x (W) 194mm x (H) 321.5mm
- Supports M-ATX and Mini-ITX motherboards with 4 expansion slots
- Maximum GPU length 415mm; maximum CPU cooler height 165mm
- 360mm radiator support (top/side); 240mm bottom mounting
- Flexible PSU support: ATX/SFX/SFX-L up to 220mm with dual positioning
- Tool-free panel removal and modular bracket system
- Removable bottom dust filter for easy maintenance
- Front I/O: 2x USB 3.0 Type-A, 1x USB 3.1 Type-C, audio ports
- Optional vertical GPU mounting kit and tempered glass side panel available
| Case Type | MFF (Micro Form Factor) |
| Dimensions (Product) | (D) 443mm x (W) 194mm x (H) 321.5mm; (D) 443mm x (W) 194mm x (H) 306mm (without feet) |
| Capacity | 26.3L |
| Material | Steel with walnut wood front panel accent |
| Motherboard Support | M-ATX, Mini-ITX |
| Expansion Slots | 4 |
| PSU Support | ATX, SFX, SFX-L (maximum 220mm length) |
| PSU Mounting Positions | Front or side with 5 mounting points per position |
| Fan Support | Top: 3x 120mm or 2x 140mm; Side: 3x 120mm or 2x 140mm; Bottom: 3x 120mm; Rear: 1x 120mm |
| Radiator Support | Top: 1x 360mm or 240mm; Side: 1x 360mm, 280mm, or 240mm; Bottom: 1x 240mm (360mm with bottom fan) |
| Drive Support | 2x 2.5 |
| Maximum GPU Length | 415mm (4-slot thick) |
| Maximum CPU Cooler Height | 165mm |
| Front I/O Ports | 1x Power Button, 2x USB 3.0 Type-A, 1x USB 3.1 Type-C, 1x Microphone, 1x HD Audio |
| Dust Filter | 1x removable bottom filter |
| Pre-installed Fans | 0 (none included) |
| Color Options | White with walnut wood front panel |
| Optional Accessories | Tempered glass side panel, vertical GPU mounting kit |
| Warranty | 1 year |
