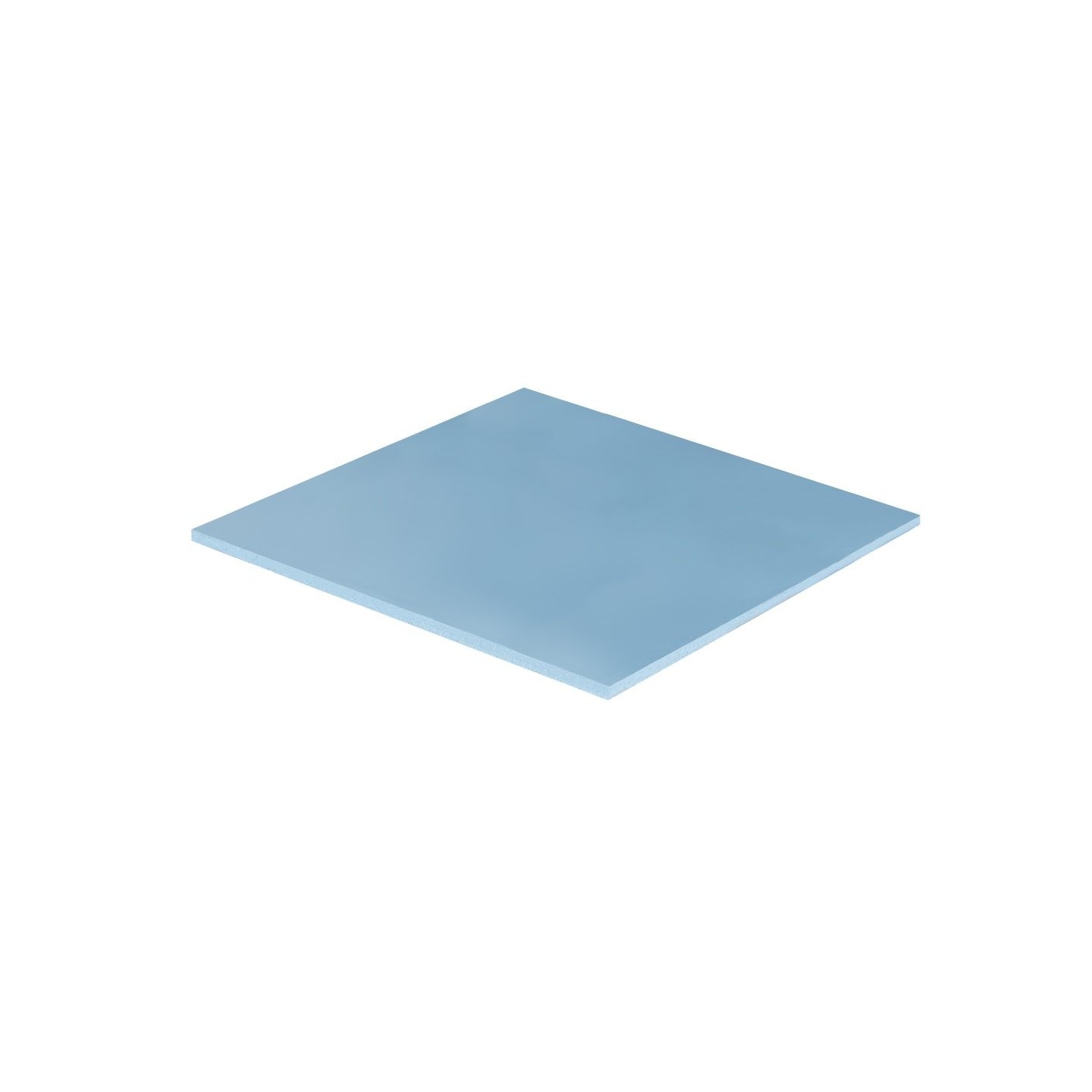

ARCTIC TP-3 100x100mm 0.5mm Premium Thermal Pad (Boxed)
ARCTIC TP-3 100x100mm 0.5mm silicone thermal pad compresses to 0.3mm, bridges 0.2mm gaps. High conductivity, very soft (55 Shore OO), electrically insulating. Ideal for RAM, chipsets, M.2 in PCs, laptops.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Cooling (CPU & Case) - Device Type | Thermal Pad |
|---|---|
| Cooling (CPU & Case) - Socket Support | Universal |
| Cooling (CPU & Case) - Color | Multicolor |
High Performance — Very Soft
Based on silicone and special filler, TP-3 outperforms standard pads for height variances from tolerances. Offers excellent thermal conductivity with extremely low hardness (55 Shore OO).
Minimize Thermal Resistance & Versatile Use
0.5mm pad compresses to 0.3mm, filling gaps up to 0.2mm. Heat-conducting, vibration-damping, electrically insulating. Cuttable for RAM, chipsets, ICs in PCs, laptops, GPUs, consoles.
Safe, non-adhesive handling bridges uneven surfaces without stressing components.
- Thickness: 0.5 mm (compresses to 0.3 mm)
- Size: 100 x 100 mm
- Thermal Conductivity: 12 W/mK
- Temp Range: -40~150 °C
- Electrically Insulating & Non-Flammable
| Size | 100 x 100 mm |
| Thickness | 0.5 mm |
| Color | Blue |
| Hardness | 55 Shore OO |
| Thermal Conductivity | 12 W/mK |
| Continuous Use Temperature | -40~150 °C |
| Specific Gravity | 3.4 g/cm³ |
| Dielectric Constant @1MHz | 5.19 |
| Volume Resistance | 2.69 x 10^12 Ω-cm |
| Dielectric Strength | 7.6 kV/mm |
| Flammability Rating | V-0 |
