Lian Li Edge 850W PSU - 80+ Gold Fully Modular ATX Black (Boxed)
Lian Li Edge Gold 850W PSU: L-shaped for dual-chamber cases, detachable USB/PWM hub, 120mm PWM fan, extended modular cables with combs, magnetic dust filter, 80+ Gold, ATX 3.1, 12V-2x6.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 800 - 899 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Gold Cybenetics Gold |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 12V-2x6 4x 8/6 pins |
| PSU (Power Supplies) - Length | Up to 140 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 2x 4+4pin EPS/ATX12V |

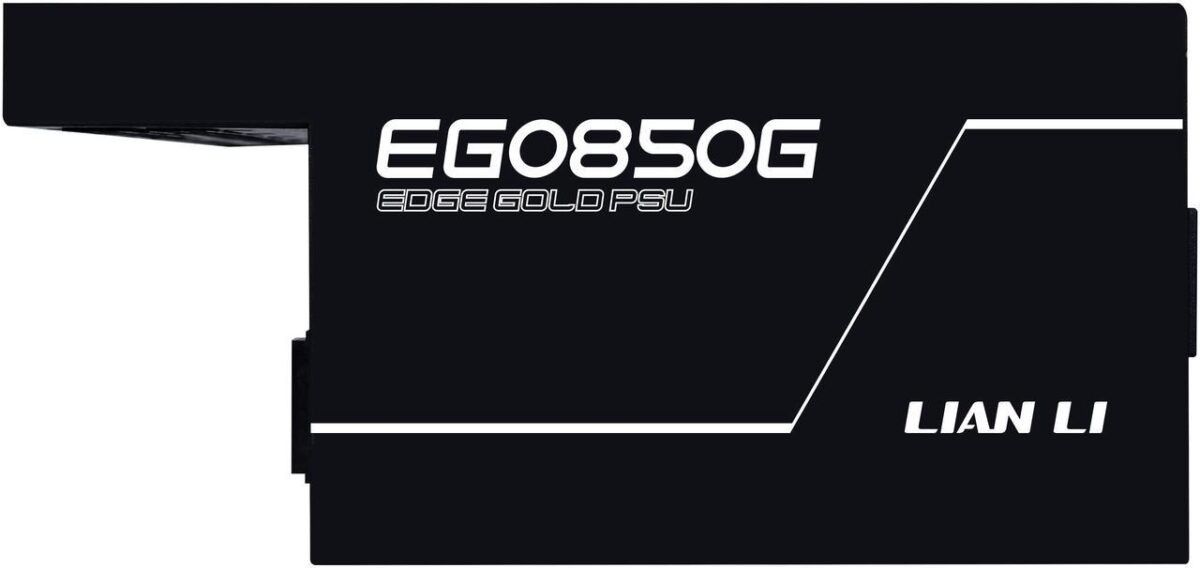

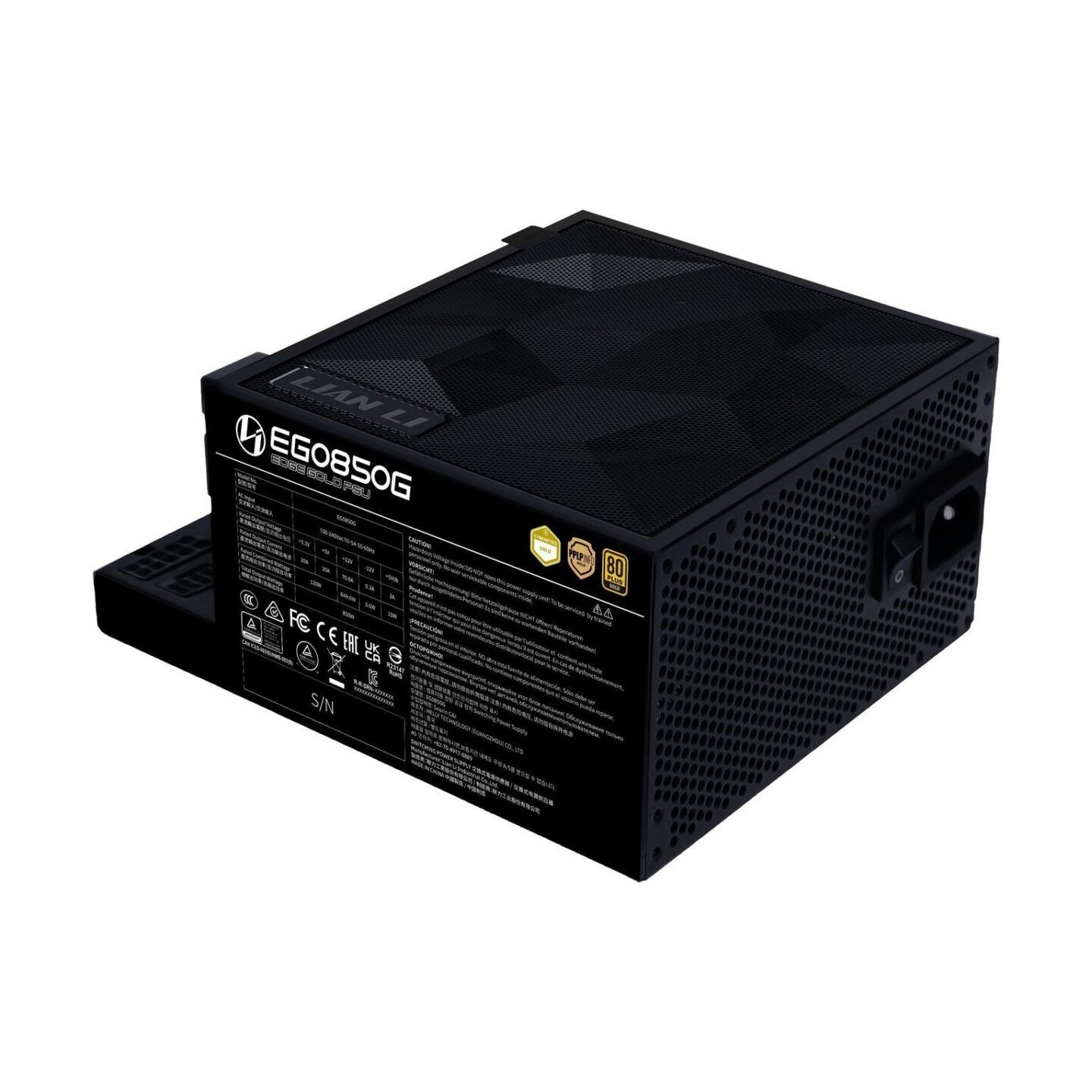

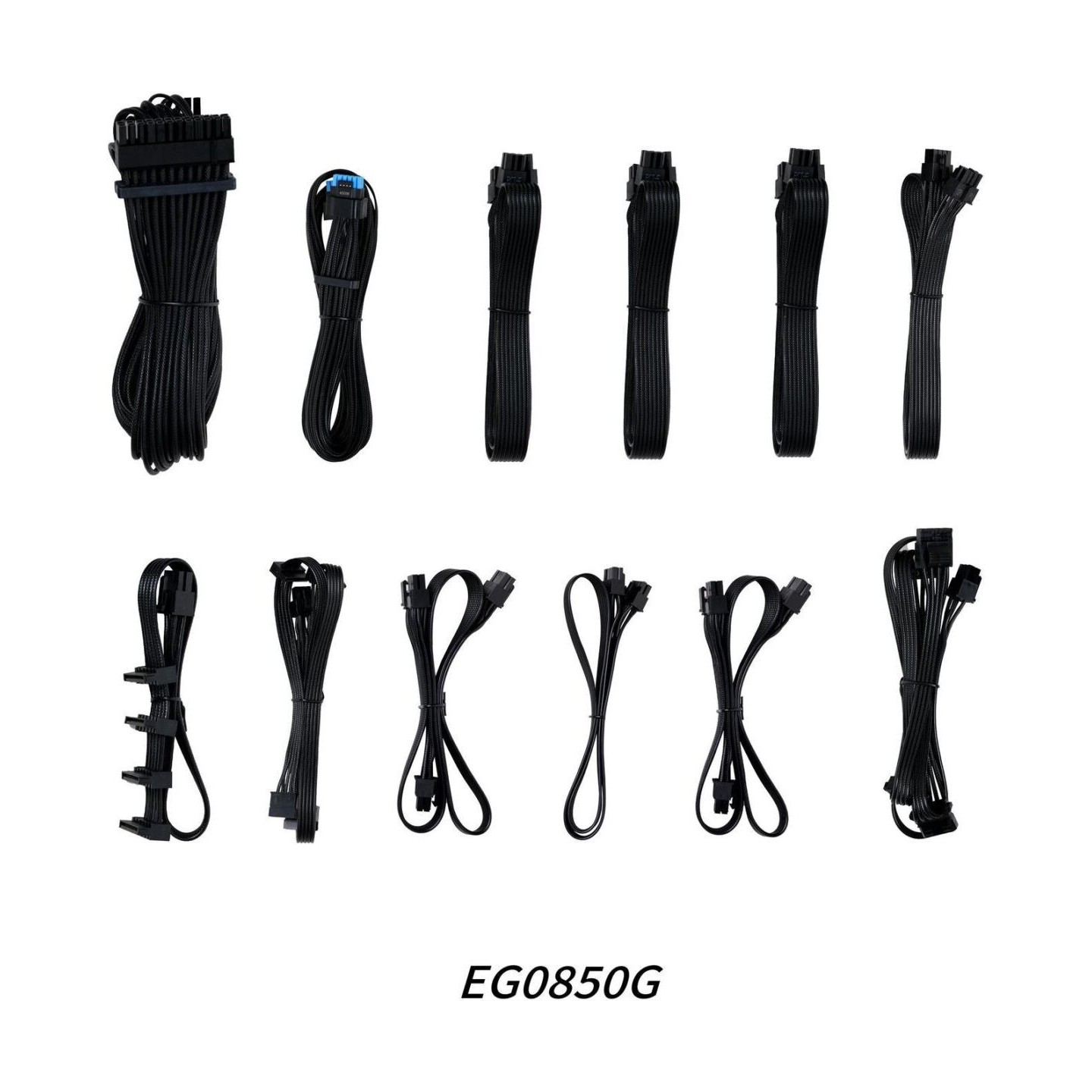

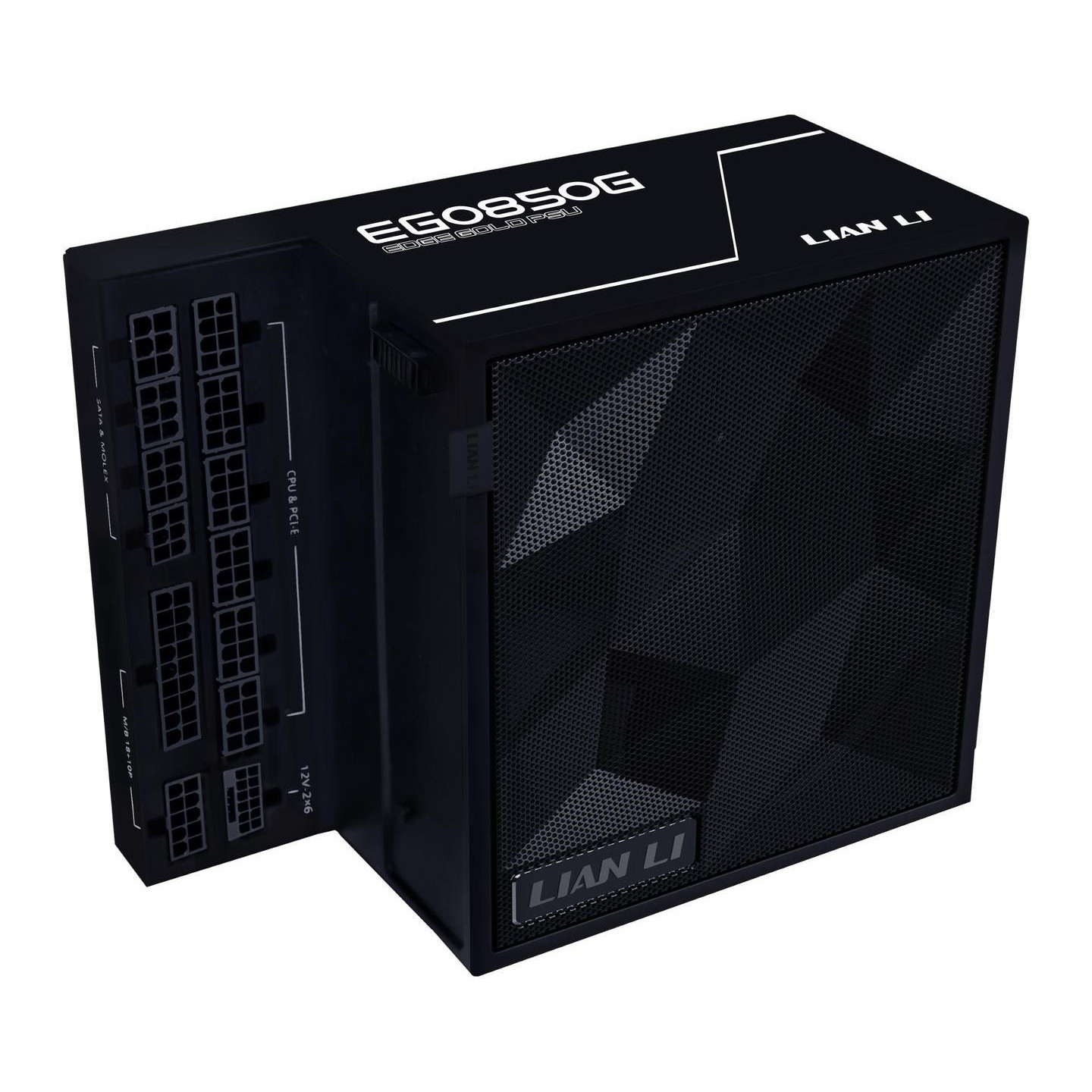

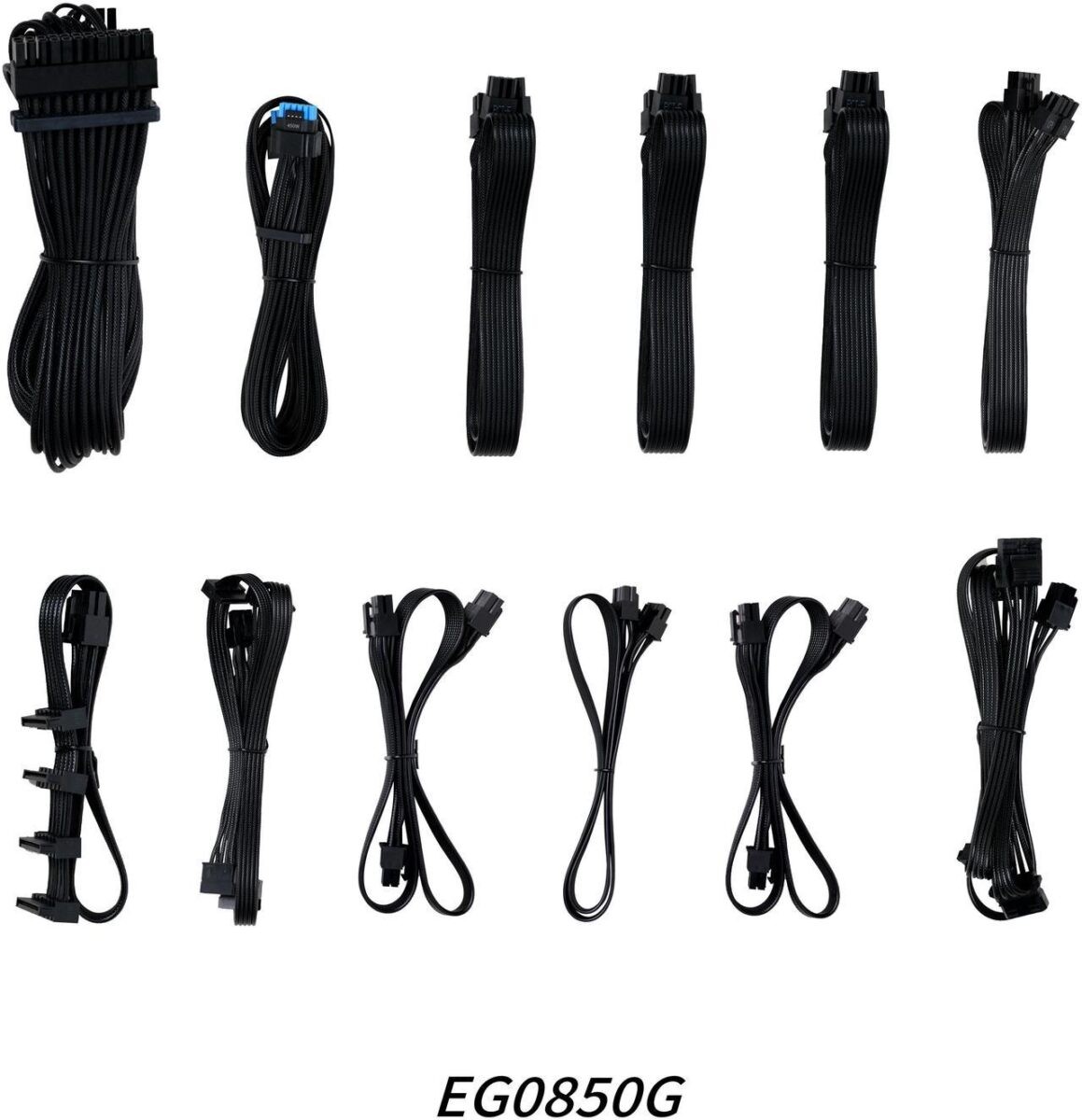

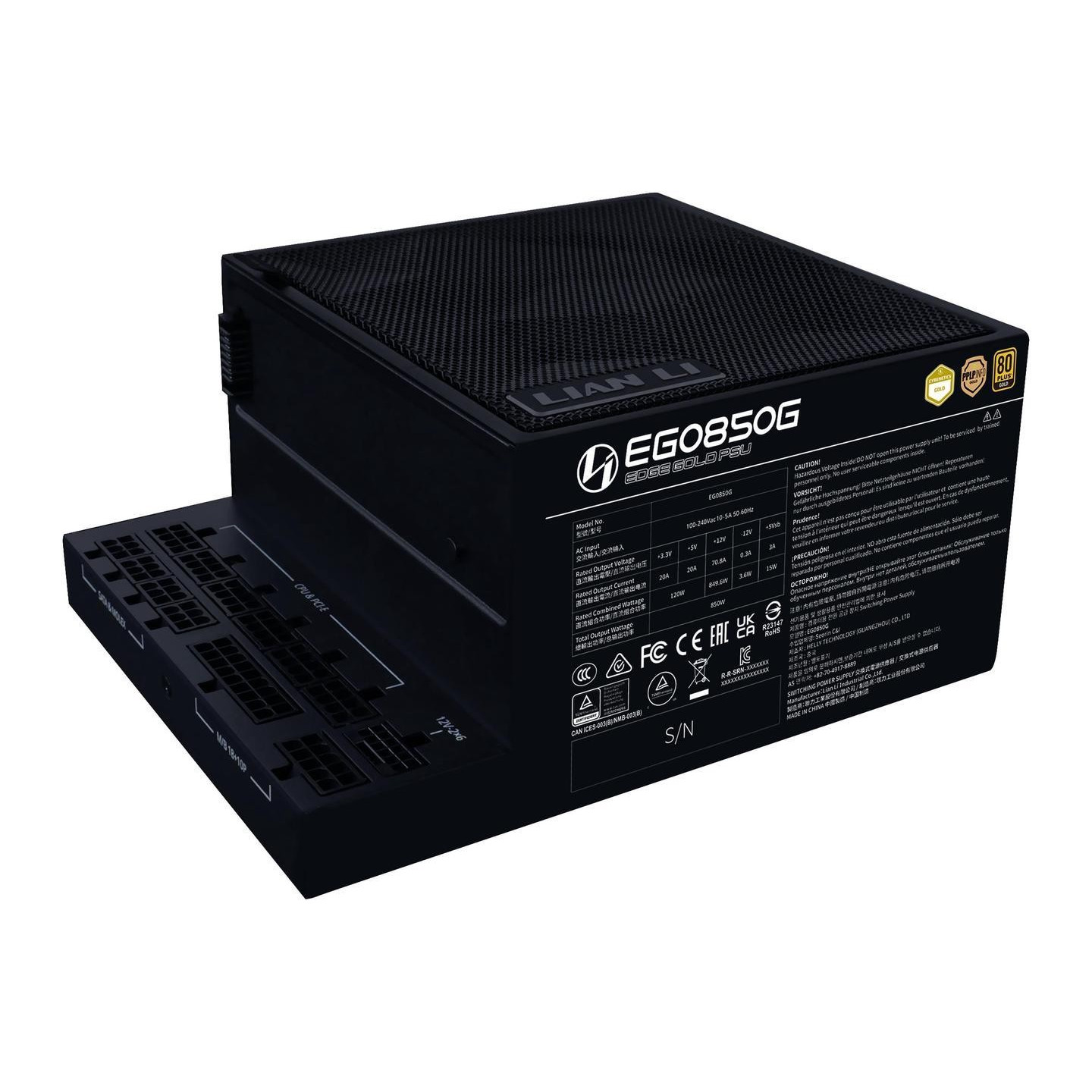

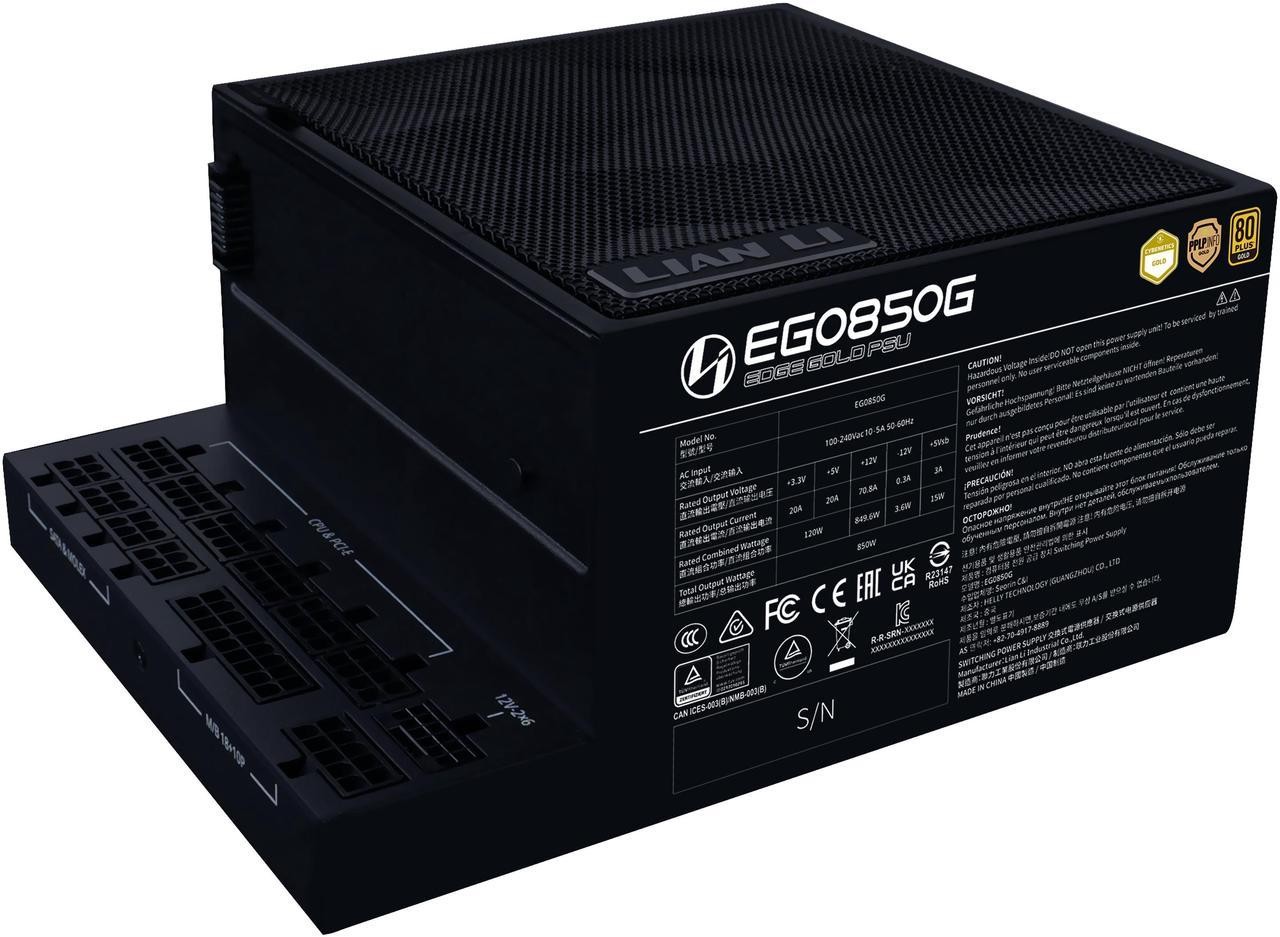

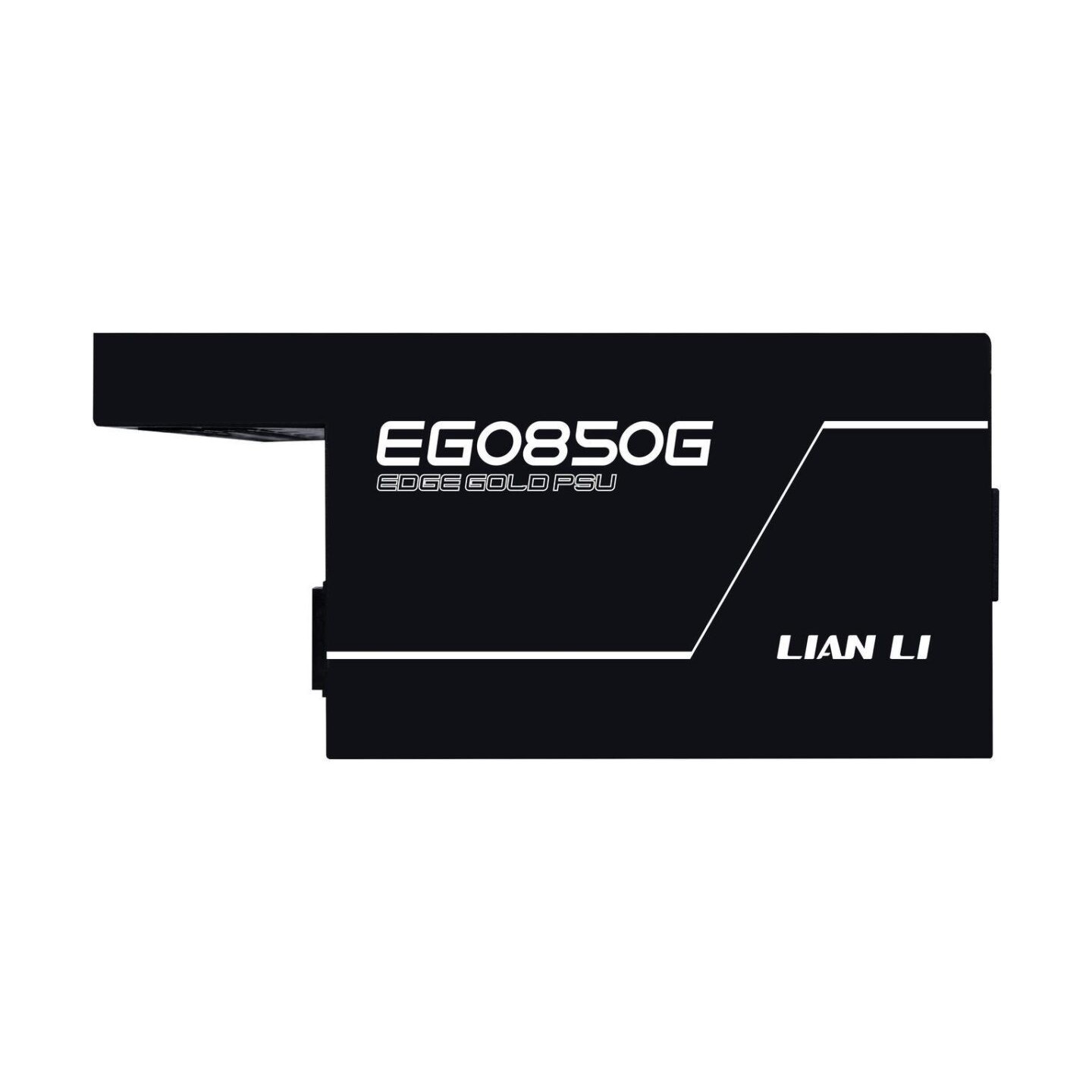

The Lian Li EDGE Gold 850W PSU features a unique L-shaped design optimized for vertical installation in dual-chamber cases like the O11 series. This outward-facing interface simplifies cable management for beginners and experts alike, paired with longer modular cables featuring adjustable combs for clean builds.

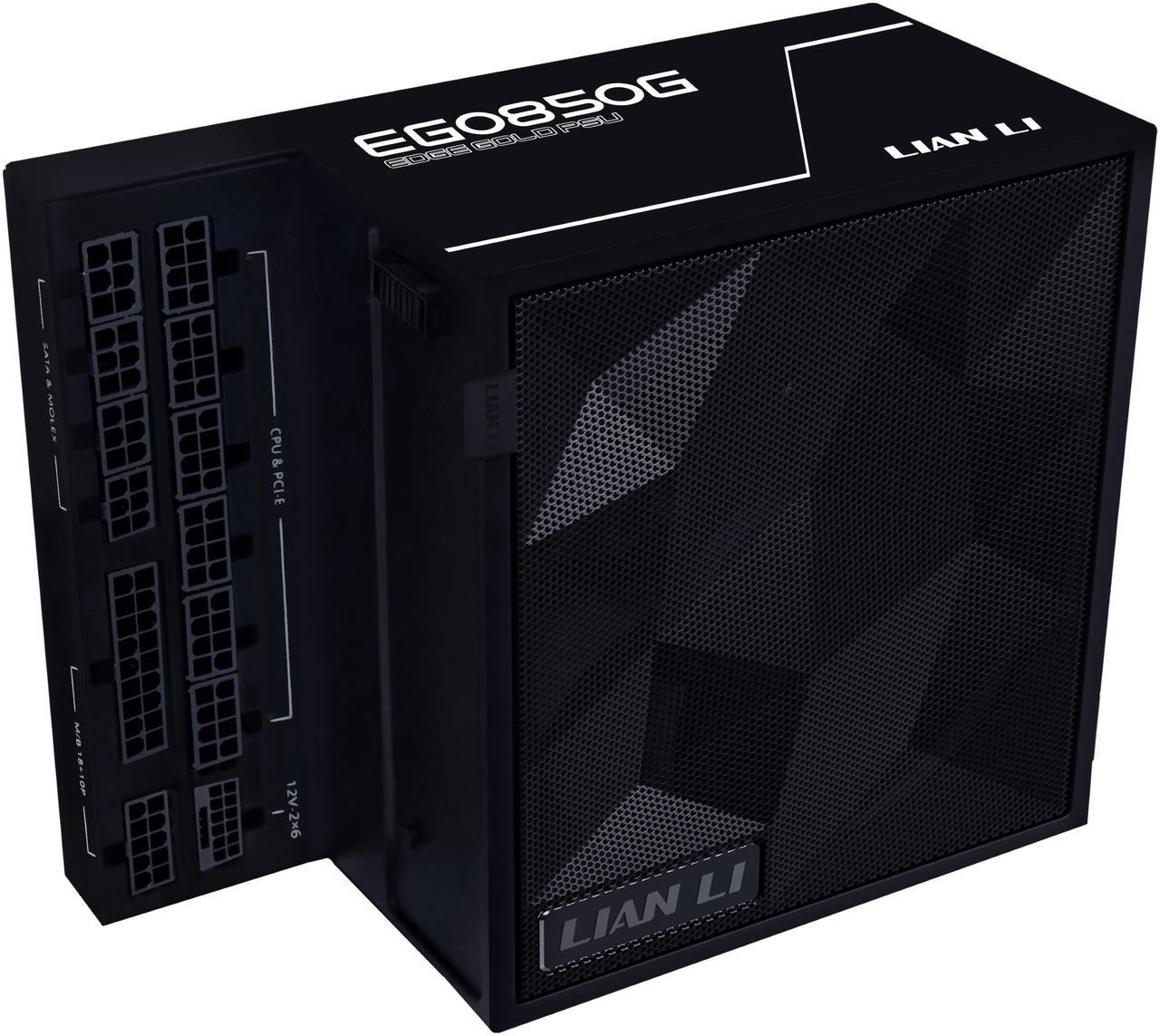

Equipped with a detachable magnetic dust filter for easy cleaning, a 120mm PWM Fluid Dynamic Bearing fan for quiet cooling, and a relocatable USB/PWM hub supporting multiple controllers. It achieves 80 PLUS Gold, Cybenetics Platinum, and PPLP Gold efficiency ratings, using industrial-grade EPCOS capacitors for reliability.
- Key Connectors: 1x 12V-2x6 (PCIe 5.1), 5x 6+2-pin PCIe, 2x 4+4-pin EPS, 12x SATA, 4x Molex
- ATX 3.1 compliant with native 12V-2x6 for modern GPUs
- Fully modular with braided cables for aesthetics
- 10-year warranty
| Model | G9P.EG0850G.B00 |
| Power Output | 850W |
| Form Factor | ATX |
| Efficiency | 80 PLUS Gold / Cybenetics Platinum |
| Modularity | Fully Modular |
| Fan | 120mm PWM Fluid Dynamic Bearing (HA1225M12F-Z) |
| Dimensions (W x H x D) | 150 x 86 x 140 mm |
| Main Connectors | 1x 20+4 pin ATX, 2x 4+4 pin EPS12V |
| PCIe Connectors | 5x 6+2 pin, 1x 12V-2x6 (600W) |
| Peripheral Connectors | 12x SATA, 4x Molex |
| 12V Rail | Single rail, 70.8A (849.6W) |
| Warranty | 10 Years |
| OEM | Zhong Yuan Power (estimated) |
| Compliance | ATX v3.1 / EPS 2.92 / ErP Lot 3/6 |
