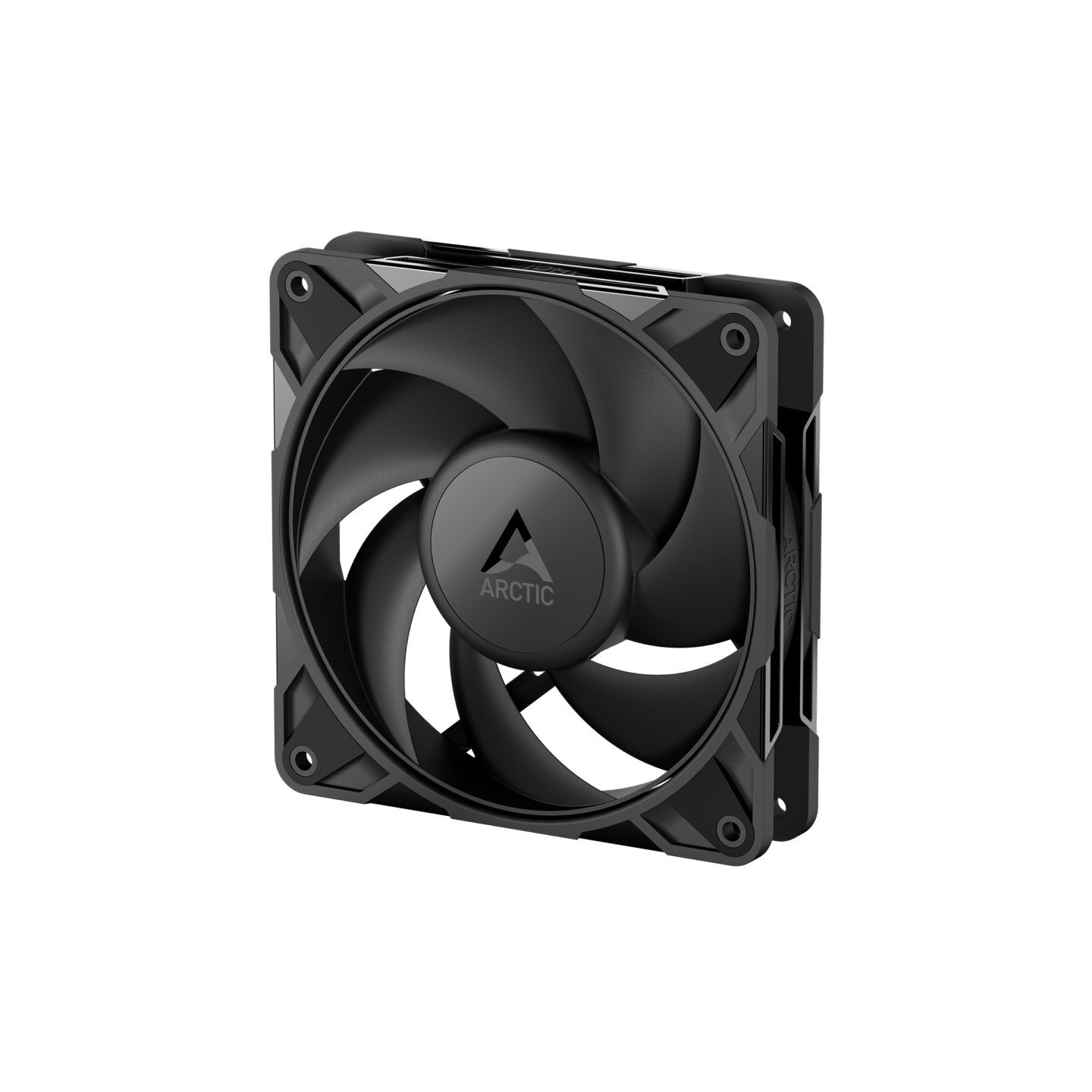

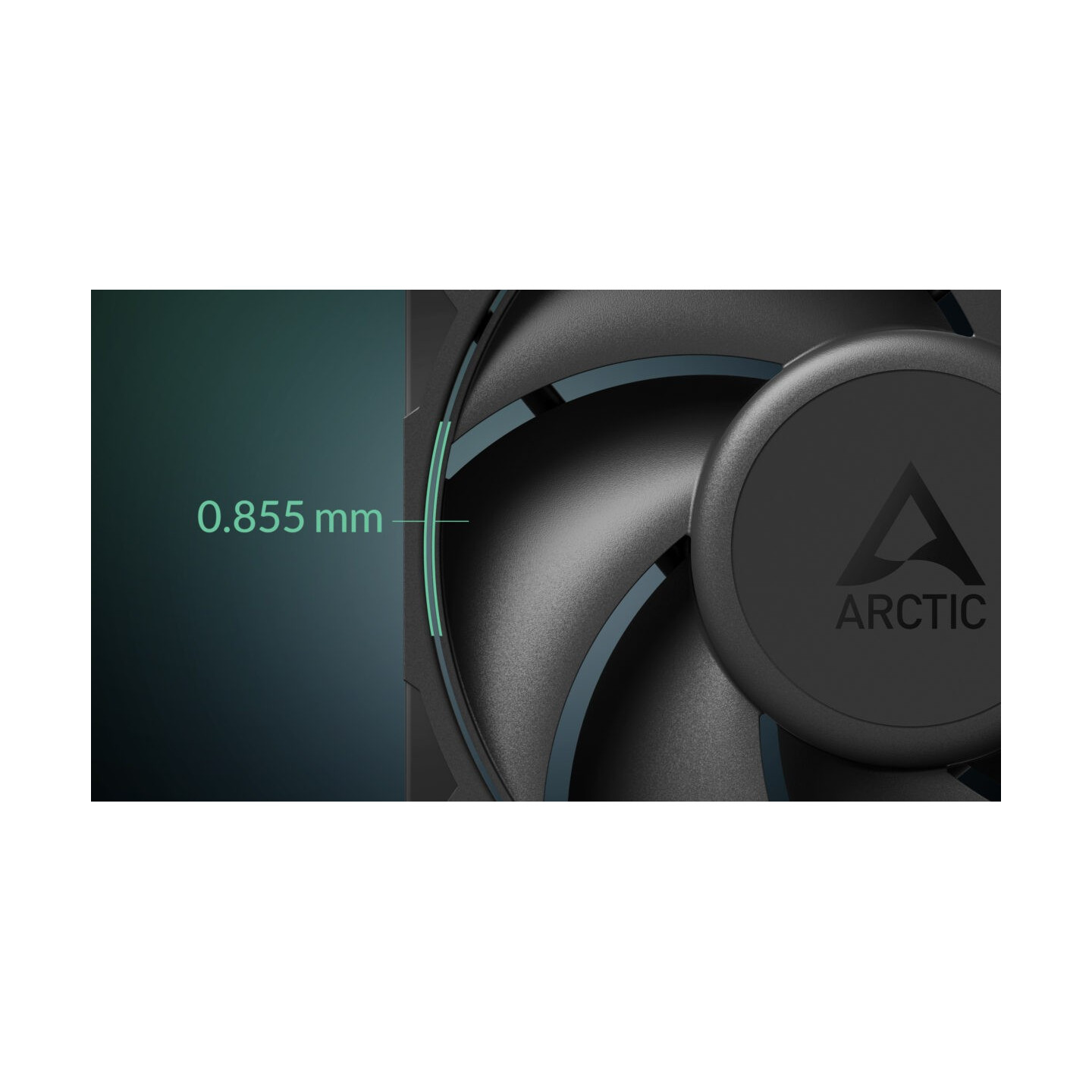

Arctic P12 Pro PST 120mm PWM Case Fan - FDB Bearing - 3000 RPM (Boxed)
120mm PWM case fan with FDB bearing delivering 77 CFM airflow and 6.9 mmH2O static pressure. Features PWM Sharing Technology (PST) daisy-chain, 600-3000 RPM control, and 6-year warranty. Ideal for radiators and high-resistance cooling applications.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Cooling (CPU & Case) - Device Type | Case Fan |
|---|---|
| Cooling (CPU & Case) - Fan Size | 120 mm |
| Cooling (CPU & Case) - Lightning | None |
| Cooling (CPU & Case) - Connector | 4-Pin PWM |
| Cooling (CPU & Case) - Color | Black |
| Cooling (CPU & Case) - Special Features | Daisy-Chain Low Noise |

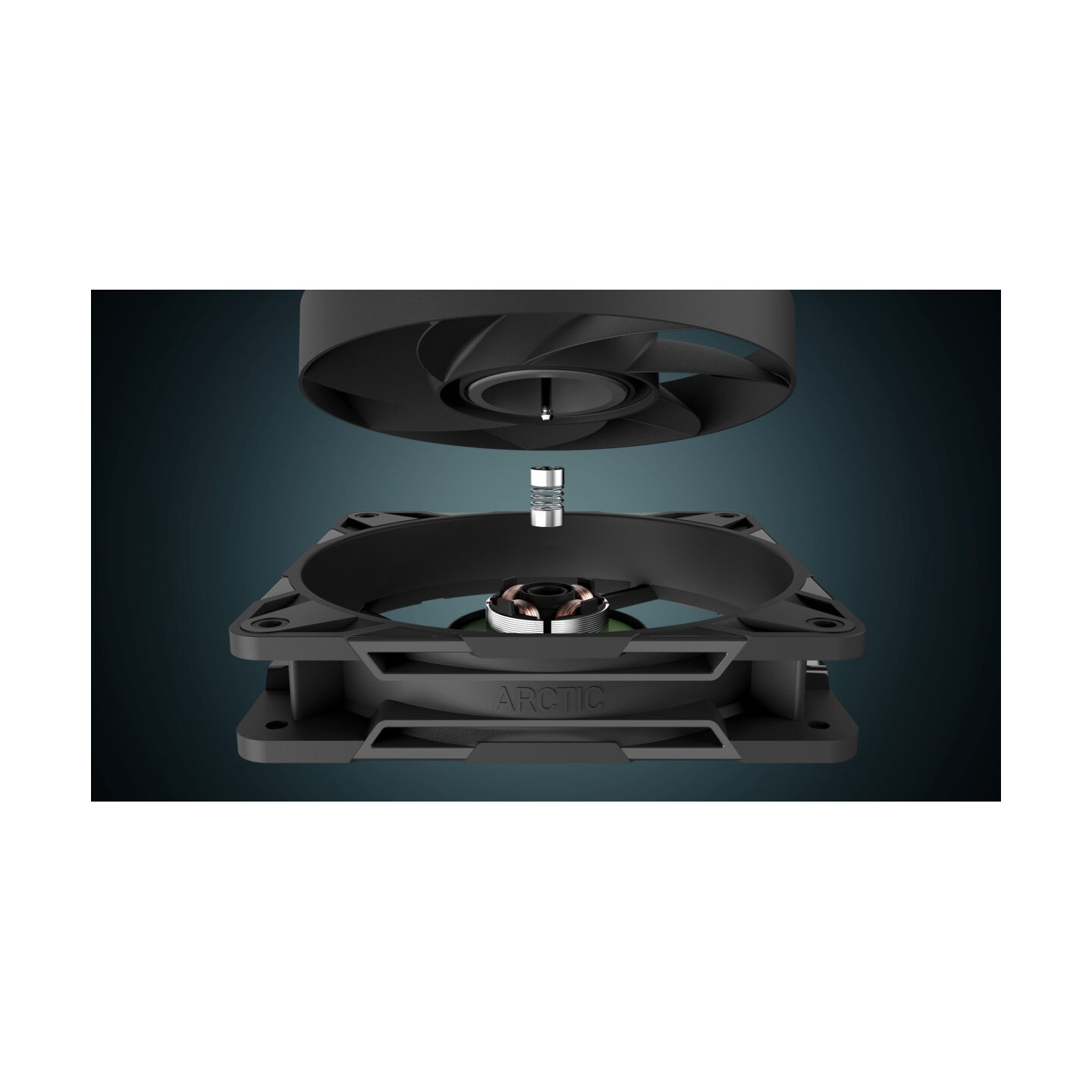

Arctic P12 Pro PST 120mm PWM Case Fan is a high-performance cooling solution engineered for demanding thermal management. With a maximum speed of 3000 RPM and exceptional static pressure of 6.9 mmH2O, this fan delivers powerful airflow through restrictive cooling paths such as radiators, perforated panels, and mesh filters. The advanced Fluid Dynamic Bearing (FDB) design ensures quiet operation while maintaining durability, supported by a comprehensive 6-year warranty.

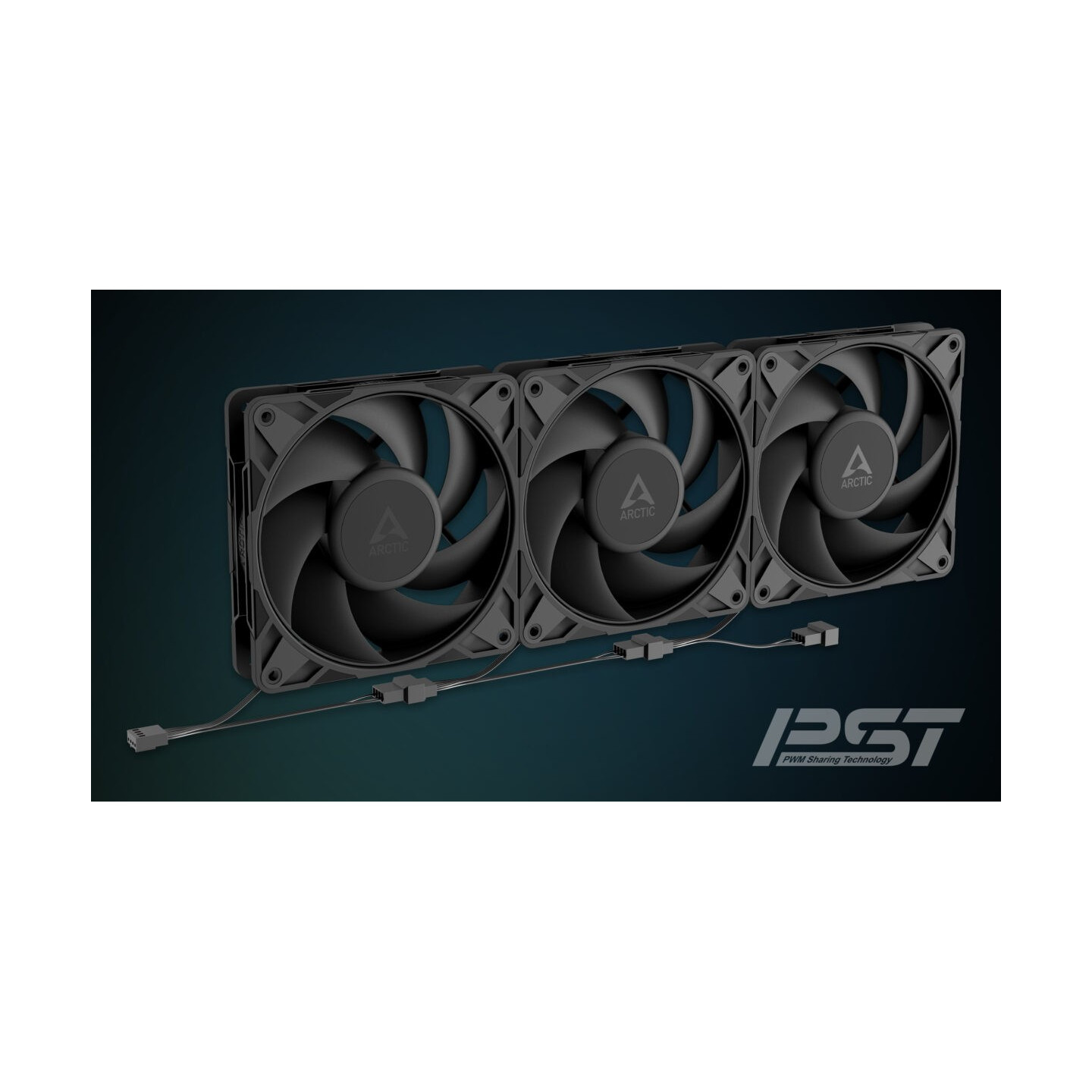

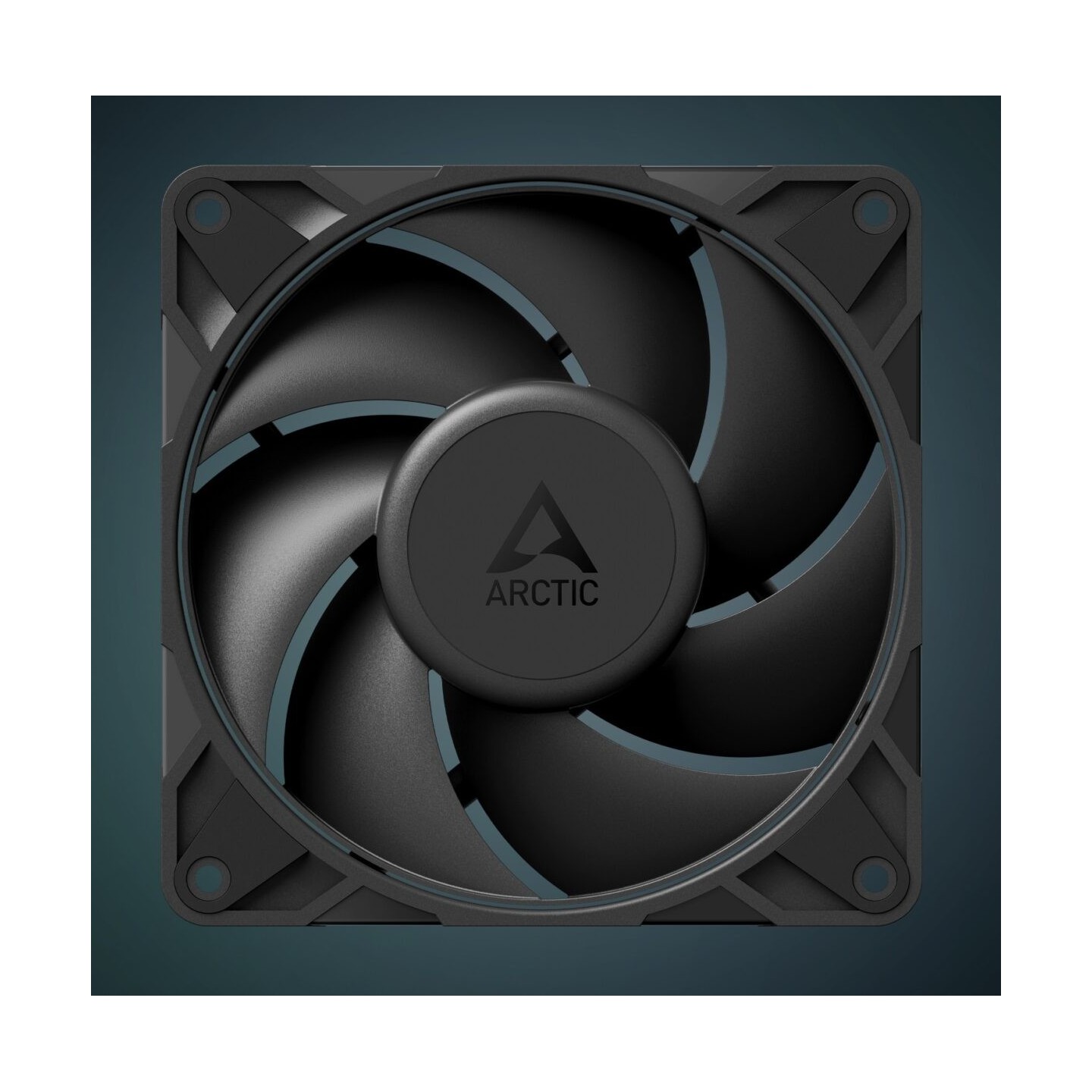

This fan features PWM Sharing Technology (PST), allowing multiple units to be synchronized using a single motherboard header through daisy-chain connectivity. The redesigned fan blade geometry optimizes the balance between performance and noise levels, achieving just 25 dB(A) at maximum speed. With a 4-Pin PWM connector, 400mm main cable, and 80mm daisy-chain extension, installation is straightforward in any modern PC case. The fan operates reliably across ambient temperatures from 0–40°C and includes a low-noise mode below 5% PWM.
- Fan Size: 120mm (120 x 120 x 25 mm)
- Speed Range: 600–3000 RPM (PWM controlled)
- Airflow: 77 CFM / 131 m³/h

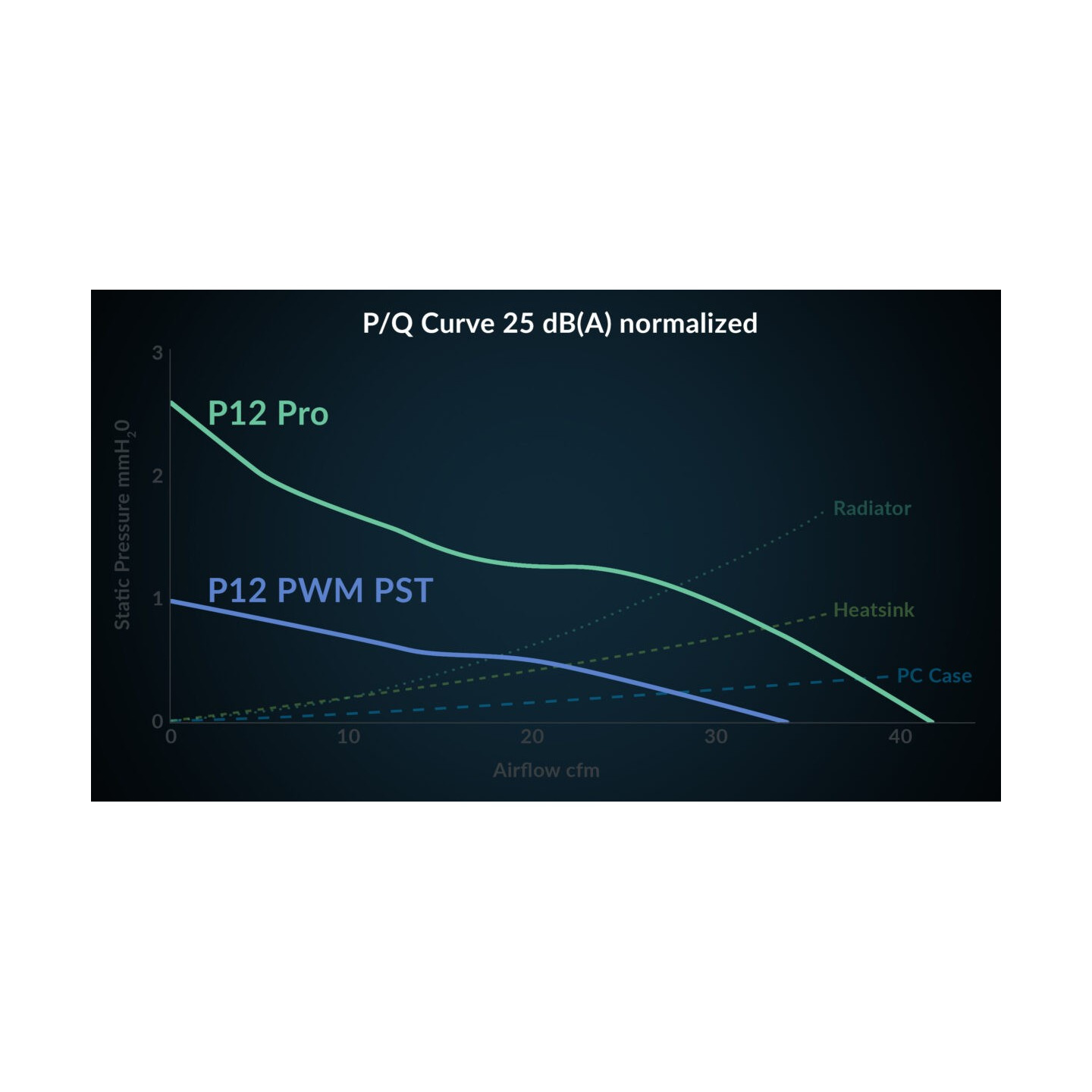

- Static Pressure: 6.9 mmH2O
- Bearing Type: Fluid Dynamic Bearing (FDB)
- Connector: 4-Pin PWM + 4-Pin PST Socket
- Voltage: 12V DC (Startup: 3.3V)
- Current Draw: 0.33A
- Warranty: 6 Years
| Fan Size | 120 mm |
| Fan Speed | 600–3000 RPM (PWM controlled, 0 RPM below 5% PWM) |
| Airflow | 77 CFM / 131 m³/h |
| Static Pressure | 6.9 mmH2O |
| Fan Bearing | Fluid Dynamic Bearing (FDB) |
| Dimensions | 120 (L) x 120 (W) x 25 (H) mm |
| Net Weight | 185 g |
| Typical Voltage | 12 V DC |
| Start Up Voltage | 3.3 V DC |
| Current | 0.33 A |
| Connector | 4-Pin Fan Plug + 4-Pin Socket (PST) |
| Cable Length | 400 mm + 80 mm Daisy-Chain Cable |
| Noise Level | 25 dB(A) at maximum speed |
| Operating Ambient Temperature | 0–40 °C |
| Warranty | 6 Years |
| Special Features | PWM Sharing Technology (PST), Daisy-Chain capable, Low-noise operation, Optimized bearing-shaft design |
