Lian Li UNI FAN TL-LCD Wireless 140 Black Reverse Blade - 14TLLCD1W1B (Boxed)
Wireless 2.4GHz 140mm case fan with 1.6in LCD display, ARGB infinity mirror, reverse blades. 400-1600RPM, 68.1CFM, 3.5mmH2O, FDB bearing. Daisy-chain, L-Connect 3 control. Controller separate.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Cooling (CPU & Case) - Device Type | Case Fan |
|---|---|
| Cooling (CPU & Case) - Fan Size | 140 mm |
| Cooling (CPU & Case) - Lightning | LCD Display RGB |
| Cooling (CPU & Case) - Connector | 4-Pin PWM SATA Power USB 2.0 Header |
| Cooling (CPU & Case) - Color | Black |
| Cooling (CPU & Case) - Special Features | Cableless Daisy-Chain Reverse Blade |
The Lian Li UNI FAN TL-LCD Wireless 140 Black revolutionizes case cooling with 2.4GHz wireless control for fan speed and RGB lighting, eliminating traditional hubs for simplified installation. Featuring reverse blades and daisy-chain design, it supports mixing with other UNI FAN TL series for flexible setups.

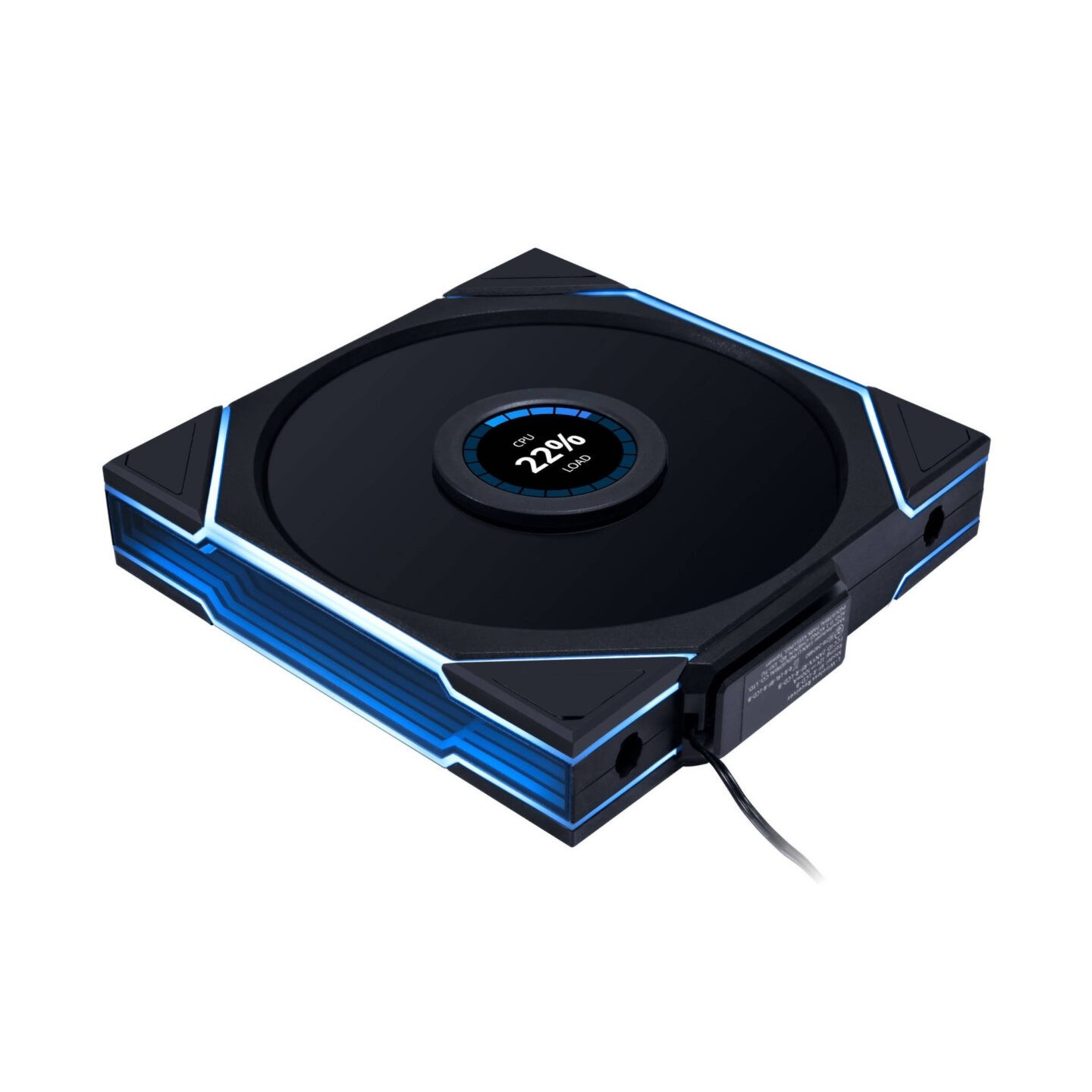

At the center is a vibrant 1.6-inch IPS LCD (400x400 resolution, 60Hz, 500 nits) displaying CPU/GPU temps, load data, or custom GIFs/MP4s via L-Connect 3 software. Performance includes 68.1 CFM airflow, 3.5 mmH2O pressure at up to 1600 RPM, with quiet 28.5 dBA operation thanks to FDB bearing and LCP blades. 26 LEDs provide continuous infinity mirror RGB on both frame sides.
- Power: 4-pin PWM (motherboard) or SATA; USB 2.0 9-pin for LCD
- Dimensions: 142x140x28mm; Wireless controller required (sold separately)
- 3-year warranty; Optimized for radiators and case airflow
| Fan Dimension | 142x140x28mm |
| Fan Speed | 0, 400~1600 RPM |
| Max. Air Pressure | 3.5 mmH2O (Maximum) |
| Max. Airflow | 68.1 CFM (Maximum) |
| Acoustic Noise | 28.5 dBA (Maximum) |
| Input Power | 6.72W |
| Material | PA66 PBT + LCP Blades |
| Bearing Type | Fluid Dynamic Bearing (FDB) |
| Operate Voltage | DC12V & 5V |
| LCD Size | 1.6 inch IPS, 400x400, 60Hz |
| LEDs | 26 LEDs, Infinity Mirror RGB |
| Connector | 4-PIN PWM + SATA + USB 2.0 9-PIN |
| Warranty | 3 years |
| MPN | 14TLLCD1W1B |
| Wireless | 2.4 GHz L-Wireless Sync |
