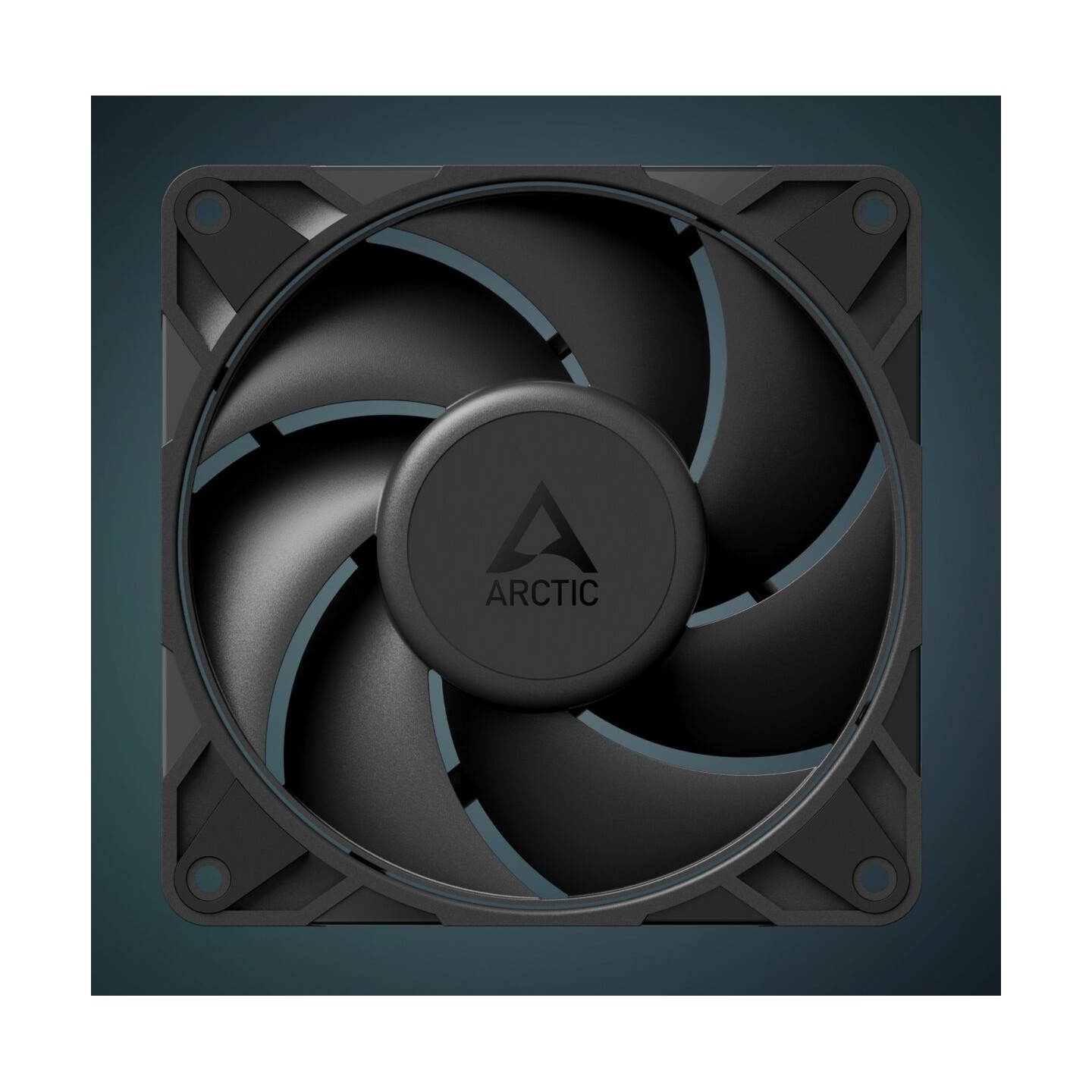

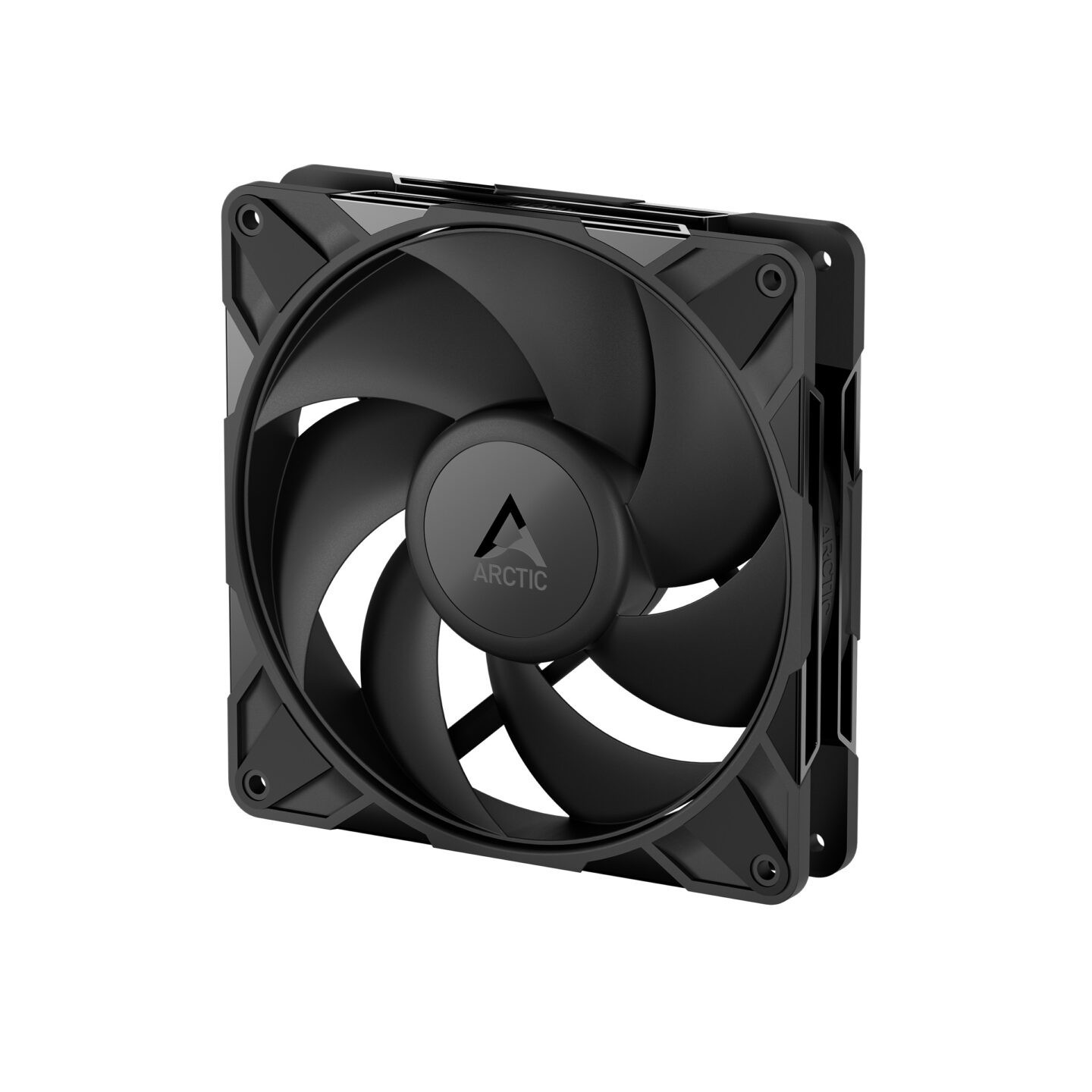

Arctic P14 Pro 140mm Case Fan - PWM FDB 2500 RPM (Boxed)
High static pressure 140mm PWM case fan with FDB bearing, 400-2500 RPM, 110 CFM airflow, 5.2 mmH2O pressure. Quiet 25dB(A) operation, daisy-chain capable, 6-year warranty.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Cooling (CPU & Case) - Device Type | Case Fan |
|---|---|
| Cooling (CPU & Case) - Fan Size | 140 mm |
| Cooling (CPU & Case) - Lightning | None |
| Cooling (CPU & Case) - Connector | 4-Pin PWM |
| Cooling (CPU & Case) - Color | Black |
| Cooling (CPU & Case) - Special Features | Daisy-Chain Industrial / High Speed Low Noise |

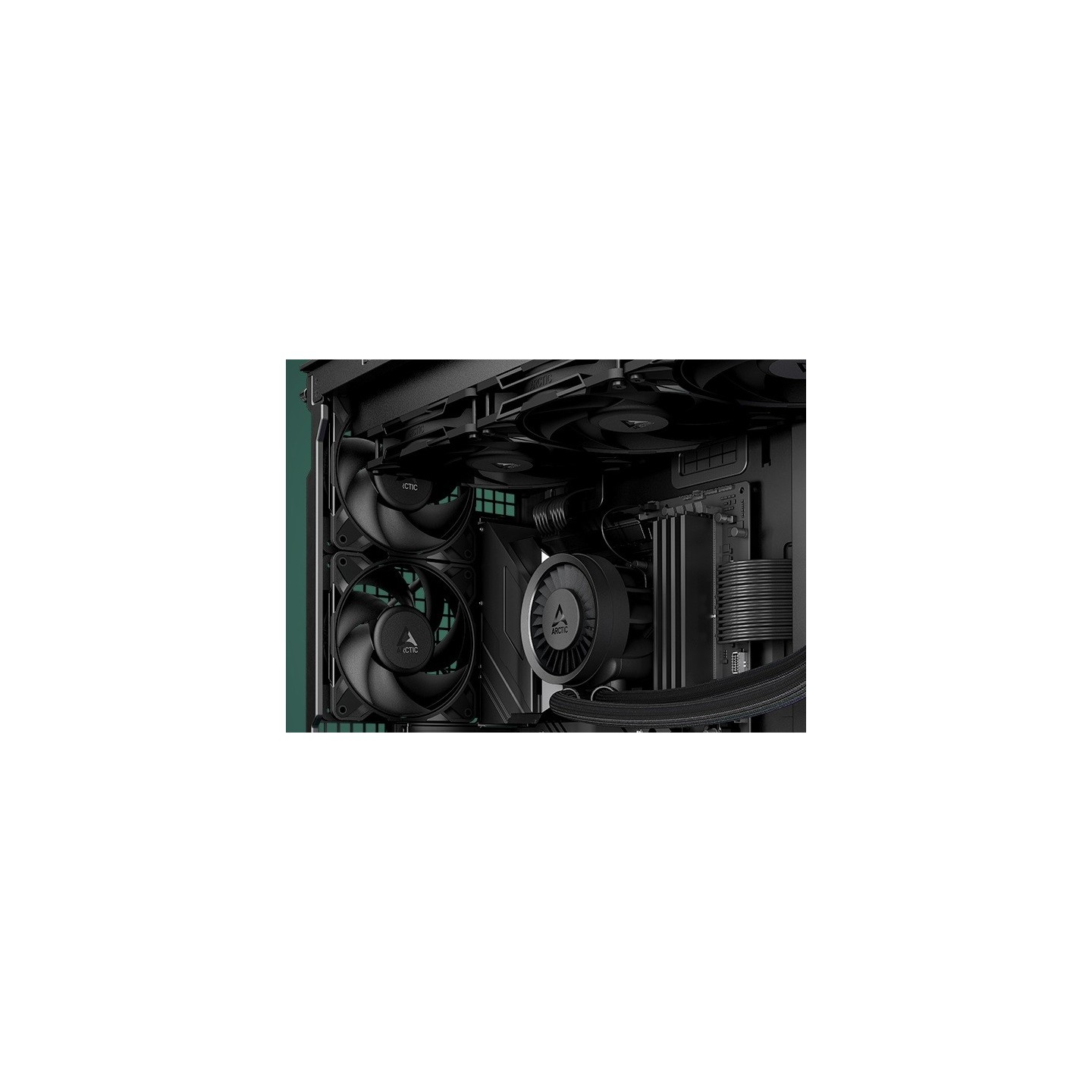

Arctic P14 Pro 140mm PWM Fan - Premium pressure-optimized case fan for radiators, mesh filters and tight spaces. Delivers 110 CFM airflow and 5.2 mmH2O static pressure at speeds up to 2500 RPM with PWM control and 0 RPM below 5% PWM.

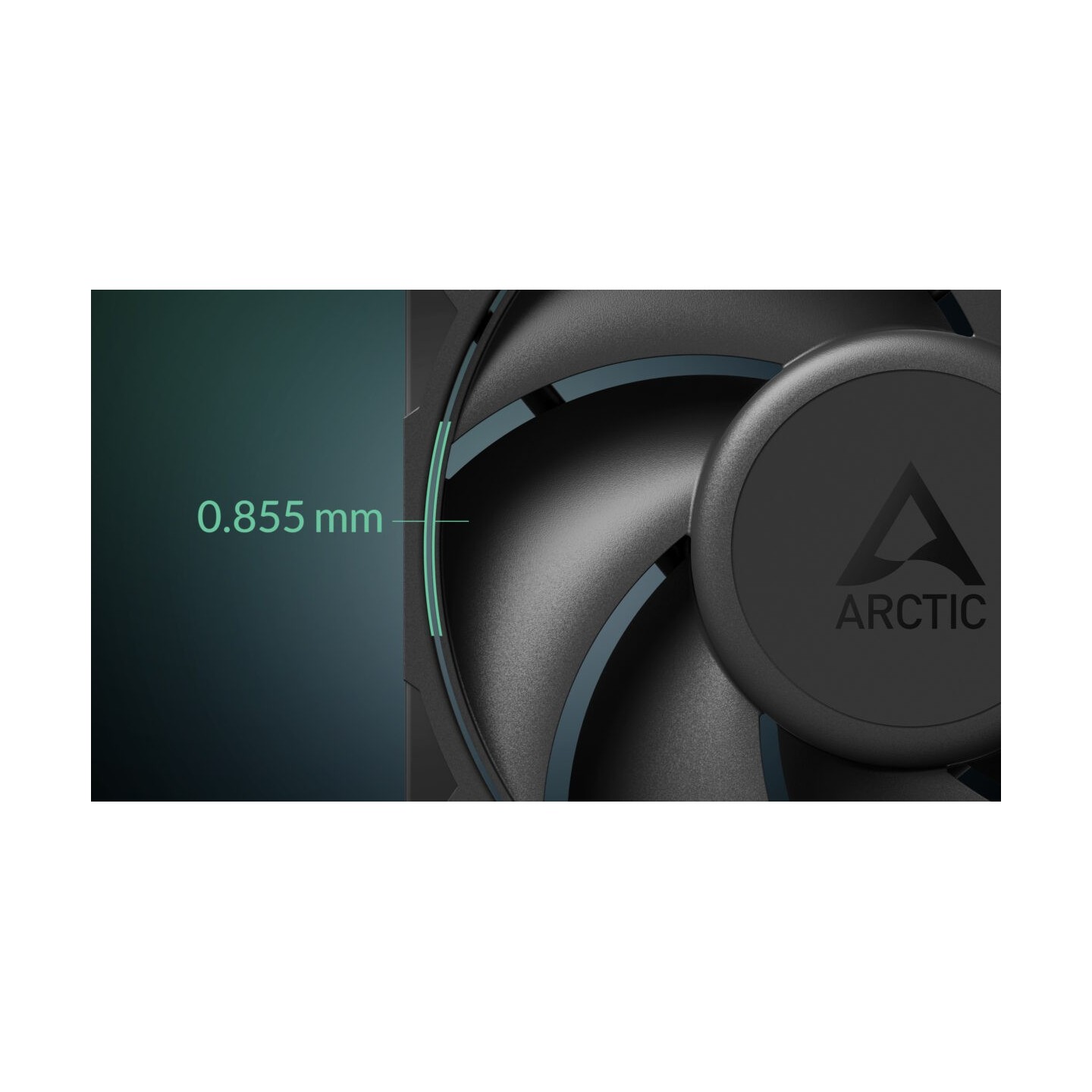

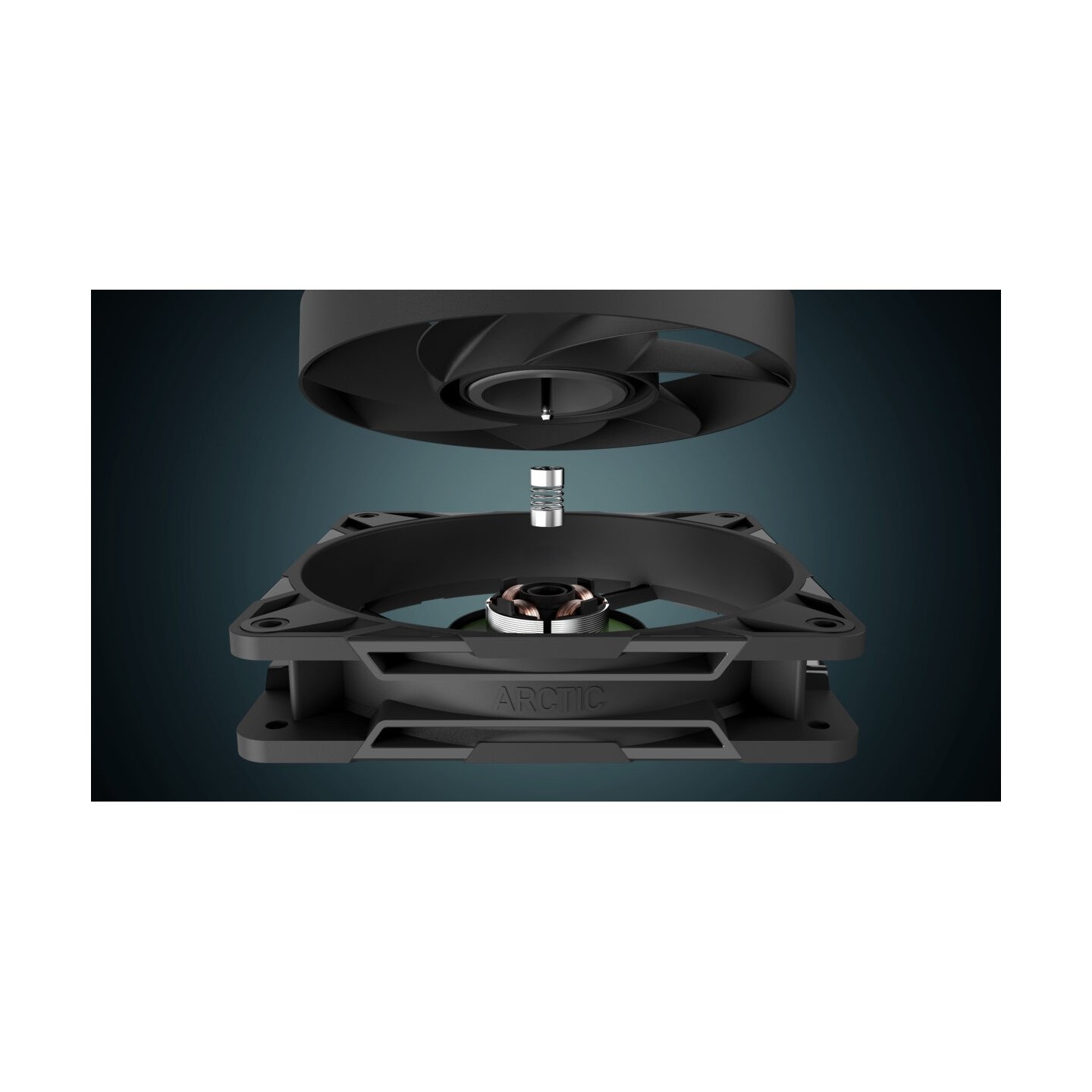

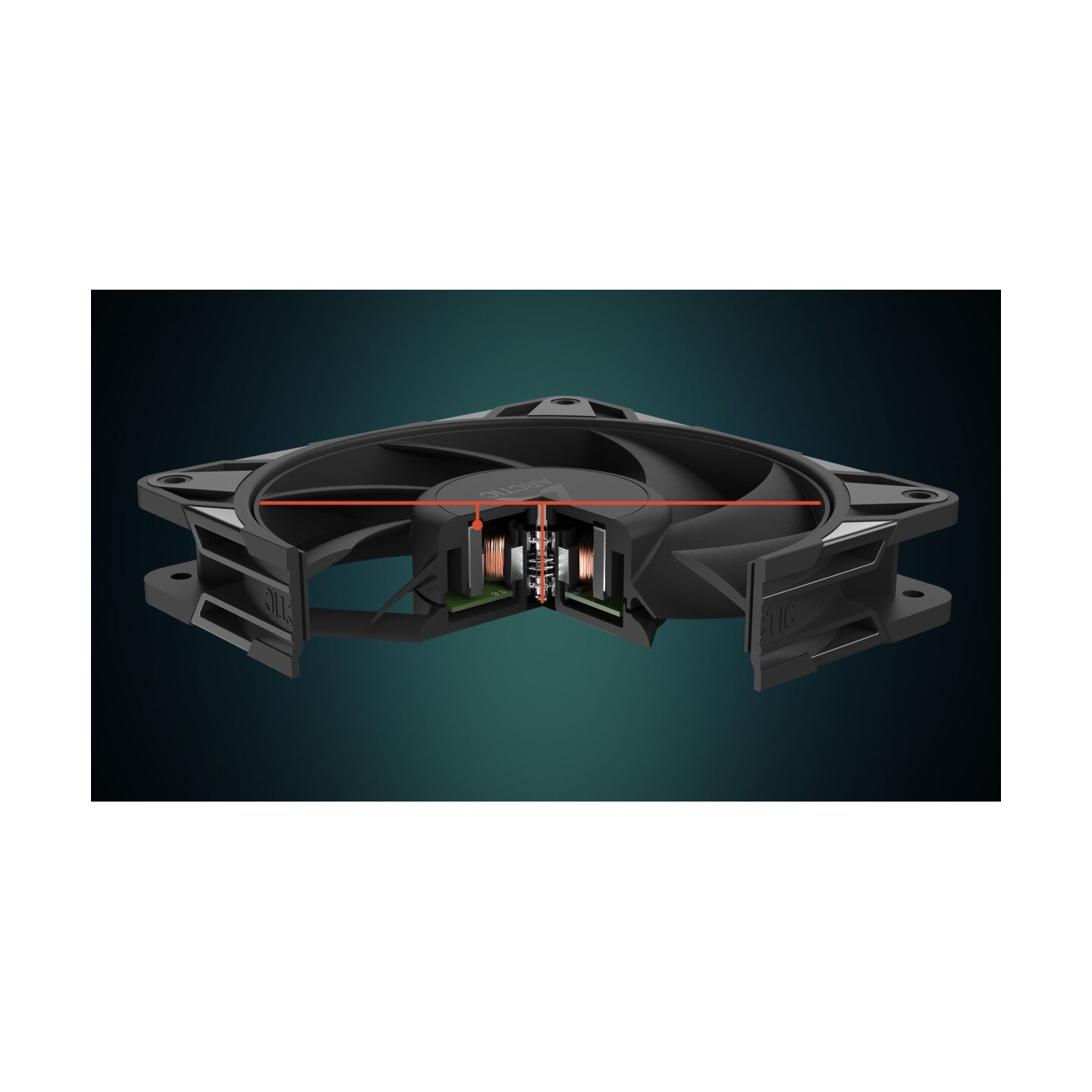

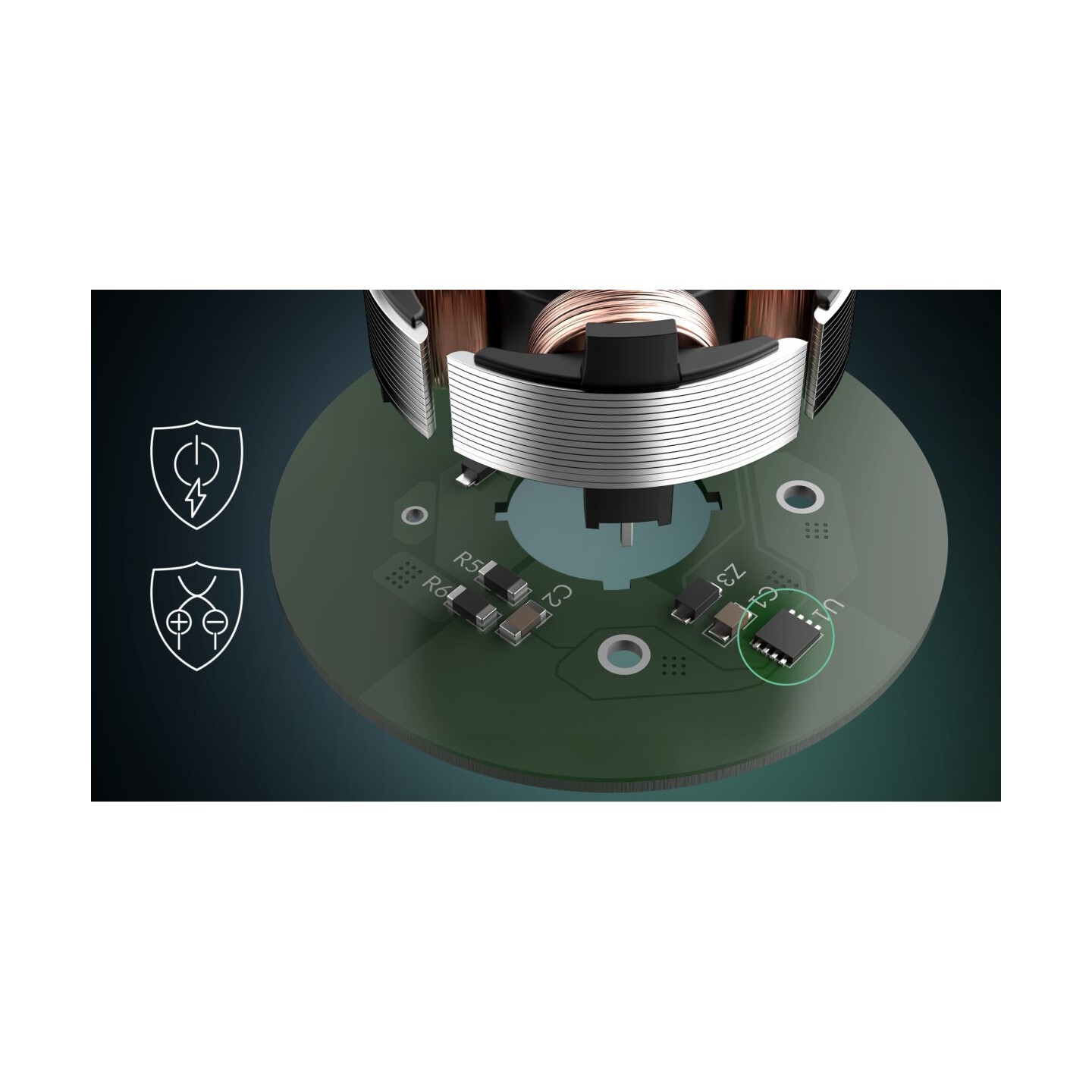

Features Fluid Dynamic Bearing (FDB) for quiet, durable operation, advanced SOTA microcontroller reducing motor noise and protecting against voltage spikes. Optimized 7-blade design with minimal blade spacing and automated two-plane balancing ensures smooth performance and high efficiency even at low speeds - just 25 dB(A).

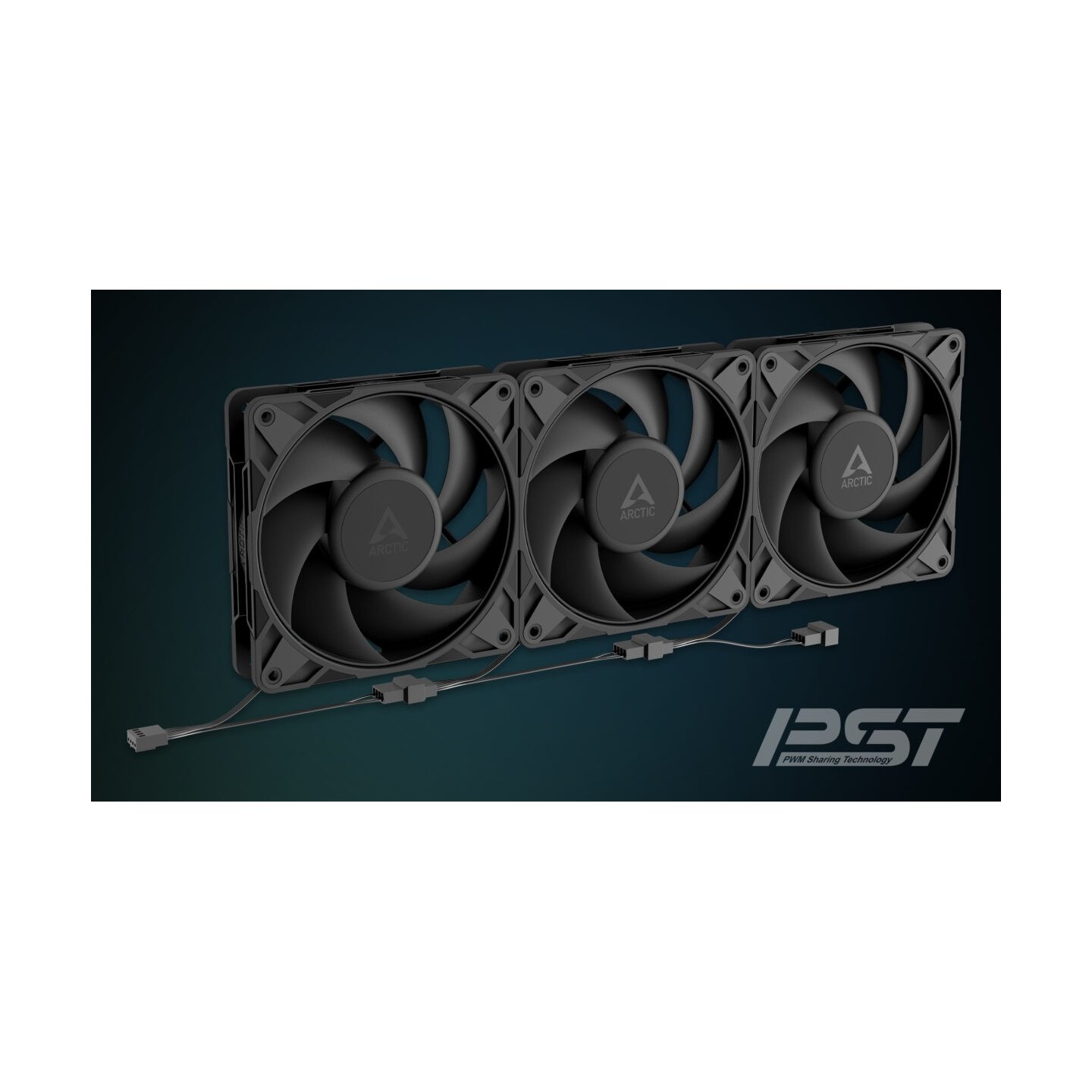

400mm cable with 4-pin PWM connector supports daisy-chaining multiple fans. Includes splitter cables for easy hub connection. Dimensions: 140x140x27mm, weight 240g. Backed by 6-year warranty.
- ✅ High static pressure for radiators & filters
- ✅ Fluid Dynamic Bearing - long life, low noise
- ✅ PWM controlled 400-2500 RPM
- ✅ 110 CFM / 5.2 mmH2O
- ✅ 6-Year Arctic warranty
| Manufacturer Part Number | ACFAN00313A |
| Warranty | 6 Years |
| Operating Ambient Temperature | 0–40 °C |
| Dimensions | 140 (L) x 140 (W) x 27 (H) mm |
| Net Weight | 240 g |
| Fan Speed | 400–2500 rpm, PWM controlled, 0 rpm below 5 % PWM |
| Airflow | 110 cfm | 186 m³/h |
| Static Pressure | 5.2 mmH₂O |
| Fan Bearing | Fluid Dynamic Bearing |
| Typical Voltage | 12 V DC |
| Start Up Voltage | 5 V DC |
| Current | 0.35 A |
| Cable Length | 400 mm |
| Connector | 4-Pin Fan Plug |
| Noise Level | 25 dB(A) |
