ARCTIC TP-3 Thermal Pad 120x20mm 0.5mm - 4 Pack (Boxed)
Ultra-soft silicone-based ARCTIC TP-3 thermal pads, 0.5mm thick (compresses to 0.3mm), 120x20mm size, 4-pack. Excellent conductivity, low hardness (55 Shore OO), electrically insulating for RAM, M.2, chipsets.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Cooling (CPU & Case) - Device Type | Thermal Pad |
|---|---|
| Cooling (CPU & Case) - Socket Support | Universal |
| Cooling (CPU & Case) - Color | Silver / Grey |
High Performance — Very Soft
Based on silicone and a special filler material, the ARCTIC TP-3 outperforms high-performance thermal pads, especially where height differences occur between closely spaced chips due to manufacturing tolerances. It delivers excellent thermal conductivity despite its extremely low hardness of 55 Shore OO.
Minimize Thermal Resistance & Versatile Use
The 0.5 mm TP-3 pad compresses easily to ~0.3 mm, compensating for height differences up to 0.2 mm. It's heat-conducting, vibration-damping, electrically insulating, and mouldable—ideal for RAM, chipsets, ICs in PCs, laptops, consoles, GPUs. Easily cut to size; safe, non-adhesive handling.
- Blue color, continuous use -40~150°C
- Stackable without performance loss
- Low interfacial contact resistance
- UL 94 V-0 flammability rating
- Perfect gap filler for uneven surfaces
| Color | Blue |
| Hardness | 55 Shore OO |
| Continuous Use Temperature | -40~150 °C |
| Specific Gravity | 3.4 g/cm³ |
| Dielectric Constant @1MHz | 5.19 |
| Volume Resistance | 2.69 x 10^12 Ω-cm |
| Flammability Rating | UL 94 V-0 |
| Thickness | 0.5 mm (compresses to ~0.3 mm) |

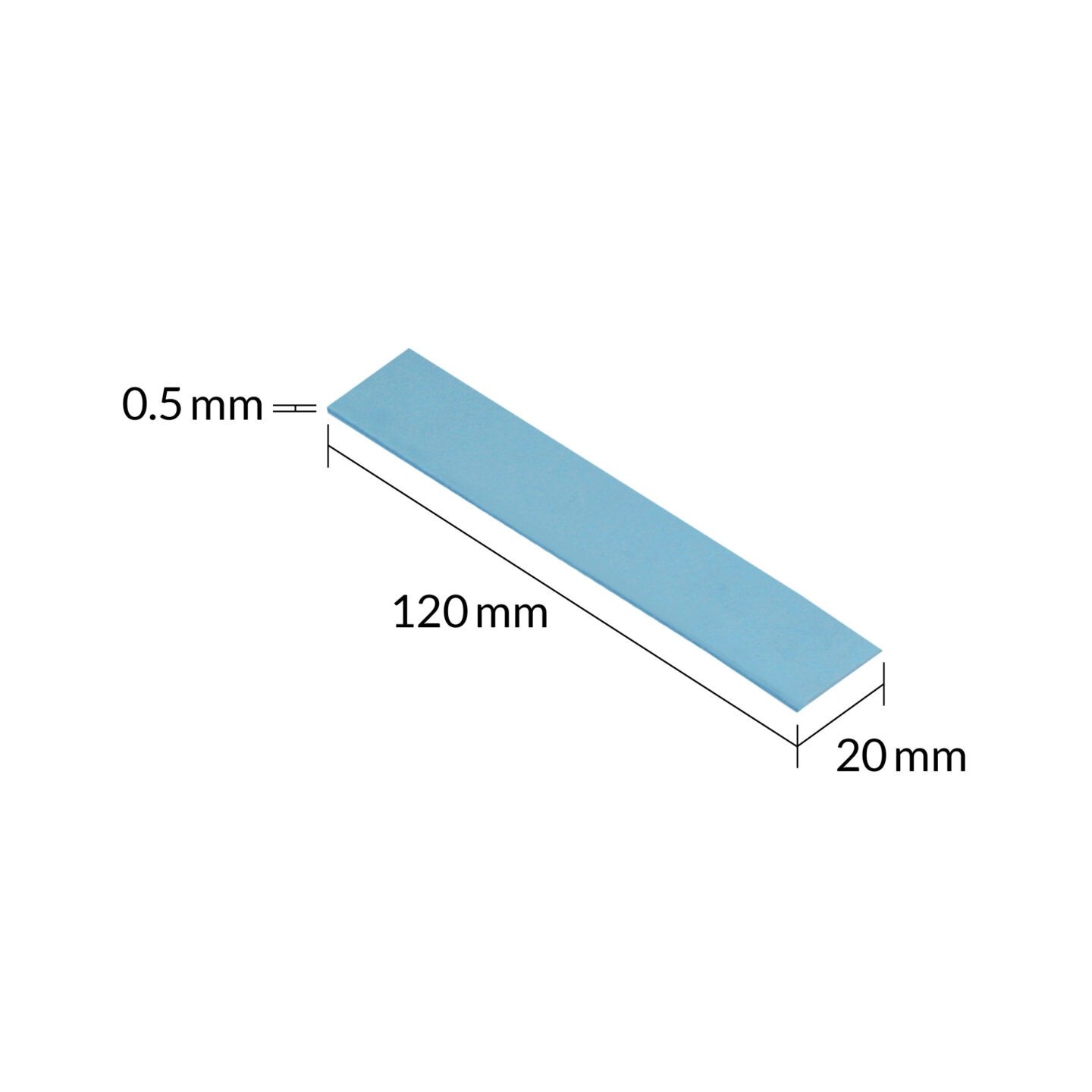

| Dimensions per Pad | 120 x 20 mm |

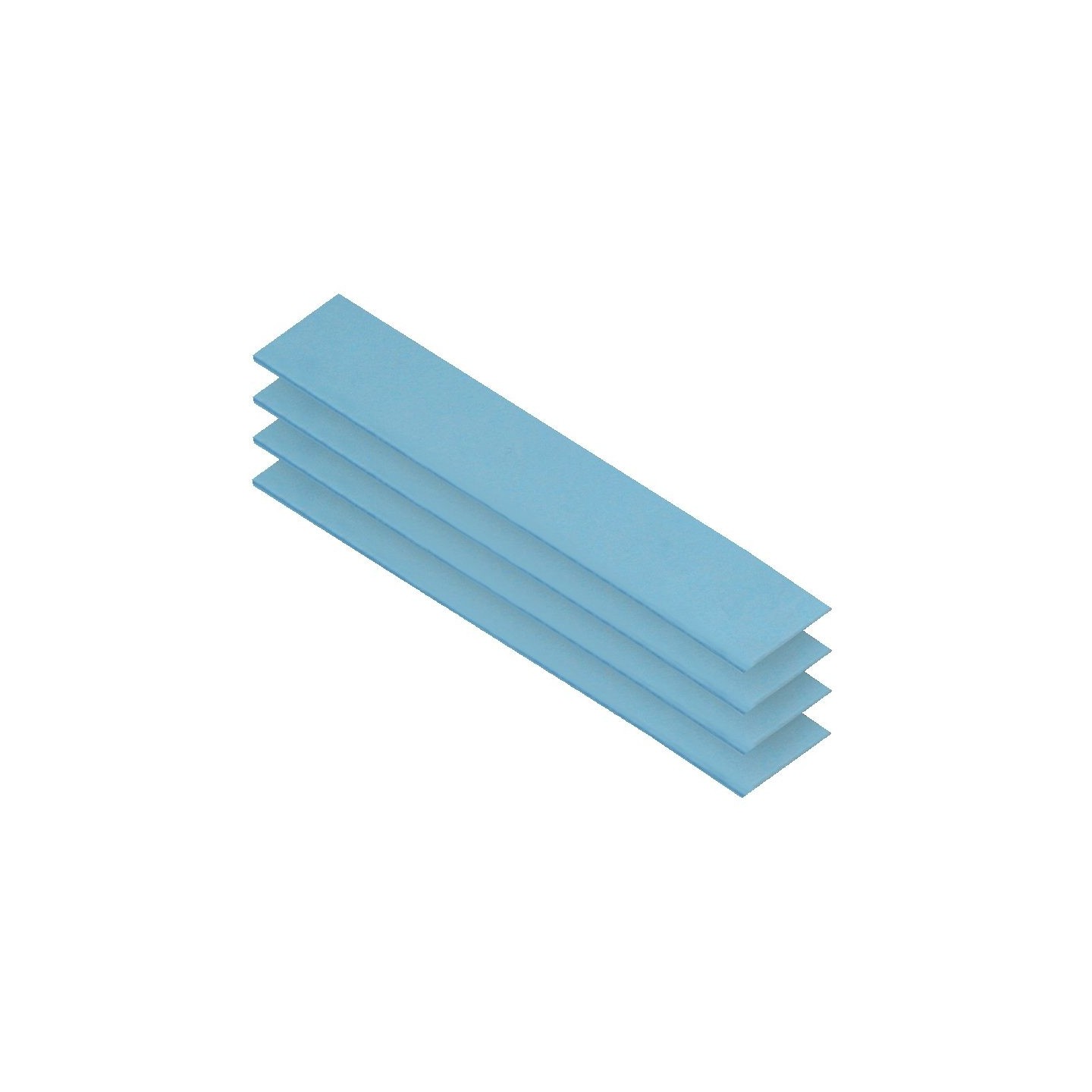

| Quantity | 4 Pack |
