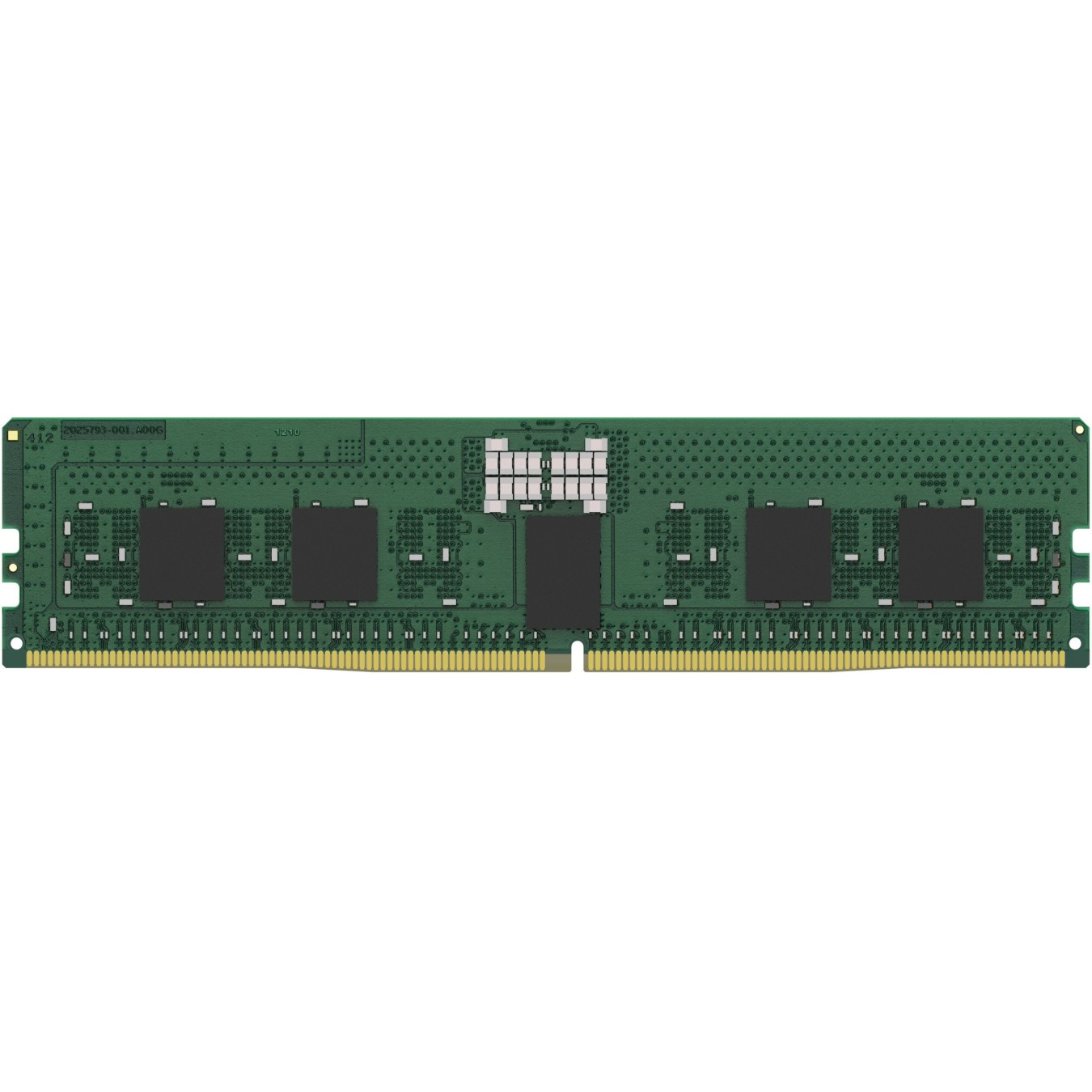

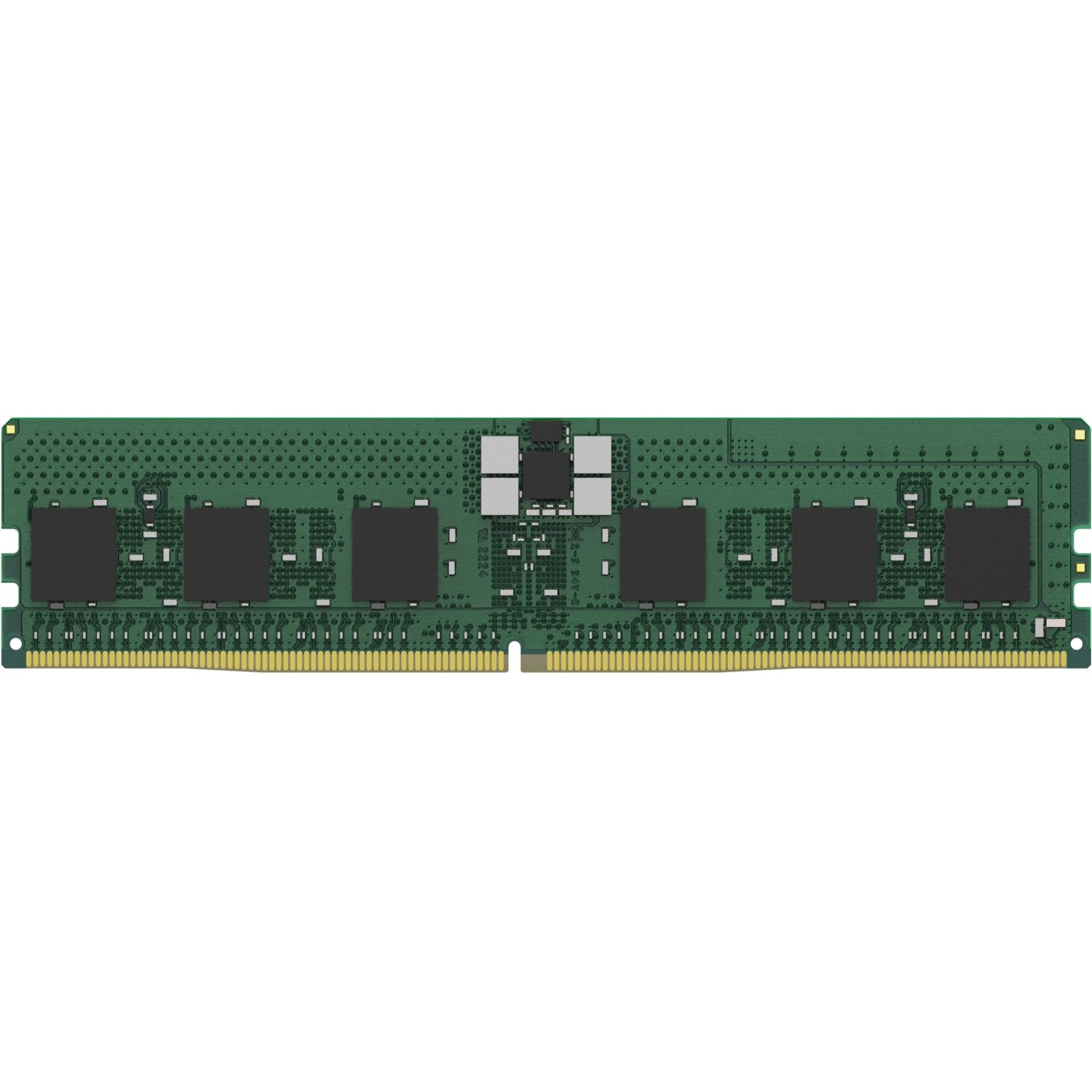

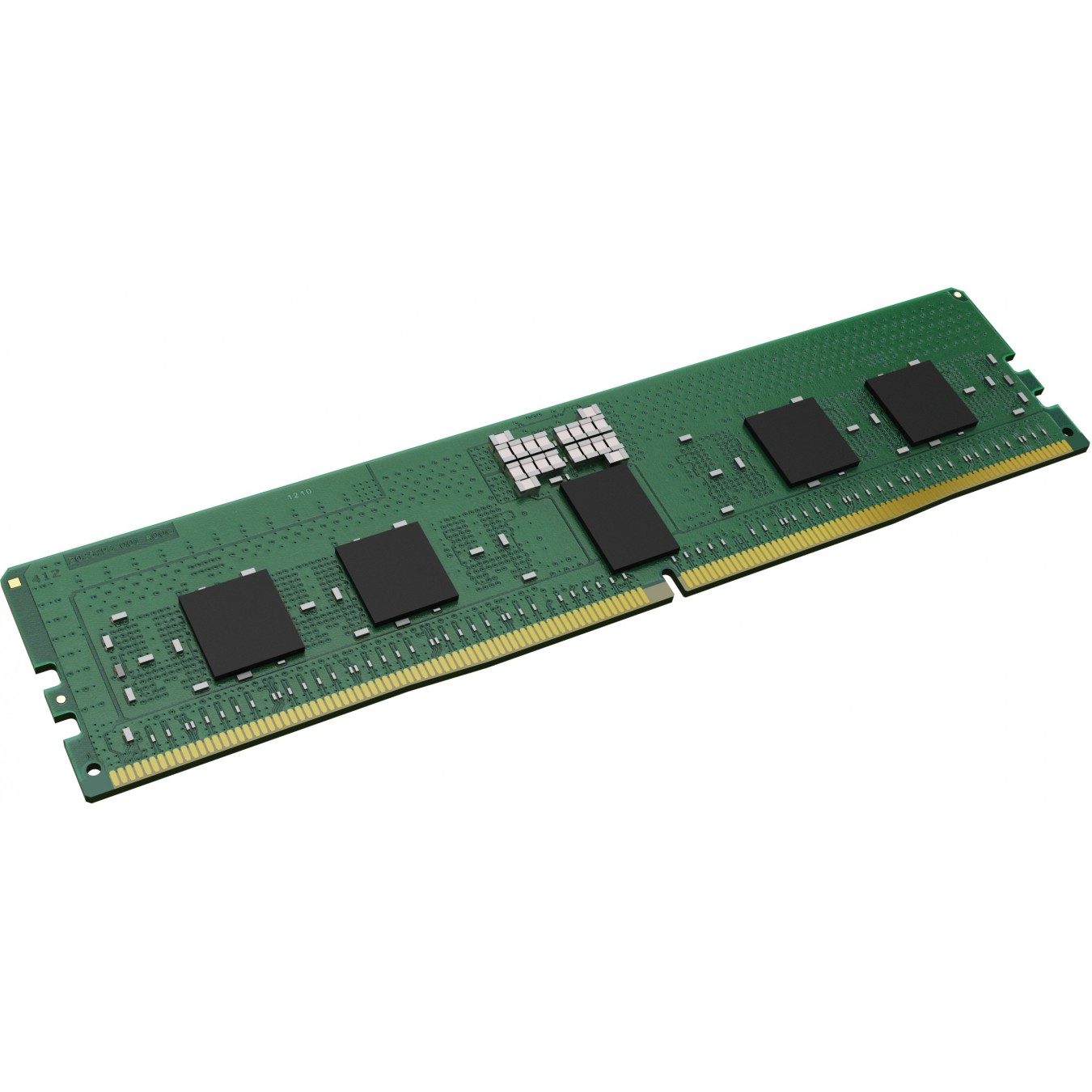

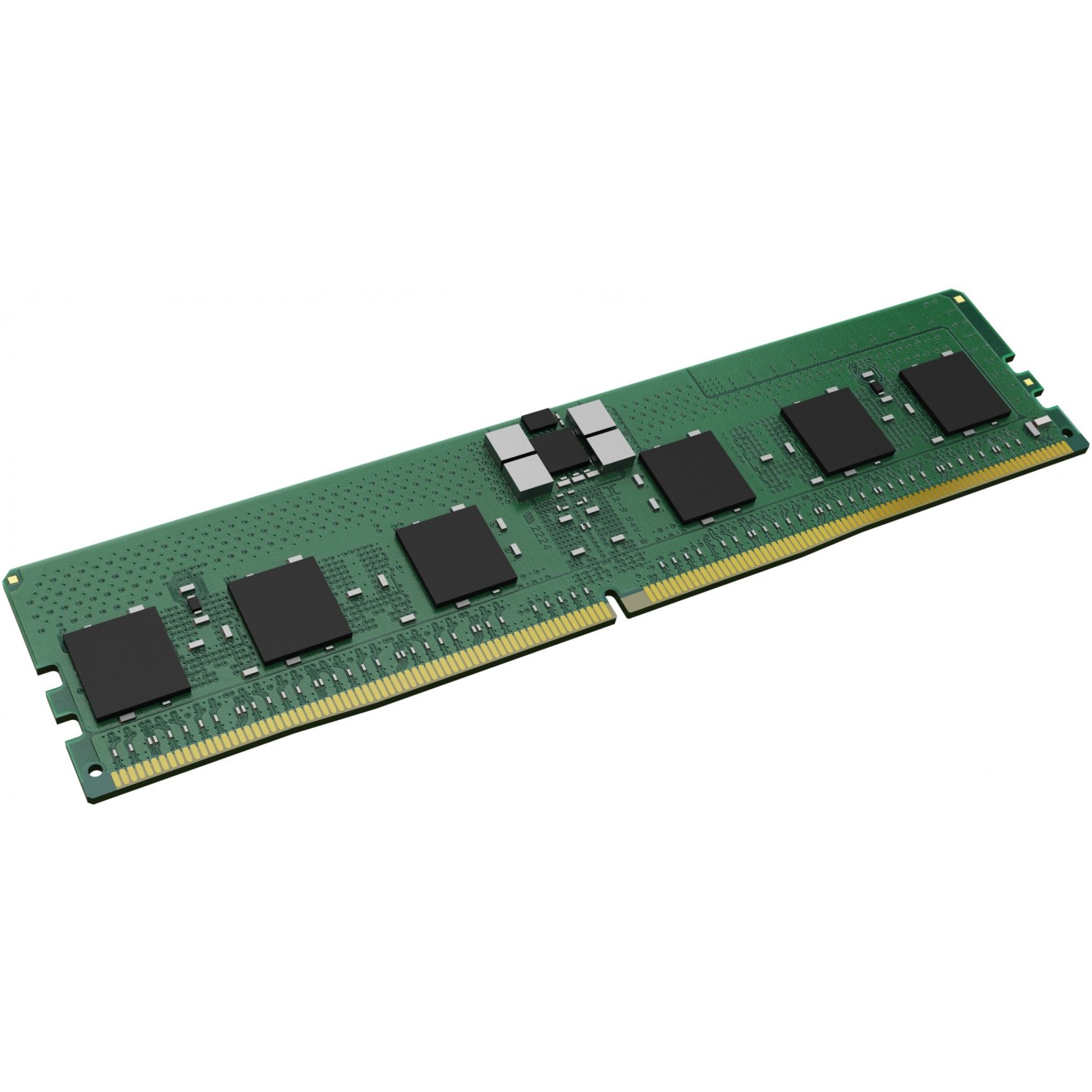

Kingston 16GB 4800MT s DDR5 ECC Reg CL40 DIMM 1Rx8 Hynix A - KSM48R40BS8-16HA - 288-pin DIMM
Kingston Technology KSM48R40BS8-16HA: 16 GB DDR5 Registered (buffered) ECC, 1 x 16 GB, 288-pin DIMM, 4800MT s CL40
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| RAM Memory - Type | DDR5 |
|---|---|
| RAM Memory - Capacity | 16 GB |
| RAM Memory - Speed (MT/s) | DDR5-4800 |
| RAM Memory - CAS Latency | CL40 |
| RAM Memory - Profiles | None |
| RAM Memory - ECC | ECC Registered (RDIMM) |
| RAM Memory - RGB Lighting | No |
| RAM Memory - Heatsink Height | Low-profile (less than or equal to32 mm) |
Kingston Technology KSM48R40BS8-16HA. Component for: PC/Server. Internal memory: 16 GB. Memory layout (modules x size): 1 x 16 GB. Internal memory type: DDR5. Memory form factor: 288-pin DIMM. CAS latency: 40
| Buffered memory type | Registered (buffered) |
| Feature | JEDEC standard |
| CAS latency | 40 |
| Internal memory | 16 GB |
| Memory layout (modules x size) | 1 x 16 GB |
| Internal memory type | DDR5 |
| Memory data transfer rate | 4800 MT/s |
| Component for | PC/Server |
| Memory form factor | 288-pin DIMM |
| Memory ranking | 1 |
| Memory voltage | 1.1 V |
| Module configuration | 2048M x 80 |
| Row cycle time | 48 ns |
| Refresh row cycle time | 295 ns |
| Row active time | 32 ns |
| Row Precharge Time (TRP) | 16 |
| Programming power voltage (VPP) | 1.8 V |
| Lead plating | Gold |
| Operating temperature (T-T) | 0 - 95 °C |
| Storage temperature (T-T) | -55 - 100 °C |
| Compliance certificates | RoHS |
| Doesn't contain | Halogen |
| Width | 133.3 mm |
| Height | 31.2 mm |
