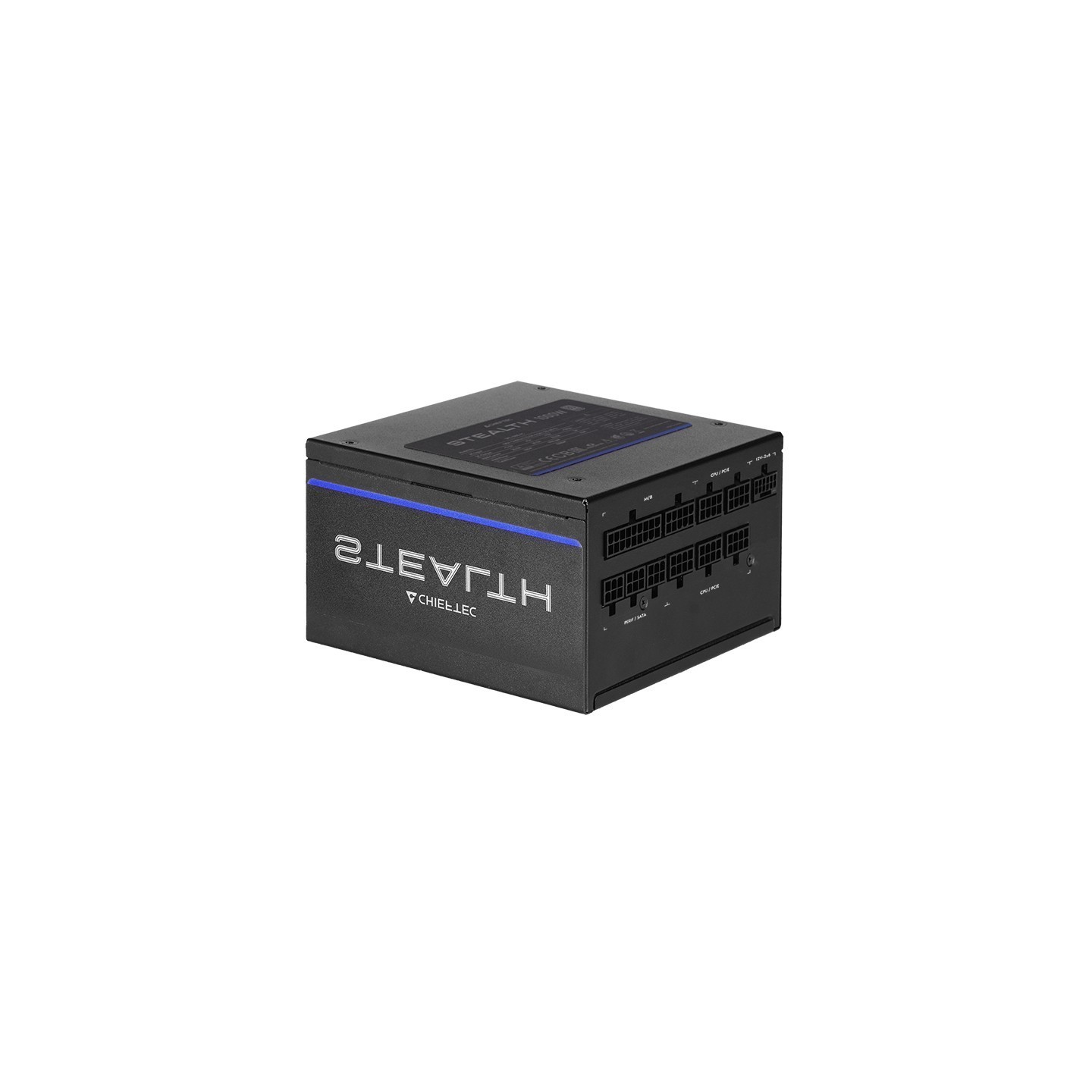

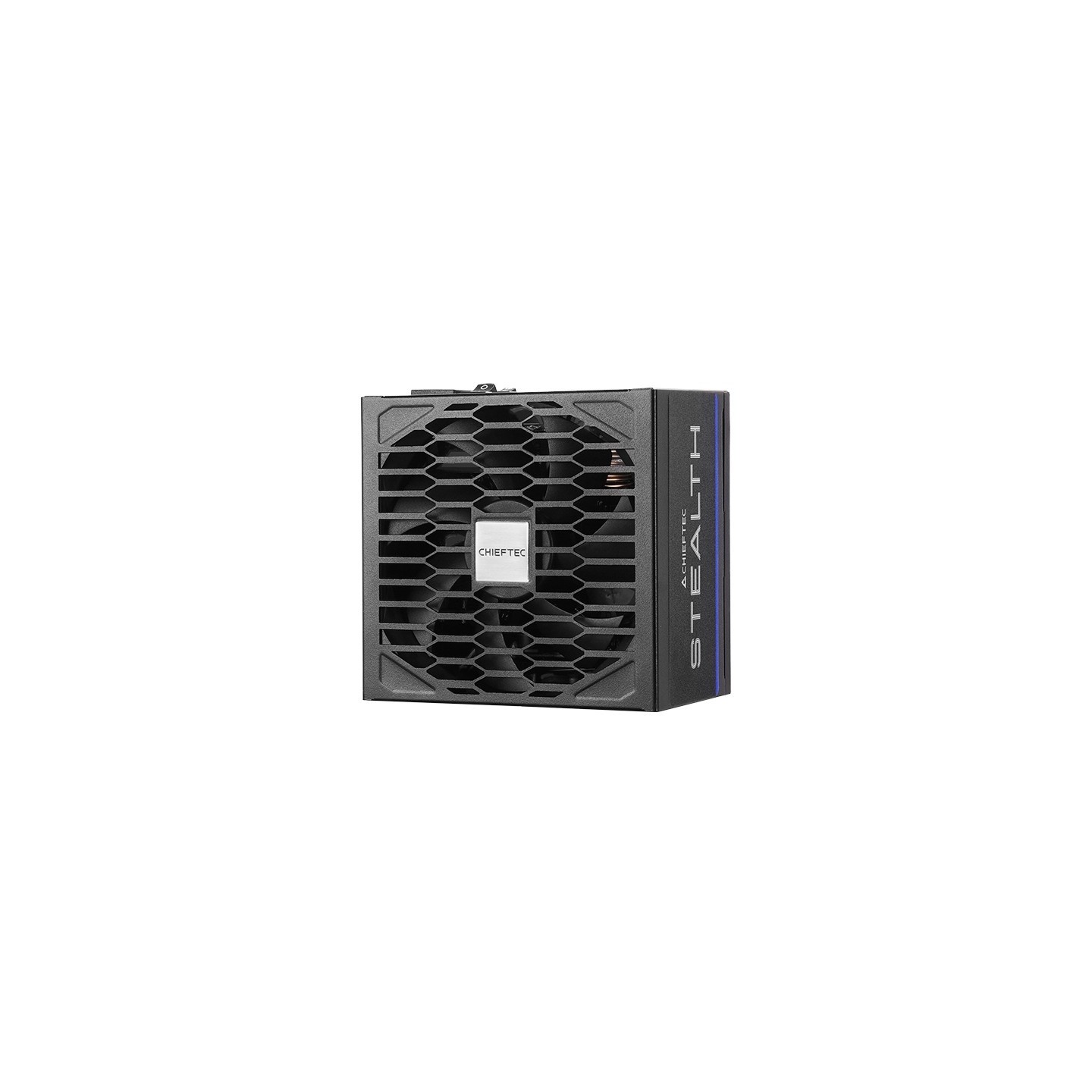

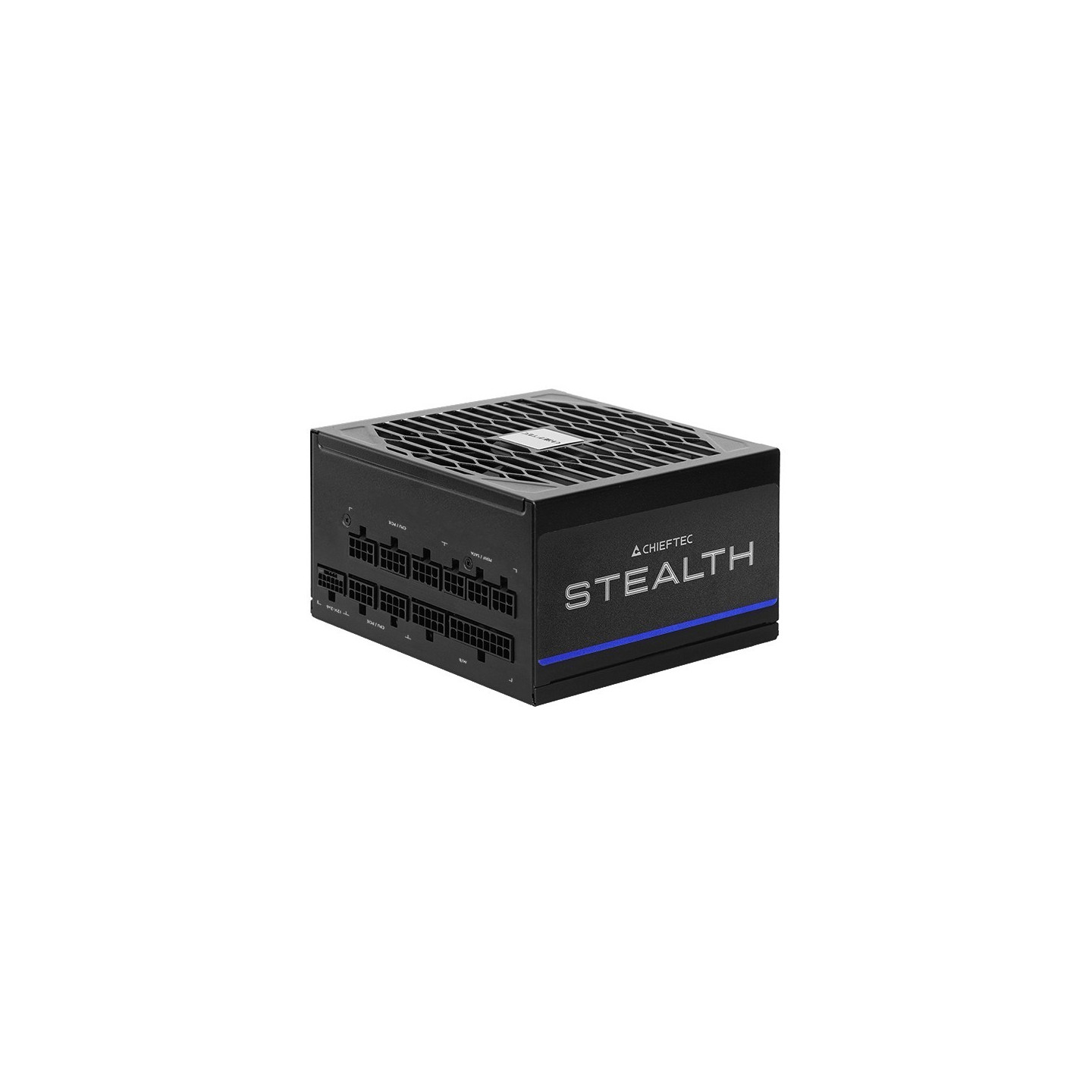

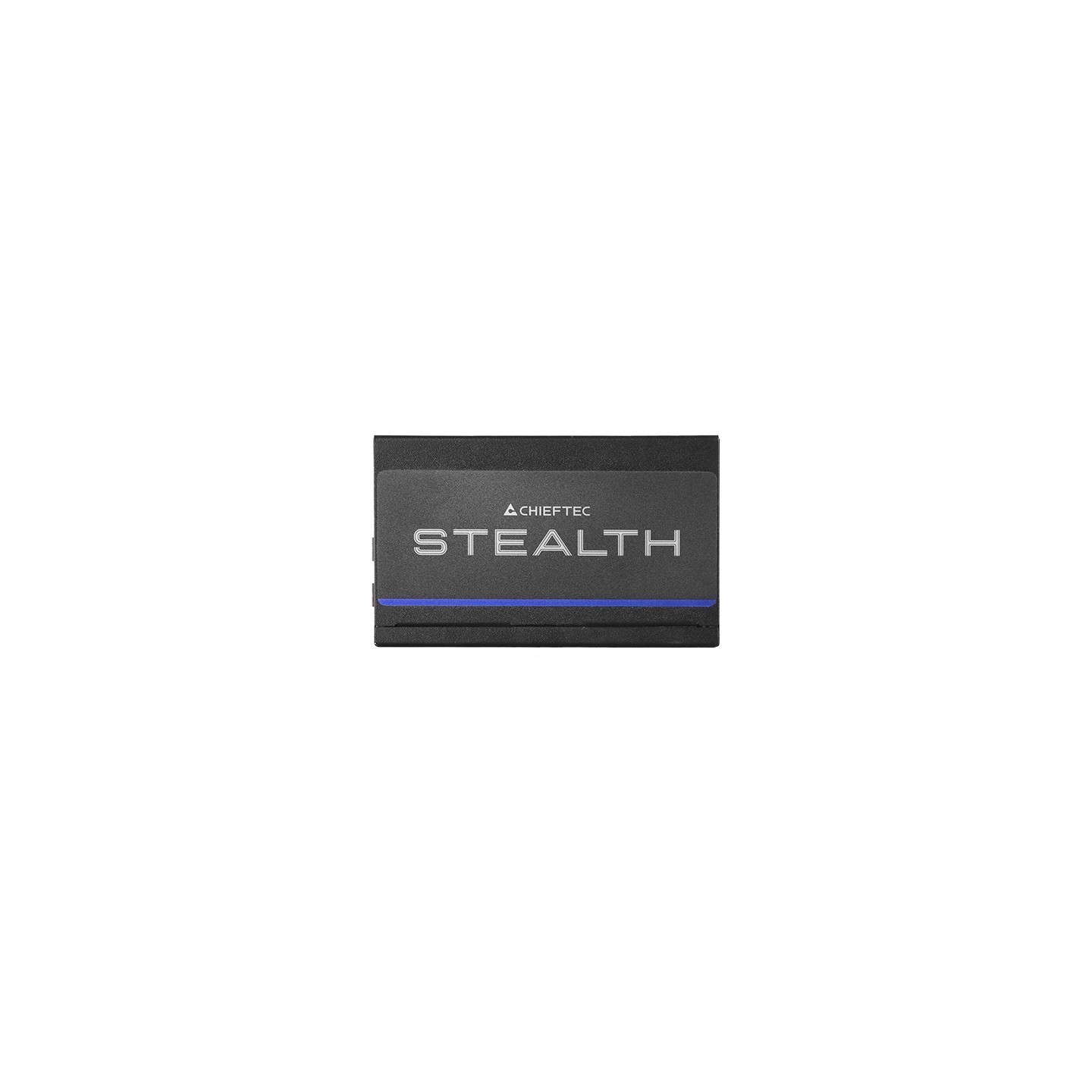

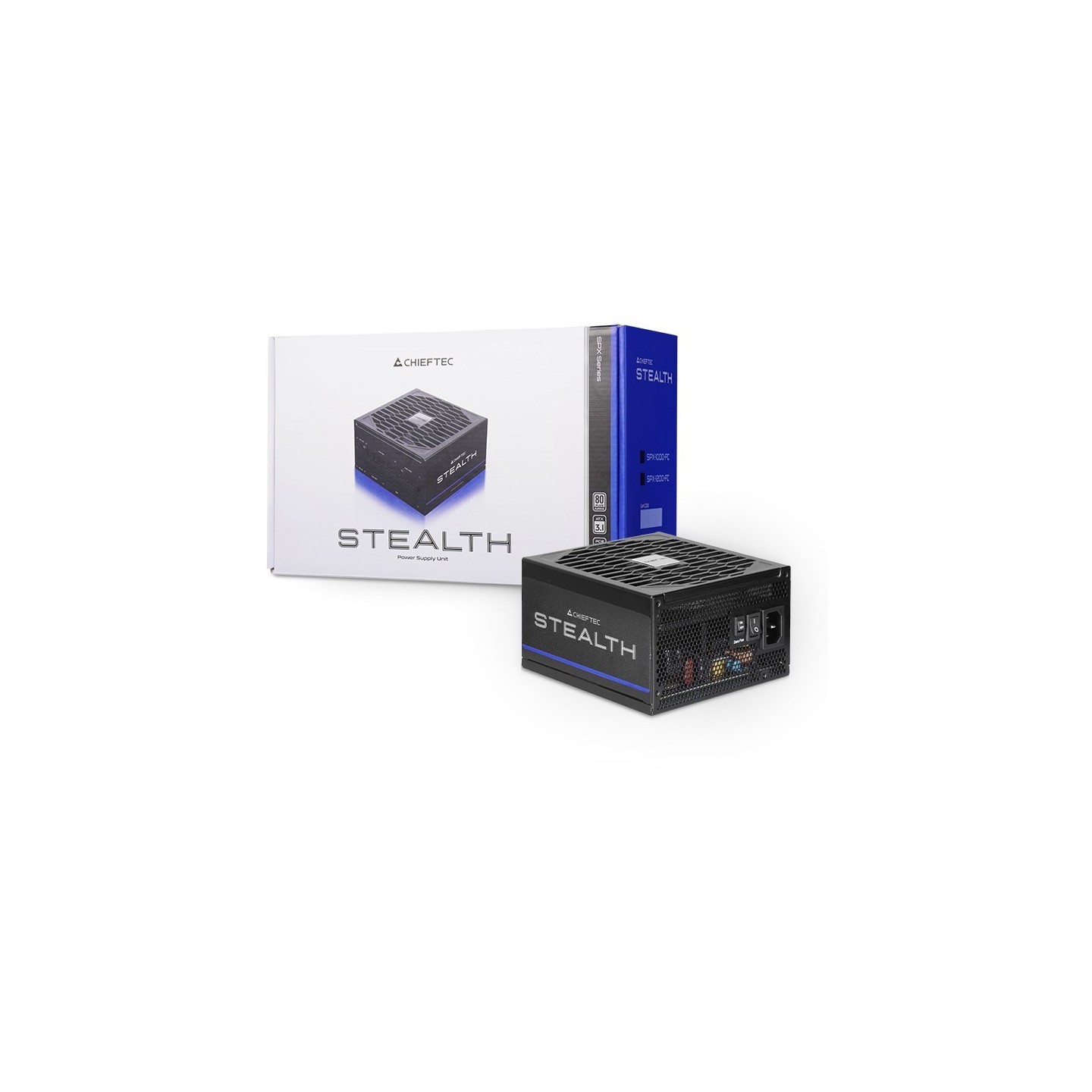

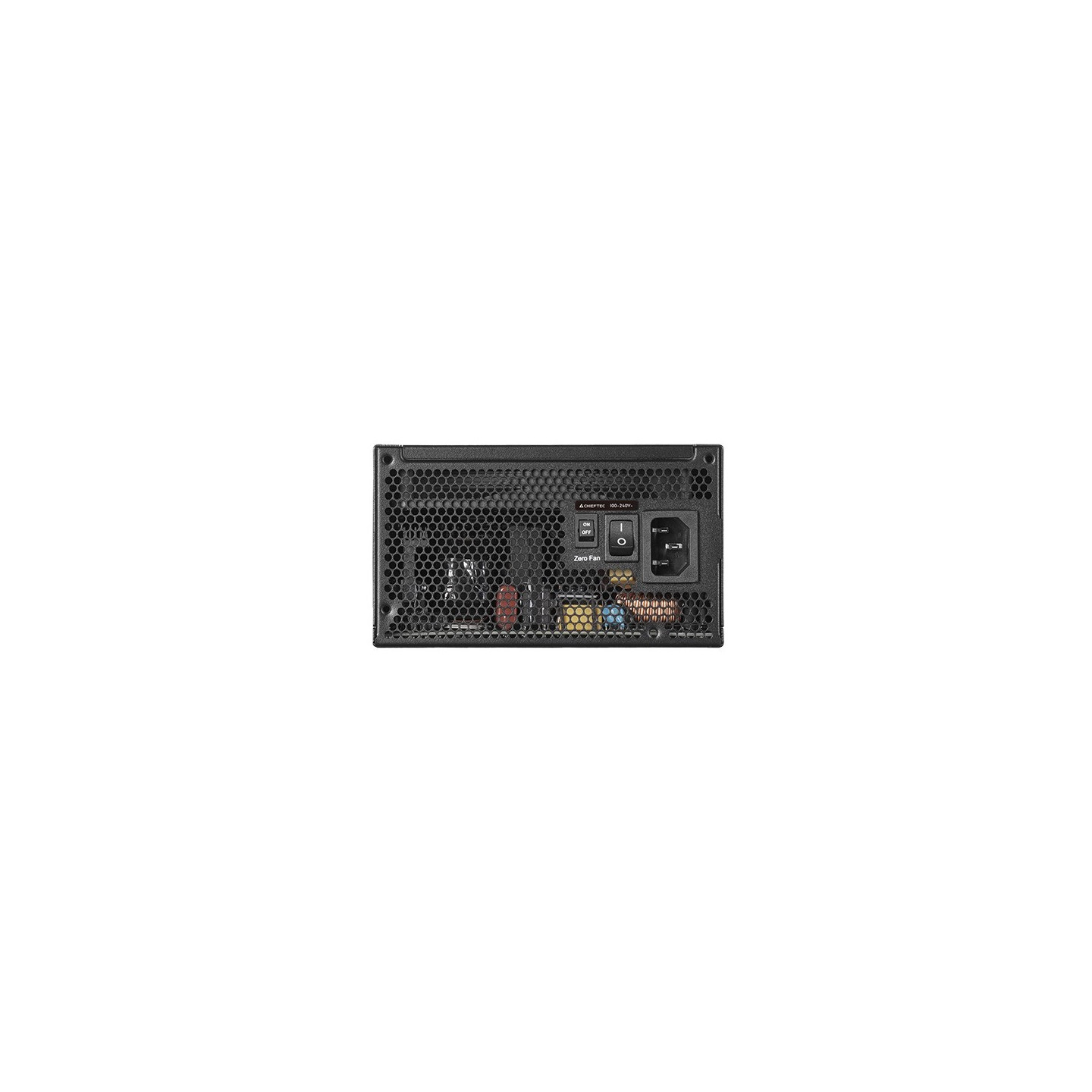

Chieftec Stealth Vega M Series SPX-1000-FC - 1000W 80+ Platinum Fully Modular ATX PSU (Boxed)
Chieftec Stealth Vega M SPX-1000-FC is a 1000W 80+ Platinum fully modular ATX PSU with PCIe GEN5 support (1x 12V-2x6 + 3x 6+2 PCIe), 135mm FDB fan, Japanese capacitors for high-end gaming PCs. ATX 3.1 compliant, 140x150x86mm.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 1000 - 1199 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Platinum |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 12V-2x6 4x 8/6 pins |
| PSU (Power Supplies) - Length | 141-160 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 2x 4+4pin EPS/ATX12V |

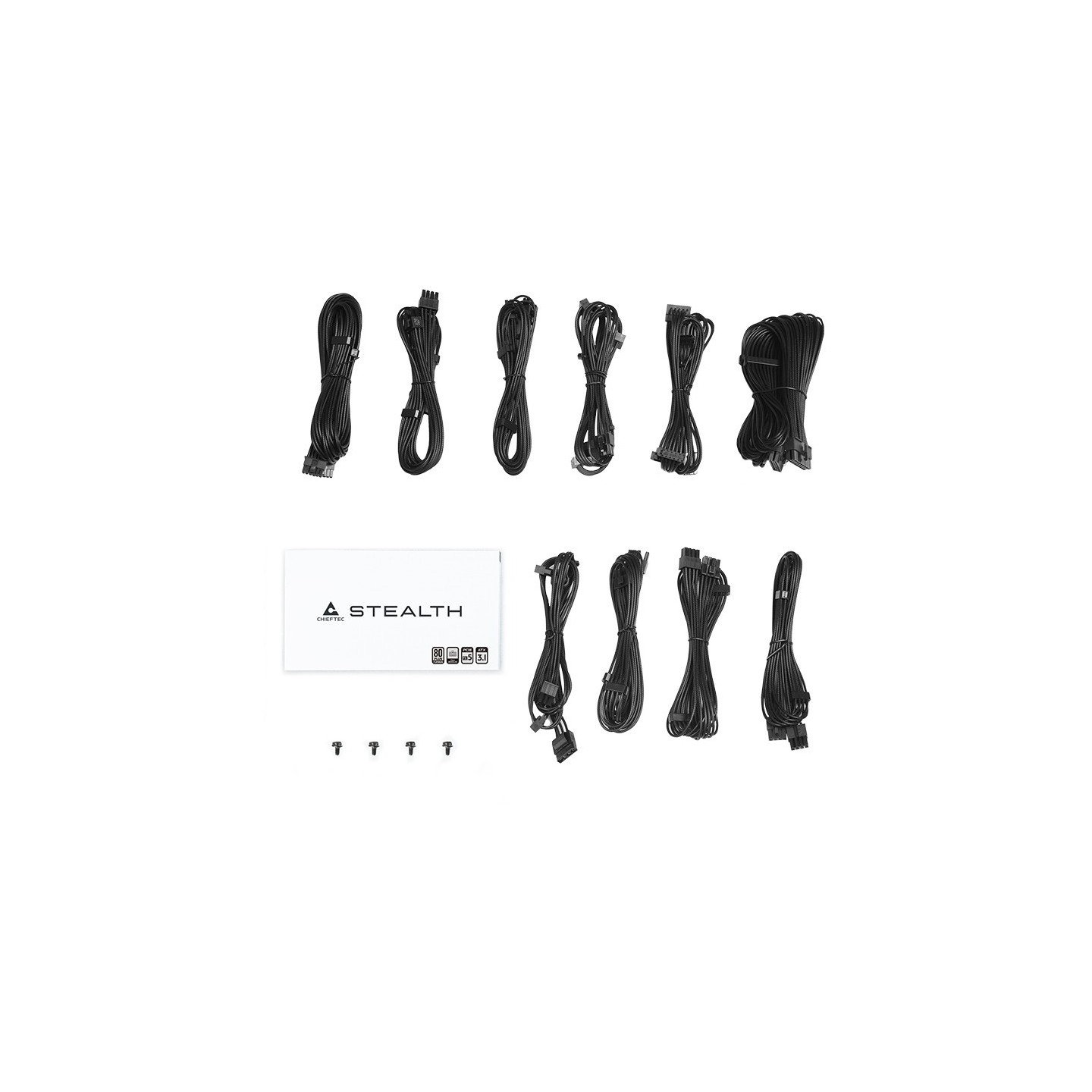

The Chieftec Stealth Series SPX-1000-FC from Vega M lineup delivers 1000W of power with 80+ Platinum efficiency, compliant with ATX 12V 3.1 and supporting PCIe GEN5 for modern high-end GPUs. It features a fully modular design with ultra-soft braided cables for easy cable management and optimal airflow in your PC build.
Equipped with LLC half-bridge topology, DC-to-DC conversion, and full Japanese capacitors, this PSU ensures stable power delivery, longevity, and reliability under heavy loads. A quiet 135mm Fluid Dynamic Bearing (FDB) fan with automatic speed control maintains low noise levels while providing excellent cooling. Protection features include OCP, OVP, OPP, OTP, SCP, UVP, and more.
- ✅ 1000W continuous power, 80+ Platinum certified (>94% efficiency)
- ✅ PCIe connectors: 1x 16-pin 12V-2x6 (650W), 3x 8-pin PCIe (6+2)
- ✅ EPS: 1x 8-pin + 1x 4+4-pin

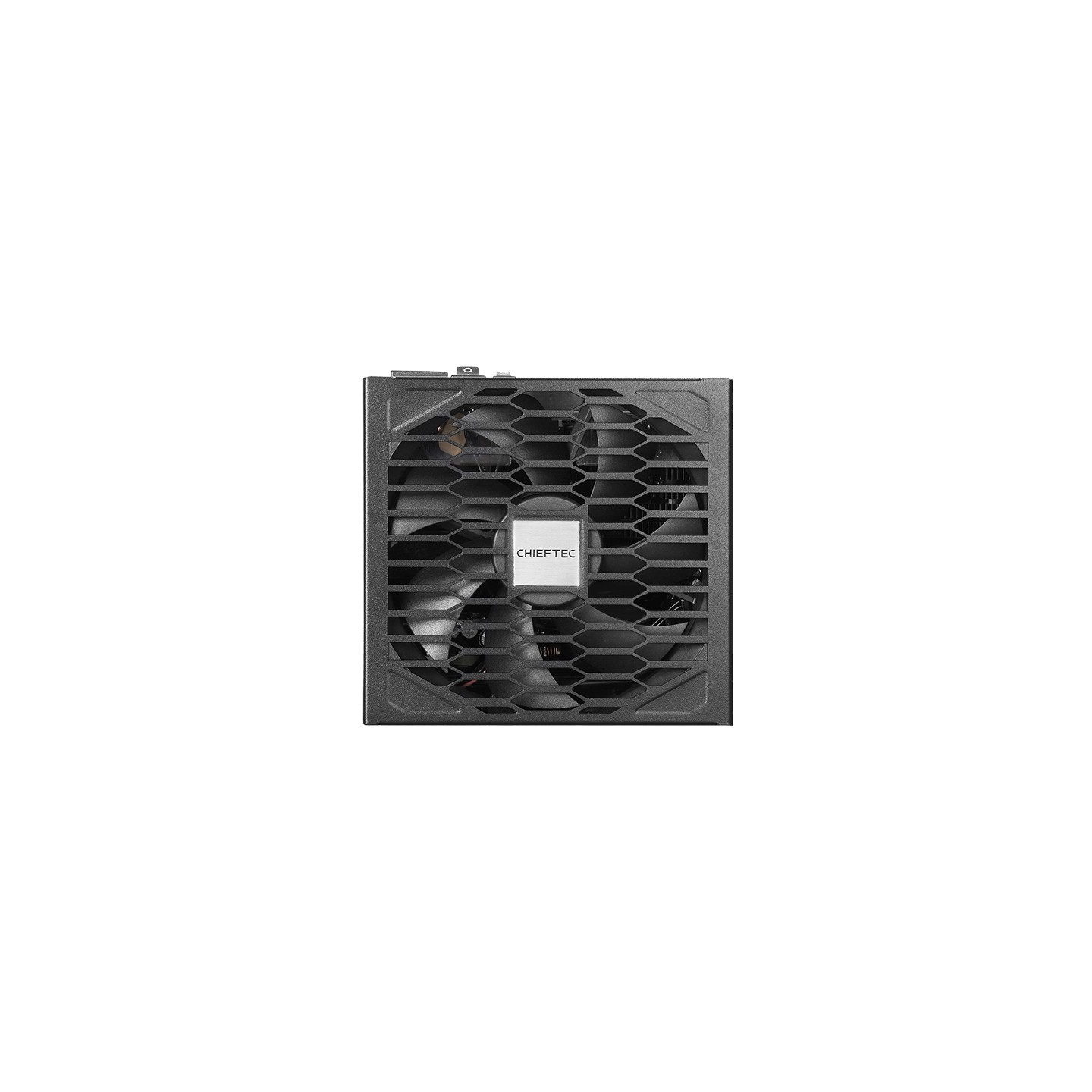

- ✅ 135mm FDB fan, fully modular black cables
- ✅ Dimensions: 140 x 150 x 86 mm, Weight: 2.05 kg (unit)
| MPN | SPX-1000-FC |
| EAN | 0753263079251 |
| Form Factor | ATX |
| Total Power | 1000W |
| Efficiency Certification | 80+ Platinum |
| ATX Version | ATX 12V 3.1 |
| Modularity | Fully Modular |
| Fan Size | 135 mm FDB |
| Dimensions (DxWxH) | 140 x 150 x 86 mm |
| Weight (with package) | 2.50 kg |
| Main Power | 1 x 20+4-pin ATX |
| CPU Power | 1 x 8-pin EPS + 1 x 4+4-pin EPS |
| PCIe Connectors | 3 x 8-pin (6+2) PCIe + 1 x 16-pin 12V-2x6 (650W) |
| PFC | Active PFC |
| Warranty | 5 Years |
