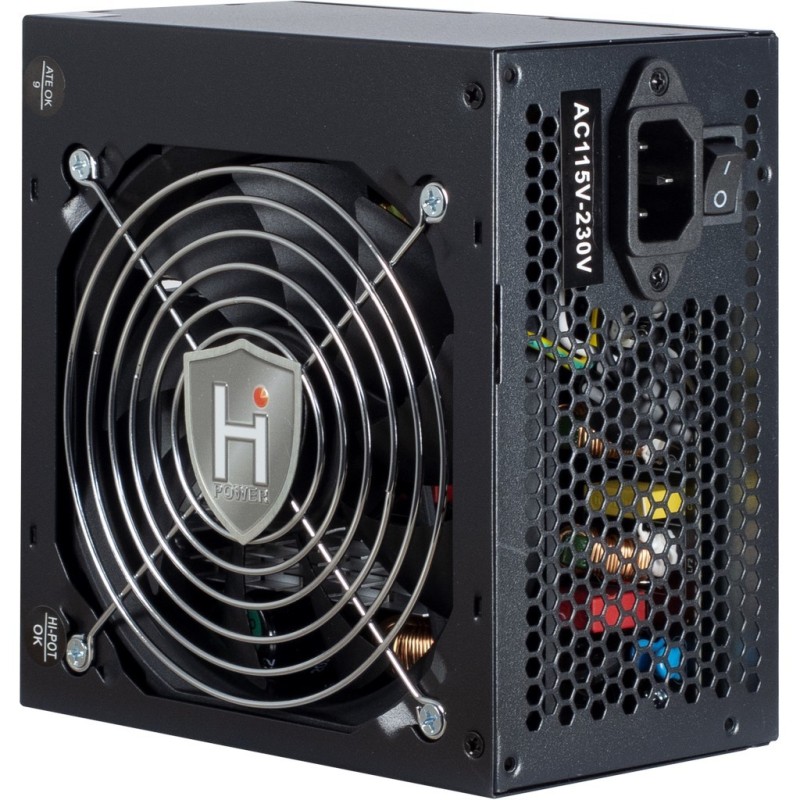

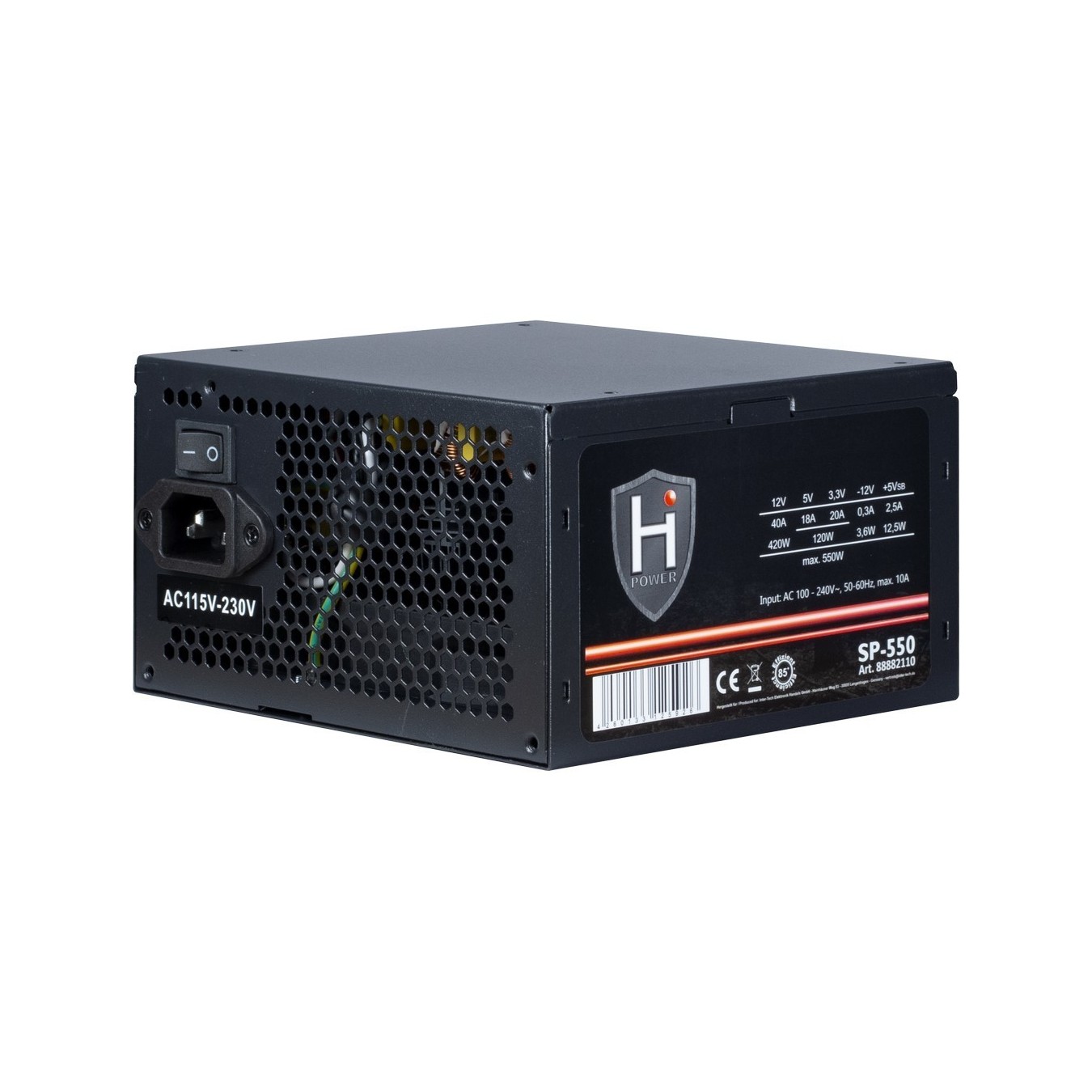

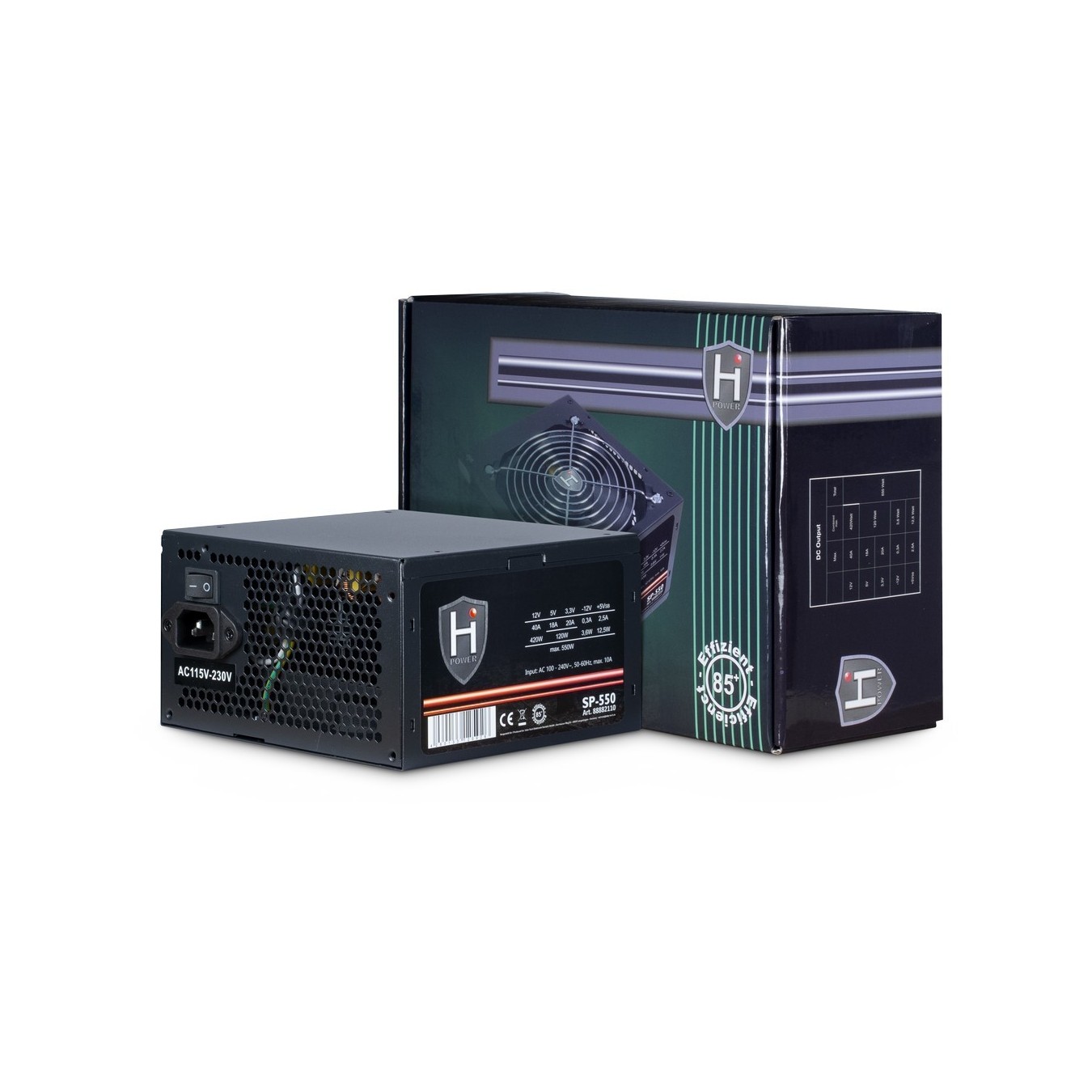

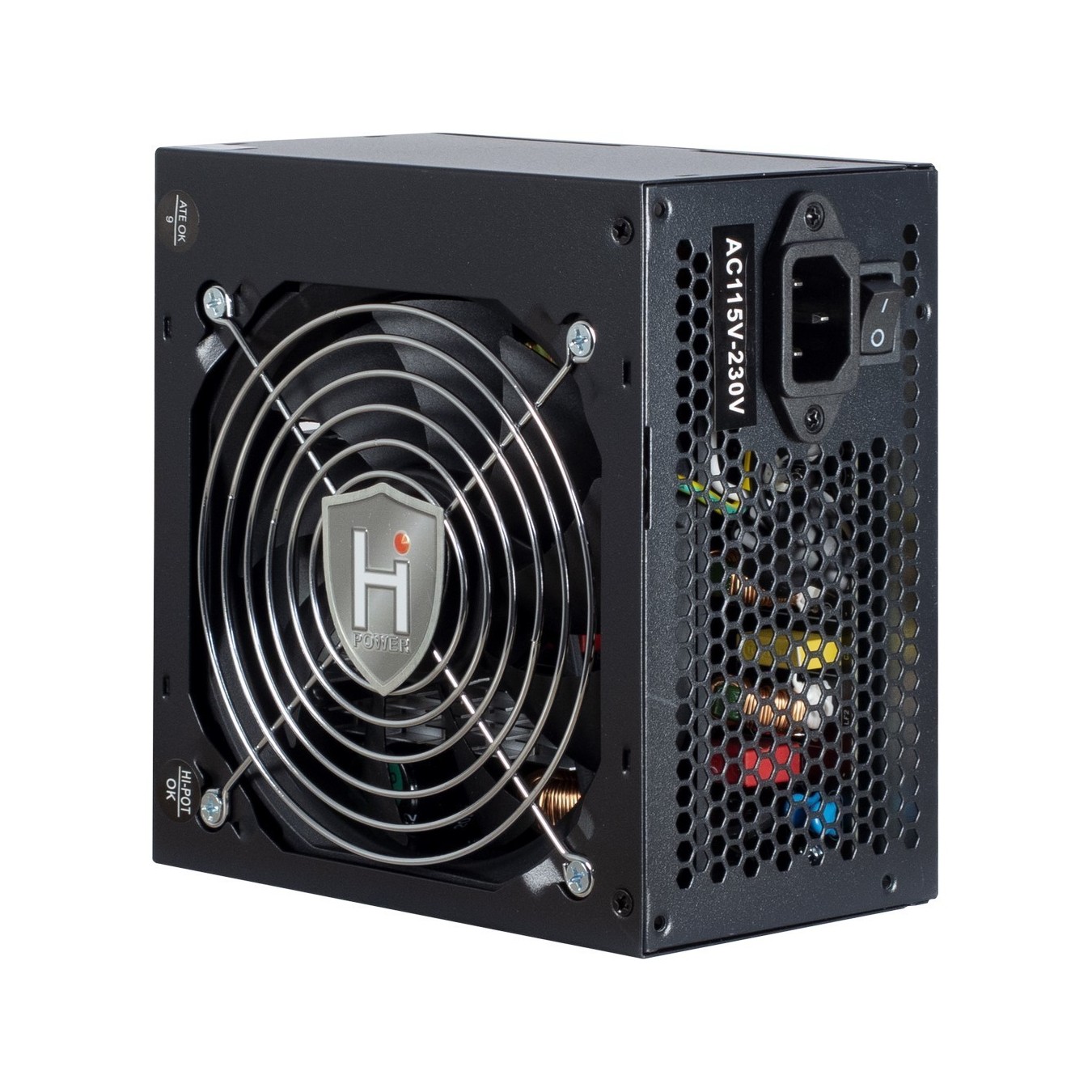

550W Inter-Tech HIPOWER - SP-550 - 100 - 240 V, 50 - 60 Hz, 10 A, Active PFC, ATX version 2.4, 12 cm fan, Black
550 W Inter-Tech HIPOWER SP-550 PSU with 100-240 V input, 50-60 Hz, 10 A, Active PFC, ATX form factor, 12 cm fan, black, 1.14 kg, 150x140x86 mm, 85% efficiency.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Length | Up to 140 mm |
|---|
Inter-Tech HIPOWER SP-550. Total power: 550 W. AC input voltage: 100 - 240 V. AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX. Motherboard power cable length: 50 cm. PCI Express power cable length: 50 cm. Purpose: PC. Power supply unit (PSU) form factor: ATX. Noise level: 35 dB. Product colour: Black. Cooling type: Active. Fan diameter: 12 cm. Width: 150 mm. Depth: 140 mm. Height: 86 mm
| Total power | 550 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 10 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 420 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 40 A |
| Max output current (+5V) | 18 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.2 A |
| Efficiency | 85% |
| Power protection features | Over power. Over voltage. Short circuit |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 50 cm |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6-pin) | 1 |
| PCI Express power cable length | 50 cm |
| Feature | On/off switch |
| CPU power cable length | 50 cm |
| Floppy drive power connector | 1 |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.4 |
| Noise level | 35 dB |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 1.14 kg |
| Package width | 230 mm |
| Package depth | 95 mm |
| Package height | 175 mm |
| Package weight | 1.49 kg |
| Package type | Box |
| Harmonized System (HS) code | 84733020 |
