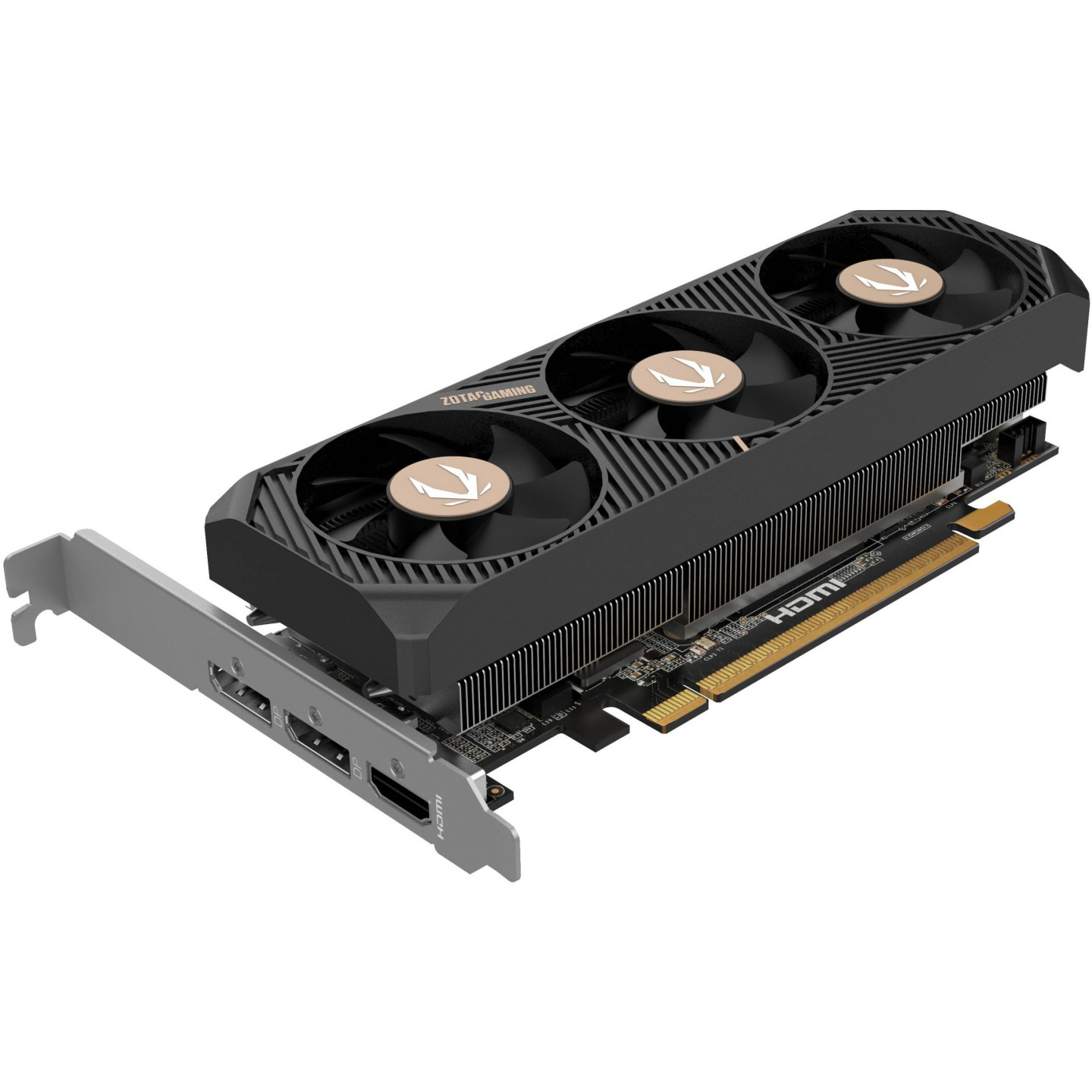

RTX 5060 8GB Zotac Low Profile GDDR7 ZT-B50600L-10L (Boxed)
Zotac GAMING GeForce RTX 5060 Low Profile: NVIDIA Blackwell GPU with 3840 CUDA cores, 8GB GDDR7, 128-bit bus, 2497 MHz boost. PCIe 5.0 x8, 145W TDP, 1xHDMI 2.1b, 2xDP 2.1b. Compact SFF-ready design with 3 fans for 1080p/1440p gaming.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | NVIDIA GeForce RTX |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 4.0 x8 |
| GPU (Graphics Cards) - Cooler Type | Triple Fan |
| GPU (Graphics Cards) - Color | Black |
| GPU (Graphics Cards) - Backplate | No |
| GPU (Graphics Cards) - VRAM Capacity | 8 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR7 |
| GPU (Graphics Cards) - Outputs | DisplayPort 2.1 HDMI 2.1 |
| GPU (Graphics Cards) - Power Connector | 1x8-pin |
| GPU (Graphics Cards) - Card Length | Compact (170-200 mm) |
The Zotac GAMING GeForce RTX 5060 Low Profile is a compact powerhouse based on NVIDIA's Blackwell architecture, featuring 3840 CUDA cores and 8GB GDDR7 memory on a 128-bit bus with 28 Gbps effective speed (448 GB/s bandwidth). Boost clock reaches 2497 MHz, delivering ~30% better performance than RTX 4060 in 1080p gaming, with DLSS 4 and ray tracing support. Ideal for Mini-ITX and SFF PCs, it uses PCIe 5.0 x8 interface and draws just 145W via single 8-pin connector.

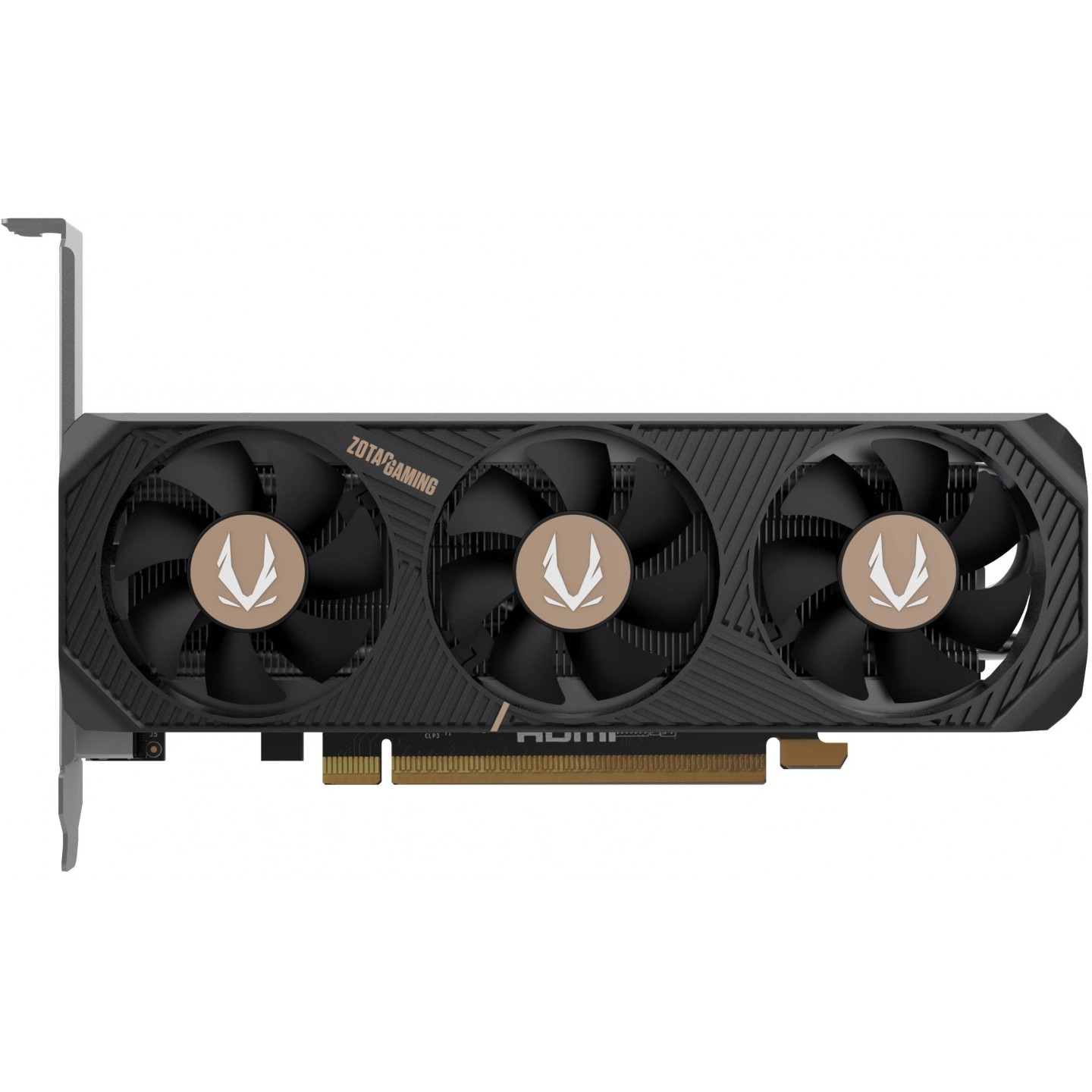

This low-profile card (HH/HL form factor, 182.5mm length) includes active cooling with 3x 40mm fans and composite heatpipes for efficient thermals. Supports up to 3 displays at 8K resolution (7680x4320), with 1x HDMI 2.1b and 2x DisplayPort 2.1b. Additional features: DirectX 12 Ultimate, OpenGL 4.6, HDCP 2.3, VR Ready. Requires 550W PSU; up to 5-year warranty after registration.
- Key Specs: 3840 CUDA cores, 8GB GDDR7, 145W TDP, PCIe 5.0 x8

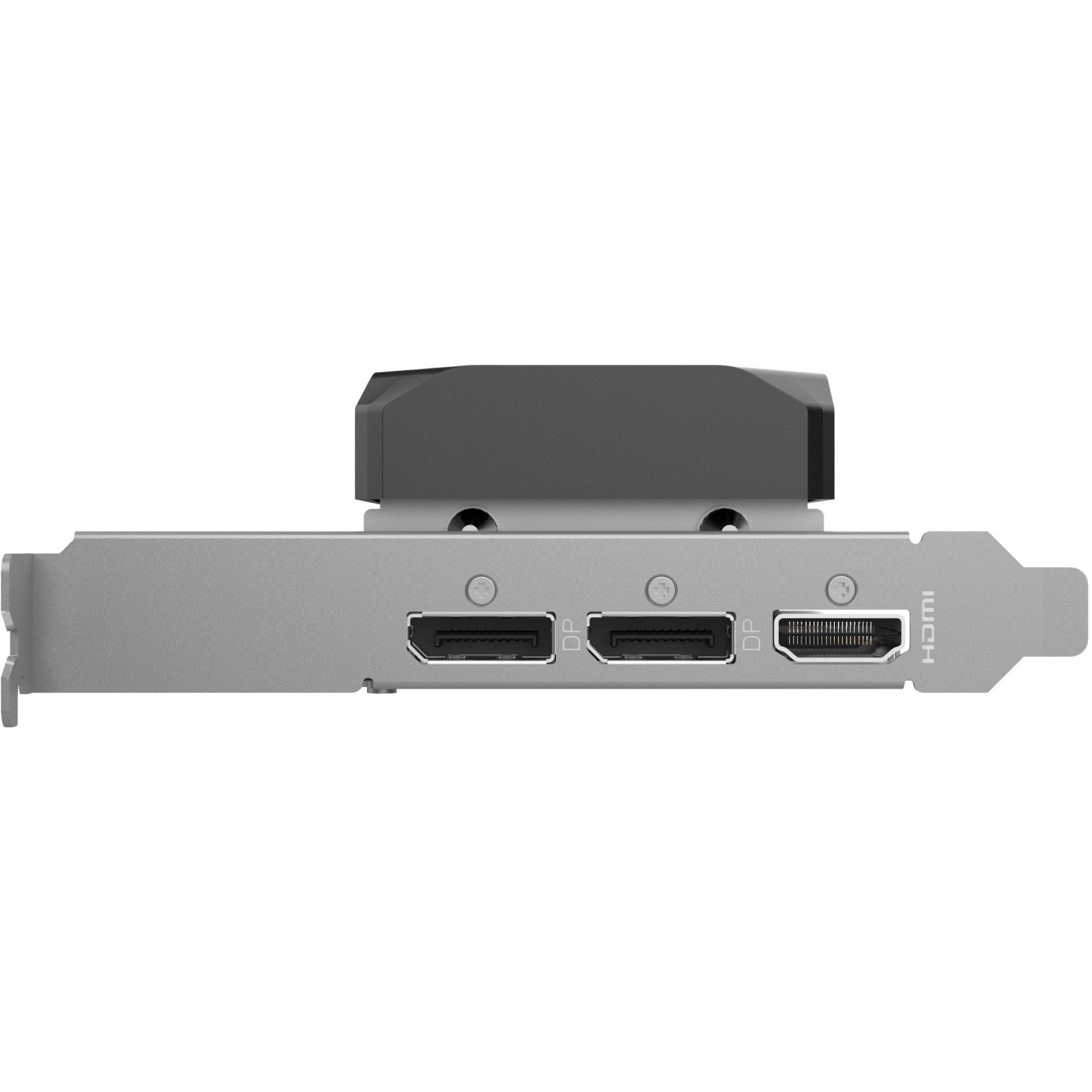

- Ports: 1x HDMI 2.1b, 2x DP 2.1b (3 displays)
- Power: 1x 8-pin, min 550W PSU
- Dimensions: 182.5 x 69 x 38.2 mm, low-profile bracket
| CUDA cores | 3840 |
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5060 |
| Processor frequency | 2497 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 3 |
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 128 bit |
| Data transfer rate | 28 Gbit/s |
| Interface type | PCI Express x8 5.0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| DisplayPorts quantity | 2 |
| DisplayPort version | 2.1b |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| HDCP version | 2.3 |
| Cooling type | Active |
| Number of fans | 3 fan(s) |
| Fan diameter | 4 cm |
| Form factor | Half-Height/Half-Length (HH/HL) |
| Bracket height | Low-Profile (LP) |
| Number of slots | 2 |
| Product colour | Black |
| Minimum system power supply | 550 W |
| Supplementary power connectors | 1x 8-pin |
| Power consumption (max) | 145 W |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Length | 182.5 mm |
| Depth | 38.2 mm |
| Height | 69 mm |
| Package width | 215 mm |
| Package depth | 55 mm |
| Package height | 280 mm |
| Package type | Box |
| Manufacturer Part Number | ZT-B50600L-10L |
