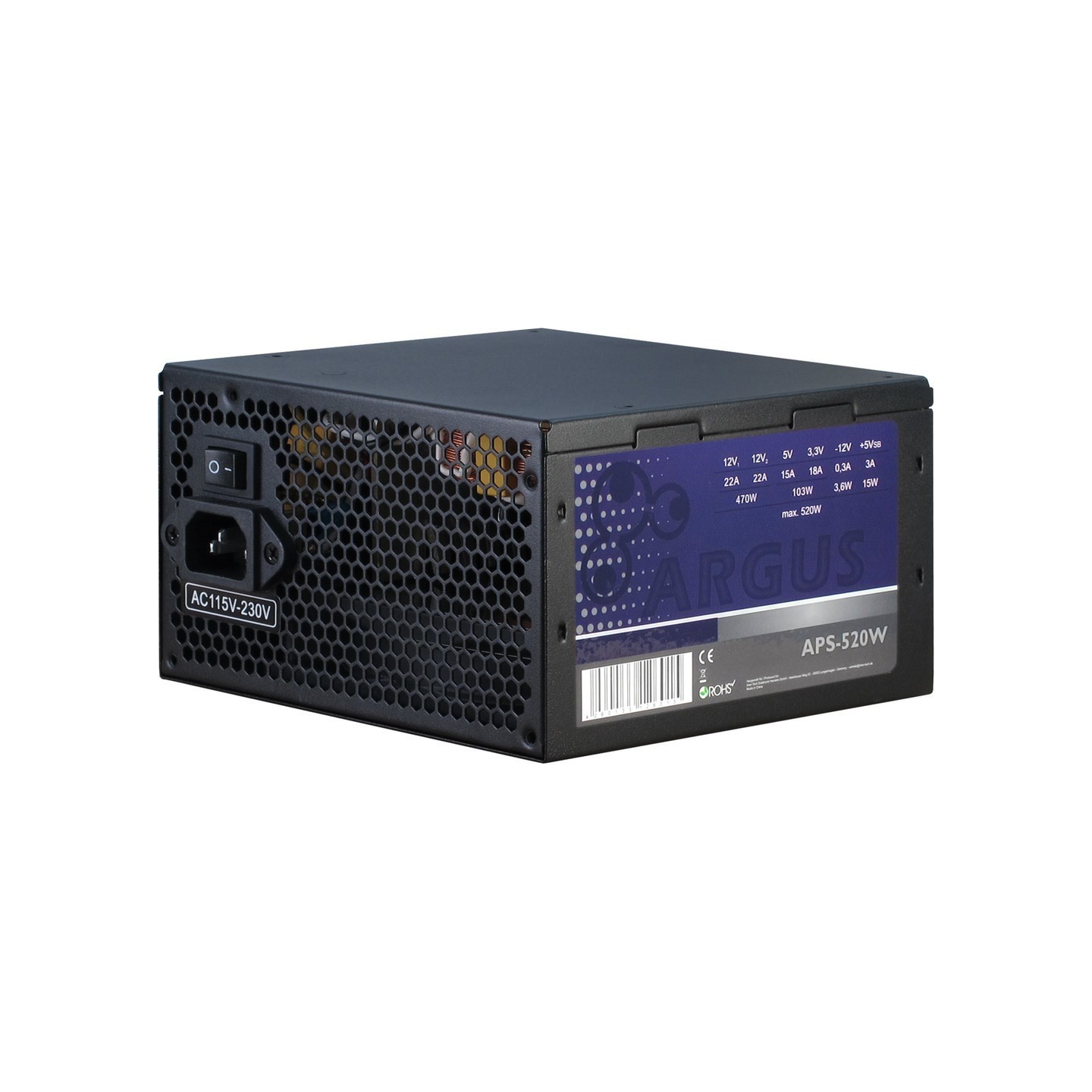

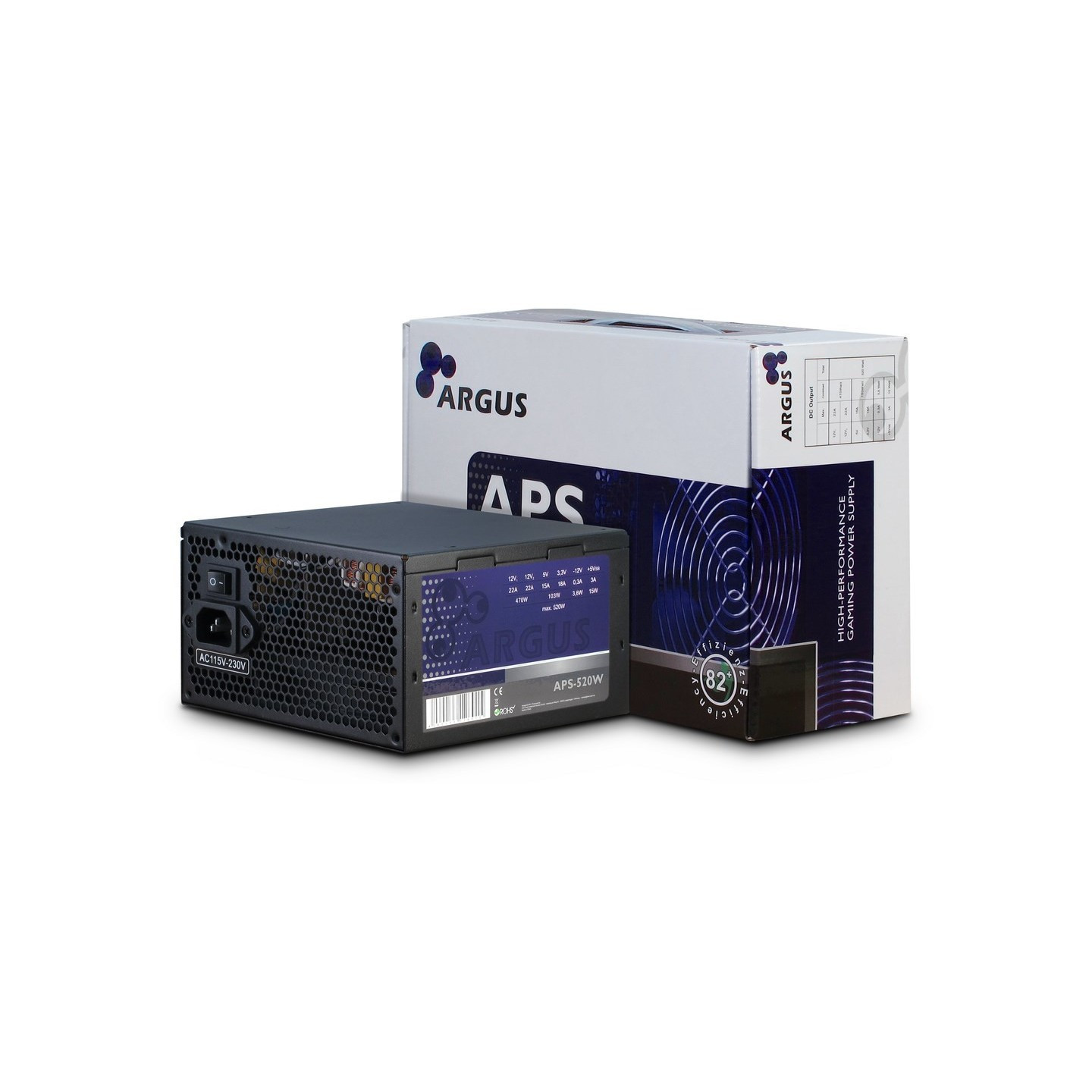

Inter-Tech Argus APS-520W - 520W ATX PSU Non-Modular - APS-520W (Boxed)
Inter-Tech Argus APS-520W ATX PSU delivers 520W with 82% efficiency. Features active PFC, 120mm fan (19-21dB), 1x PCIe 6+2pin, 4x SATA, 4x Molex. Black non-modular design (150x140x86mm). Ideal for office/gaming PCs with OVP/SCP/OPP/UVP/OS protection.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 500 - 599 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | Not Certified |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 8/6 pins |
| PSU (Power Supplies) - Length | 141-160 mm |
| PSU (Power Supplies) - EPS CPU Connectors | None |
The Inter-Tech Argus APS-520W is a reliable 520W ATX power supply unit designed for office PCs and entry-level gaming systems. It offers high efficiency of at least 82%, helping reduce energy costs and environmental impact. The non-modular cabling includes essential connectors: 20+4pin ATX motherboard, 1x PCIe 6+2pin for graphics cards, 4x SATA, 4x 4pin Molex, and 1x floppy adapter.

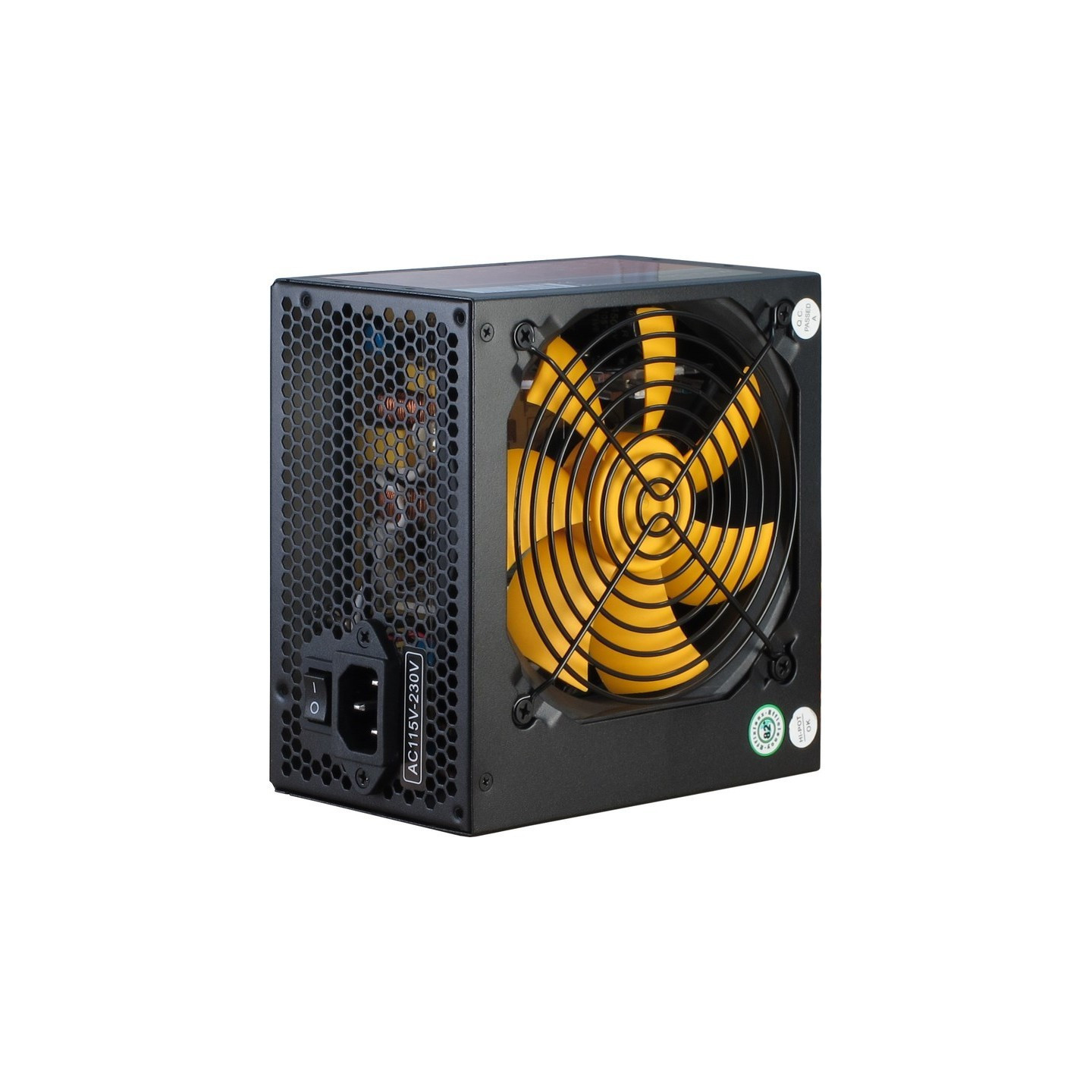

Equipped with a quiet 120mm yellow fan providing active cooling and auto fan control, it maintains low noise levels of 19-21 dB. The PSU supports full-range AC input (115-230V, 47-63Hz) with active PFC. Safety features include OVP, SCP, OPP, UVP, and OS protections. Dimensions: 150mm W x 140mm D x 86mm H; weight 1.25kg.
- **Performance**: +3.3V@18A, +5V@15A, +12V1@22A, +12V2@22A (470W combined 12V), +5Vsb@3A, -12V@0.3A
- **No EPS/ATX12V connector** (confirm for high-end CPUs)
- **ATX 2.31 compliant**, 24-month warranty
- Perfect budget option per user reviews on Digitec/Galaxus
| Total power | 520 W |
| Efficiency | >=82% |
| ATX version | 2.31 |
| AC input voltage | 115 - 230 V |
| AC input frequency | 47 - 63 Hz |
| Power Factor Correction (PFC) type | Active |
| Max output current (+3.3V) | 18 A |
| Max output current (+5V) | 15 A |
| Max output current (+12V1) | 22 A |
| Max output current (+12V2) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Combined power (+3.3V & +5V) | 120 W |
| Combined power (+12V) | 470 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Motherboard power connector | 20+4 pin ATX |
| PCI Express power connectors (6+2 pin) | 1 |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Floppy drive power connector | 1 |
| EPS/ATX12V connectors | None |
| Cabling type | Non-Modular |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| Noise level | 19-21 dB |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan control | Auto |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 1.25 kg |
| Package width | 240 mm |
| Package depth | 95 mm |
| Package height | 170 mm |
| Package weight | 1.59 kg |
| Protections | OVP, SCP, OPP, UVP, OS |
| Warranty | 24 months |
