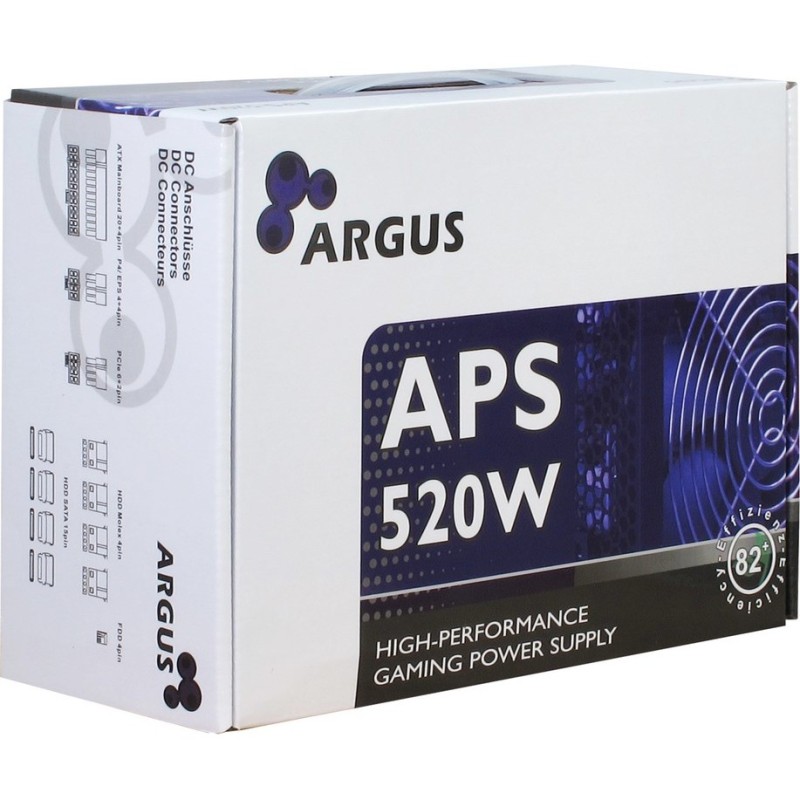

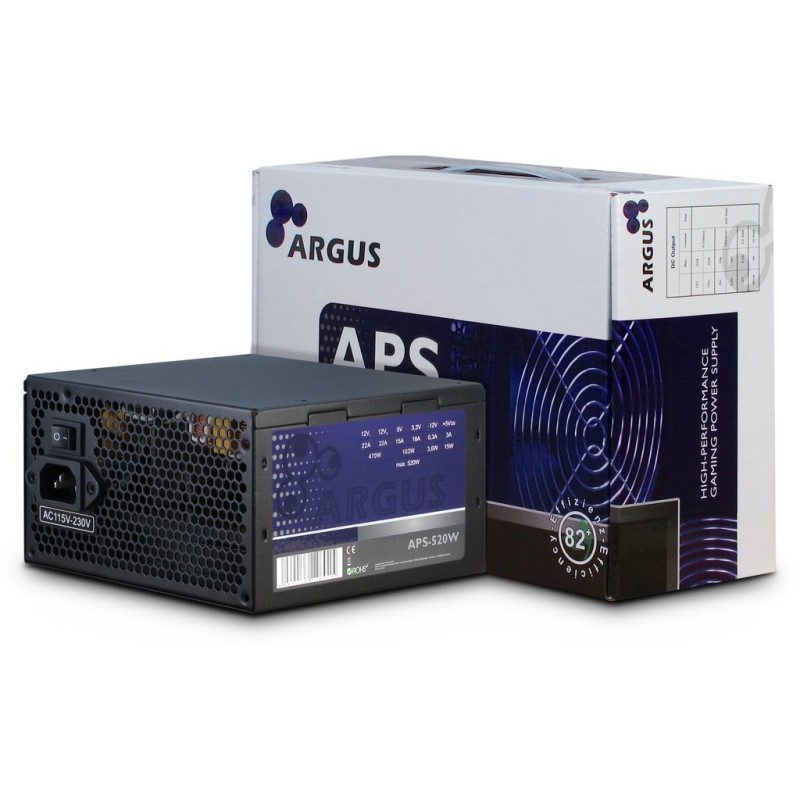

Inter-Tech Argus APS - APS-520W - Black, ATX PSU, 520 W
Inter-Tech Argus APS. 520 W. 115 - 230 V. 47 - 63 Hz. +12V1.+12V2.+3.3V.+5V.+5Vsb.-12V. Active. 120 W
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - ATX Standard | ATX 2.x |
|---|---|
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x8-pin |
| PSU (Power Supplies) - Fan Size | 120 mm |
| PSU (Power Supplies) - Length | 141-160 mm |
Inter-Tech Argus APS. Total power: 520 W. AC input voltage: 115 - 230 V. AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX. Cabling type: Non-Modular. Purpose: PC. Power supply unit (PSU) form factor: ATX. Noise level: 21 dB. Product colour: Black. Cooling type: Active. Fan diameter: 12 cm. Width: 150 mm. Depth: 140 mm. Height: 86 mm
| Total power | 520 W |
| AC input voltage | 115 - 230 V |
| AC input frequency | 47 - 63 Hz |
| Maximum input current (@110V) | +12V1.+12V2.+3.3V.+5V.+5Vsb.-12V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V1) | 22 A |
| Max output current (+12V2) | 22 A |
| Max output current (+5V) | 15 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6+2 pin) | 1 |
| Feature | On/off switch |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.31 |
| Noise level | 21 dB |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 1.25 kg |
| Package width | 240 mm |
| Package depth | 95 mm |
| Package height | 170 mm |
| Package weight | 1.59 kg |
| Package type | Box |
| Harmonized System (HS) code | 84733020 |
