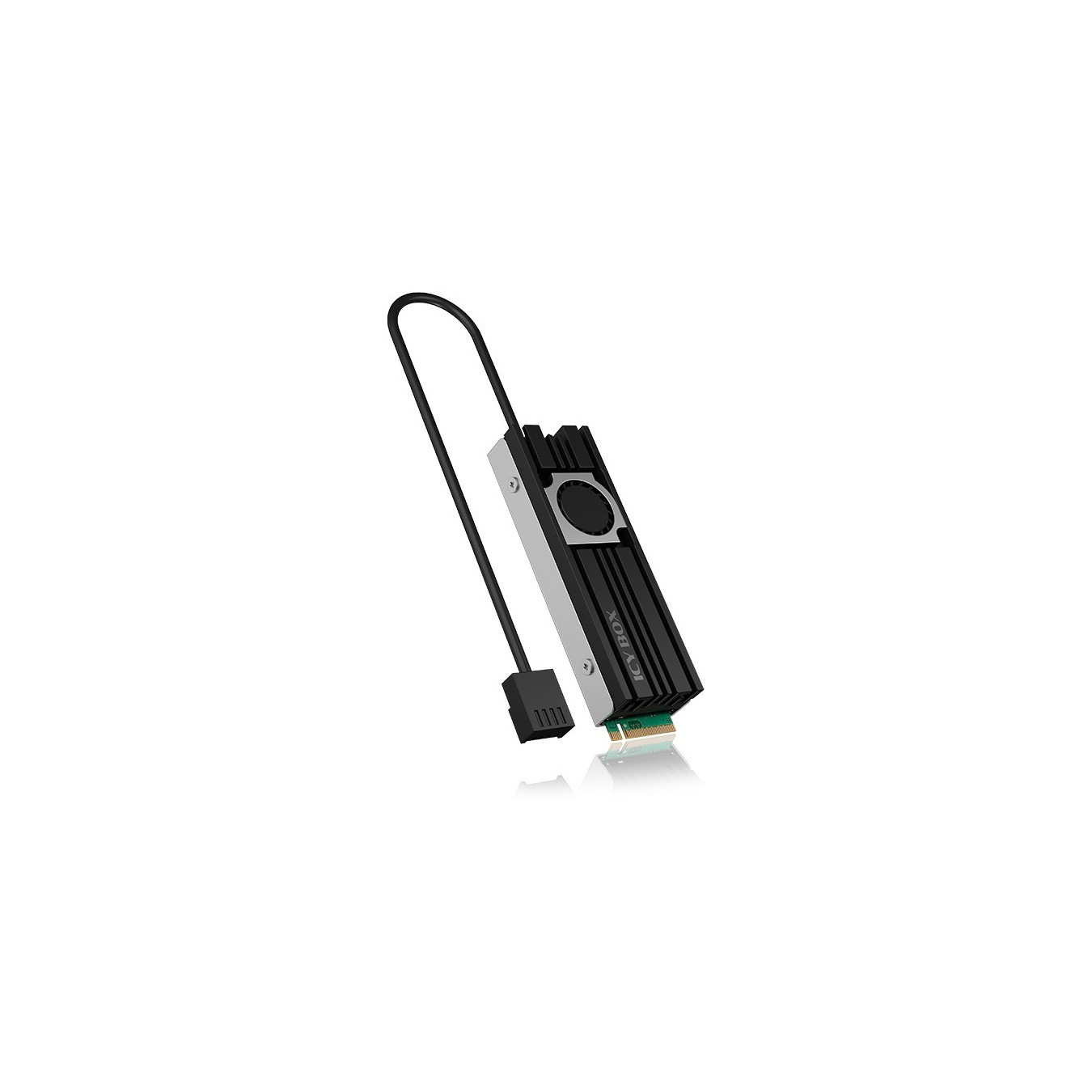

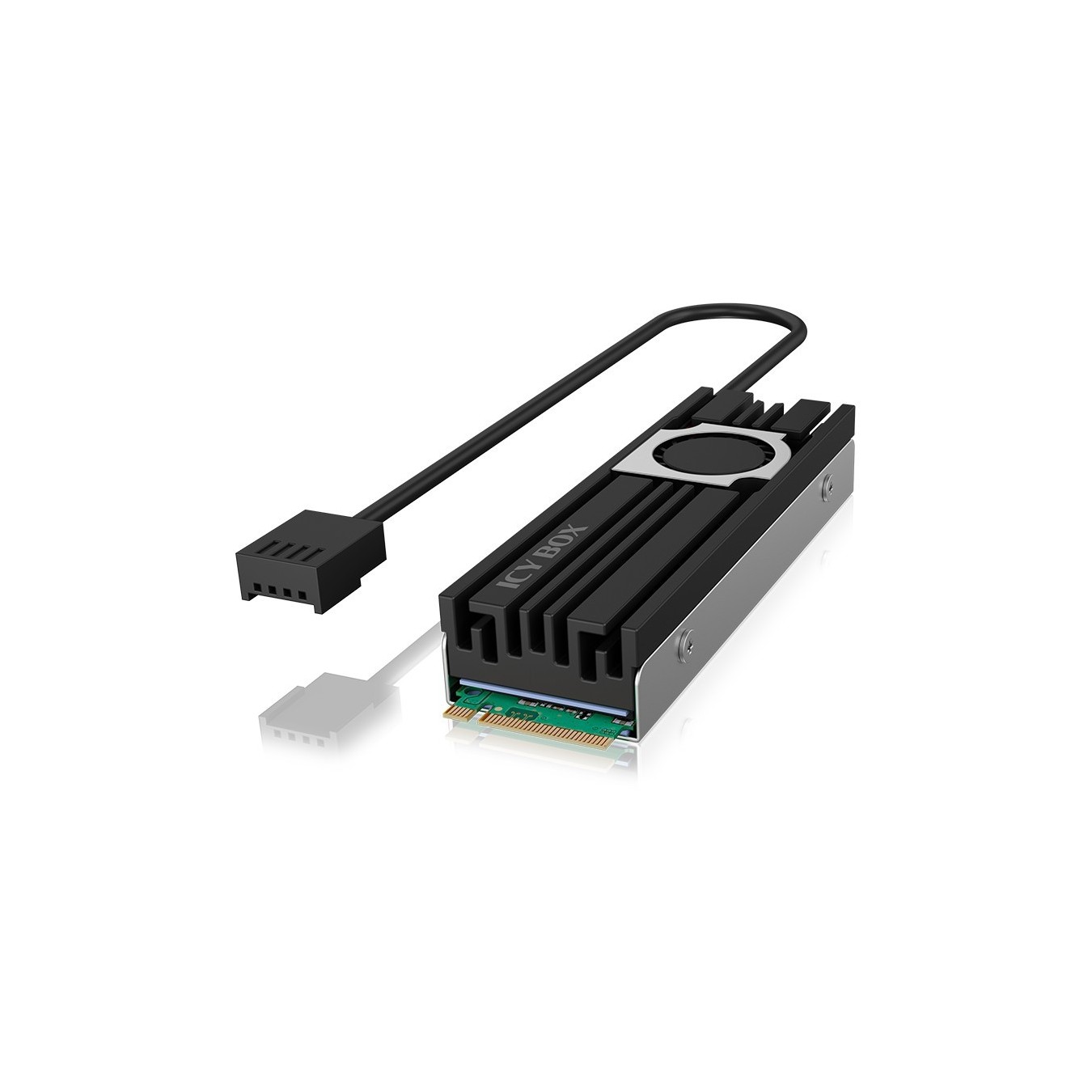

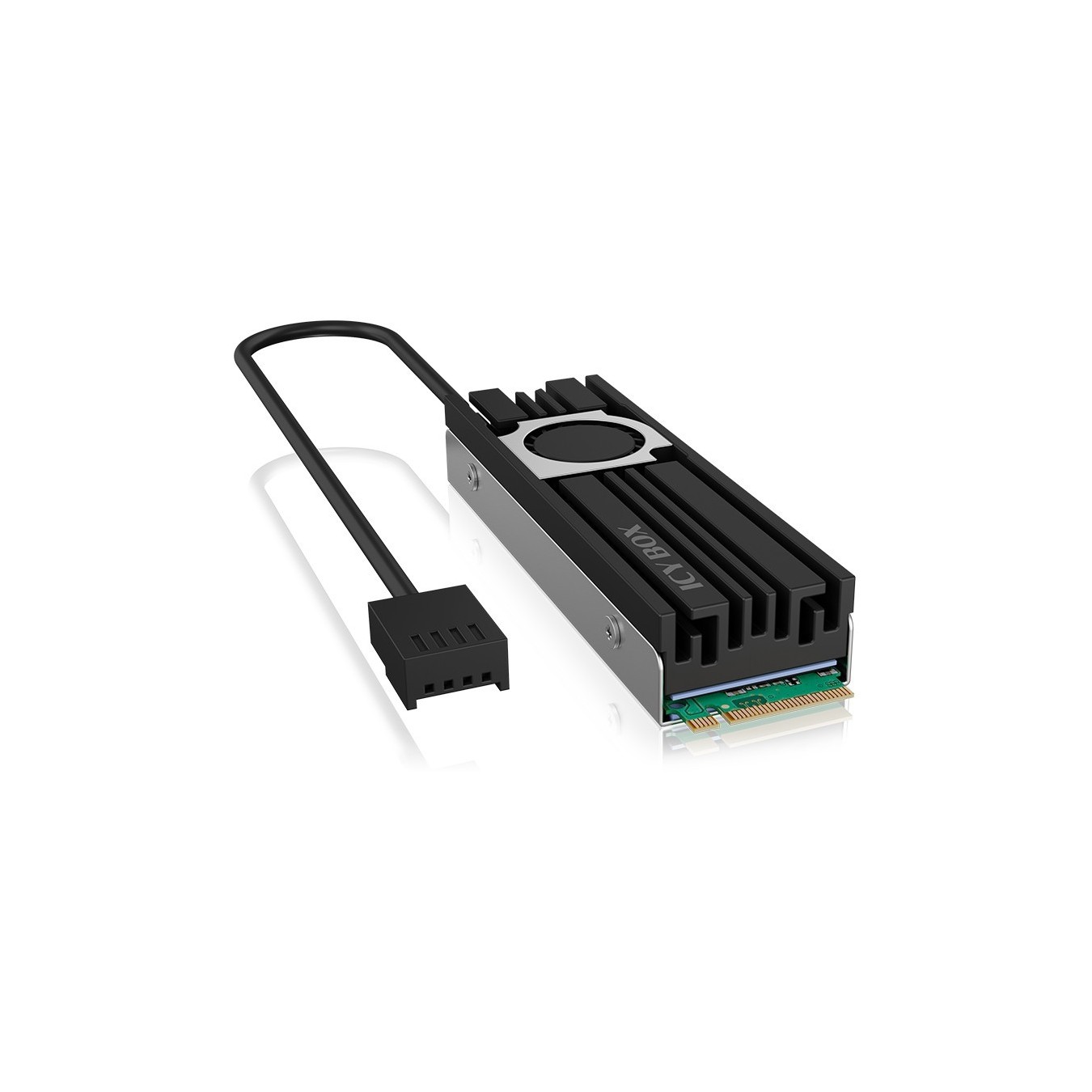

ICY BOX IB-M2HSF-703 M.2 SSD Heatsink w/ 20mm Fan 10000 RPM - Black (Boxed)
ICY BOX IB-M2HSF-703 M.2 SSD heatsink with 20mm fan (10000 RPM, 4-pin 12V). Aluminum, 8 fins, silicone thermal pad (1.5 W/mK). For 22x80mm SSDs. Reduces temps up to 25%. 75x24x13mm, 51g.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Cooling (CPU & Case) - Device Type | M.2 Heatsink |
|---|---|
| Cooling (CPU & Case) - Fan Size | 40 mm |
| Cooling (CPU & Case) - Lightning | None |
| Cooling (CPU & Case) - Connector | 4-Pin PWM |
| Cooling (CPU & Case) - Color | Black |
| Cooling (CPU & Case) - Special Features | Low Profile |
The ICY BOX IB-M2HSF-703 is a high-performance heatsink with integrated 20mm fan designed specifically for M.2 SSDs (22x80mm / 2280 size). It combines a solid aluminum heatsink with 8 cooling fins and a silent fan spinning at 10000 RPM to reduce SSD temperatures by up to 25%, ensuring stable performance during intensive workloads.

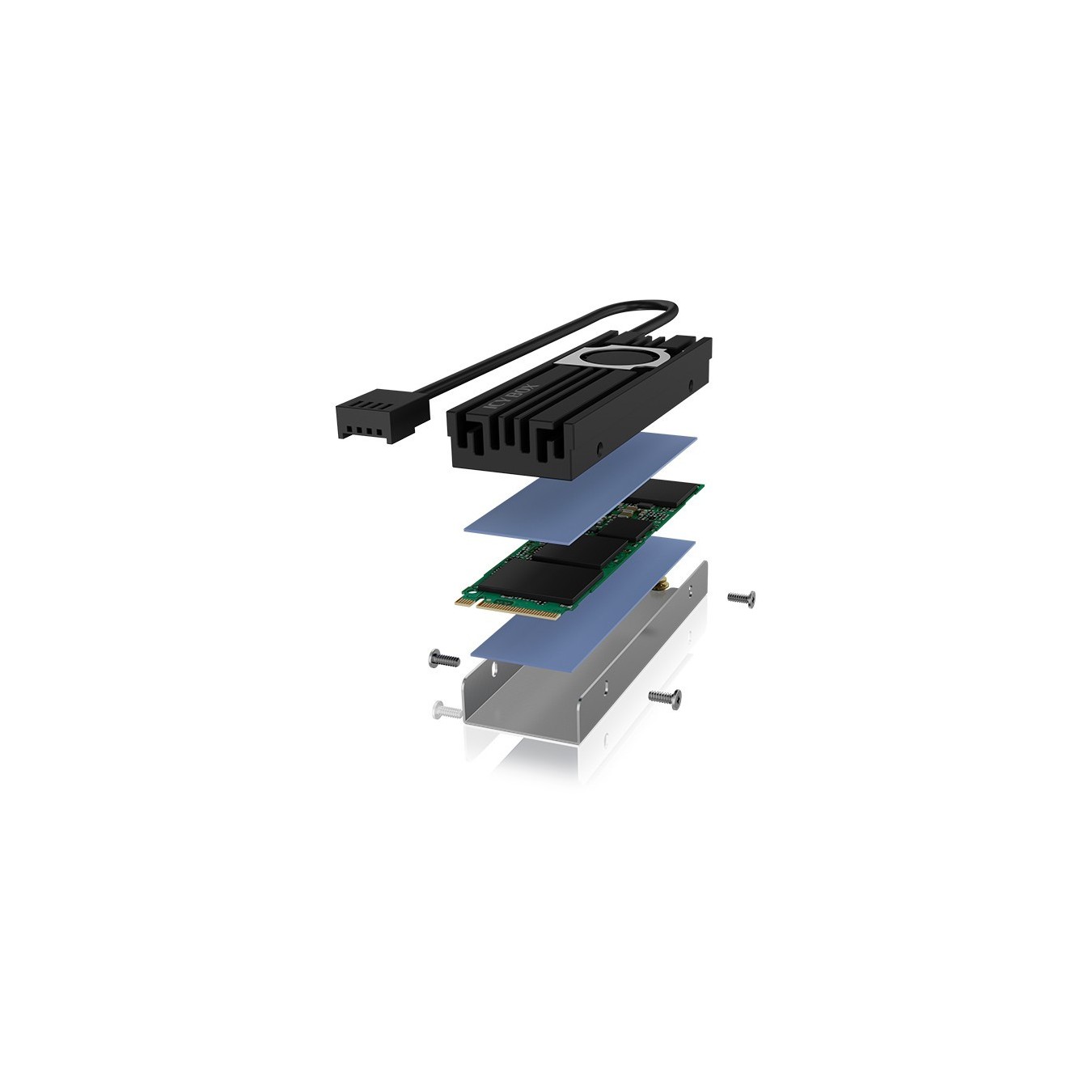

Made from high-grade aluminum with silicone thermal pads (1.5 W/mK, -20 to 180°C), it includes all necessary mounting hardware: counter plate, screws, screwdriver, and quick guide. The low-profile design (13mm height) fits most motherboards without clearance issues. Fan uses 4-pin DC 12V connector (0.04A), independent of OS.
- ✅ Compatible with M.2 NVMe SSDs up to 80mm length
- ✅ Temperature reduction up to 25%*
- ✅ Includes 2x thermal pads & mounting tools
- ✅ Mounting height: 16mm max
- ✅ Weight: 51g (product), 123g packaged
| Suitable location | Solid-state drive |
| Type | Heatsink/Radiator |
| Fan diameter | 2 cm |
| Number of speeds | 1 |
| Rotational speed (max) | 10000 RPM |
| Quantity per pack | 1 pc(s) |
| Thermal conductivity | 1.5 W/m·K |
| Operating temperature (T-T) | -20 - 180 °C |
| Product colour | Black, Grey |
| Material | Aluminium, Silicone |
| Number of fans | 1 fan(s) |
| Number of fins | 8 |
| Fan connector | 4-pin |
| Voltage | 12 V |
| Rated current | 0.04 A |
| Width | 75 mm |
| Depth | 24 mm |
| Height | 13 mm |
| Weight | 51 g |
| Fan dimensions (W x D x H) | 20 x 20 x 6 mm |
| M.2 card size | 22 x 80 mm |
| Mounting height | 16 mm |
| Package width | 105 mm |
| Package depth | 200 mm |
| Package height | 27 mm |
| Package weight | 123 g |
| Feature | Thermal pad included |
| Temperature reduction | Up to 25% |
| Harmonized System (HS) code | 84733080 |
