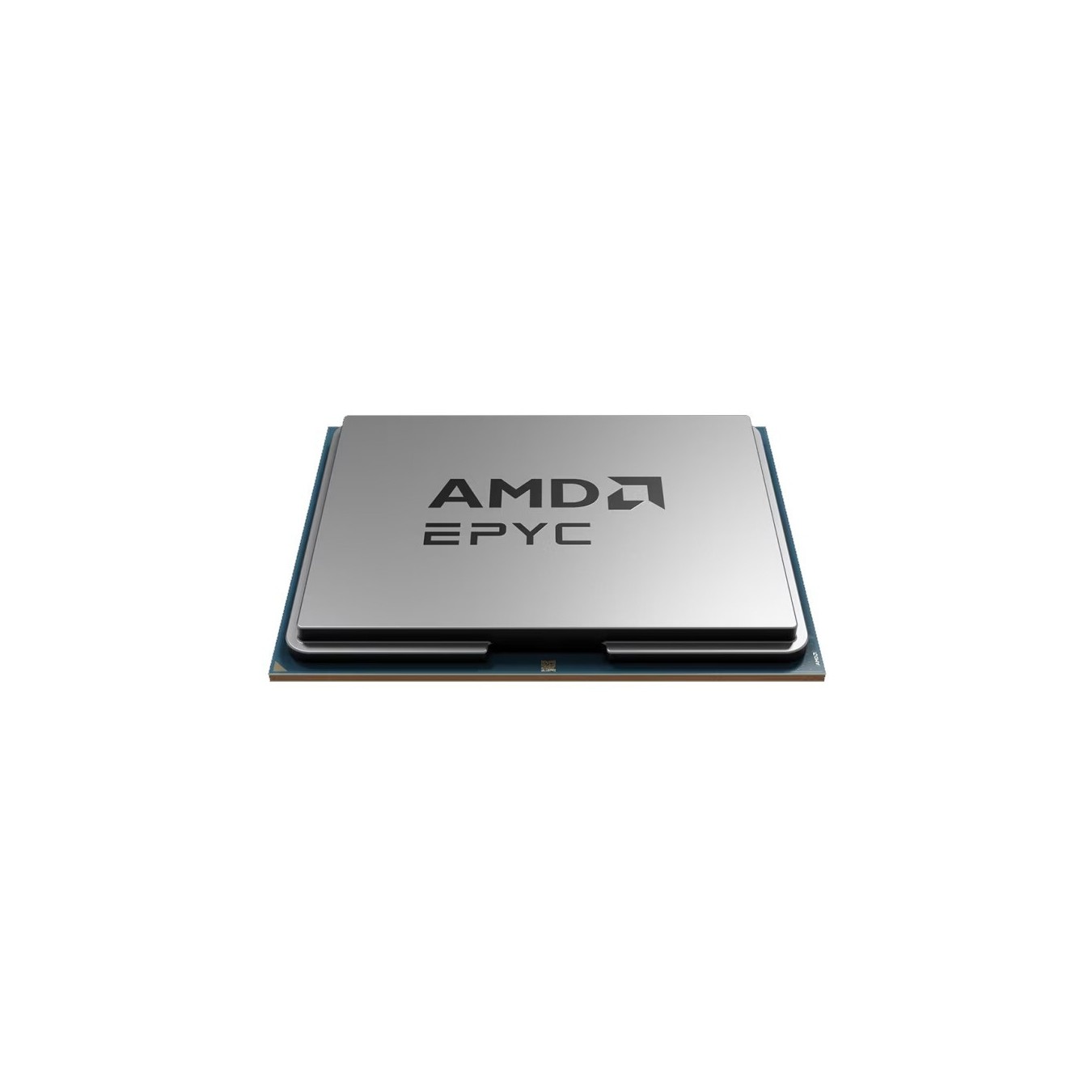

AMD EPYC 24Core Model 8224P SP3 Tray
AMD EPYC 8224P. AMD EPYC. Socket SP6. Tray. AMD. 8224P. 2.55 GHz
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| CPU (Processors) - Cores | 24 |
|---|---|
| CPU (Processors) - Threads | 48 |
| CPU (Processors) - Integrated Graphics | None |
| CPU (Processors) - Memory Support | DDR5 |
| CPU (Processors) - PCIe Version | PCIe 5.0 |
AMD EPYC 8224P. Processor family: AMD EPYC. Processor socket: Socket SP6. Package type: Tray. Memory channels: Hexa-channel. Memory types supported by processor: DDR5-SDRAM. Memory clock speeds supported by processor: 4800 MHz. Market segment: Server
| Processor manufacturer | AMD |
| Processor model | 8224P |
| Processor base frequency | 2.55 GHz |
| Processor family | AMD EPYC |
| Processor cores | 24 |
| Processor socket | Socket SP6 |
| Processor threads | 48 |
| Processor boost frequency | 3 GHz |
| Processor cache | 64 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 160 W |
| Configurable TDP-up | 225 W |
| Package type | Tray |
| Configurable TDP-down | 155 W |
| Memory types supported by processor | DDR5-SDRAM |
| Memory clock speeds supported by processor | 4800 MHz |
| Memory channels | Hexa-channel |
| Memory bandwidth (max) | 230.4 GB/s |
| On-board graphics card model | Not available |
| Discrete graphics card model | Not available |
| Market segment | Server |
| Maximum number of PCI Express lanes | 96 |
| PCI Express slots version | 5.0 |
