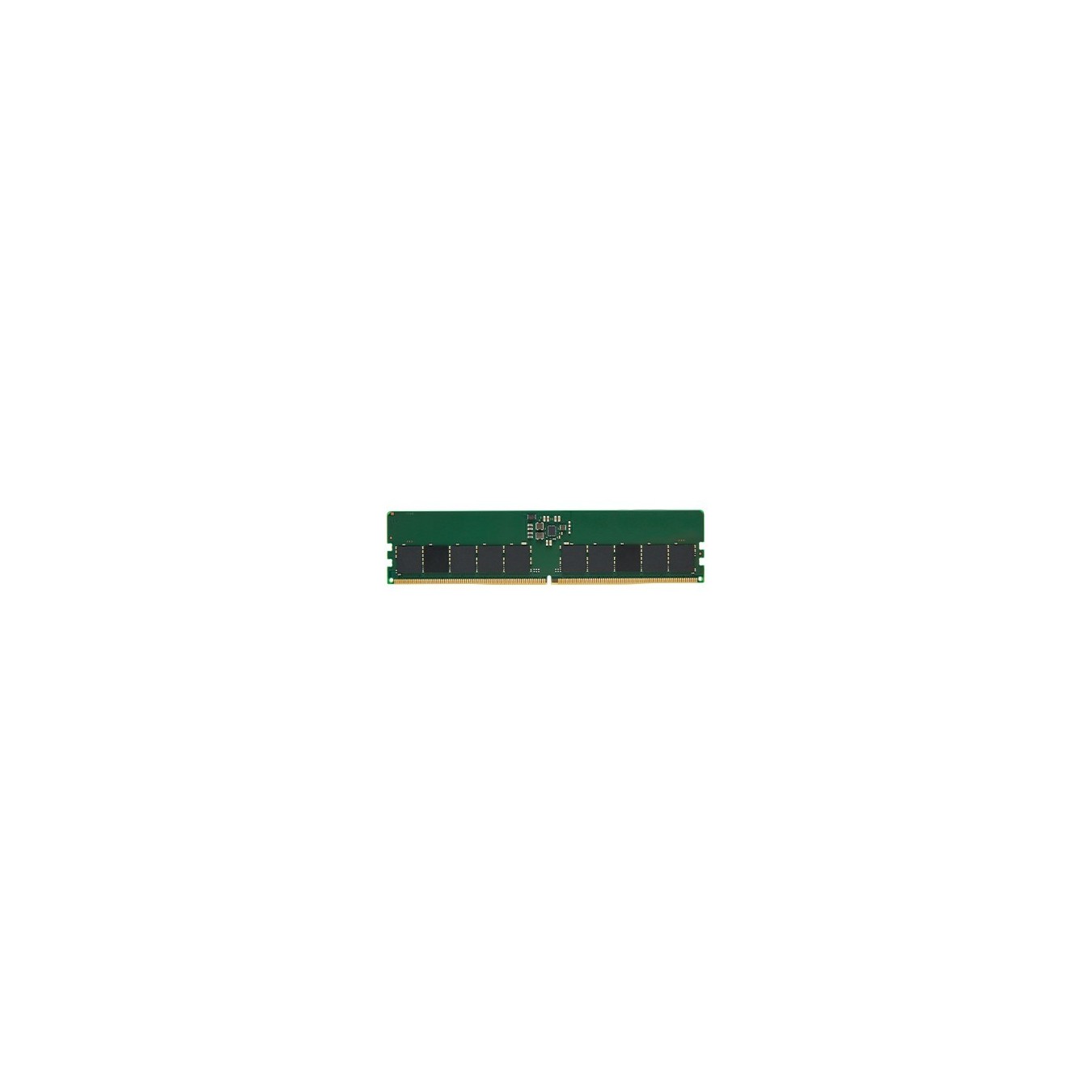

Kingston KSM56E46BS8KM-16HA 16GB DDR5-5600 ECC CL46 1Rx8 UDIMM (Boxed)
Kingston KSM56E46BS8KM-16HA 16GB DDR5 ECC UDIMM operates at 5600MT/s with CL46 timing, 1Rx8 Hynix A-die chips. Unbuffered ECC module for servers, 288-pin DIMM, 1.1V, On-Die ECC support. RoHS, halogen-free.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| RAM Memory - Memory Type | DDR5 |
|---|---|
| RAM Memory - Profiles | None |
| RAM Memory - ECC | ECC Unbuffered |
| RAM Memory - CAS Latency | CL46 |
| RAM Memory - RGB Lighting | No |
| RAM Memory - Total Capacity | 16 GB |
| RAM Memory - Color | Black Green (PCB) |
| RAM Memory - Speed (MT/s) | 5600 MT/s |
| RAM Memory - Kit Size | 1 |
| RAM Memory - Heatsink | No |
Kingston KSM56E46BS8KM-16HA is a high-performance 16GB DDR5 ECC Unbuffered DIMM designed for server and data center applications. This module delivers 5600MT/s speed with CL46-45-45 timings at 1.1V, utilizing 1Rx8 configuration based on ten Hynix A-die 2G x 8-bit FBGA components for reliable operation and error correction.
Featuring On-Die ECC, x72 ECC support with two independent I/O sub-channels, 32 internal banks, and gold contact fingers on a 288-pin form factor. It supports JEDEC standard SPD programming, operates from 0°C to 95°C, and meets RoHS compliance with halogen-free materials. Ideal for demanding server environments requiring stability and data integrity.
- Capacity: 16GB (2G x 72-bit)
- Speed: DDR5-5600MT/s PC5-44800
- ECC: Yes, Unbuffered with On-Die ECC
- Voltage: 1.1V VDD/VDDQ, 1.8V VPP
- Dimensions: Height 31.25mm, Width 133.35mm
- Compatibility: Server systems supporting DDR5 ECC UDIMM
| Internal memory | 16 GB |
| Memory layout (modules x size) | 1 x 16 GB |
| Internal memory type | DDR5 |
| Memory form factor | 288-pin DIMM |
| CAS latency | 46 |
| Memory ranking | 1 |
| Buffered memory type | Unregistered (unbuffered) |
| ECC | Yes |
| Memory voltage | 1.1 V |
| Programming power voltage (VPP) | 1.8 V |
| Module configuration | 2G x 72-Bit |
| Row cycle time | 48 ns |
| Refresh row cycle time | 295 ns |
| Row active time | 32 ns |
| Row Precharge Time (TRP) | 16 ns |
| Product colour | Black/Green |
| Lead plating | Gold |
| Operating temperature (T-T) | 0 - 95 °C |
| Storage temperature (T-T) | -55 - 100 °C |
| Compliance certificates | RoHS |
| Doesn't contain | Halogen |
| Width | 133.3 mm |
| Height | 31.2 mm |
| DRAM Manufacturer | Hynix A-die |
| On-Die ECC | Yes |
| Component for | Server |
