ICY BOX IB-DK2116-C USB-C 11-in-1 Docking Station 100W PD (Boxed)
ICY BOX 11-in-1 USB-C docking station with 100W Power Delivery, triple video output (2x HDMI, 1x DisplayPort), Gigabit Ethernet, and comprehensive port expansion for notebooks.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| USB Hubs & Docking Stations - Host Interface | USB-C |
|---|---|
| USB Hubs & Docking Stations - Number of Ports | 11+ |
| USB Hubs & Docking Stations - Downstream Ports | USB-A USB-C |
| USB Hubs & Docking Stations - Video Output | DisplayPort HDMI |
| USB Hubs & Docking Stations - Power Delivery | 100W |
| USB Hubs & Docking Stations - Ethernet | 1 Gbps |
| USB Hubs & Docking Stations - Special Features | Audio Jack External Power Supply MicroSD Card Reader Plug and Play SD Card Reader |

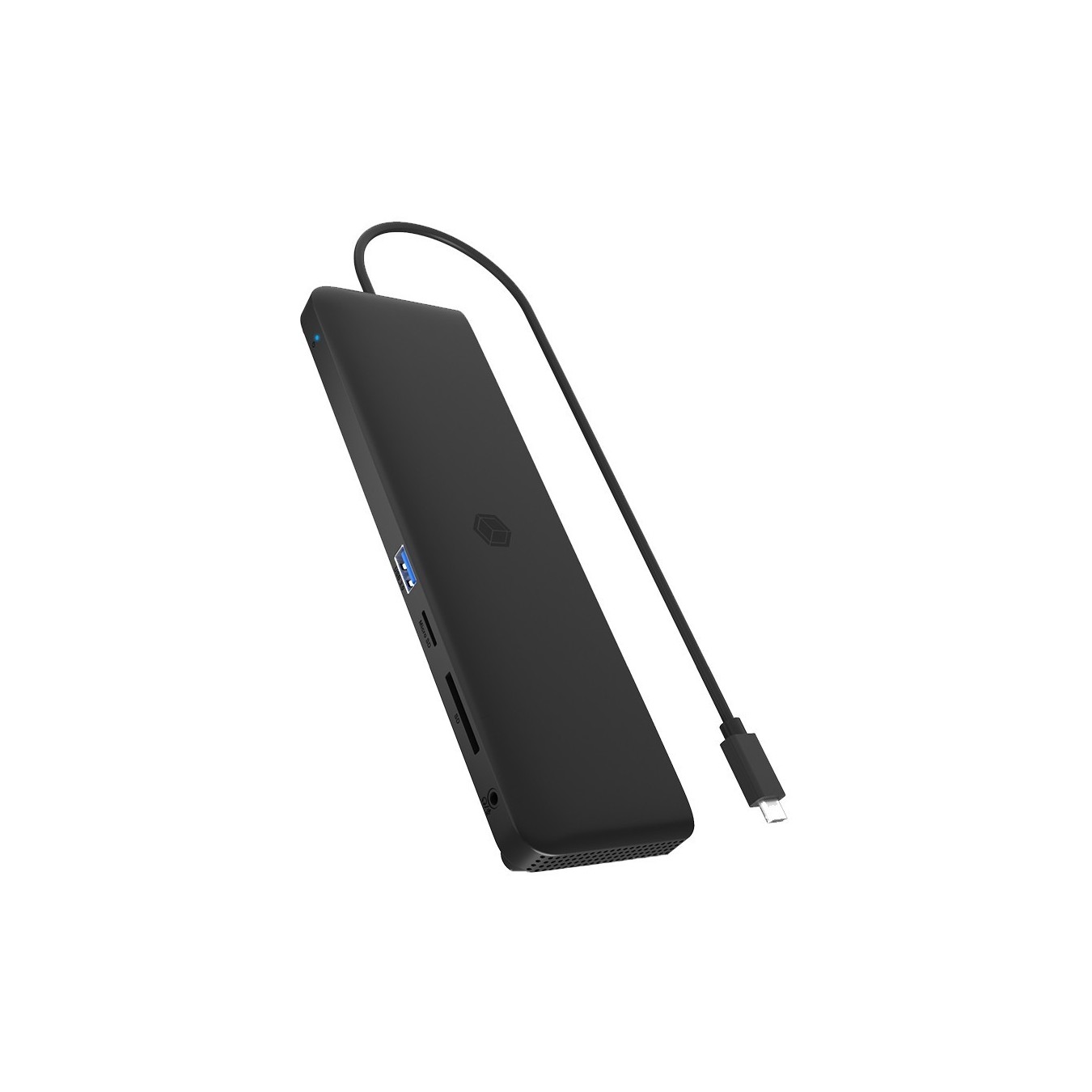

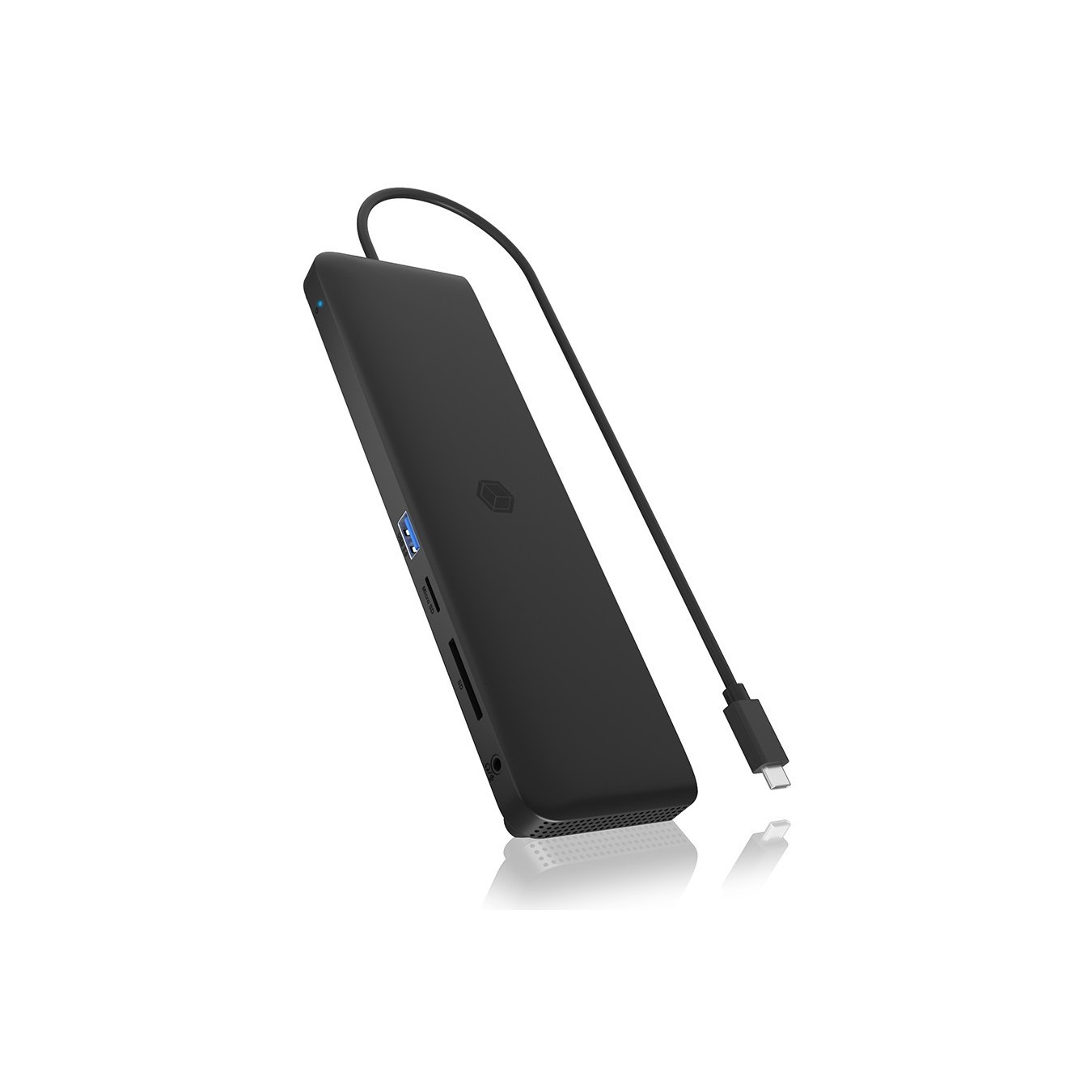

The ICY BOX IB-DK2116-C is an 11-in-1 USB Type-C docking station designed to expand connectivity for notebooks and computers with USB-C ports. It features triple video output capability with 2x HDMI 2.0 and 1x DisplayPort 1.4, all supporting up to 4K resolution at 60Hz. The dock provides comprehensive USB expansion with 2x USB 2.0 ports, 2x USB 3.2 Gen 1 Type-A ports, and 1x USB 3.2 Gen 1 Type-A port for data transfer and device charging.
Networking is handled by a Gigabit Ethernet (RJ-45) interface supporting 10/100/1000 Mbps speeds. The station includes dual card readers for microSD and SD cards (up to 25 MB/s transfer rates), a 3.5mm audio jack for headsets, and a USB Type-C Power Delivery port delivering up to 100W for charging your connected device. The dock requires a USB Type-C host with DisplayPort Alt Mode support and is compatible with Windows, macOS, and ChromeOS systems. It features a compact black ABS plastic design with a 0.5m power cable.
- 11 total ports including USB, video, audio, and networking
- 100W USB Power Delivery for fast device charging
- Triple video output: 2x HDMI 2.0 + 1x DisplayPort 1.4
- Gigabit Ethernet for wired network connectivity
- Dual card readers: microSD and SD (up to 25 MB/s)
- 3.5mm audio jack for headsets and speakers
- Supports 4K@60Hz maximum resolution
- Compatible with Windows, macOS, and ChromeOS
| Connectivity Technology | Docking |
| Host Interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 2.0 Type-A Ports | 2 |
| USB 3.2 Gen 1 Type-A Ports | 2 |
| USB 3.2 Gen 1 Type-A Ports (Additional) | 1 |
| USB Type-C Ports (Downstream) | 1 |
| HDMI Ports | 2 |
| HDMI Version | 2.0 |
| DisplayPort Ports | 1 |
| DisplayPort Version | 1.4 |
| Maximum Video Resolution | 3840 x 2160 pixels (4K Ultra HD) |
| Maximum Refresh Rate | 60 Hz |
| Number of Displays Supported | 3 |
| USB Power Delivery | 100 W |
| USB Power Delivery Revision | 3.0 |
| Ethernet Interface | Gigabit LAN (RJ-45) |
| Ethernet Data Rates | 10/100/1000 Mbps |
| Ethernet Standards | 10BASE-T, 100BASE-T, 1000BASE-T |
| microSD Card Reader | Yes, up to 25 MB/s |
| SD Card Reader | Yes, up to 25 MB/s |
| Audio Jack | 3.5 mm headset combo jack (TRRS) |
| LED Indicators | Power (blue) |
| Housing Material | Acrylonitrile butadiene styrene (ABS), Plastic |
| Product Color | Black |
| Power Cable Length | 0.5 m |
| Device Dimensions (W x D x H) | 58 x 205 x 19 mm |
| Device Weight | 246 g |
| Package Dimensions (W x D x H) | 114 x 264 x 44 mm |
| Package Weight | 446 g |
| Quantity per Pack | 1 pc |
| Compatible Operating Systems | Windows, macOS, ChromeOS |
| DP Alt Mode Support Required | Yes |
| Multi Stream Transport (MST) | No |
| Country of Origin | China |
| EAN13 | 4250078173380 |
| Manufacturer Part Number | IB-DK2116-C |
