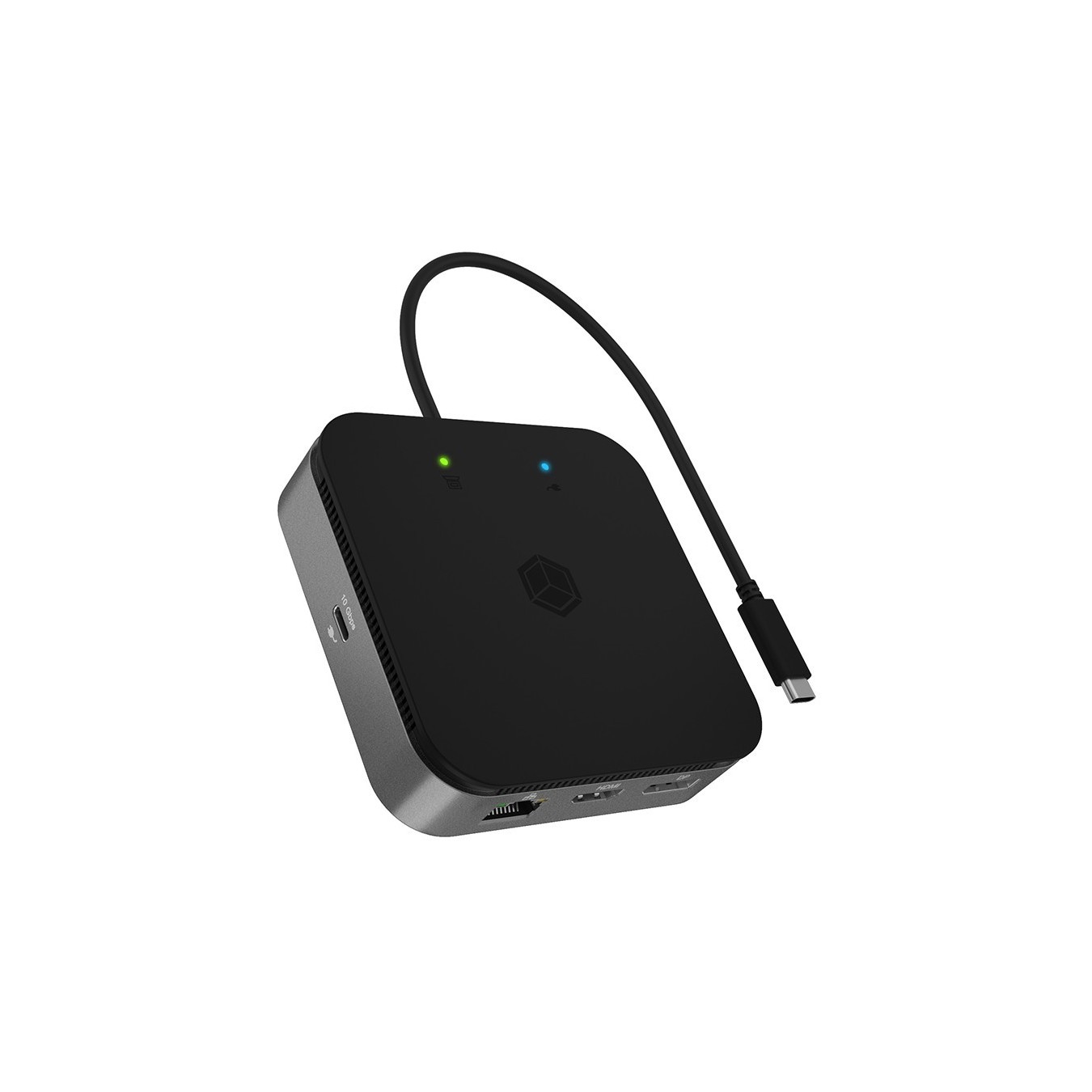

ICY BOX IB-DK408-C41 USB4 7-in-1 Docking Station 60W PD (Boxed)
USB4 7-in-1 docking station with dual video outputs (HDMI 2.1, DisplayPort 1.4), 60W USB-PD, 2x USB 3.2 Gen 2, Gigabit Ethernet, 3.5mm audio. Supports 8K@30Hz.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| USB Hubs & Docking Stations - Host Interface | USB4 |
|---|---|
| USB Hubs & Docking Stations - Number of Ports | 7 |
| USB Hubs & Docking Stations - Downstream Ports | USB-A USB-C |
| USB Hubs & Docking Stations - Video Output | DisplayPort HDMI |
| USB Hubs & Docking Stations - Power Delivery | Up to 60W |
| USB Hubs & Docking Stations - Ethernet | 1 Gbps |
| USB Hubs & Docking Stations - Special Features | Audio Jack Bus Powered Compact Design Integrated Cable |
The ICY BOX IB-DK408-C41 is a premium USB4 docking station designed for modern laptops and mobile workstations. This 7-in-1 hub combines high-speed connectivity with versatile I/O options, featuring a USB4 host interface that delivers up to 40 Gbit/s data transfer rates. The integrated USB Type-C connection supports Power Delivery 3.0 up to 60W, enabling simultaneous charging and data transfer for compatible devices.
Connectivity options include dual video outputs with HDMI 2.1 and DisplayPort 1.4, supporting resolutions up to 7680 x 4320 pixels (8K) at 30Hz across two displays. The docking station features two USB 3.2 Gen 2 Type-A ports with 10 Gbps speeds for fast peripheral connectivity, a Gigabit Ethernet port (1000 Mbps) for reliable network connections, and a 3.5mm audio jack for headphones or speakers. The compact anthracite design measures 100 x 100 x 28mm and includes an integrated cable for convenient portability.
Key specifications and features:

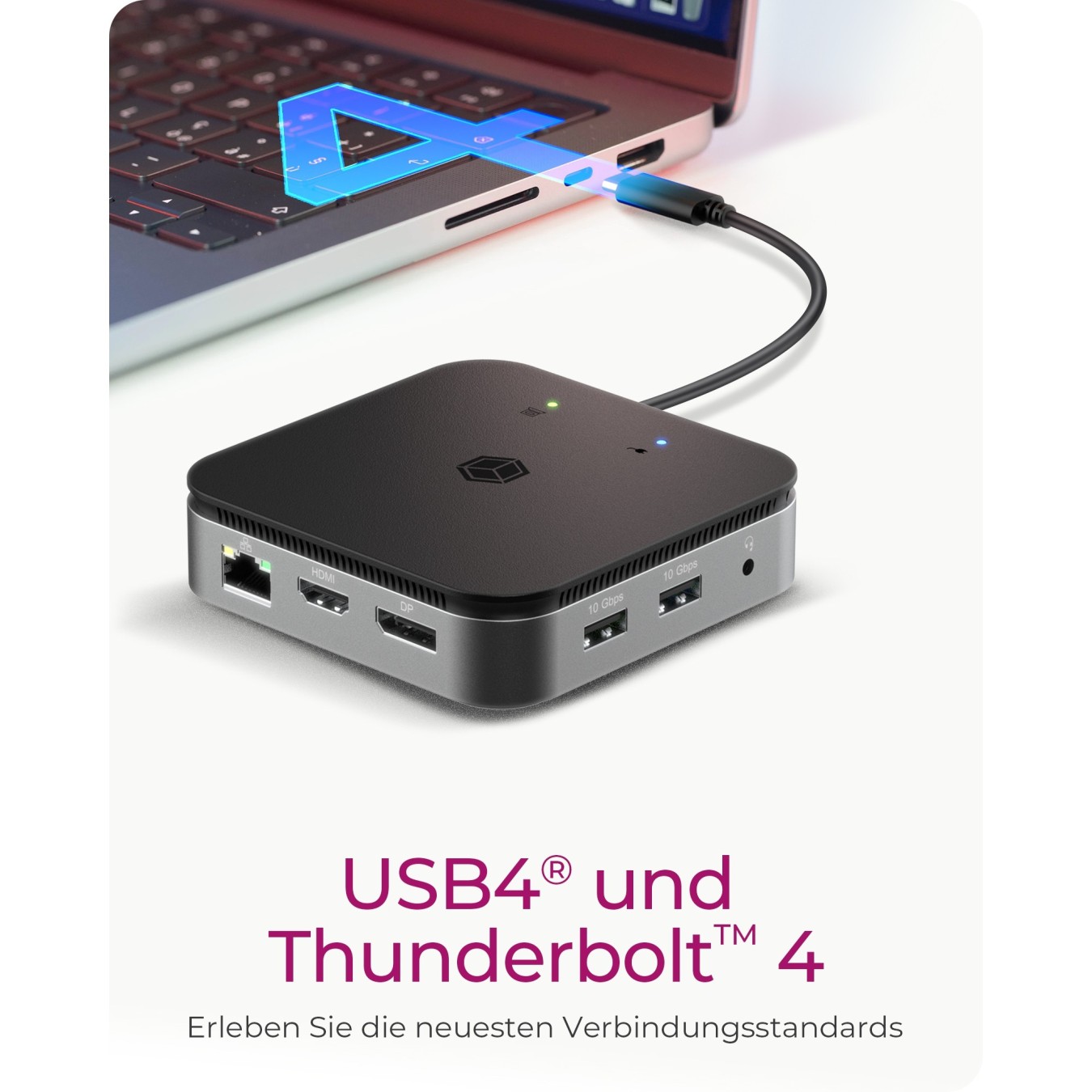

- USB4 host interface with 40 Gbit/s bandwidth

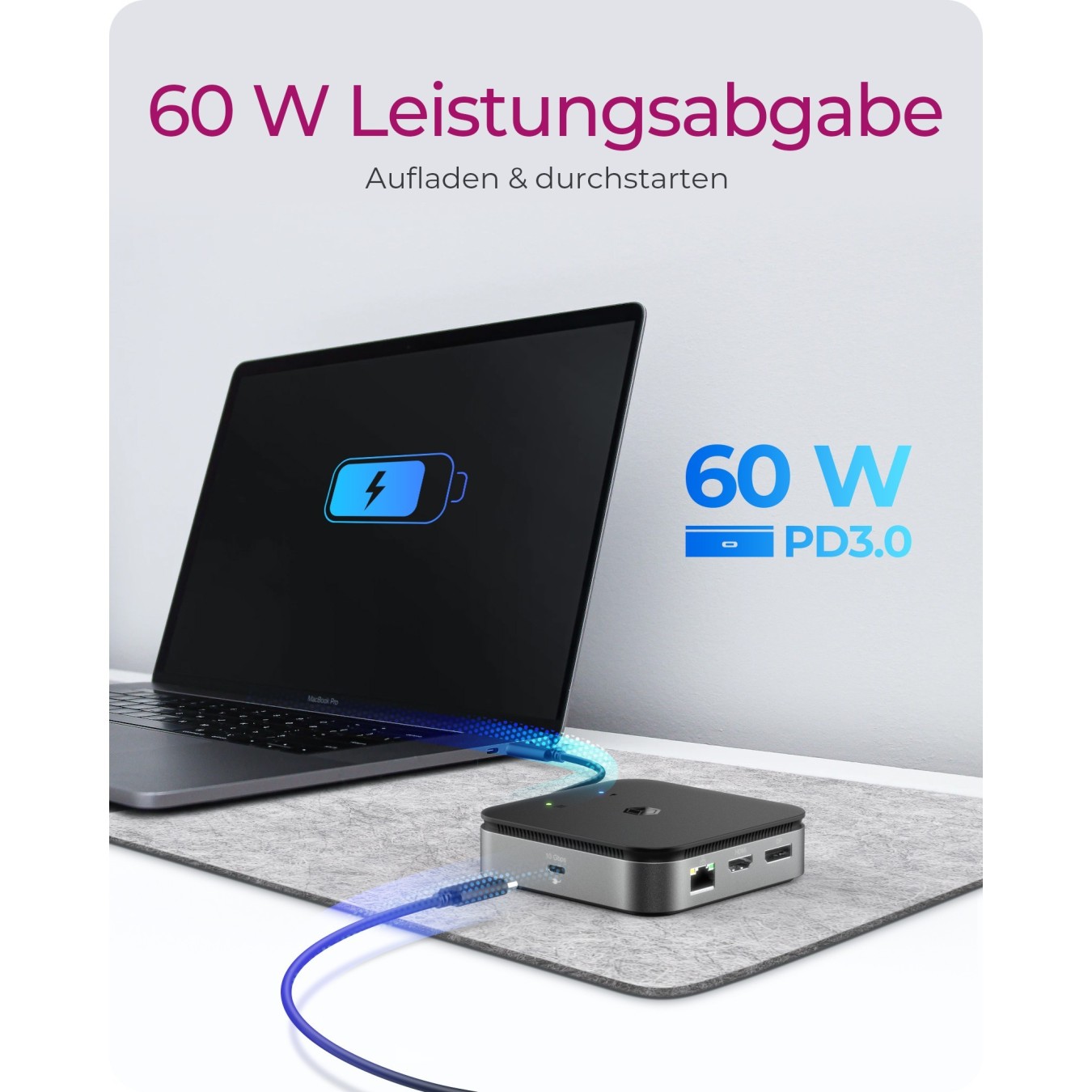

- USB Power Delivery 3.0 up to 60W for device charging

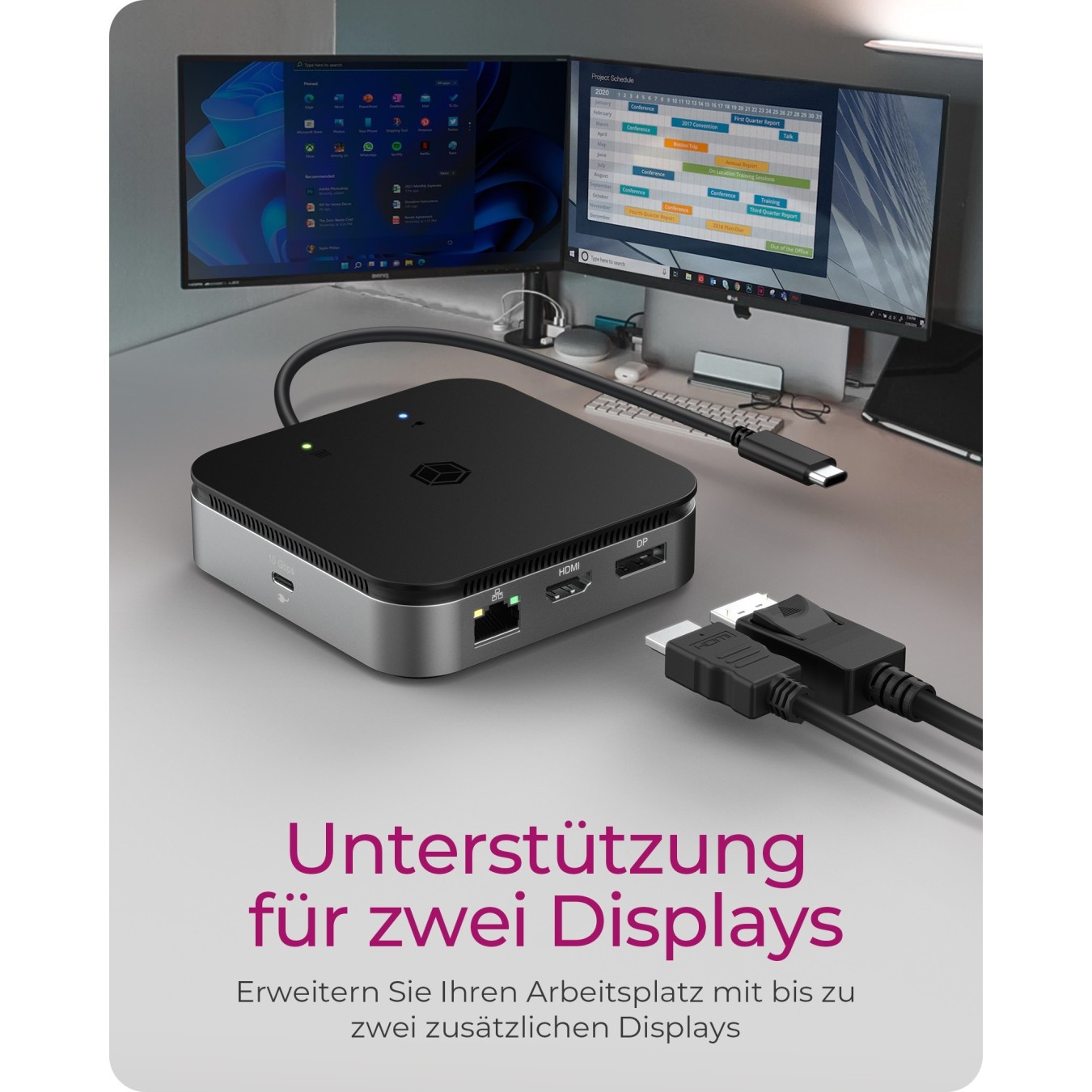

- Dual video outputs: HDMI 2.1 and DisplayPort 1.4
- Two USB 3.2 Gen 2 Type-A ports (10 Gbps each)

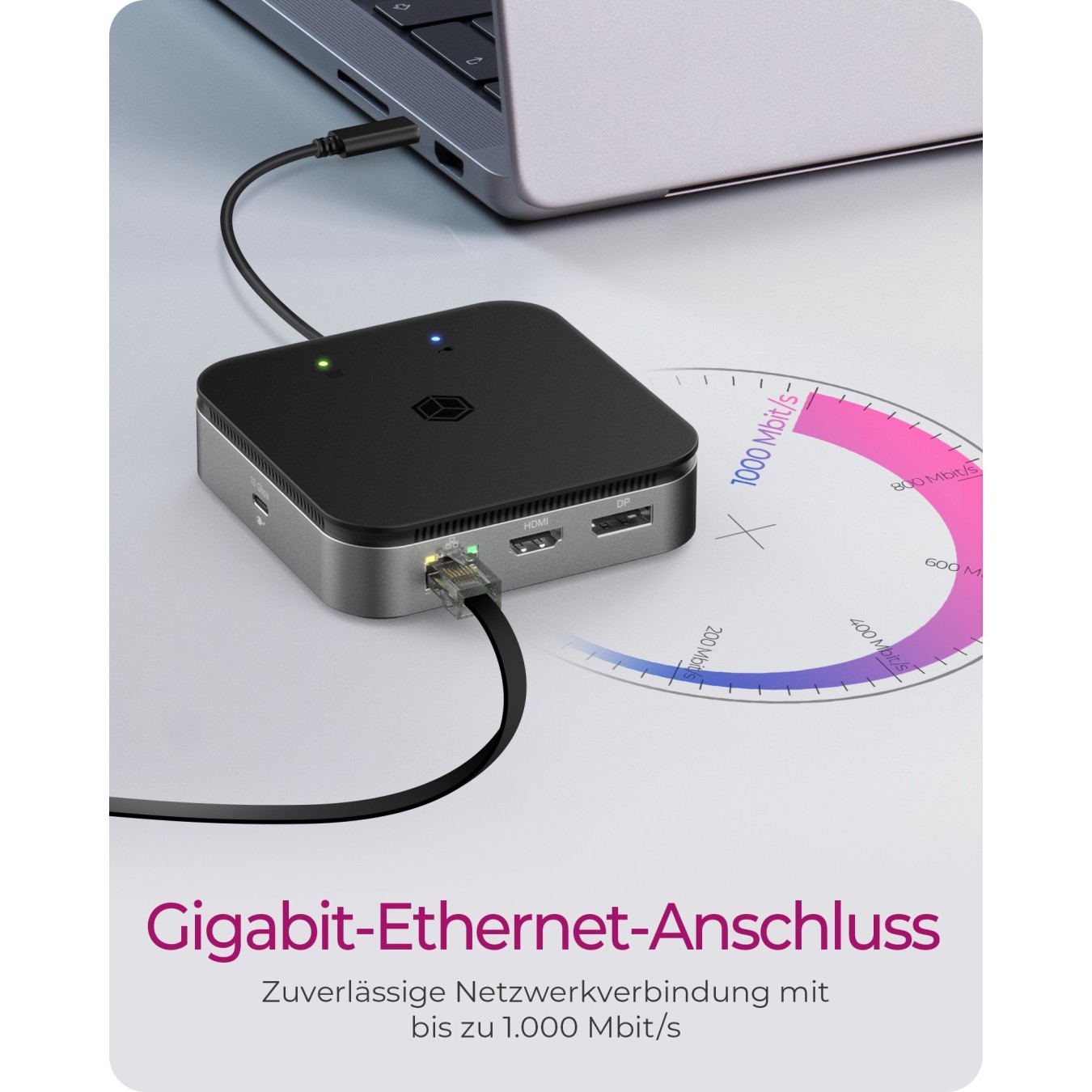

- Gigabit Ethernet connectivity (1000 Mbps)
- 3.5mm audio jack for audio peripherals

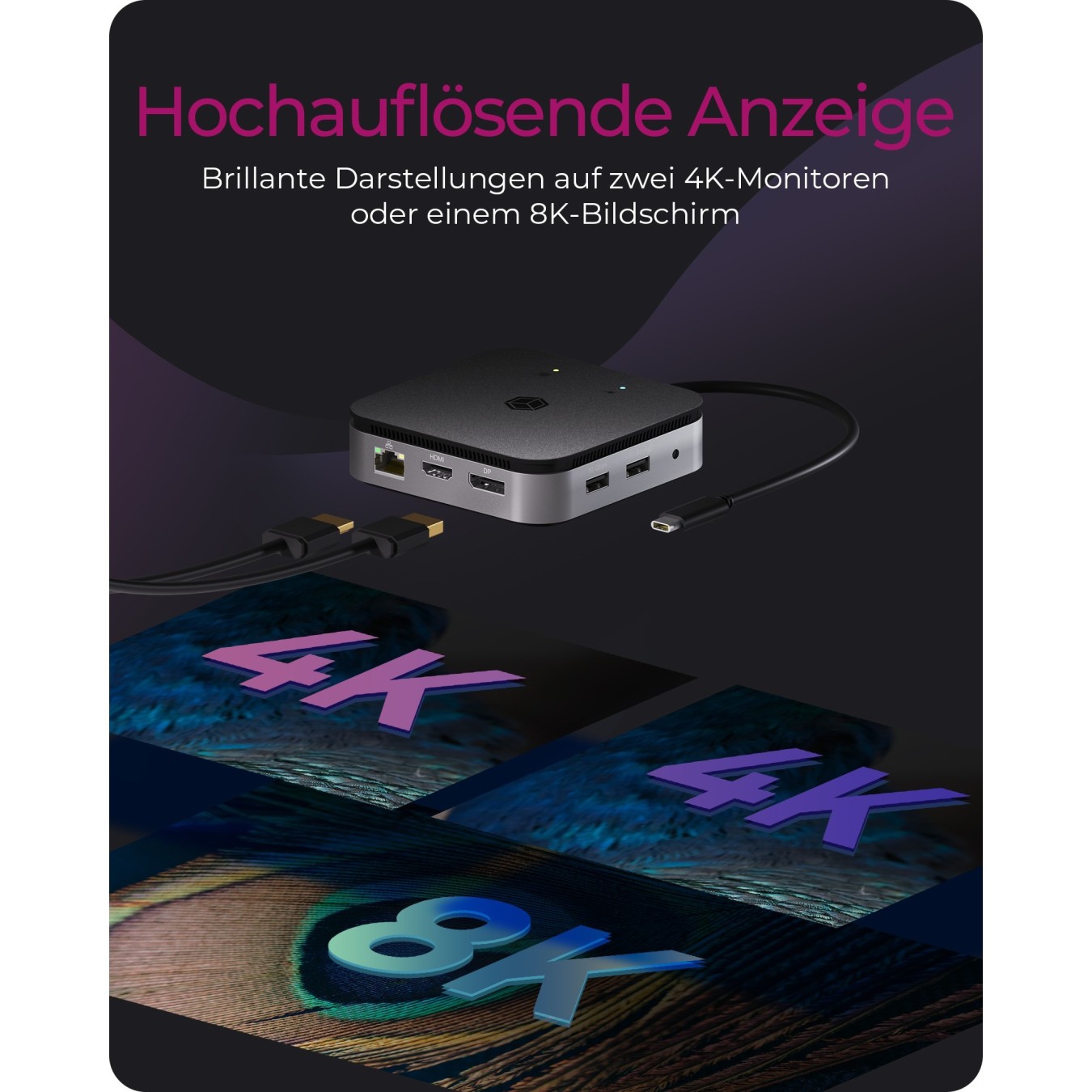

- Supports up to 8K resolution at 30Hz
- Compact design with integrated cable
- ABS housing with matte finish
| Host Interface | USB4 |
| Downstream Ports - USB Type-A | 2x USB 3.2 Gen 2 (10 Gbps) |
| Downstream Ports - USB Type-C | 1x USB4 |
| Video Output - HDMI | 1x HDMI 2.1 |
| Video Output - DisplayPort | 1x DisplayPort 1.4 |
| Audio Output | 1x 3.5mm combo jack |
| Ethernet | 1x Gigabit RJ45 (1000 Mbps) |
| USB Power Delivery | USB PD 3.0 up to 60W |
| Data Transfer Rate | 40 Gbit/s |
| Maximum Resolution | 7680 x 4320 pixels (8K@30Hz) |
| Number of Displays Supported | 2 |
| Connectivity Type | Wired |
| Cable Type | Integrated USB Type-C |
| Cable Length | Approximately 50-70cm |
| Housing Material | ABS plastic (matte finish) |
| Product Color | Anthracite |
| Dimensions (Device) | 100 x 100 x 28mm (W x D x H) |
| Weight (Device) | 172g |
| Package Dimensions | 136 x 167 x 40mm (W x D x H) |
| Package Weight | 278g |
| LED Indicators | Power, Access |
| Power Source | USB bus powered |
| Output Voltage | 5-20V |
| Backward Compatibility | Thunderbolt 3, Thunderbolt 4, USB 3.1 |
| Country of Origin | Taiwan |
| Quantity per Pack | 1 pc |
