Chieftec Stealth 1200W Vega M Series SPX-1200-FC - 80+ Platinum Fully Modular ATX PSU (Boxed)
Chieftec SPX-1200-FC 1200W PSU from Stealth/Vega M series. 80+ Platinum efficiency, fully modular, ATX 3.1, PCIe GEN5 support. 135mm FDB fan, Japanese capacitors, 140x150x86mm, 3.79kg boxed. Ideal for high-end gaming.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 1200 - 1499 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Platinum |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 2x 12V-2x6 4x 8/6 pins |
| PSU (Power Supplies) - Length | 141-160 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 2x 4+4pin EPS/ATX12V |

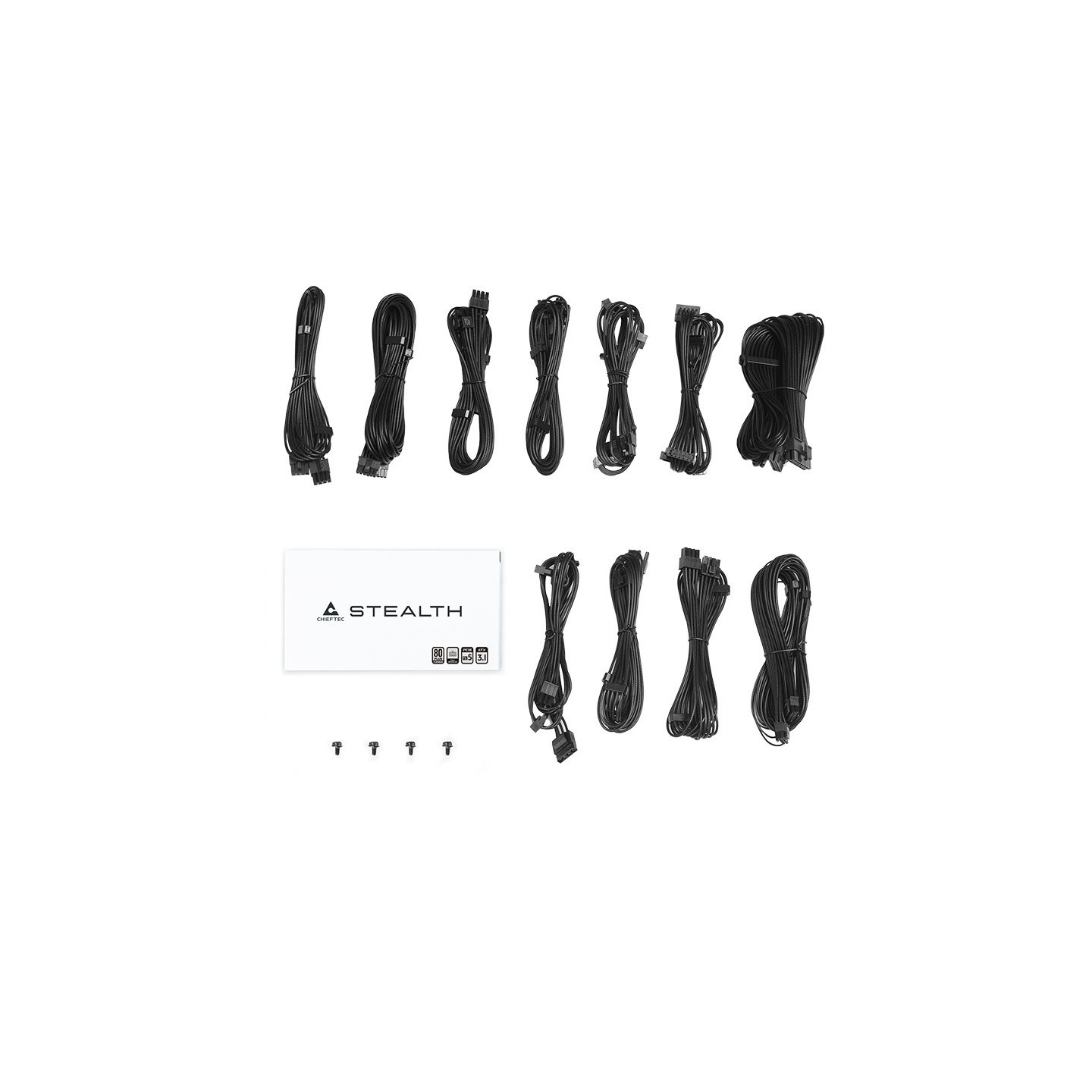

The Chieftec Stealth SPX-1200-FC (Vega M Series) is a premium 1200W power supply unit compliant with ATX 12V 3.1 and supporting PCIe GEN5 standards. It delivers 80 PLUS Platinum certified efficiency for superior energy savings and stability in high-end systems. Featuring a fully modular design with ultra-flexible embossed cables, it simplifies cable management and airflow optimization.
Equipped with LLC half-bridge topology, DC-to-DC conversion, and full Japanese capacitors, this PSU ensures long-term reliability and top performance. A quiet 135mm Fluid Dynamic Bearing (FDB) fan with automatic speed control maintains optimal cooling with minimal noise. Key connectors include 1x 20+4-pin ATX, 1x 8-pin EPS (4+4), and 3x 6+2-pin PCIe for powerful GPUs.
- Total Power: 1200W with +12V rail at 100A
- Efficiency: 80+ Platinum (≥0.95 PF)

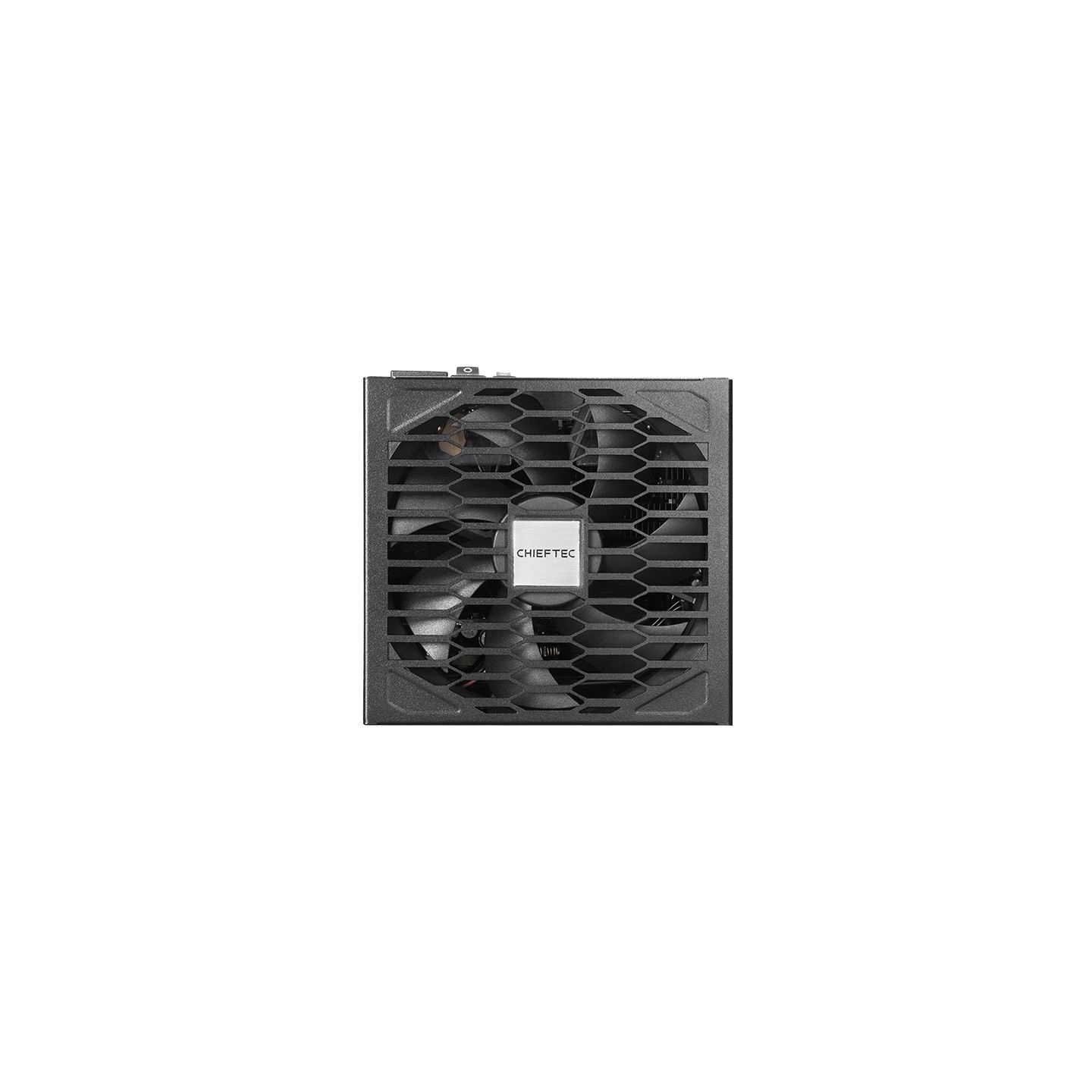

- Cooling: 135mm FDB fan, AFC
- Protections: OPP, OTP, OVP, SCP, SIP, UVP, OCP
- Warranty: 5 years
- Dimensions (boxed weight): 140x150x86mm, 3.79kg
| Model | SPX-1200-FC |
| Total Power | 1200W |
| AC Input | 100-240V, 15-7.5A, 50-60Hz |
| PFC | Active PFC ≥0.95 |
| +12V Rail | 100A / 1200W |
| +5V | 20A |
| +3.3V | 20A |
| +5VSB | 3A / 15W |
| Form Factor | ATX |
| Efficiency | 80 PLUS Platinum |
| Modularity | Fully Modular |
| Fan | 135mm FDB with AFC |
| Connectors | 1x 20+4-pin ATX, 1x 4+4-pin EPS, 3x 6+2-pin PCIe, 8x SATA, 2x 4-pin Molex |
| Dimensions (LxWxH) | 140 x 150 x 86 mm |
| Weight (boxed) | 3.79 kg |
| Protections | OPP, OTP, OVP, SCP, SIP, UVP, OCP, AFC |
| Warranty | 5 Years |
| ATX Standard | ATX 12V 3.1, PCIe GEN5 |
