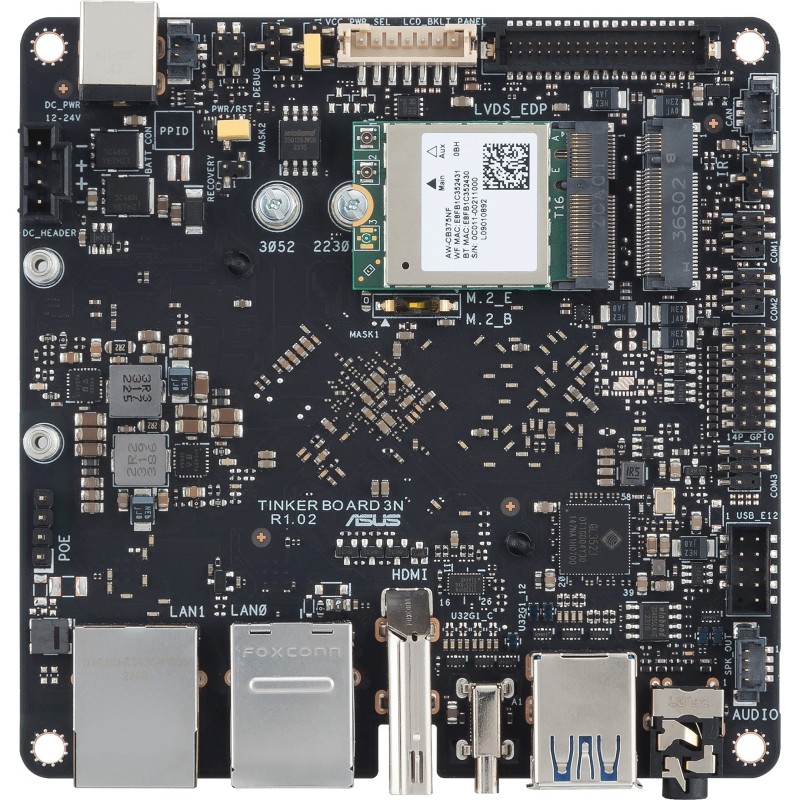

ASUS Tinker Board - 3N Plus - 4G 32G RK3568, 4-core, Mali-G52 GPU, Debian 11, 12-24 V, 100 x 100 mm

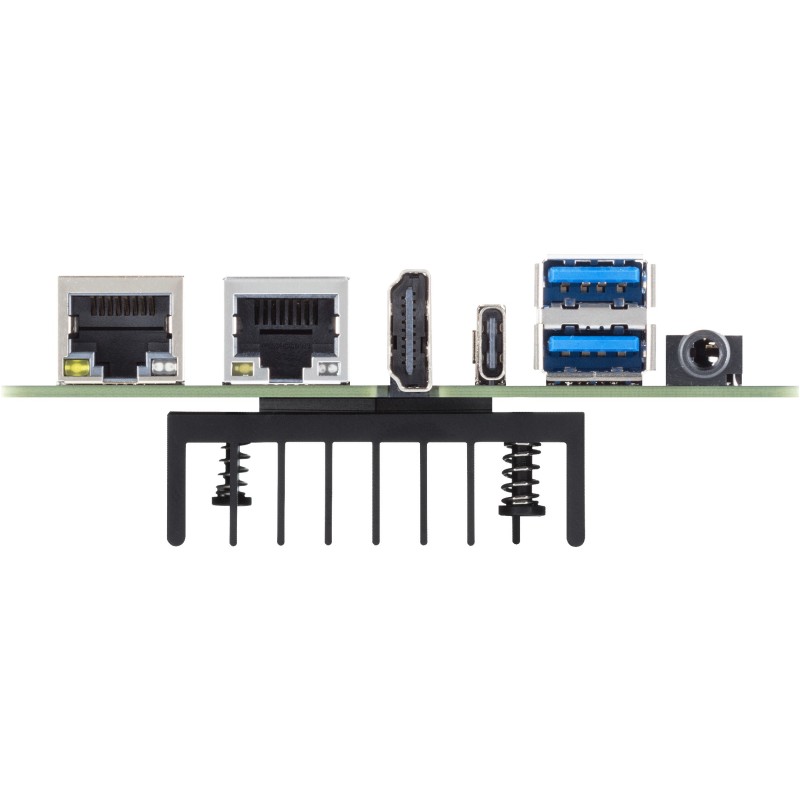

RK3568 quad-core, 4 GB RAM, 32 GB eMMC, MicroSD, 2x RJ-45, HDMI, USB-C, USB 2.0/3.2 Gen1, DC 12-24V, Debian 11.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
ASUS Tinker Board 3N PLUS. Processor manufacturer: Rockchip. Processor model: Rockchip RK3568. Maximum internal memory: 4 GB. RAM capacity: 4096 MB. Flash memory type: eMMC. USB version: 2.0/3.2 Gen 1 (3.1 Gen 1). On-board graphics card model: Arm Mali-G52. Linux operating systems supported: Debian 11
| Processor manufacturer | Rockchip |
| Processor model | Rockchip RK3568 |
| Processor cores | 4 |
| Feature | On-board graphics card |
| Maximum internal memory | 4 GB |
| RAM capacity | 4096 MB |
| Flash memory type | eMMC |
| eMMC capacity | 32 GB |
| Compatible memory cards | MicroSD (TransFlash) |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI ports quantity | 1 |
| USB Type-C ports quantity | 1 |
| On-board graphics card model | Arm Mali-G52 |
| Linux operating systems supported | Debian 11 |
| DC input voltage | 12 - 24 V |
| Board dimensions | 100 x 100 mm |
| Width | 100 mm |
| Depth | 100 mm |
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 85% |
