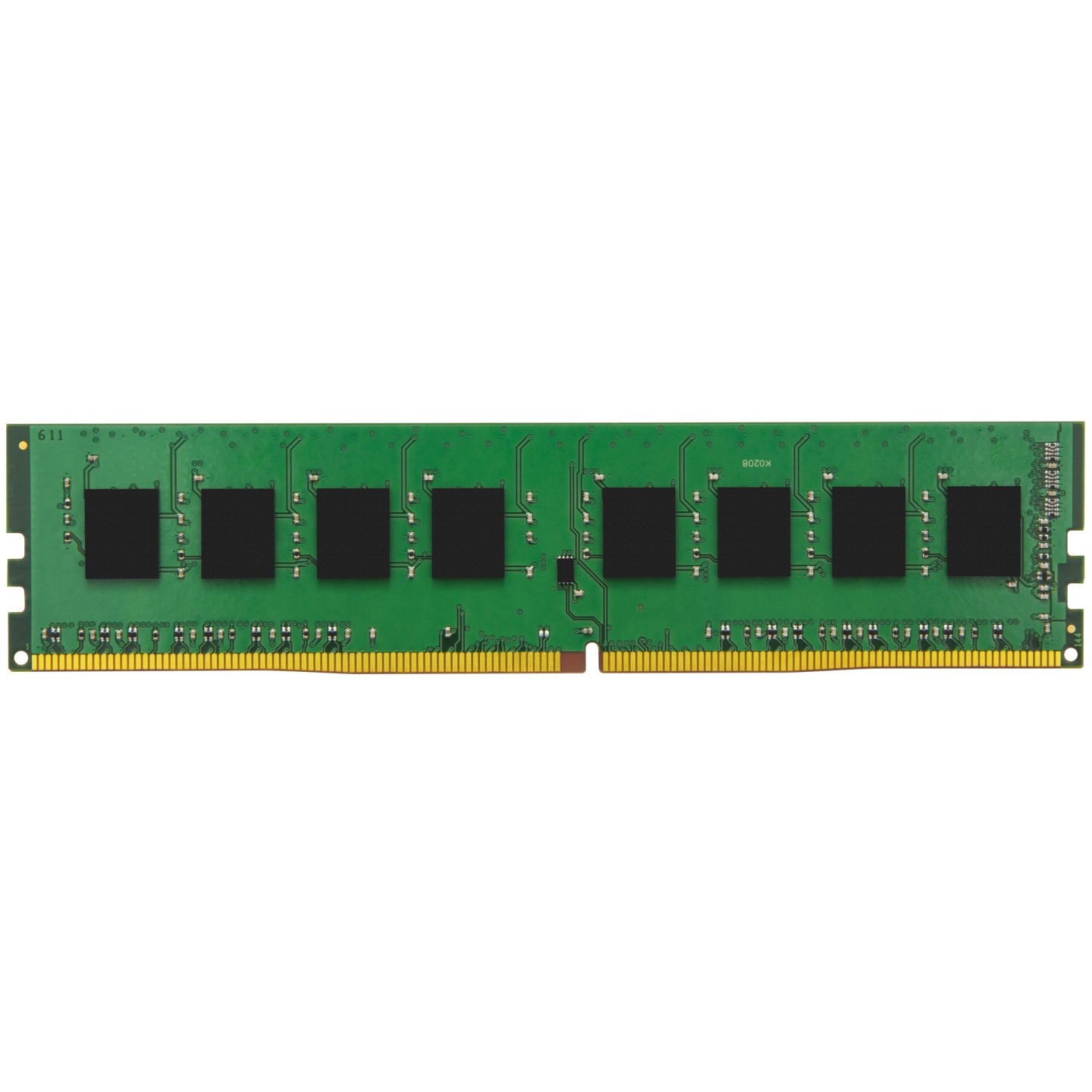

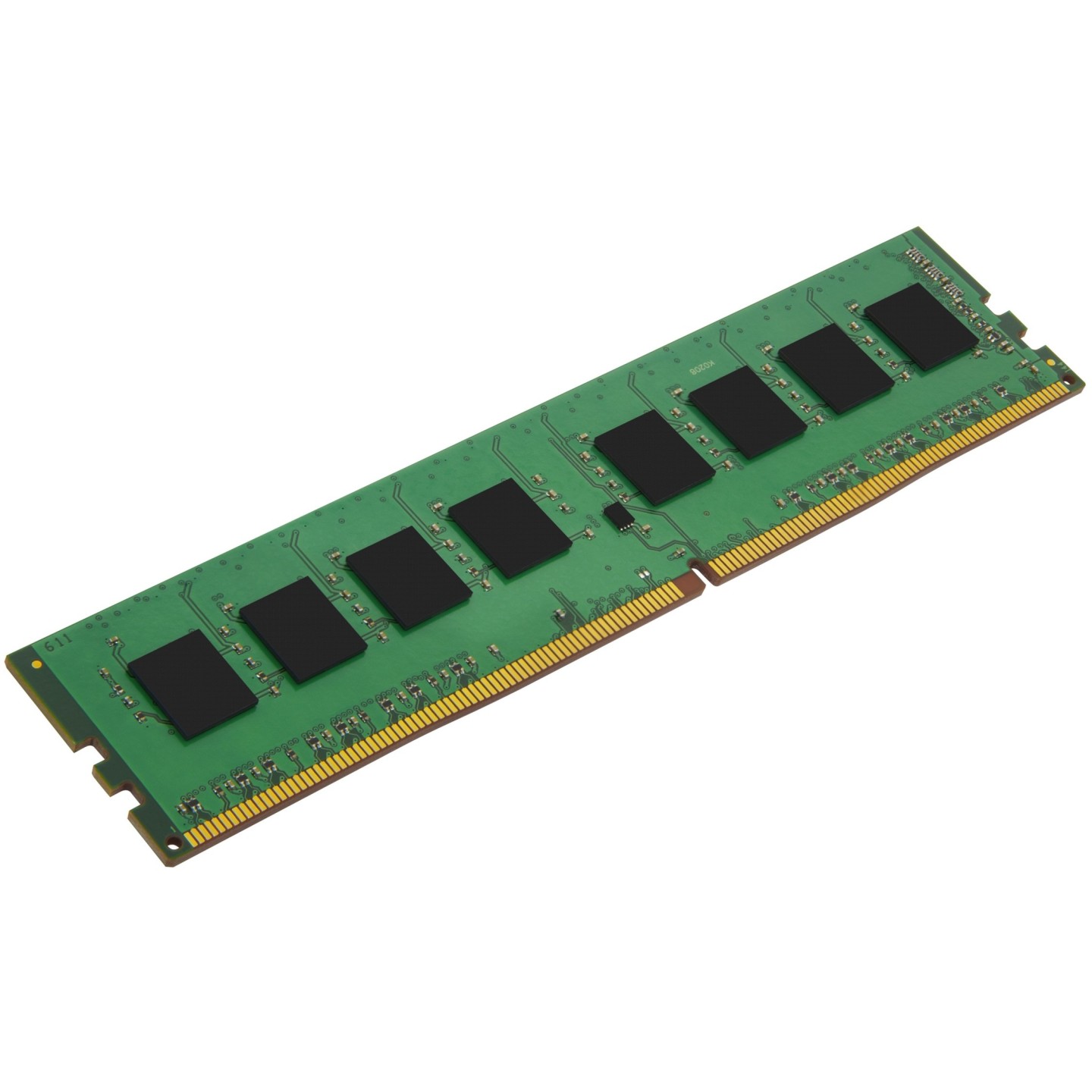

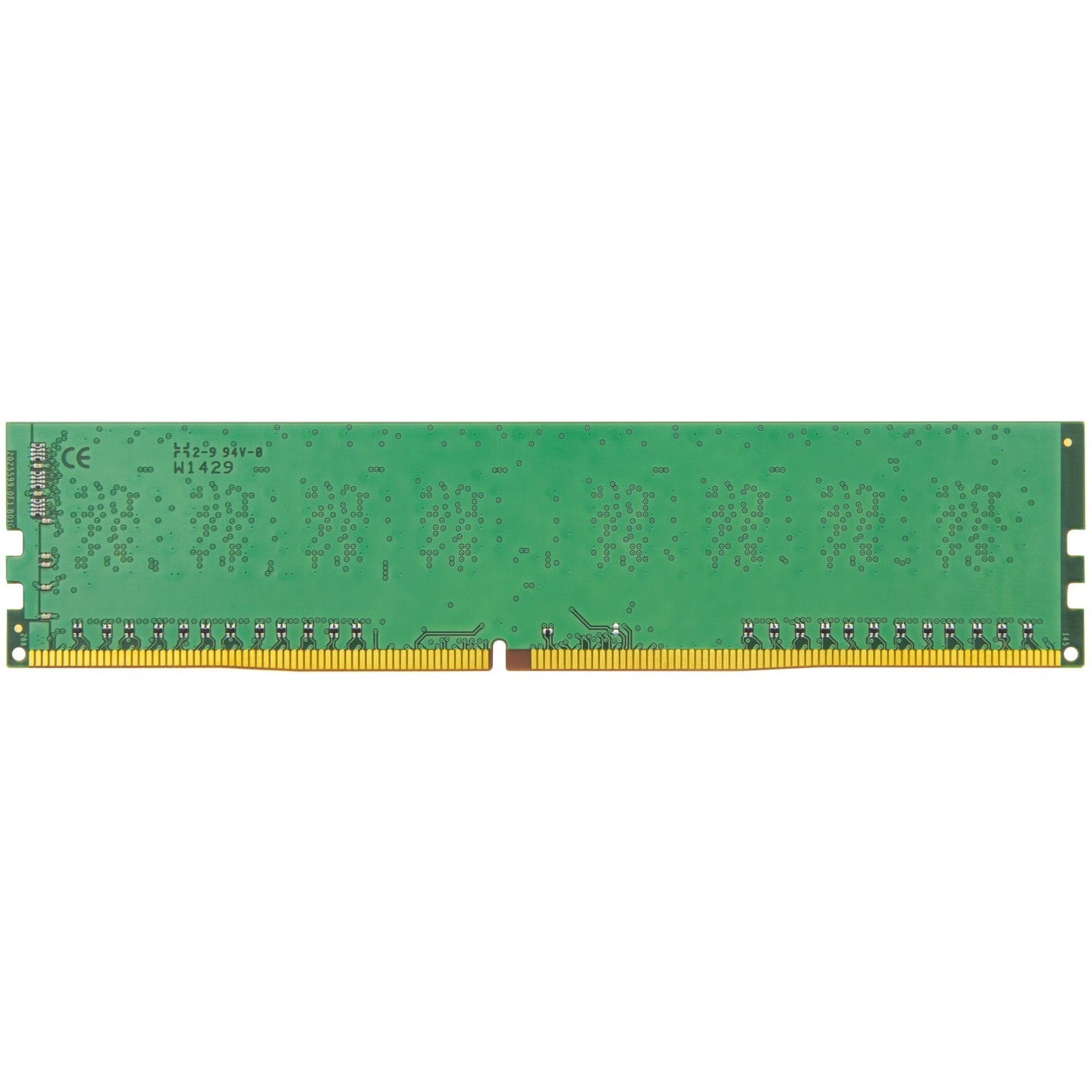

Kingston ValueRAM 32GB DDR4 3200MHz CL22 2Rx8 DIMM KVR32N22D8/32 (Retail)
Kingston ValueRAM KVR32N22D8/32 32GB DDR4-3200 CL22 Non-ECC 2Rx8 288-pin DIMM. JEDEC standard timings 22-22-22 at 1.2V. Ideal for PCs/servers. Retail pack.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| RAM Memory - Memory Type | DDR4 |
|---|---|
| RAM Memory - Profiles | None |
| RAM Memory - ECC | Non ECC |
| RAM Memory - CAS Latency | CL22 |
| RAM Memory - RGB Lighting | No |
| RAM Memory - Total Capacity | 32 GB |
| RAM Memory - Color | Black |
| RAM Memory - Speed (MT/s) | 3200 MT/s |
| RAM Memory - Kit Size | 1 |
| RAM Memory - Heatsink | No |
Kingston ValueRAM KVR32N22D8/32 is a high-capacity 32GB DDR4 memory module designed for reliable performance in desktop PCs and servers. Operating at 3200MT/s with CL22 timings (22-22-22) and 1.2V voltage, it follows JEDEC standards for broad compatibility without overclocking profiles.
This 2Rx8 dual-rank DIMM uses sixteen 2G x 8-bit FBGA components, featuring gold contacts, on-die VREFDQ, and fly-by topology for stability. Non-ECC unbuffered design suits general computing, gaming, and professional workloads. RoHS compliant and halogen-free.
- Capacity: 32GB (1 x 32GB module)
- Speed: DDR4-3200 PC4-25600
- Form Factor: 288-pin DIMM
- Compatibility: Intel/AMD PCs & Servers
- Warranty: Lifetime
| CAS latency | 22 |
| Internal memory | 32 GB |
| Memory layout (modules x size) | 1 x 32 GB |
| Internal memory type | DDR4 |
| Component for | PC/Server |
| Memory form factor | 288-pin DIMM |
| Memory ranking | 2 |
| Memory voltage | 1.2 V |
| Row cycle time | 45.75 ns |
| Refresh row cycle time | 350 ns |
| Row active time | 32 ns |
| Programming power voltage (VPP) | 2.5 V |
| Country of origin | Taiwan |
| Lead plating | Gold |
| Feature | JEDEC standard |
| Operating temperature (T-T) | 0 - 85 °C |
| Storage temperature (T-T) | -55 - 100 °C |
| Compliance certificates | RoHS |
| Doesn't contain | Halogen |
| Width | 133.3 mm |
| Height | 31.2 mm |
| Harmonized System (HS) code | 84733020 |
| Timings | 22-22-22 |
| Speed | PC4-25600 (DDR4-3200) |
| Chip organization | 2G x 8-bit, 16 chips |
| ECC | Non-ECC Unbuffered |
