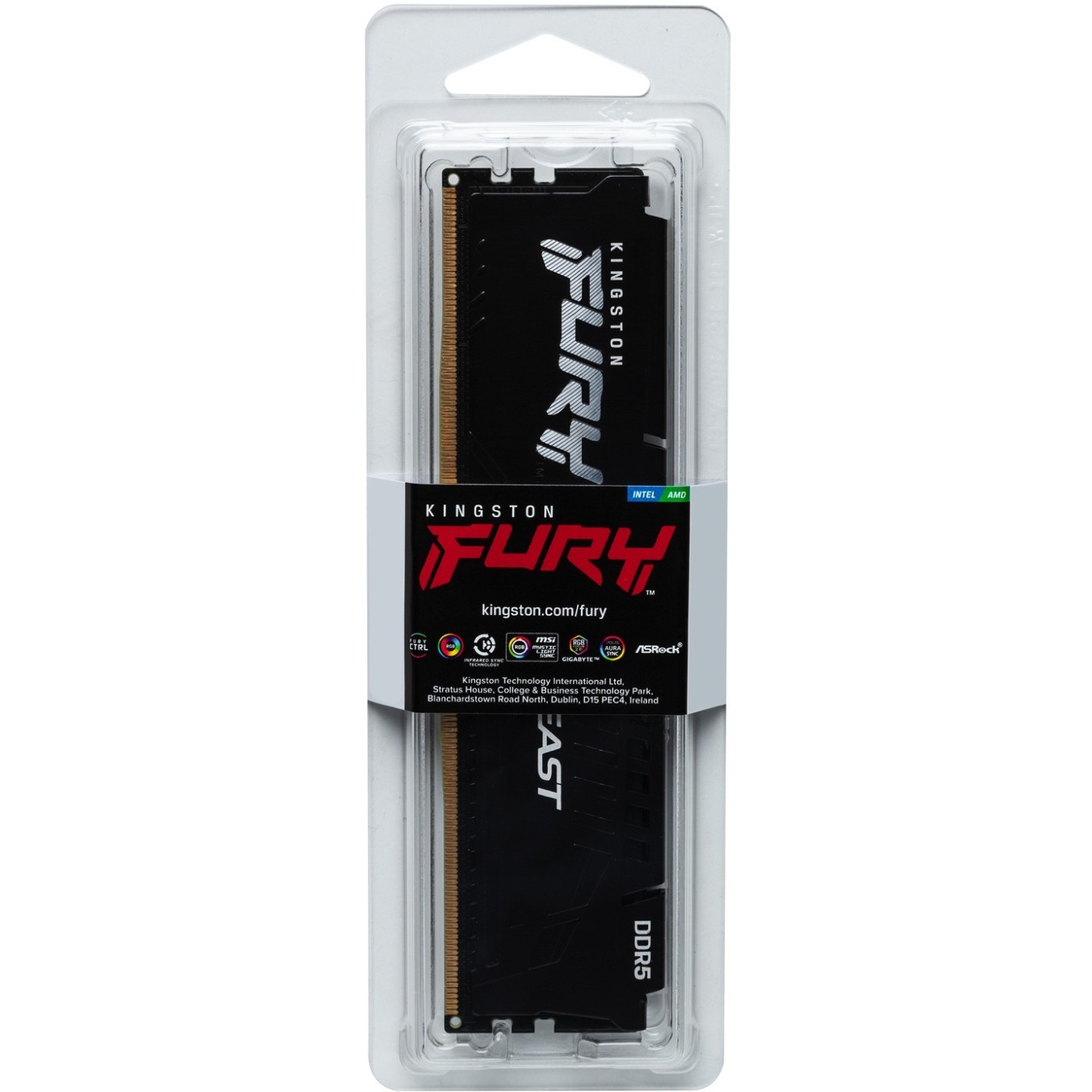

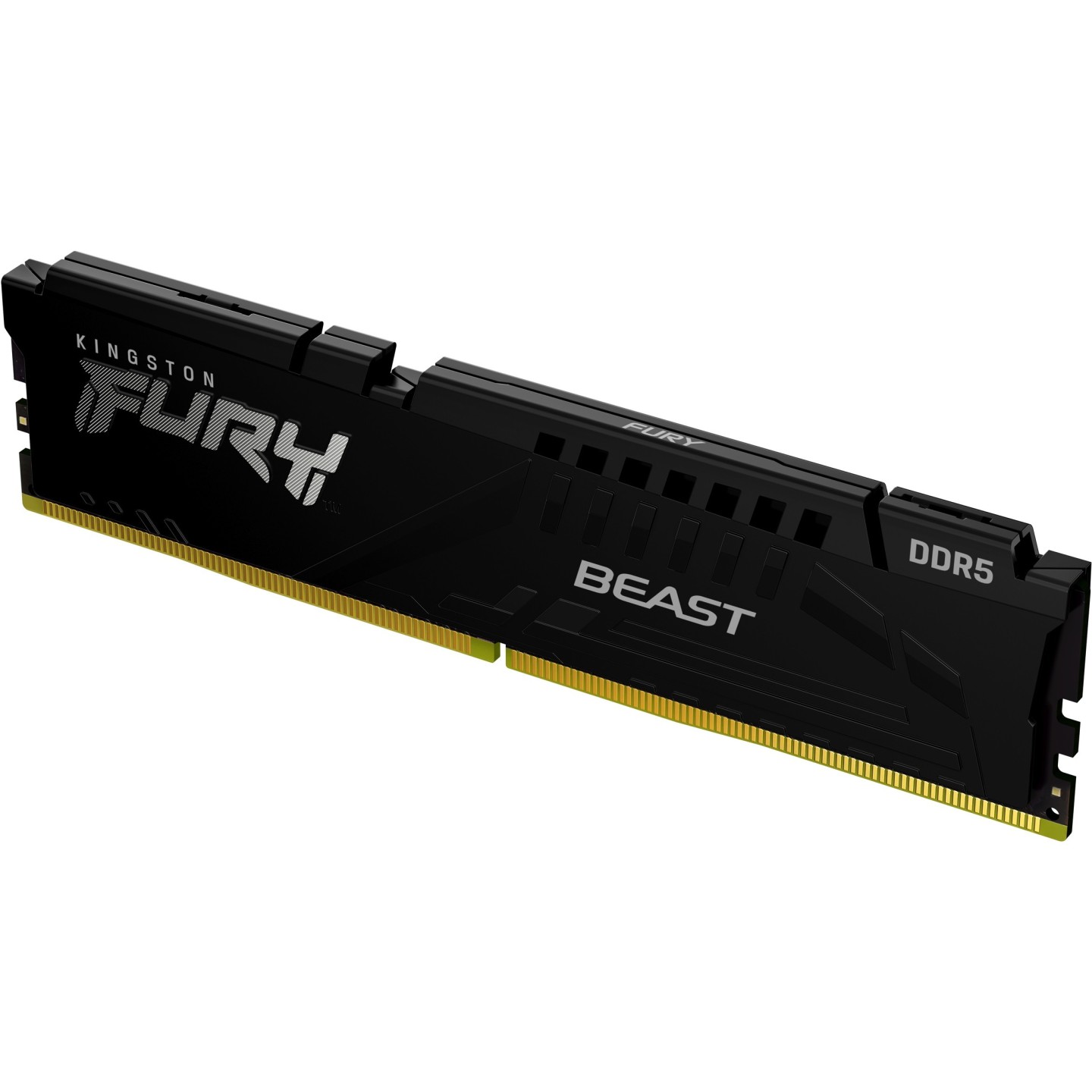

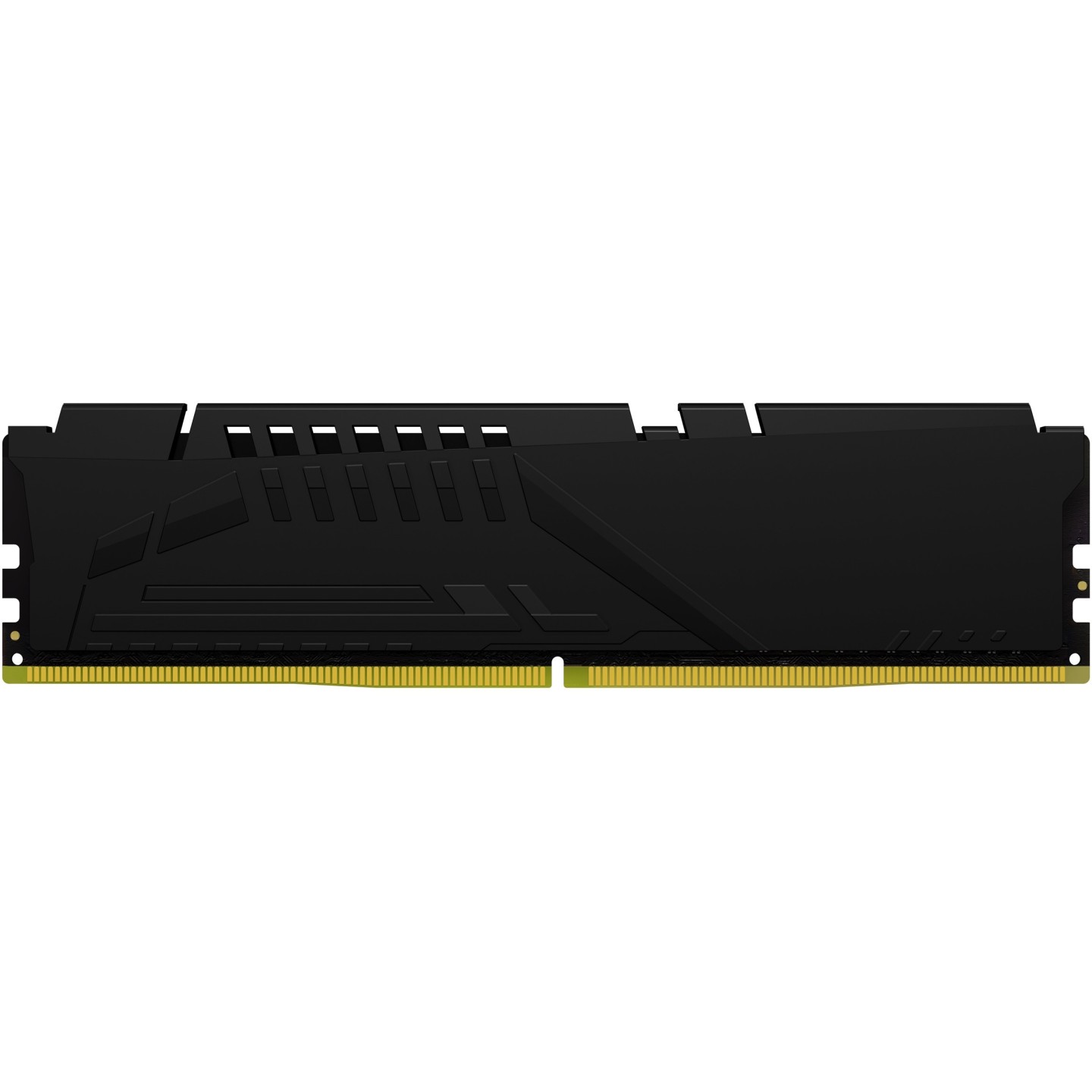

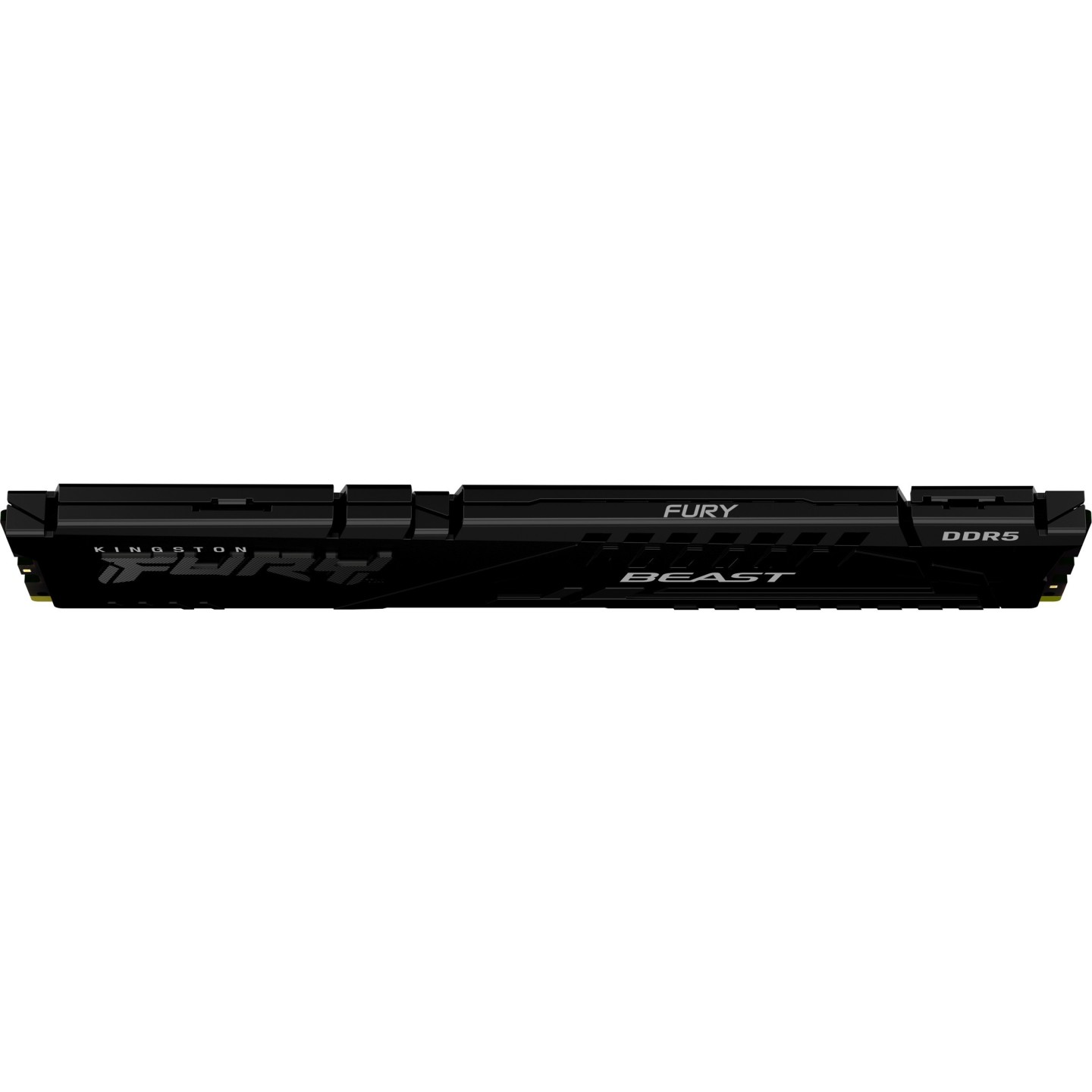

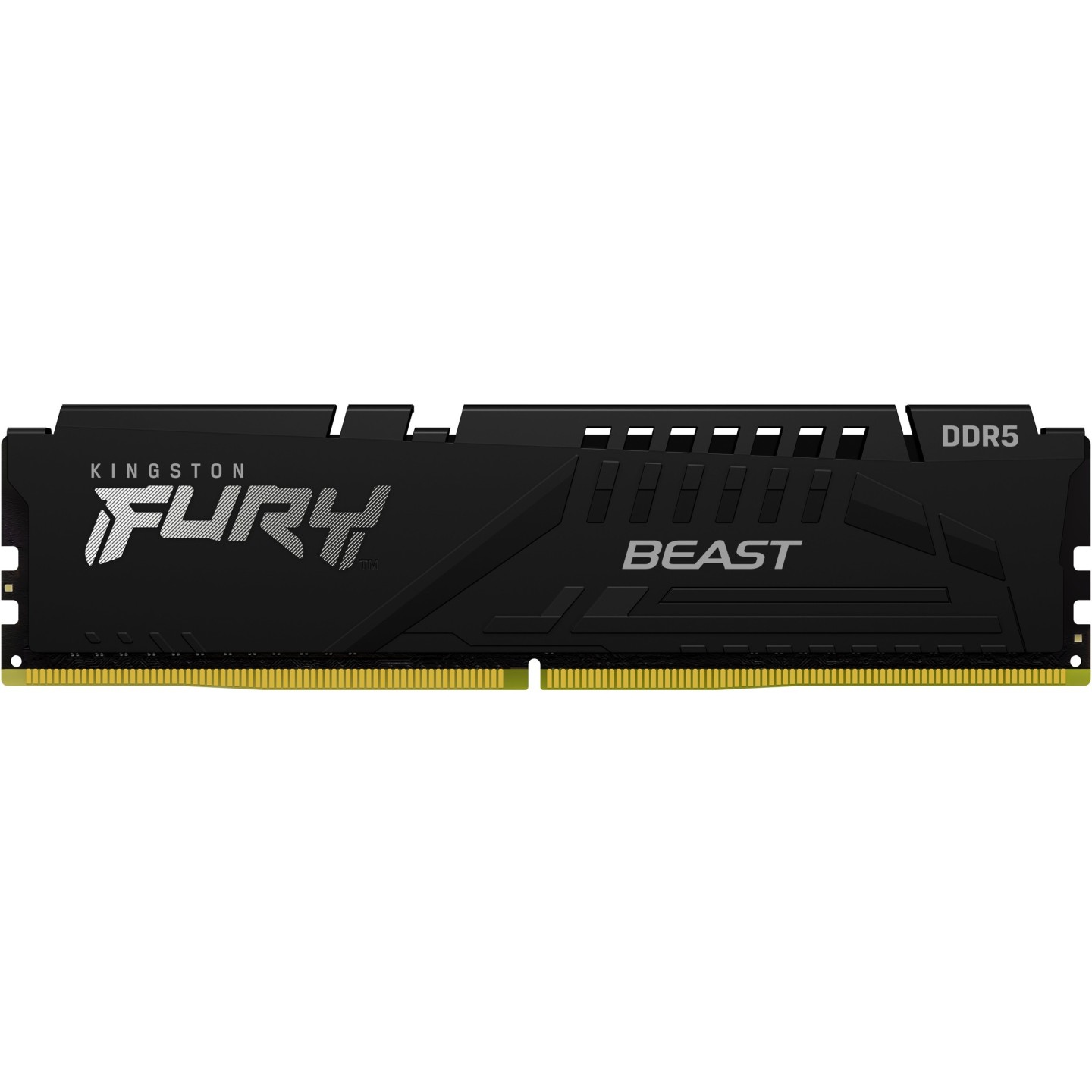

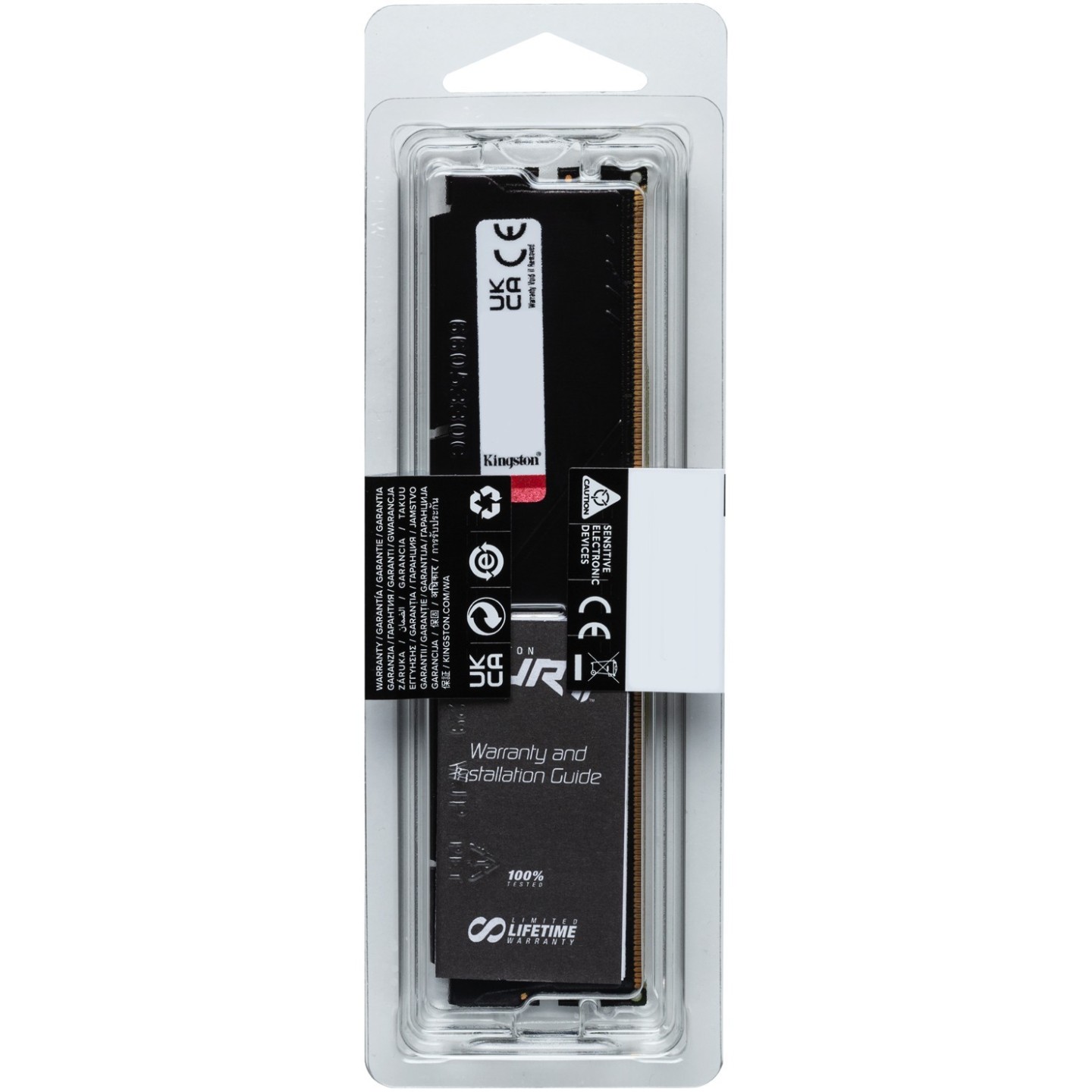

Kingston FURY Beast 16GB DDR5-5600 CL40 1x16GB DIMM Black KF556C40BB-16 (Boxed)
Kingston FURY Beast DDR5 16GB (1x16GB) 5600MT/s CL40 UDIMM Black. Features XMP 3.0, on-die ECC, heatsink for stability. Ideal for gaming PCs with Intel/AMD platforms. JEDEC & overclock profiles.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| RAM Memory - Memory Type | DDR5 |
|---|---|
| RAM Memory - Profiles | Intel XMP |
| RAM Memory - ECC | Non ECC |
| RAM Memory - CAS Latency | CL40 |
| RAM Memory - RGB Lighting | No |
| RAM Memory - Total Capacity | 16 GB |
| RAM Memory - Color | Black |
| RAM Memory - Speed (MT/s) | 5600 MT/s |
| RAM Memory - Kit Size | 1 |
| RAM Memory - Heatsink | Yes |
Kingston FURY Beast DDR5 memory delivers cutting-edge performance for next-gen gaming and content creation. This 16GB (1x16GB) module runs at 5600MT/s with CL40-40-40 timings at 1.25V, featuring a low-profile black heatsink for optimal cooling and aesthetics.
Equipped with Intel XMP 3.0 profiles for easy overclocking to DDR5-5600, plus JEDEC defaults at 4800MT/s. On-die ECC ensures stability at extreme speeds, while dual 32-bit subchannels boost efficiency. Unbuffered, non-ECC design perfect for enthusiast desktop builds.
- Speed: 5600MT/s (XMP), 4800MT/s (JEDEC)
- Timings: CL40-40-40-77 @1.25V
- Compatibility: Intel XMP 3.0, 288-pin DIMM
- Cooling: Aluminum heatsink
- Warranty: Lifetime from Kingston
| Buffered memory type | Unregistered (unbuffered) |
| CAS latency | 40 |
| Internal memory | 16 GB |
| Memory layout (modules x size) | 1 x 16 GB |
| Internal memory type | DDR5 |
| Memory data transfer rate | 5600 MT/s |
| Component for | PC |
| Memory form factor | 288-pin DIMM |
| Memory ranking | 1 |
| Memory voltage | 1.25 V |
| Module configuration | 2048M x 64 |
| Row cycle time | 48 ns |
| Row active time | 32 ns |
| Feature | JEDEC standard |
| Intel Extreme Memory Profile (XMP) version | 3.0 |
| Programming power voltage (VPP) | 1.8 V |
| Country of origin | China, Taiwan |
| Product colour | Black |
| Cooling type | Heatsink |
| Lead plating | Gold |
| Operating temperature (T-T) | 0 - 85 °C |
| Storage temperature (T-T) | -55 - 100 °C |
| Width | 6.62 mm |
| Depth | 133.3 mm |
| Height | 34.9 mm |
| Weight | 34.14 g |
| Package width | 57.1 mm |
| Package depth | 14 mm |
| Package height | 171.4 mm |
| Package weight | 54.1 g |
| Master (outer) case width | 196.8 mm |
| Master (outer) case length | 311.1 mm |
| Master (outer) case height | 61 mm |
| Harmonized System (HS) code | 84733020 |
| Master (outer) case gross weight | 1.5 kg |
| Products per master (outer) case | 25 pc(s) |
| On-die ECC | Yes |
| Timings | 40-40-40-77 |
