ICY BOX IB-DK4061-CPD USB-C 12-in-1 PD 100W Docking Station - Grey (Boxed)
ICY BOX IB-DK4061-CPD: USB-C 12-in-1 dock w/ 100W PD charging, 2x HDMI (8K@30Hz single/4K@60Hz dual), 2x USB 3.2 Gen1 A/C, 2x USB 2.0, GbE, SD/microSD, 3.5mm audio. Compact grey design, ChromeOS support.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| USB Hubs & Docking Stations - Host Interface | USB-C |
|---|---|
| USB Hubs & Docking Stations - Number of Ports | 11+ |
| USB Hubs & Docking Stations - Downstream Ports | USB-A USB-C |
| USB Hubs & Docking Stations - Video Output | HDMI |
| USB Hubs & Docking Stations - Power Delivery | 100W |
| USB Hubs & Docking Stations - Ethernet | 1 Gbps |
| USB Hubs & Docking Stations - Special Features | Aluminum Body Audio Jack Compact Design MicroSD Card Reader Plug and Play SD Card Reader |

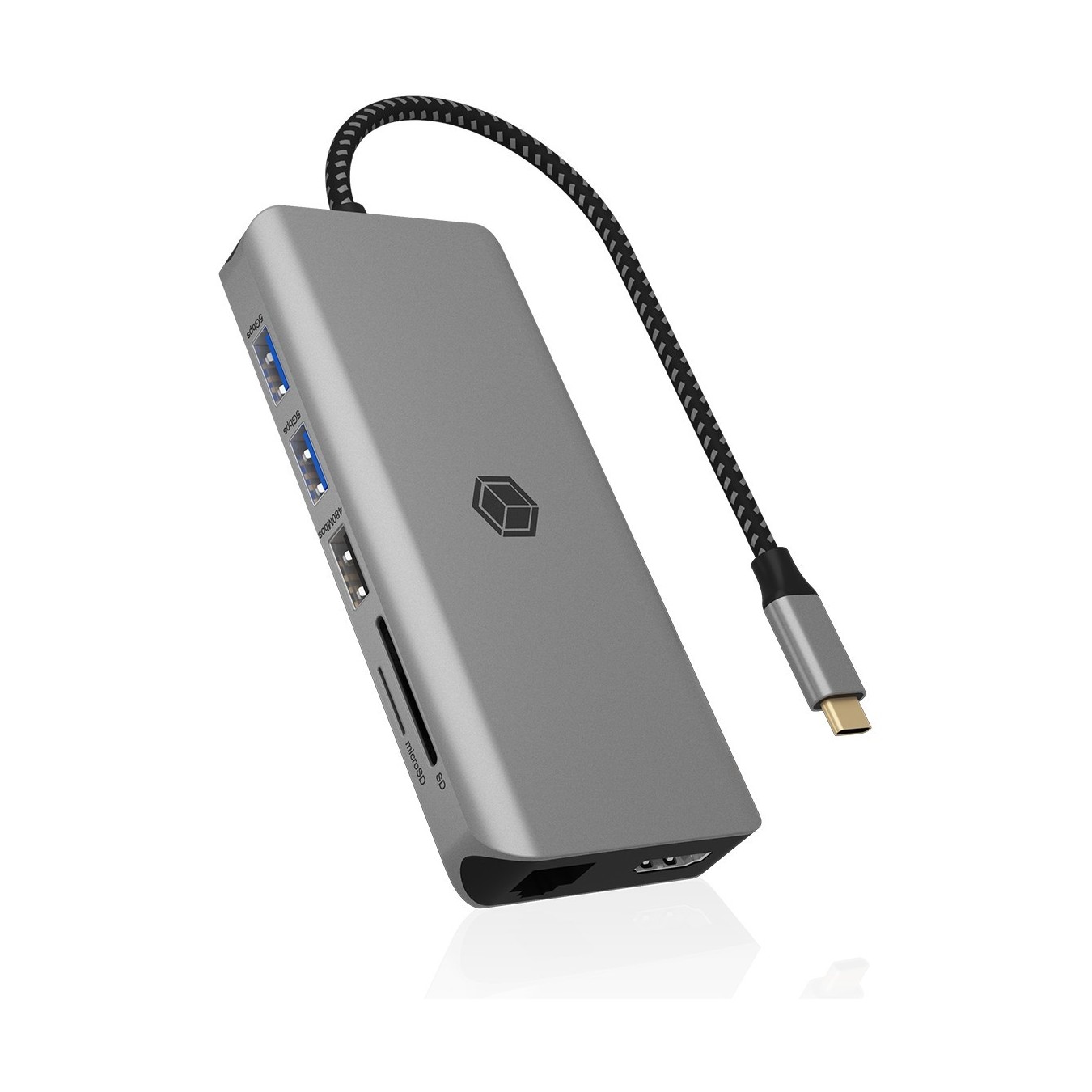

The ICY BOX IB-DK4061-CPD is a compact USB-C 12-in-1 docking station designed to expand your laptop's connectivity. Featuring a USB 3.2 Gen 1 Type-C host interface, it supports 100W Power Delivery to charge your device while connected. Ideal for office, home, or mobile use, its grey aluminum and ABS housing measures just 57x122x17mm and weighs 103g.
Key ports include 2x HDMI (up to 7680x4320@30Hz single display or 3840x2160@60Hz dual), Gigabit Ethernet, 2x USB 3.2 Gen1 Type-A, 2x USB 3.2 Gen1 Type-C (one with PD), 2x USB 2.0 Type-A, SD/microSD card readers (UHS-II), and a 3.5mm headphone jack. Compatible with Windows, macOS, ChromeOS, and Thunderbolt 3/4 via USB-C. Includes 15cm integrated USB-C cable.
- Supports MST for dual displays and DisplayPort Alt Mode
- Passive cooling, UASP protocol for fast transfers
- Plug & Play, no drivers needed for basic use
- Max resolution: 8K@30Hz single, 4K@60Hz dual
- Country of origin: China
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Compatible memory cards | MicroSD (TransFlash), SD |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| Maximum refresh rate | 30 Hz |
| Max Resolution Single Display | 7680 x 4320 @ 30 Hz |
| Max Resolution Dual Display | 3840 x 2160 @ 60 Hz |
| Product colour | Grey |
| Housing material | Acrylonitrile butadiene styrene (ABS), Aluminium |
| USB cable length | 0.15 m |
| Width | 57 mm |
| Depth | 122 mm |
| Height | 17 mm |
| Weight | 103 g |
| Other operating systems supported | ChromeOS |
| Country of origin | China |
| Package width | 100 mm |
| Package depth | 200 mm |
| Package height | 25 mm |
| Package weight | 165 g |
