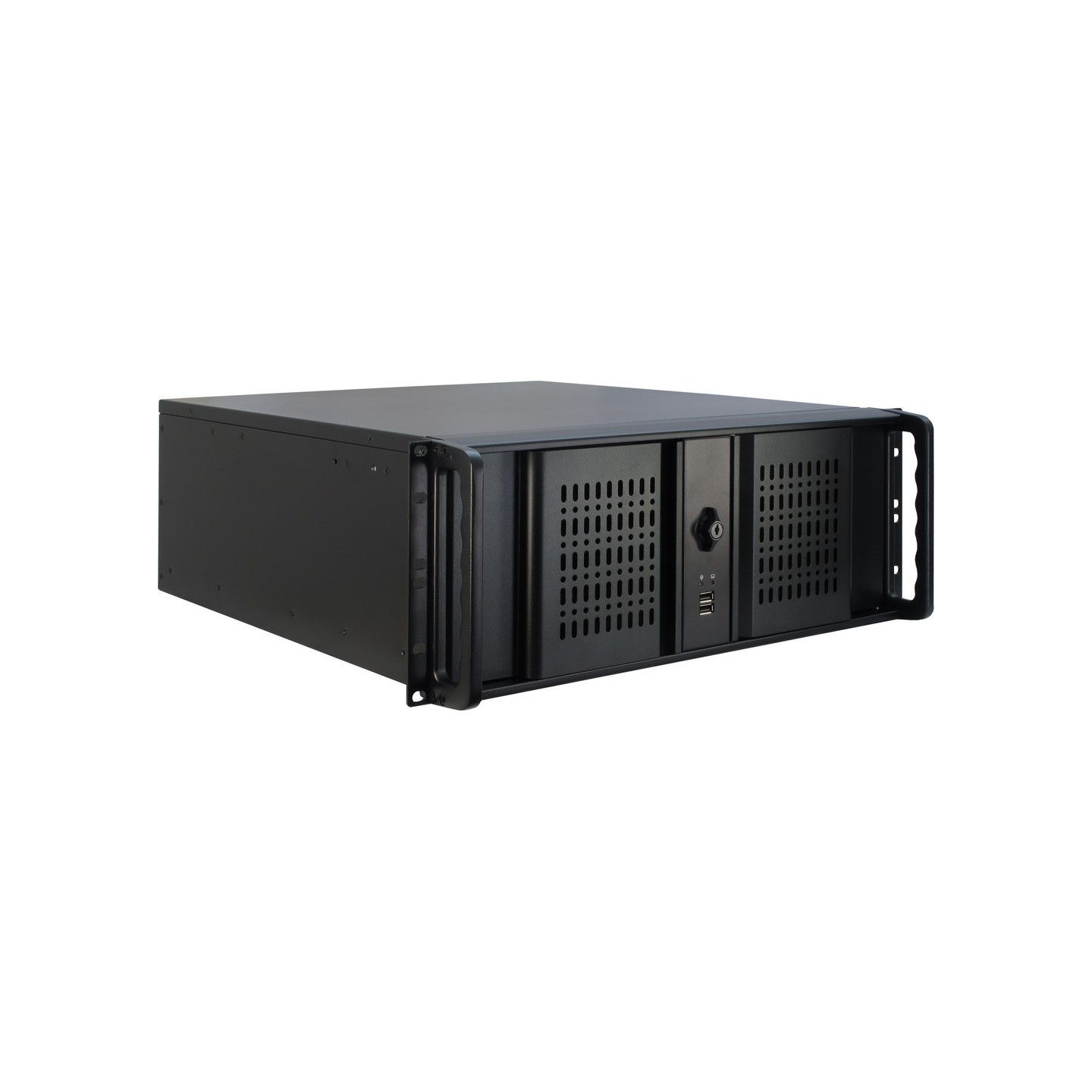

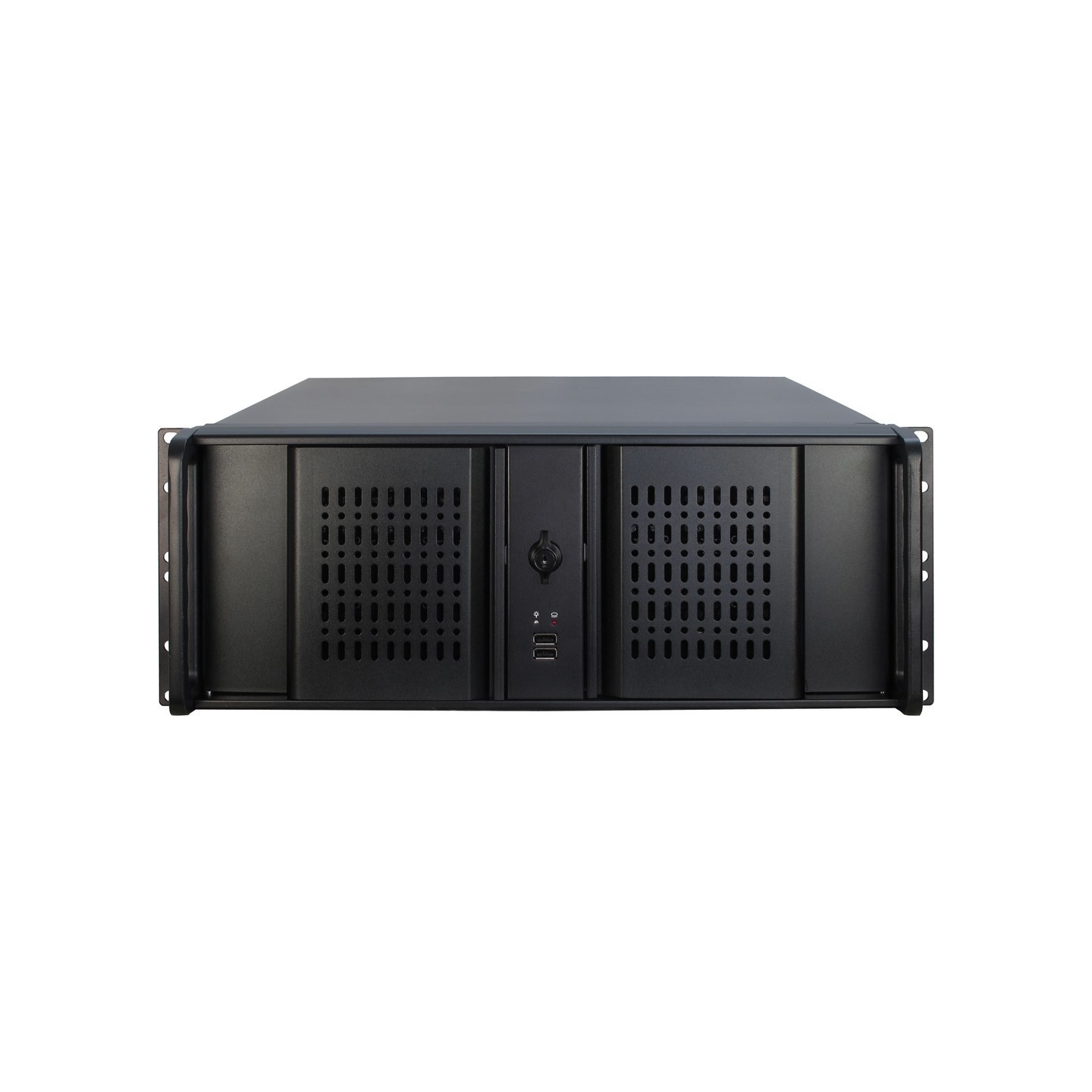

Inter-Tech IPC 4U-4098-S 4U Rackmount Server Case - Black Steel ATX/Micro-ATX/Mini-ITX
Inter-Tech 4U-4098-S rackmount server case in black steel. Supports ATX, Micro-ATX, and Mini-ITX motherboards. Features 6x 2.5" and 5x 3.5" internal drive bays, 6x 5.25" external bays, 7 PCI expansion slots, and 2x 80mm rear fans.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PC Cases - Motherboard Support | ATX Micro ATX Mini ITX |
|---|---|
| PC Cases - Radiator Support | None |
| PC Cases - Included Fans | 2 |
| PC Cases - Front I/O | USB A |
| PC Cases - GPU Orientation | Vertical Only |
| PC Cases - Form Factor | Rackmount 4U |
| PC Cases - Max GPU Length | 251–300 mm |
| PC Cases - Color | Black |
| PC Cases - CPU Cooler Clearance | Up to 150 mm |
The Inter-Tech IPC 4U-4098-S is a professional-grade 4U rackmount server chassis designed for enterprise and data center applications. Constructed from durable steel with a compact 485mm width, 520mm depth, and 178mm height, this case provides excellent space efficiency while maintaining robust internal architecture. The case supports ATX, Micro-ATX, and Mini-ITX motherboards, making it versatile for various server configurations.

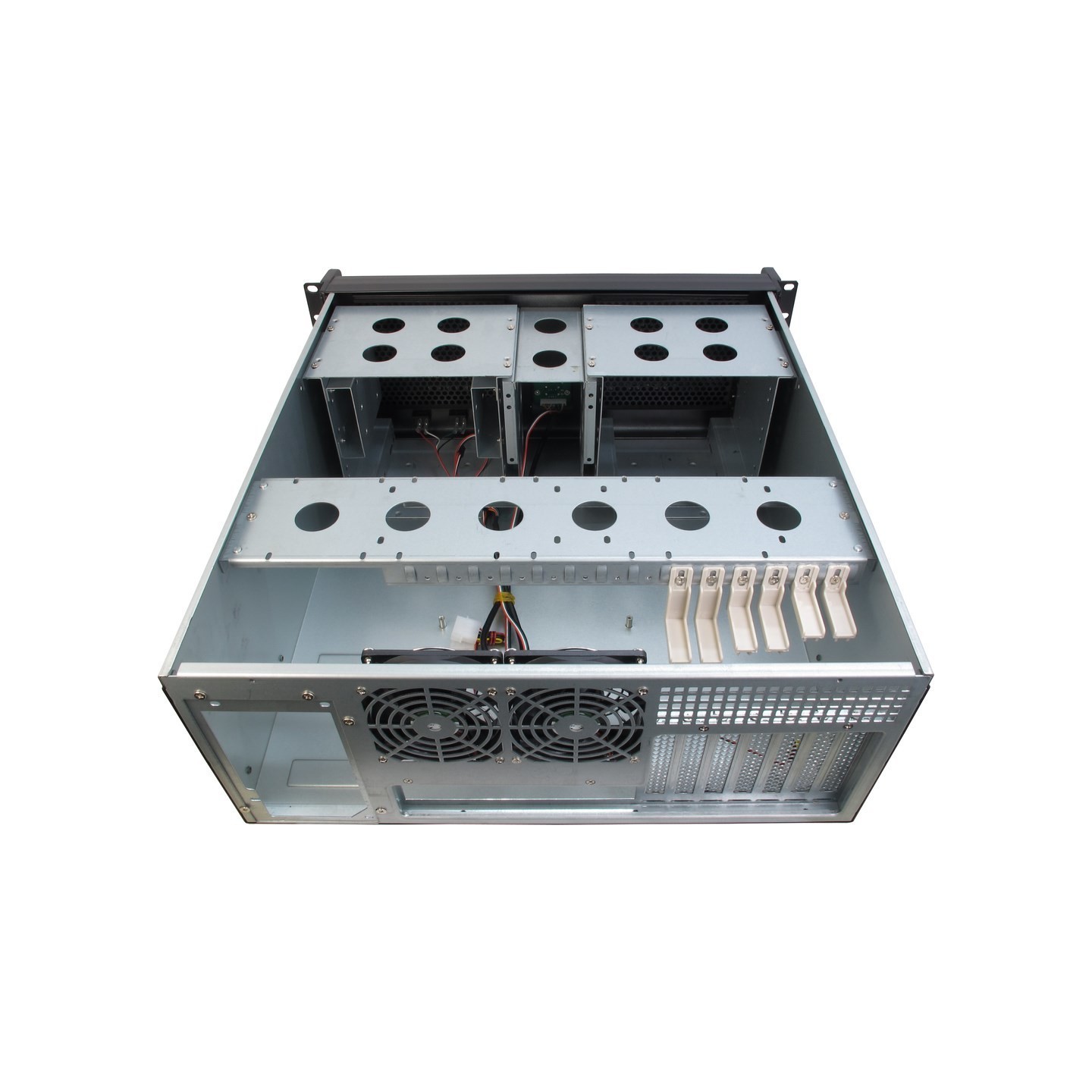

This server case offers extensive storage flexibility with 6 internal 2.5" drive bays, 5 internal 3.5" drive bays, and 6 external 5.25" drive bays, accommodating up to 11 drives total. The internal structure includes a protective crossbeam with slot card holders to ensure safe component placement and prevent case deformation under heavy loads. The case features 7 PCI expansion slots for additional hardware expansion, 2x 80mm rear fan mounts for optimal cooling, and supports a maximum GPU length of 275mm with CPU cooler clearance up to 135mm. Front connectivity includes 2x USB 2.0 Type A ports and dedicated LED indicators for power and hard drive activity.
Key specifications and features:
- Form Factor: 4U Rackmount
- Material: Steel (1.2mm thickness)
- Motherboard Support: ATX, Micro-ATX, Mini-ITX (max Micro-ATX)

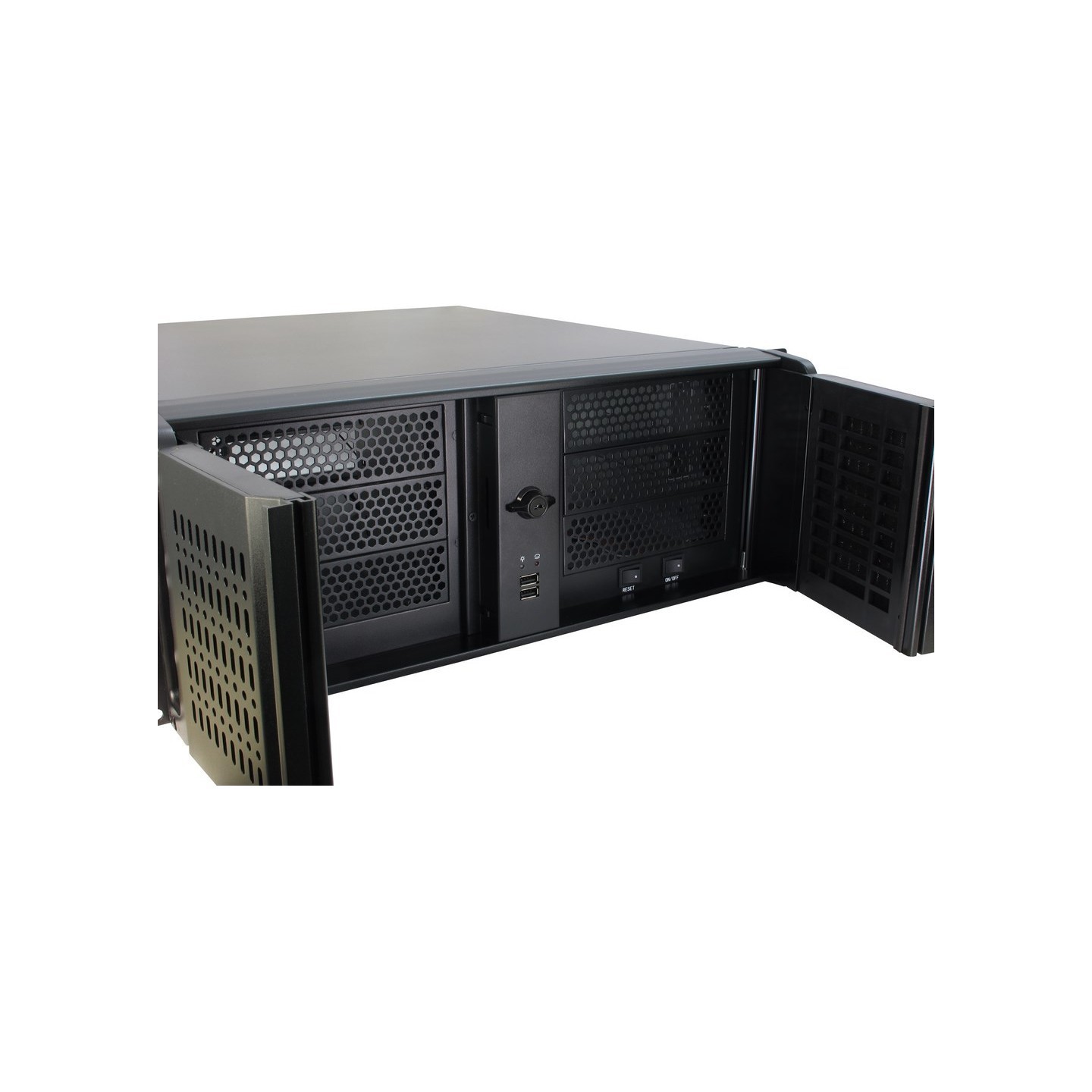

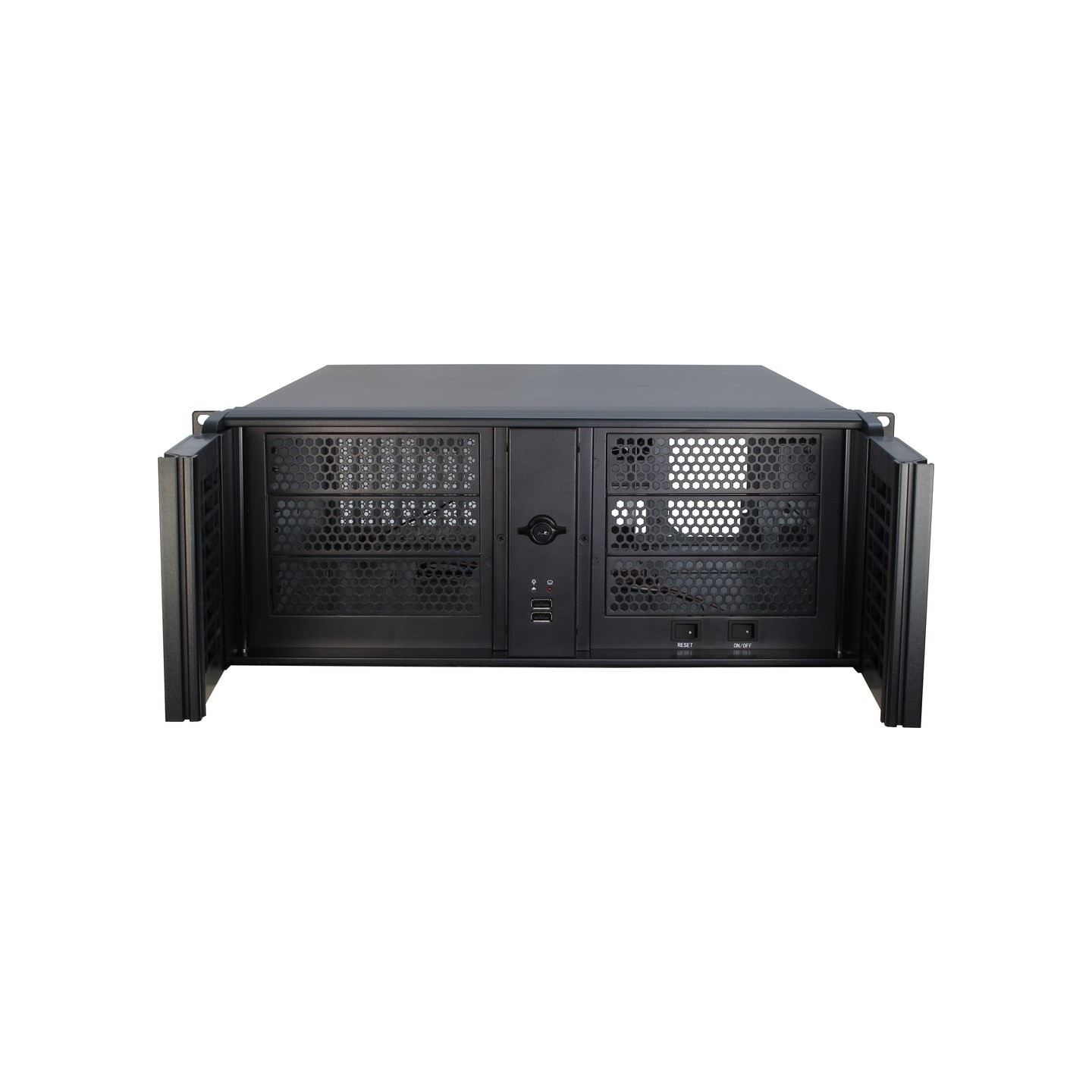

- Drive Bays: 6x 2.5", 5x 3.5" internal; 6x 5.25" external
- Expansion Slots: 7x PCI

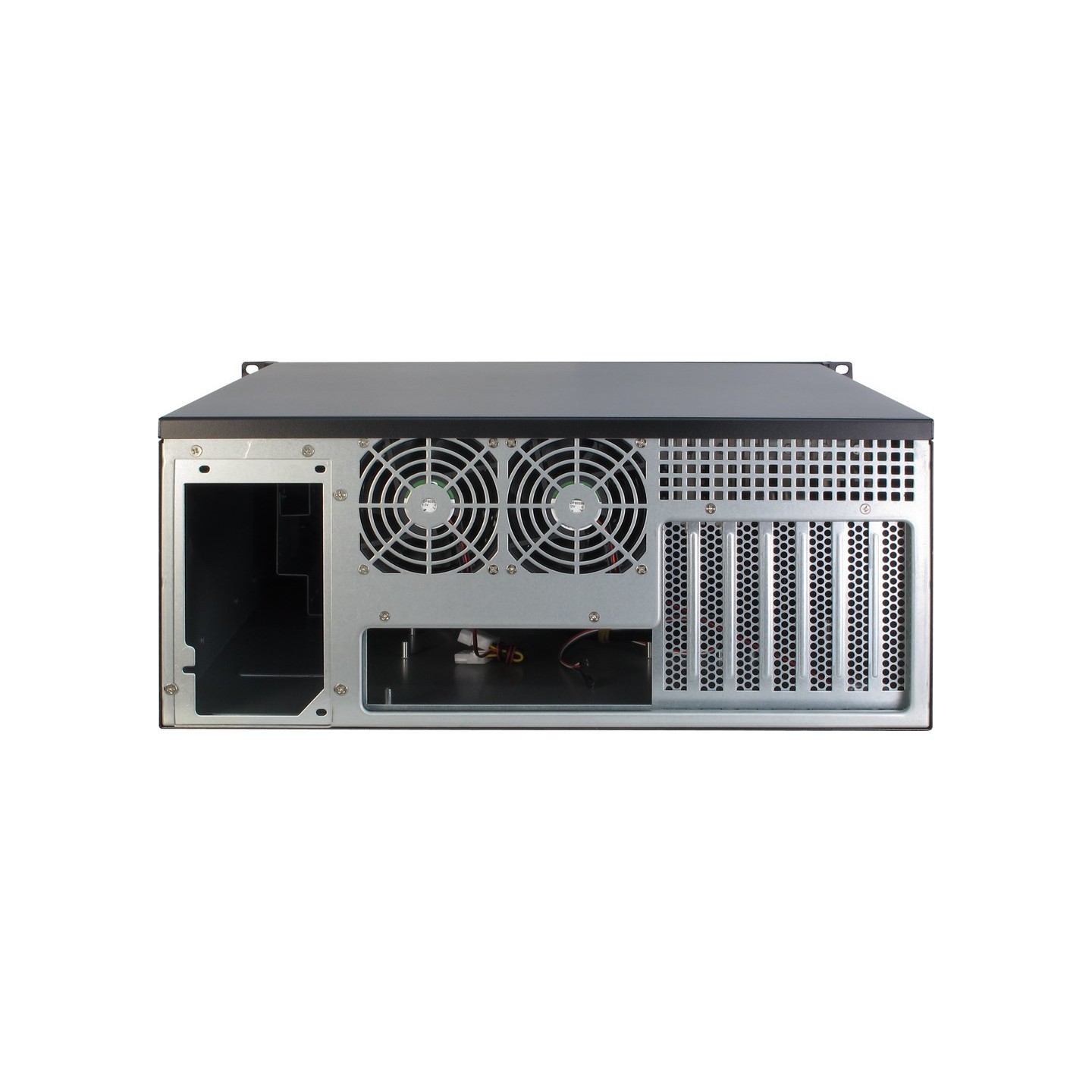

- Rear Fans: 2x 80mm supported
- Front I/O: 2x USB 2.0 Type A
- Max GPU Length: 275mm
- Max CPU Cooler Height: 135mm
- Weight: 11.36kg (case only)
- Certifications: RoHS, CE
| Type | Server |
| Form Factor | Rackmount 4U |
| Material | Steel |
| Material Thickness | 1.2 mm |
| Color | Black |
| Supported Motherboard Formats | ATX, Micro-ATX, Mini-ITX |
| Maximum Motherboard Format | Micro-ATX |
| Width | 485 mm |
| Depth | 520 mm |
| Height | 178 mm |
| Weight (Case Only) | 11.36 kg |
| Package Width | 560 mm |
| Package Depth | 630 mm |
| Package Height | 280 mm |
| Package Weight | 13.9 kg |
| 2.5 | 6 |
| 3.5 | 5 |
| 5.25 | 6 |
| Hot Swap Drive Bays | No |
| PCI Expansion Slots | 7 |
| Maximum GPU Length | 275 mm |
| Maximum CPU Cooler Height | 135 mm |
| Rear Fan Support (80mm) | 2 |
| Maximum Radiator Compatibility | None |
| Front USB 2.0 Type A Ports | 2 |
| Card Reader | No |
| Side Panel | Closed |
| Front Door | No |
| Cable Management | No |
| Dust Filters | No |
| Noise Dampening | No |
| Motherboard Tray/Slide | No |
| Power Supply Included | No |
| Power Supply Format | ATX, Redundant PSU |
| Power Supply Position | Rear Side |
| LED Indicators | Power, HDD Activity |
| Reset Button | Yes |
| Power Button | Yes |
| Certifications | RoHS, CE |
| Manufacturer Part Number (MPN) | 88887177 |
| EAN-13 | 4260133128095 |
| Harmonized System (HS) Code | 84733080 |
