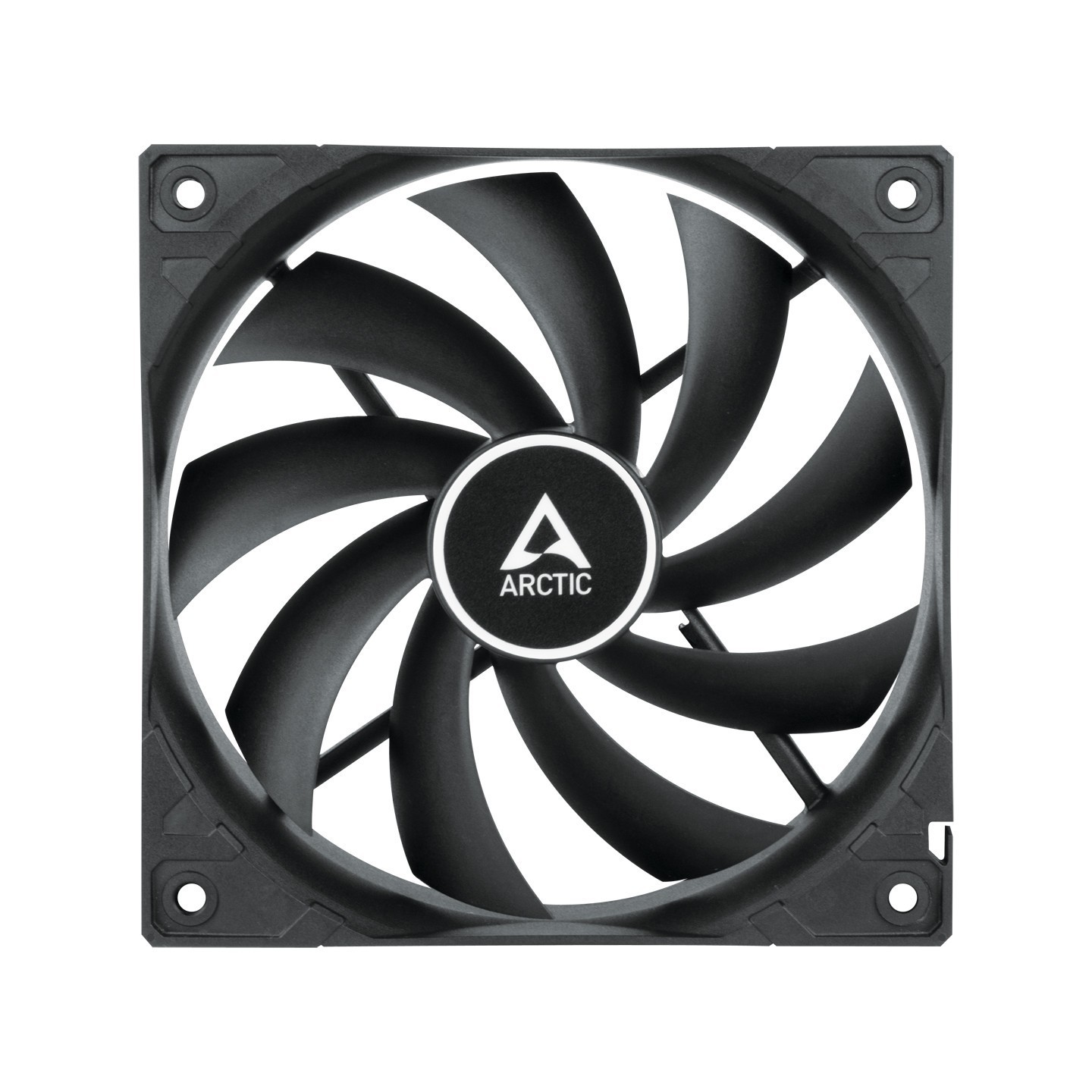

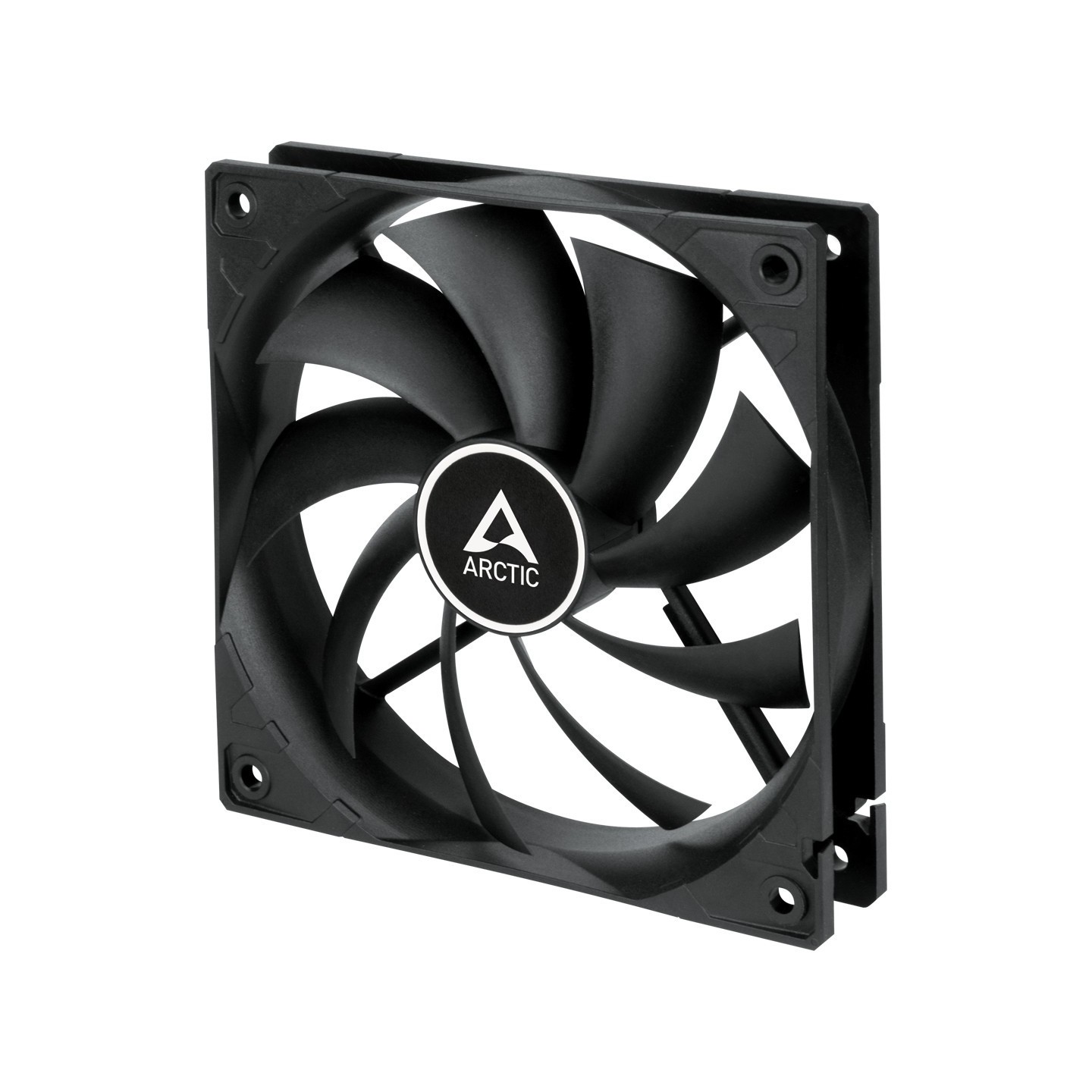

Arctic F12 PWM 120mm Case Fan - Black, 4-pin PWM, 25mm (Boxed)
Arctic F12 PWM 120mm case fan with quiet Fluid Dynamic Bearing motor, PWM speed control (230-1350 RPM), 53 CFM airflow, and ultra-low 0.3 Sone noise level for efficient PC cooling.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Cooling (CPU & Case) - Device Type | Case Fan |
|---|---|
| Cooling (CPU & Case) - Fan Size | 120 mm |
| Cooling (CPU & Case) - Lightning | None |
| Cooling (CPU & Case) - Connector | 4-Pin PWM |
| Cooling (CPU & Case) - Color | Black |
| Cooling (CPU & Case) - Special Features | Low Noise Magnetic Bearing |
The Arctic F12 PWM is a premium 120mm case fan engineered for silent and efficient PC cooling. Featuring a sinus-magnetized motor that produces only 5% of the vibration of conventional DC motors, this fan delivers exceptional quietness even at low speeds. The innovative blade design optimizes airflow while minimizing noise, making it ideal for both intake and exhaust configurations in standard PC cases.
With PWM (Pulse Width Modulation) control, the motherboard can automatically adjust fan speed from 230 to 1350 RPM based on system temperature, ensuring optimal cooling performance while maintaining near-silent operation. The Fluid Dynamic Bearing provides superior longevity compared to sleeve bearings, with an oil capsule design that prevents lubricant leakage. Rated at just 0.3 Sone, this fan is among the quietest on the market. Arctic backs this product with a comprehensive 6-year manufacturer warranty, reflecting confidence in its durability and reliability.
Key Specifications:
- Fan Size: 120mm (4.7 inches)
- Thickness: 25mm
- Speed Range: 230–1350 RPM (PWM controlled)
- Airflow: 53 CFM (90.1 m³/h)
- Static Pressure: 1.0 mmH₂O
- Noise Level: 0.3 Sone
- Connector: 4-pin PWM with tachometer output
- Bearing Type: Fluid Dynamic Bearing
- Operating Temperature: 0–40°C
- Voltage: 12V DC
- Weight: 109g (fan only)
- Warranty: 6 years
| Fan Diameter | 120 mm |
| Fan Thickness | 25 mm |
| Speed Range | 230–1350 RPM (PWM controlled) |
| Airflow | 53 CFM (90.1 m³/h) |
| Static Pressure | 1.0 mmH₂O |
| Noise Level | 0.3 Sone |
| Connector Type | 4-pin PWM with tachometer output |
| Bearing Type | Fluid Dynamic Bearing |
| Voltage | 12V DC |
| Starting Voltage | 2.7V DC |
| Current Draw | 0.21 A @ 12V DC |
| Cable Length | 400 mm |
| Weight (Fan Only) | 109 g |
| Operating Temperature Range | 0–40°C |
| Warranty | 6 years |
| Color | Black |
| Installation | Two-way (intake or exhaust) |
| Packaging Dimensions | 123 × 123 × 27 mm |
| Packaging Weight | 0.143 kg |
