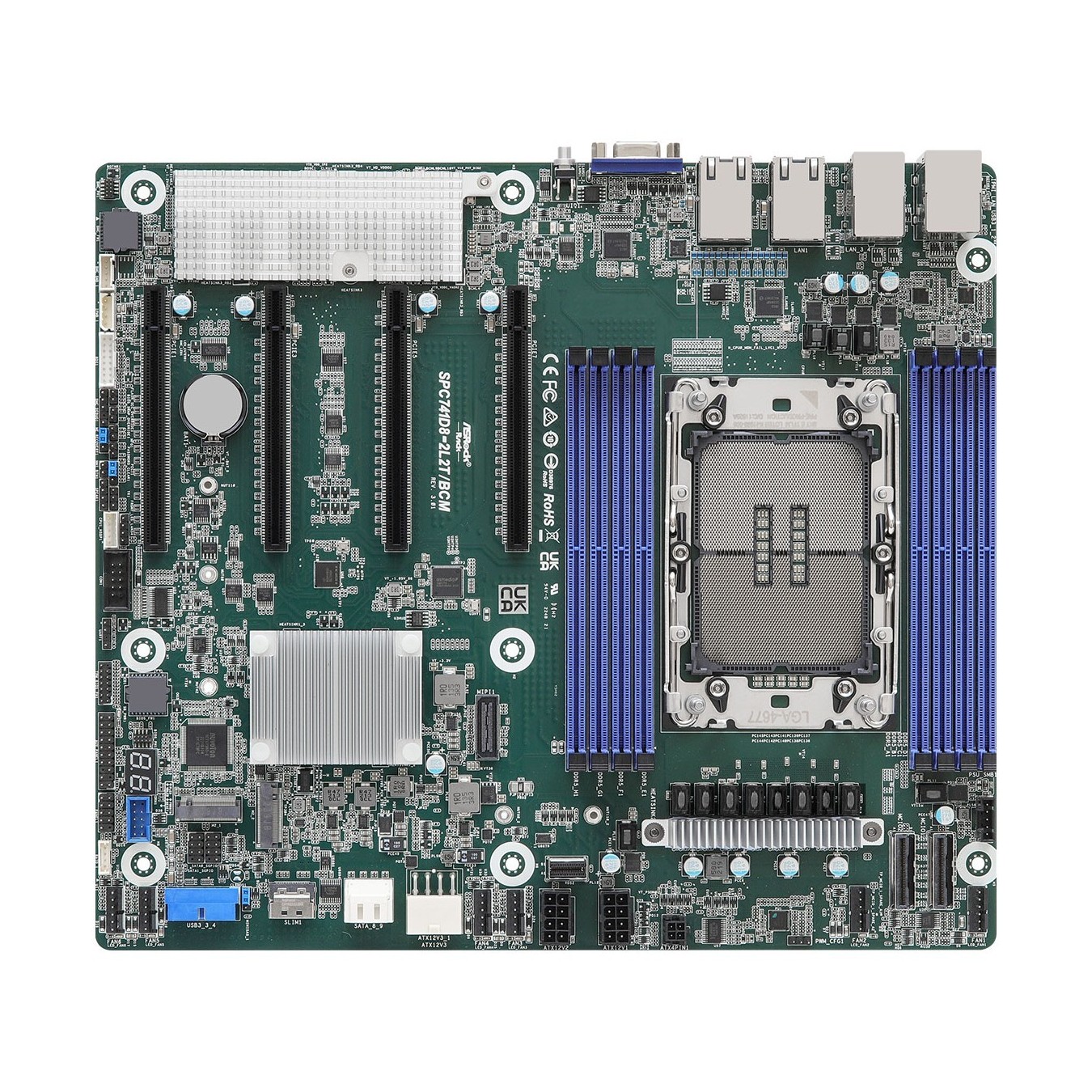

ASRock Mainboard SPC741D8-2L2T - Socket 4677, DDR5-SDRAM, 8 DIMMs, Xeon, CEB, 1.1V, 5600MHz, Green/Grey
ASRock SPC741D8-2L2T server motherboard for Intel Xeon, LGA 4677 Socket E, DDR5-SDRAM, 8 DIMMs, 12 drive support, 4x LAN, AMI BIOS.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - Memory Slots | 8 (HEDT) |
|---|
Asrock SPC741D8-2L2T/BCM. Processor manufacturer: Intel. Processor socket: LGA 4677 (Socket E). Compatible processor series: Intel® Xeon®. Supported memory types: DDR5-SDRAM. Memory slots type: DIMM. Memory voltage: 1.1 V. Supported storage drive interfaces: SATA III. Supported storage drive types: HDD & SSD. RAID levels: 0. 1. 5. 10. Graphics card family: ASPEED. On-board graphics card model: Aspeed AST2600. Ethernet interface type: 10 Gigabit Ethernet. Gigabit Ethernet. LAN controller: Broadcom BCM57416. Intel I210
| Processor manufacturer | Intel |
| Processor socket | LGA 4677 (Socket E) |
| Compatible processor series | Intel® Xeon® |
| Maximum number of SMP processors | 1 |
| Supported processor sockets | LGA 4677 (Socket E) |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 8 |
| Memory slots type | DIMM |
| Memory slot pin count | 288 |
| Memory voltage | 1.1 V |
| Supported memory clock speeds | 4800.5600 MHz |
| Supported memory clock speed (max) | 5600 MHz |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | SATA III |
| Number of HDDs supported | 12 |
| Number of storage drives supported | 12 |
| Feature | Clear CMOS button |
| RAID levels | 0. 1. 5. 10 |
| Parallel processing technology support | Not supported |
| Graphics card family | ASPEED |
| On-board graphics card model | Aspeed AST2600 |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of chassis fan connectors | 6 |
| Number of EPS power connectors (8-pin) | 3 |
| Number of COM connectors | 1 |
| Number of temperature sensor headers | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 4 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet interface type | 10 Gigabit Ethernet. Gigabit Ethernet |
| LAN controller | Broadcom BCM57416. Intel I210 |
| Motherboard chipset | Intel C741 |
| Product colour | Green. Grey |
| PC health monitoring | Fan. Temperature. Voltage |
| Component for | Server |
| Motherboard chipset family | Intel |
| BIOS type | AMI |
| ACPI version | 4.0 |
| System Management BIOS (SMBIOS) version | 3.4 |
| Storage temperature (T-T) | 10 - 35 °C |
| Operating temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Width | 304.8 mm |
| Depth | 266.7 mm |
