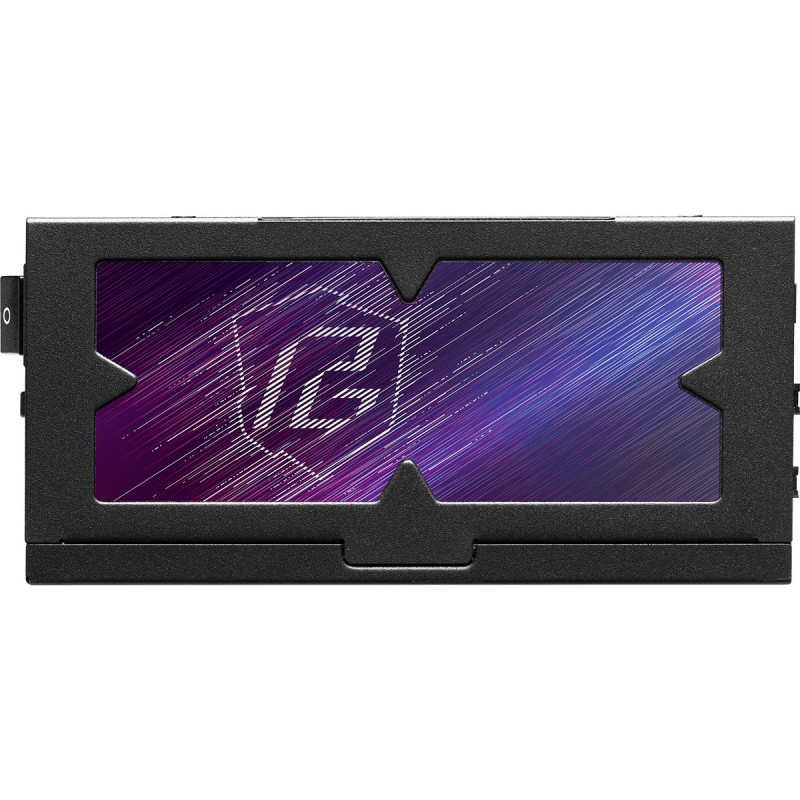

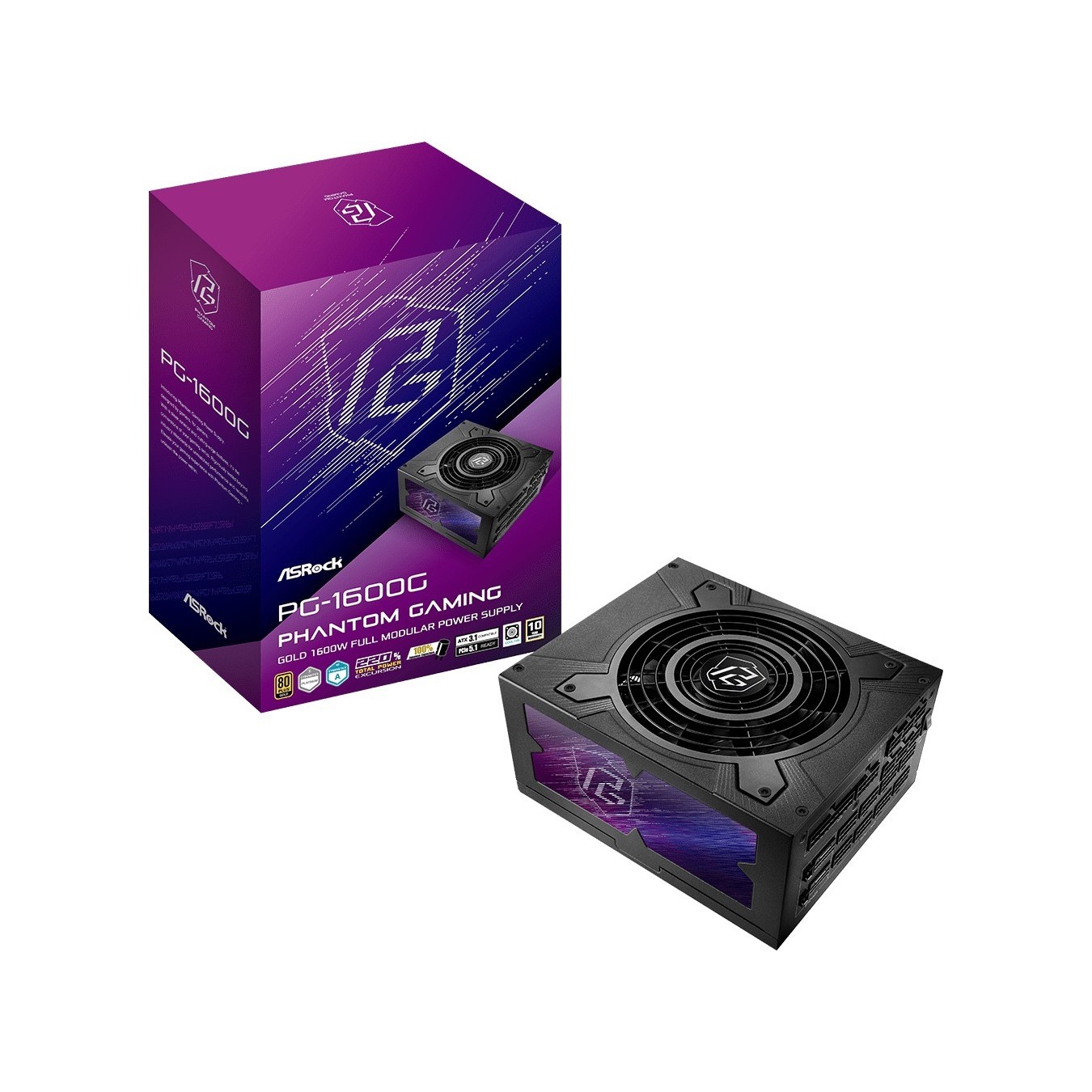

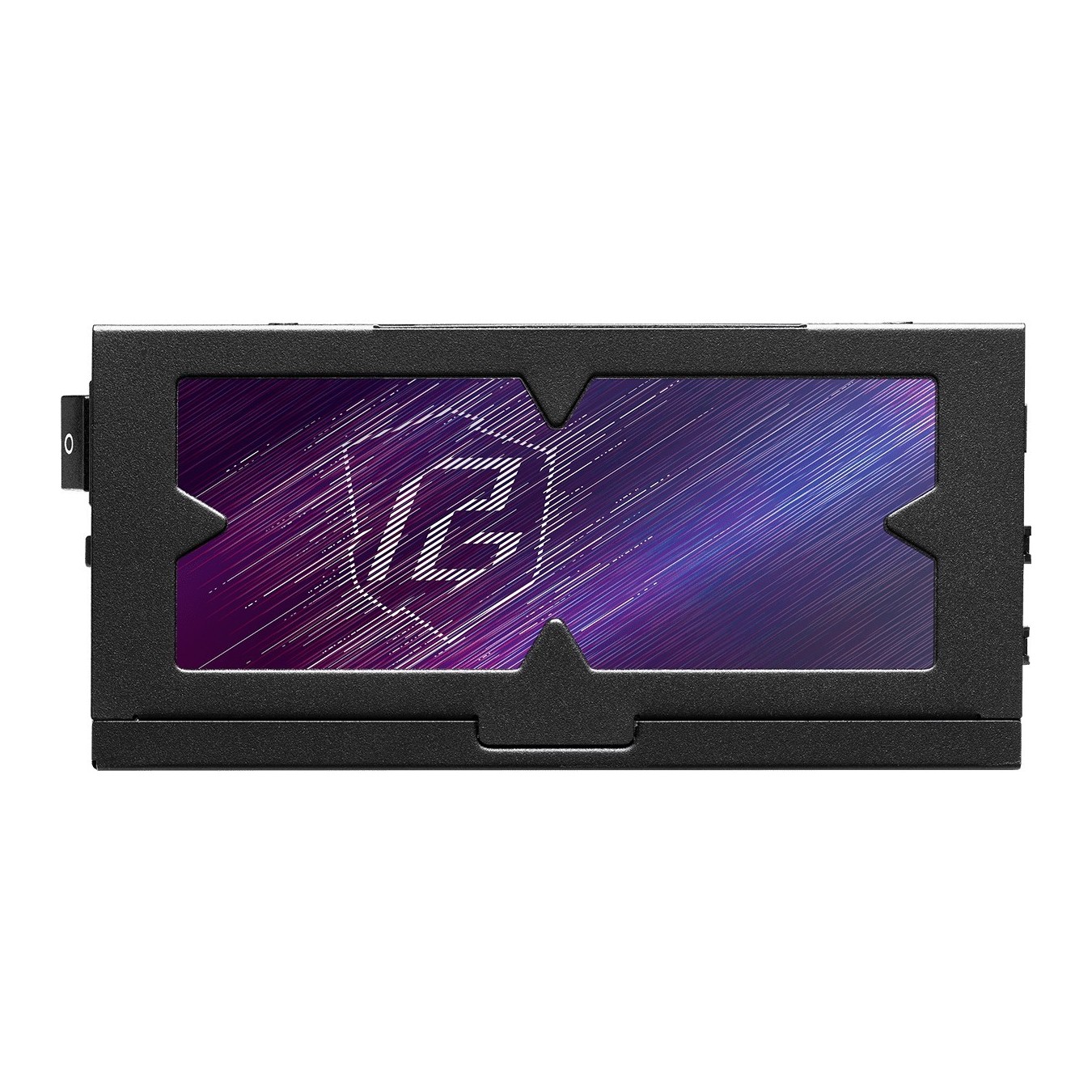

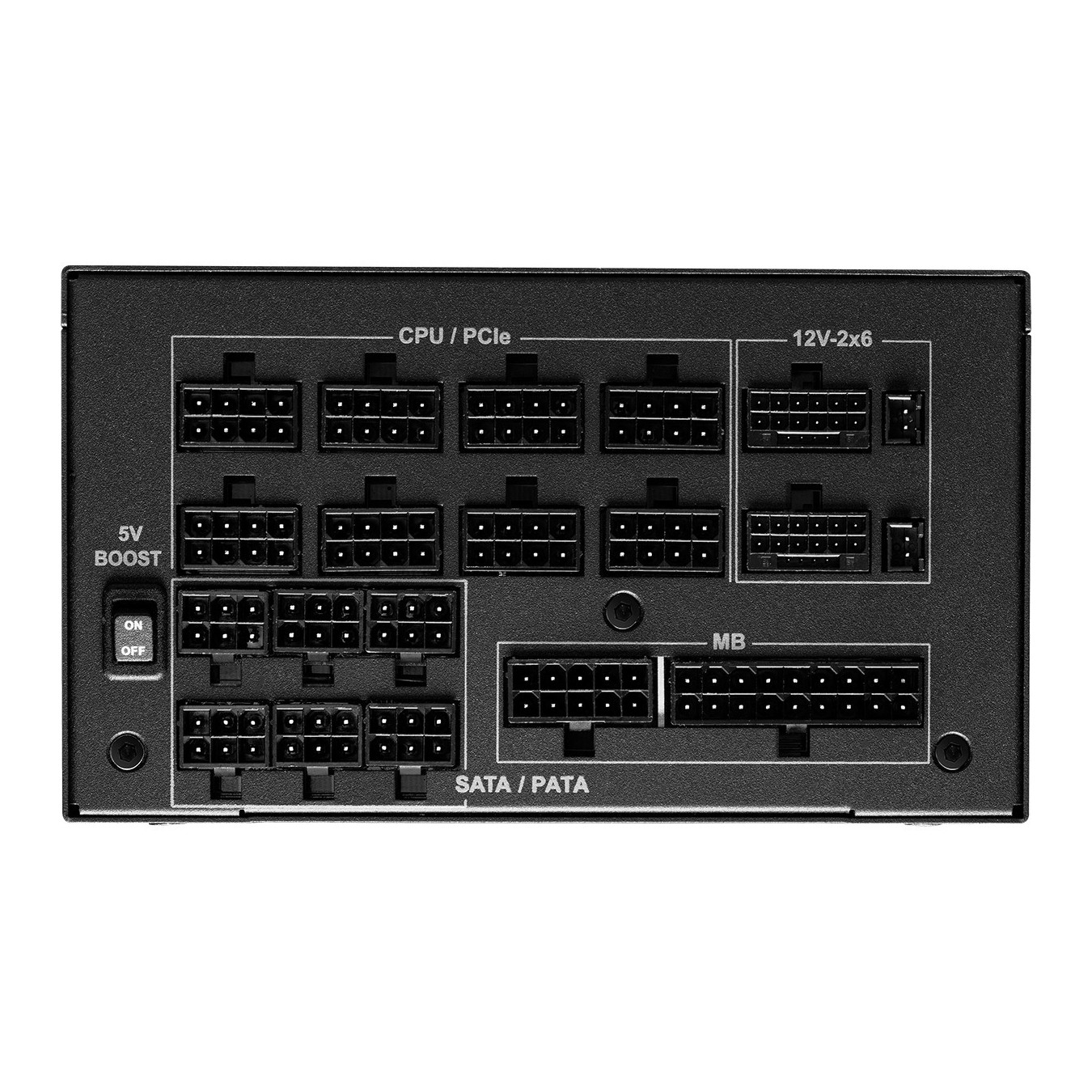

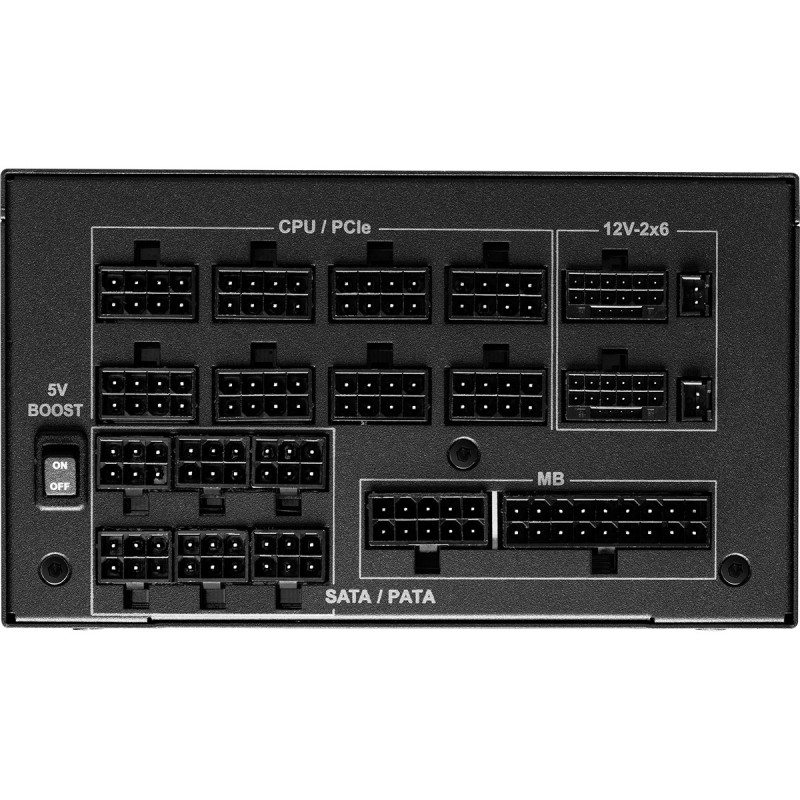

ASRock Phantom Gaming - PG-1600G - 1600W ATX PSU, Black, 80+ Gold, Fully Modular
ASRock Phantom Gaming PG-1600G 1600W ATX PSU, 80+ Gold, fully modular, black. ATX 3.1, 135mm fan, 12 SATA, 8 PCIe (6+2), 2 EPS connectors.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| PSU (Power Supplies) - Wattage | 1300-1600 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80+ Gold |
| PSU (Power Supplies) - ATX Standard | ATX 3.1 |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - EPS CPU Connectors | 2x8-pin |

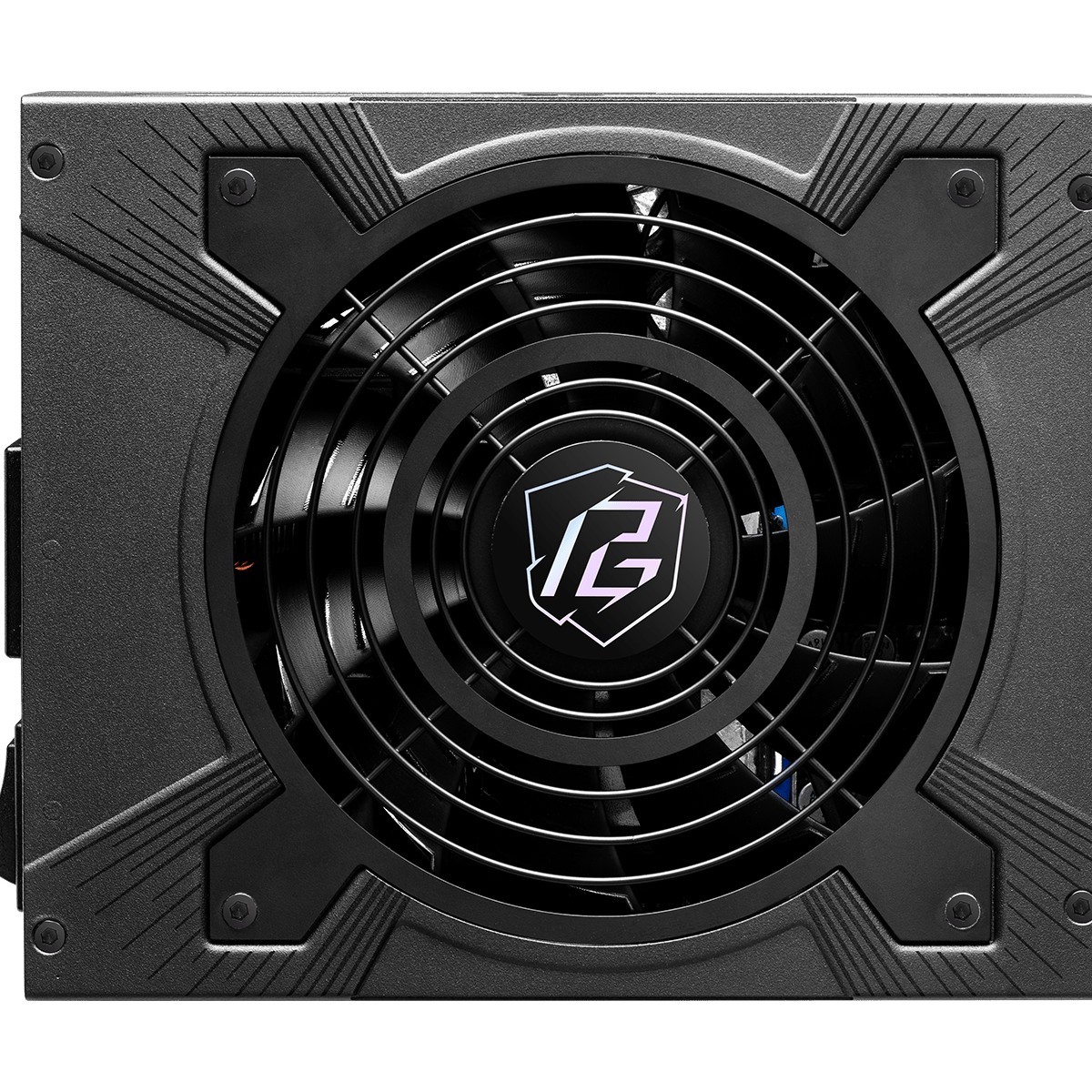

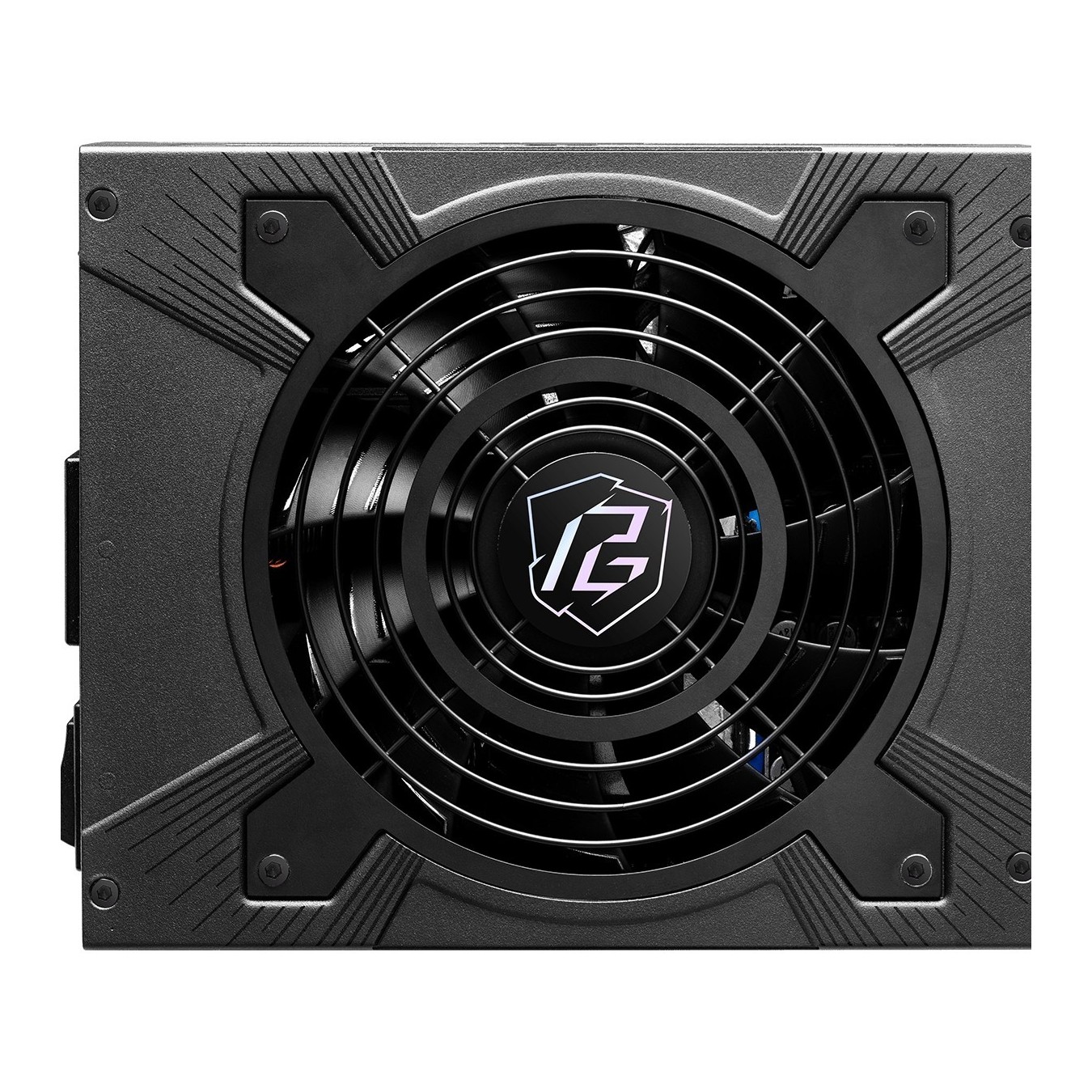

| PSU (Power Supplies) - Fan Size | 135 mm |
| PSU (Power Supplies) - Length | 141-160 mm |
Asrock Phantom Gaming PG-1600G. Total power: 1600 W. Power protection features: Over current. Over voltage. Overheating. Overload. Short circuit. Under voltage. Motherboard power connector: 20+4 pin ATX. Motherboard power cable length: 60 cm. SATA power cable length: 100.450 mm. Purpose: PC. Power supply unit (PSU) form factor: ATX. 80 PLUS certification: 80 PLUS Gold. Product colour: Black. Cooling type: Active. Fan diameter: 13.5 cm. Cables included: CPU. PATA. PCIe. Peripheral (Molex). Peripheral (Molex) to SATA 3.3. SATA
| Total power | 1600 W |
| Power protection features | Over current. Over voltage. Overheating. Overload. Short circuit. Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 12 |
| SATA power cable length | 100.450 mm |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| PCI Express power connectors (6+2 pin) | 8 |
| PCI Express power cable length | 67.5 cm |

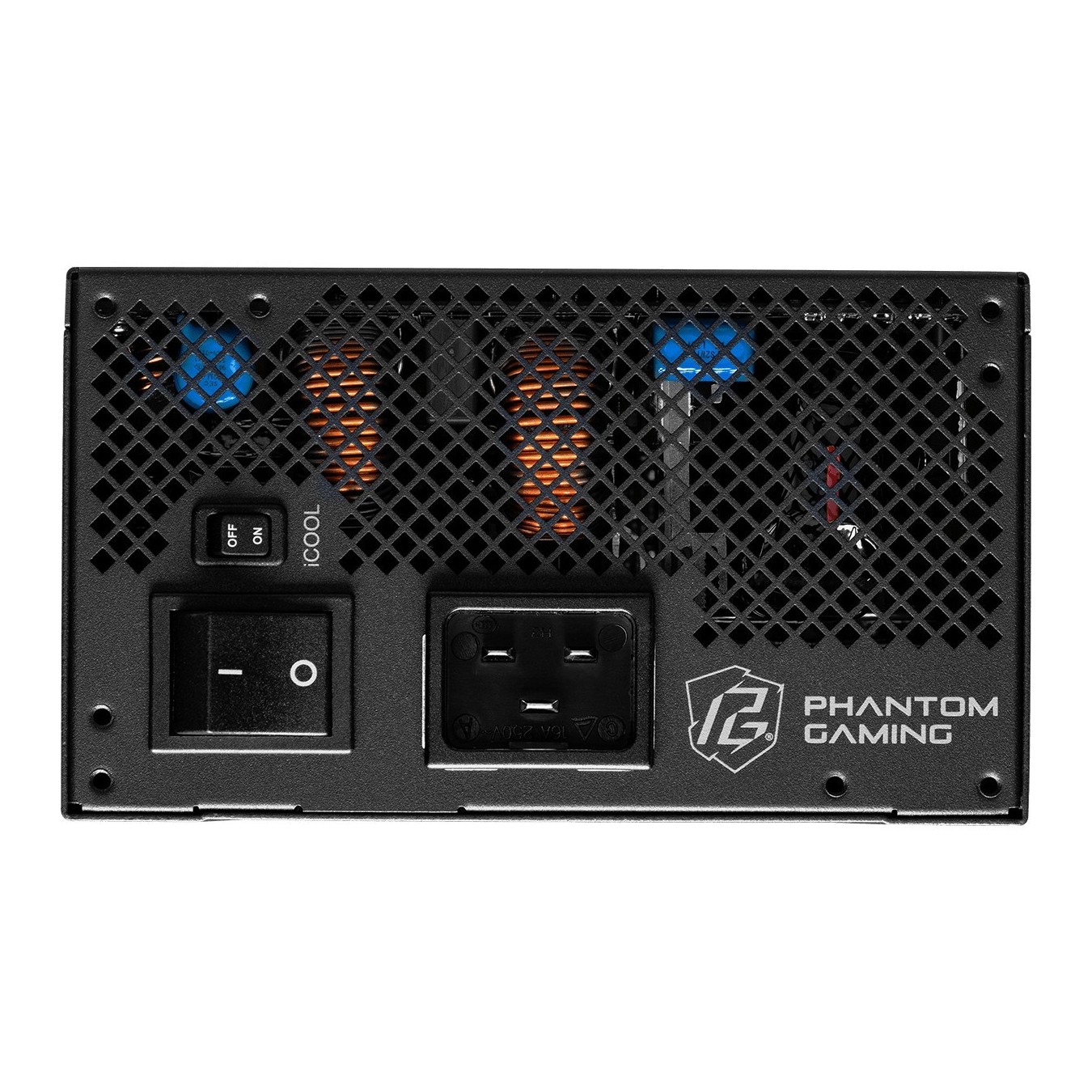

| Feature | On/off fan switch |
| CPU power cable length | 65 cm |
| Number of EPS connectors | 2 |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |

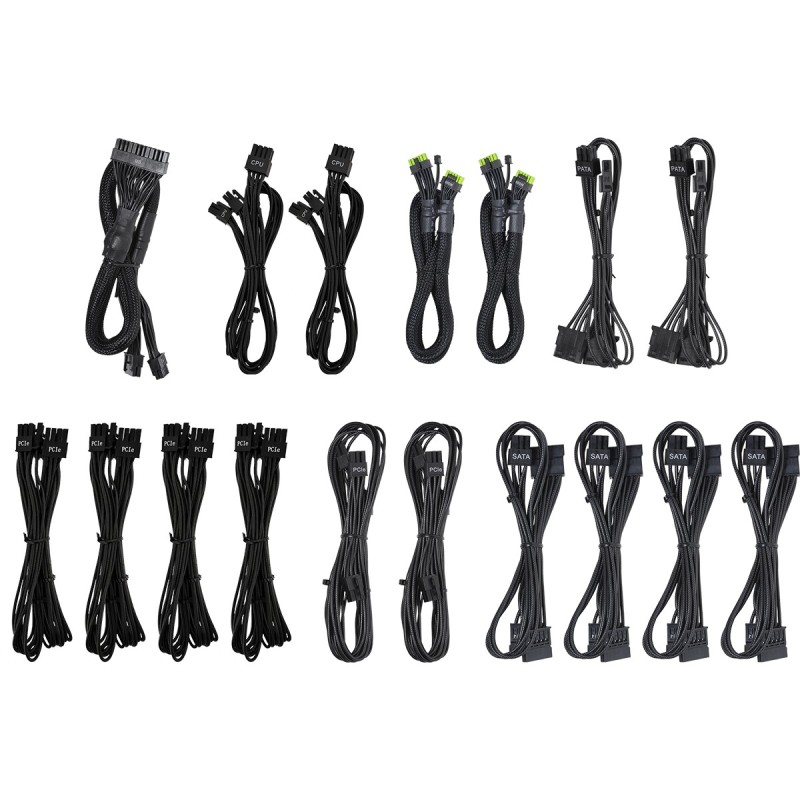

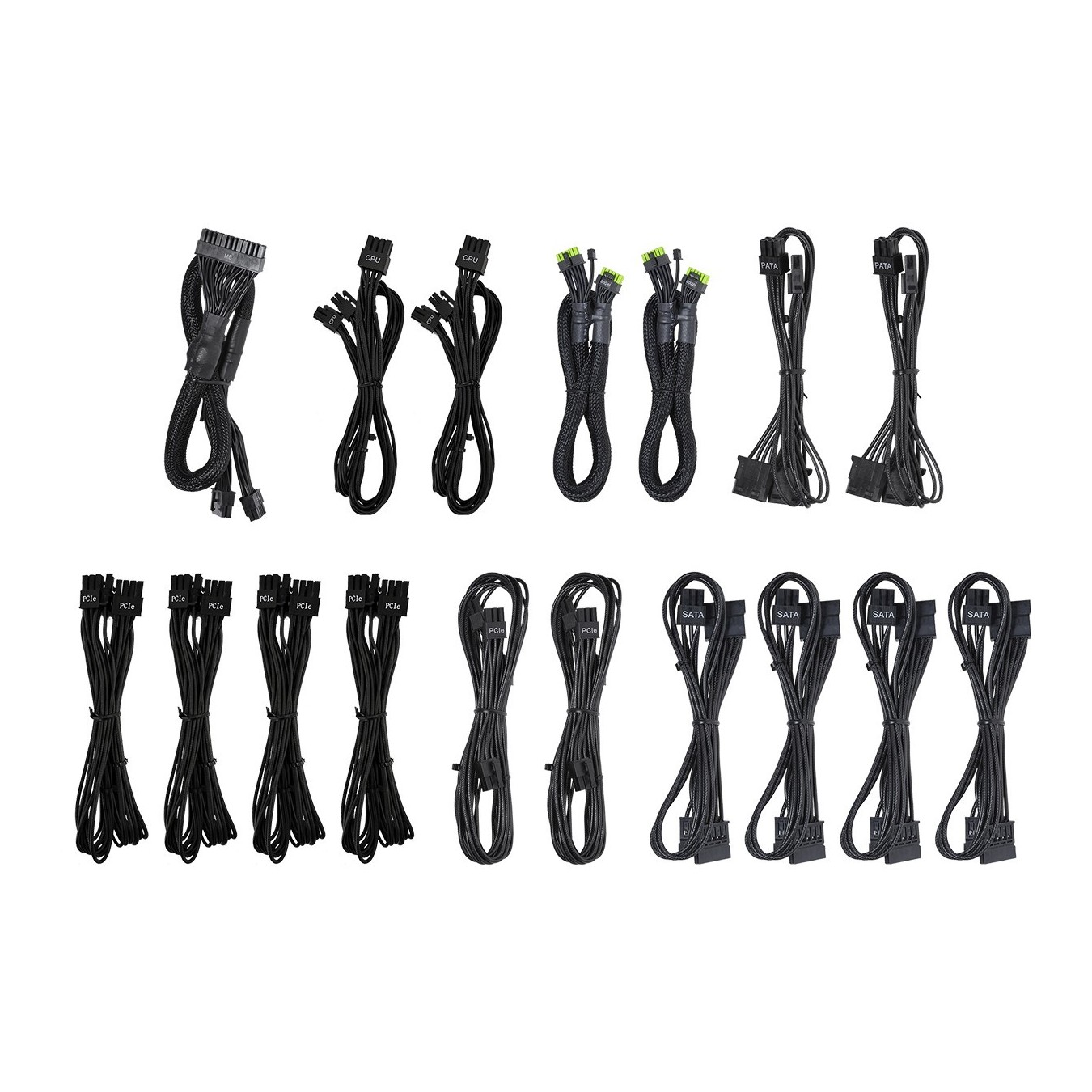

| Cables included | CPU. PATA. PCIe. Peripheral (Molex). Peripheral (Molex) to SATA 3.3. SATA |
| Width | 150 mm |
| Depth | 150 mm |
| Height | 86 mm |
