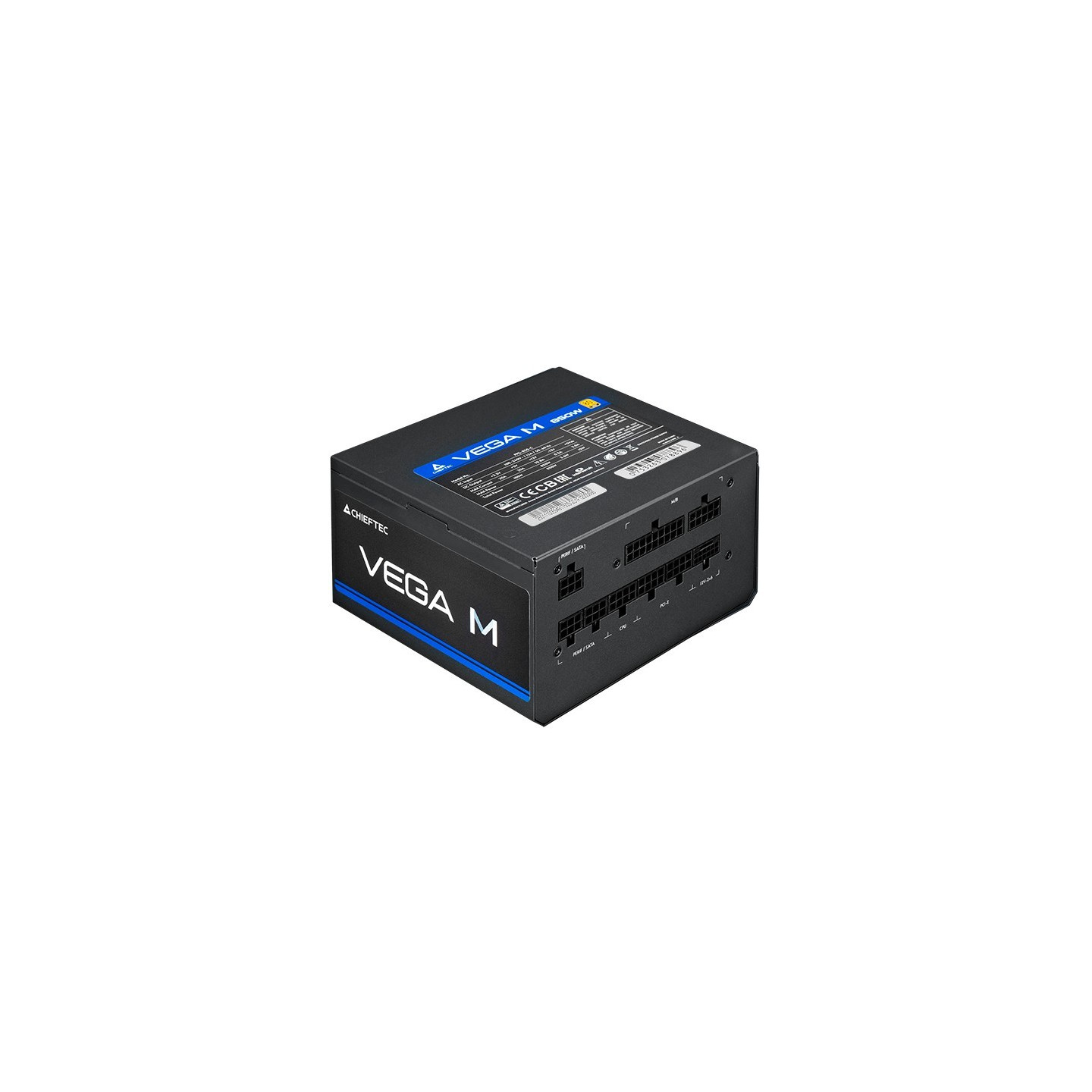

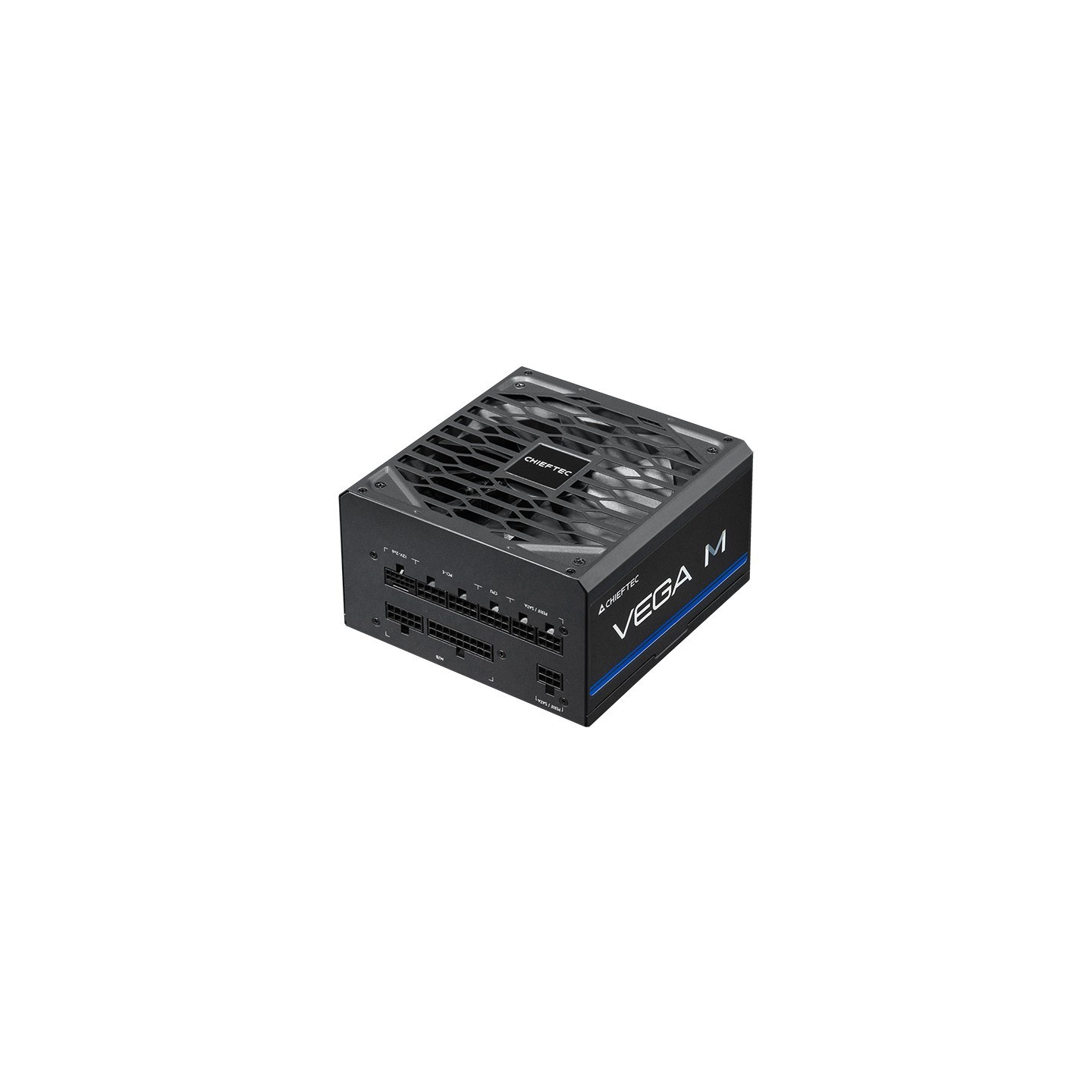

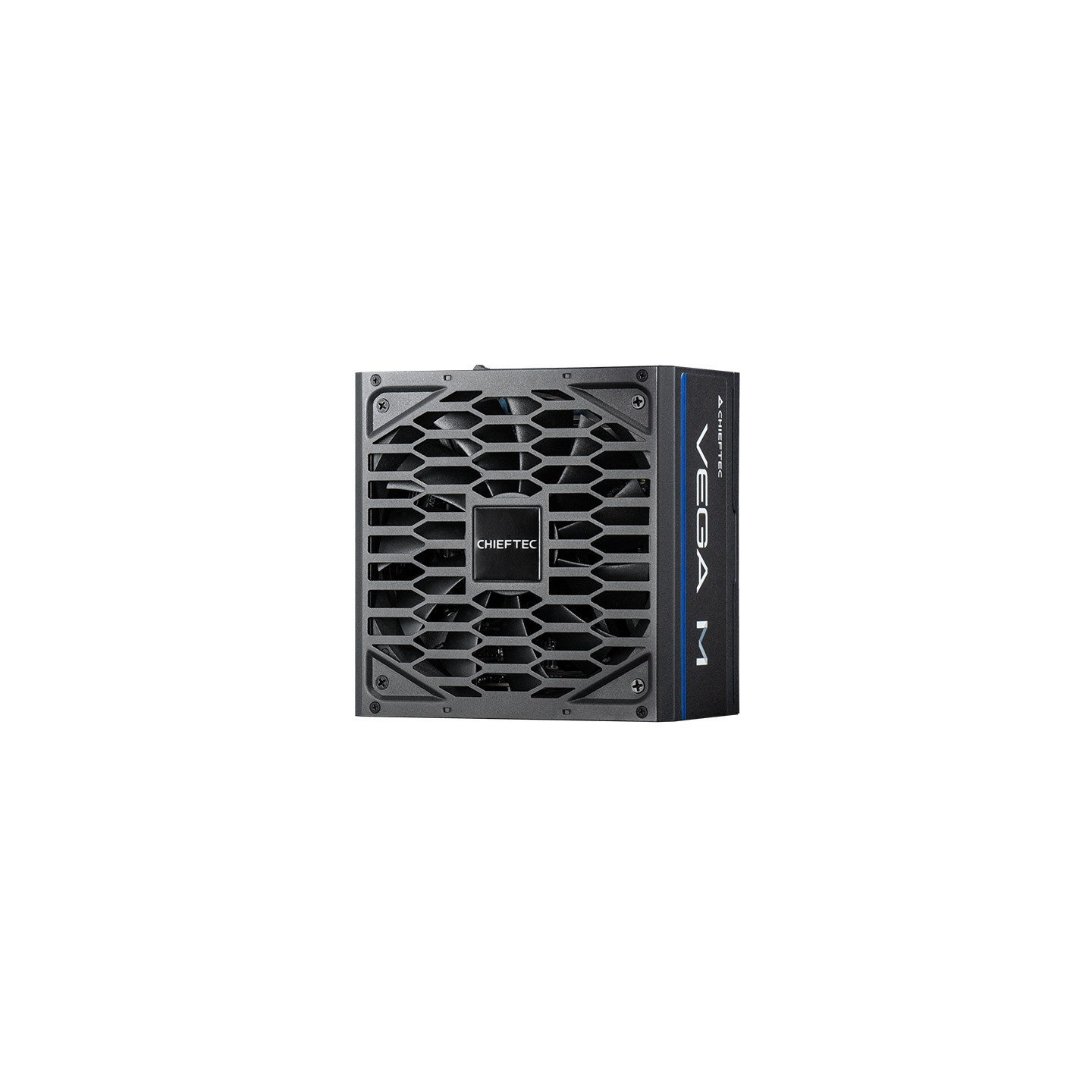

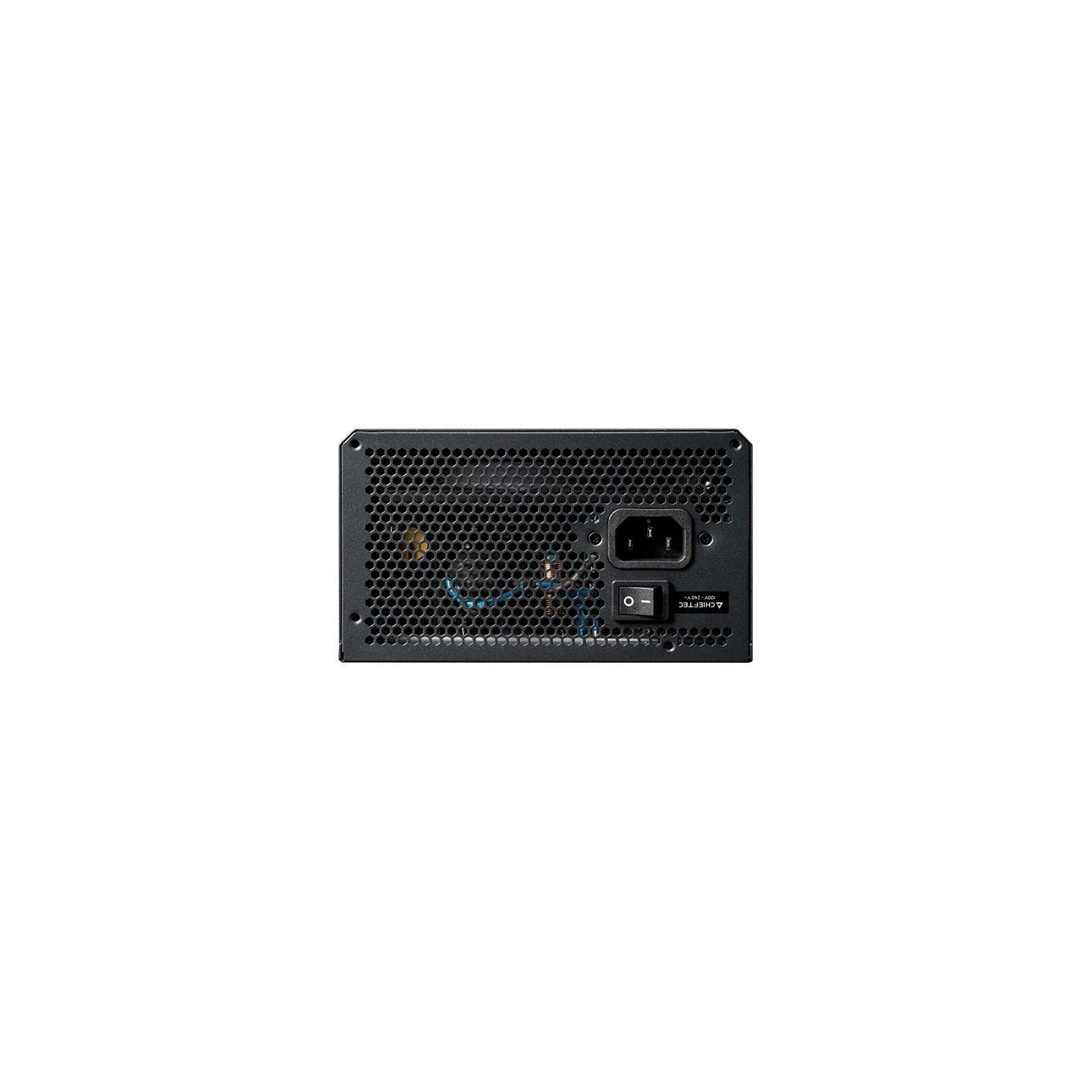

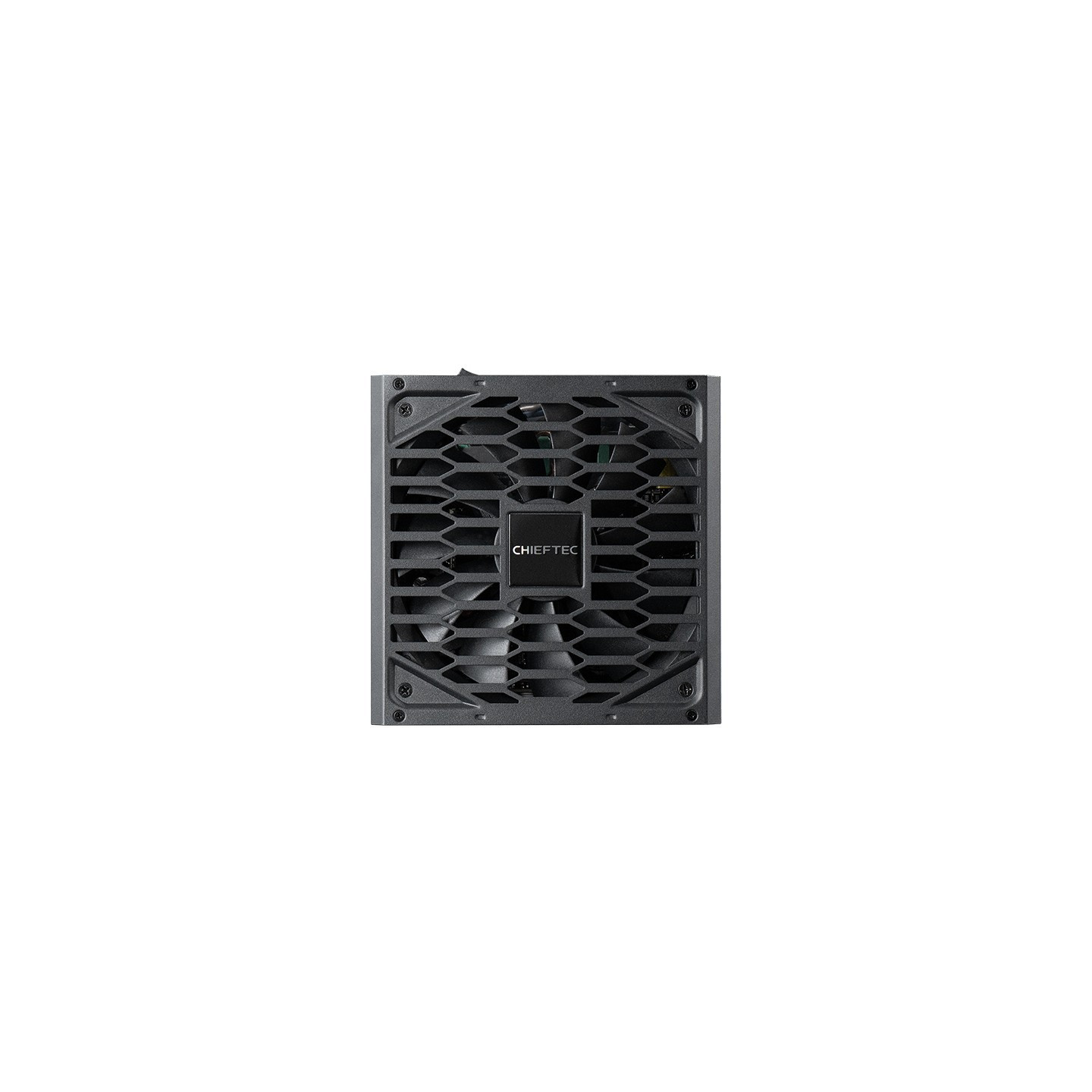

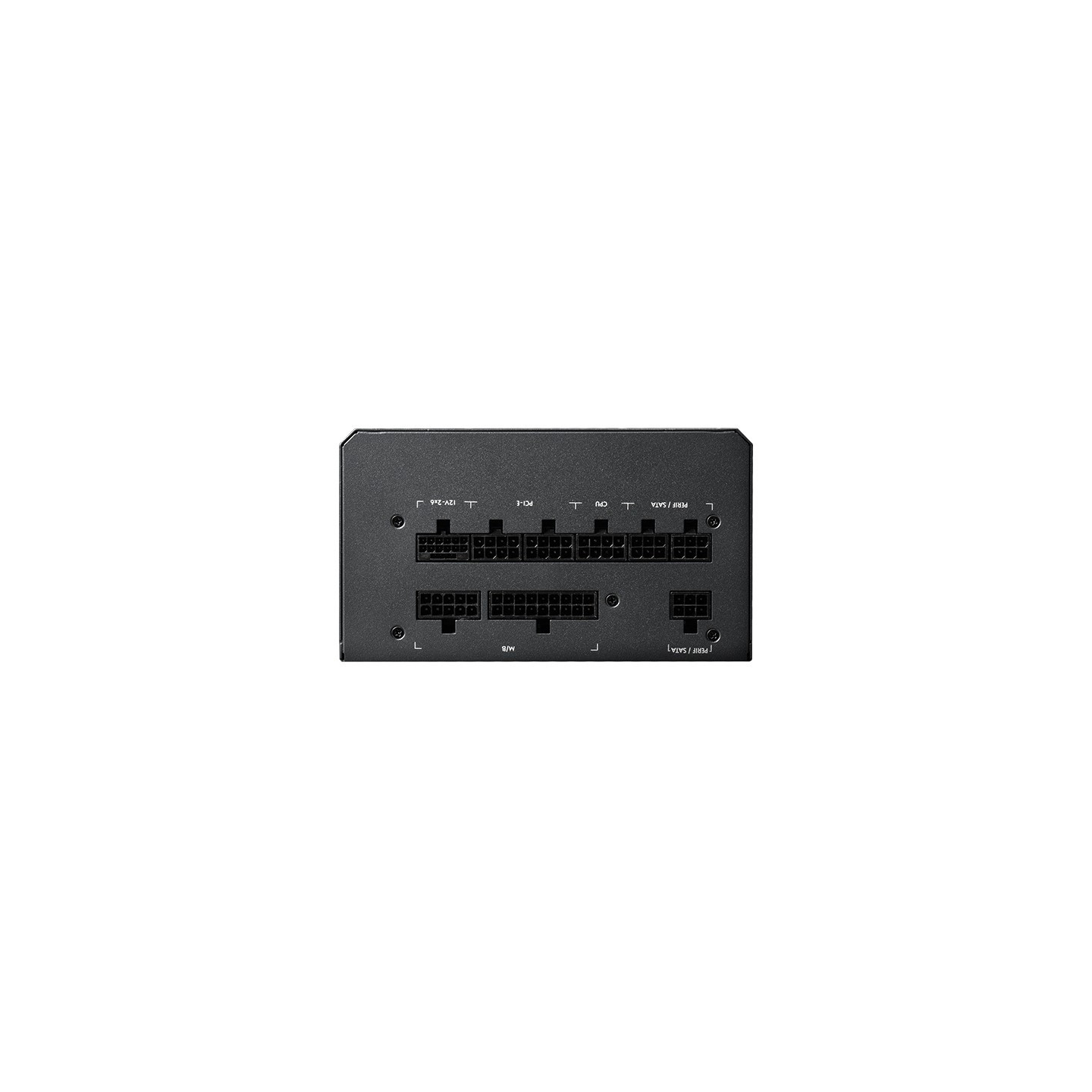

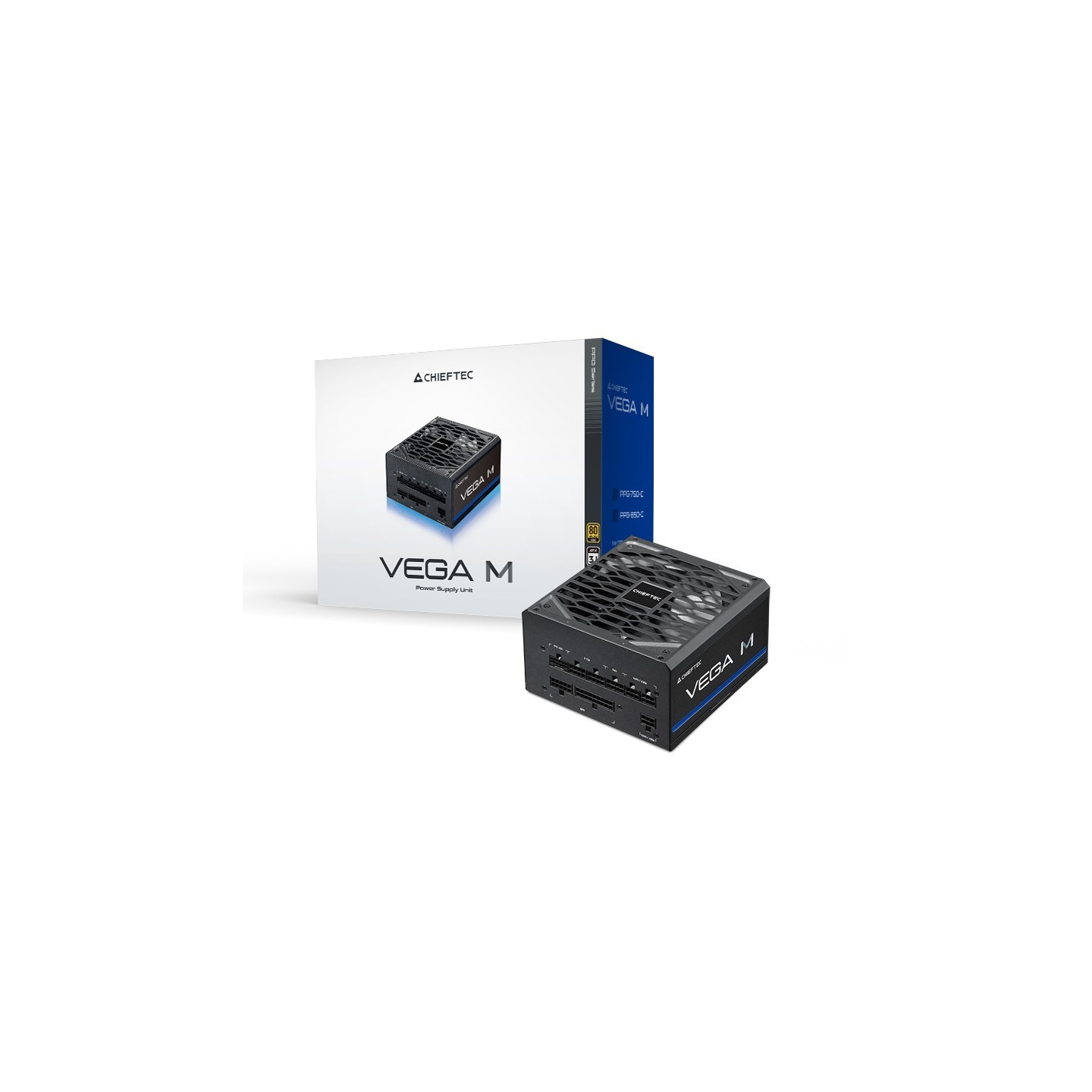

1000W Chieftec Vega M Series PPG-1000-C - 80+ Gold (Boxed)
Chieftec Vega M PPG-1000-C is a 1000W fully modular PSU with 80+ Gold efficiency, ATX 3.1 compliance, PCIe GEN5 12V-2x6 support. Features LLC topology, 135mm FDB fan, full protections for reliable high-end PC power.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 1000 - 1199 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Gold |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 12V-2x6 6x 8/6 pins |
| PSU (Power Supplies) - Length | 141-160 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 1x 4+4pin EPS/ATX12V 2x 4+4pin EPS/ATX12V |
The Chieftec Vega M Series PPG-1000-C delivers 1000W of reliable power in a fully modular design, certified 80PLUS Gold for high efficiency. Compliant with Intel ATX 12V 3.1 and supporting PCIe GEN5, it includes a native 12V-2x6 connector for modern GPUs like RTX 40/50 series.
Equipped with LLC Half-Bridge converter and DC-to-DC technology, it ensures stable output and enhanced efficiency. The 135mm fluid dynamic bearing (FDB) fan provides quiet cooling with automatic speed control. Dimensions: 150x150x85mm, active PFC ≥0.9, and comprehensive protections: OVP, UVP, OCP, OPP, OTP, SCP, SIP.

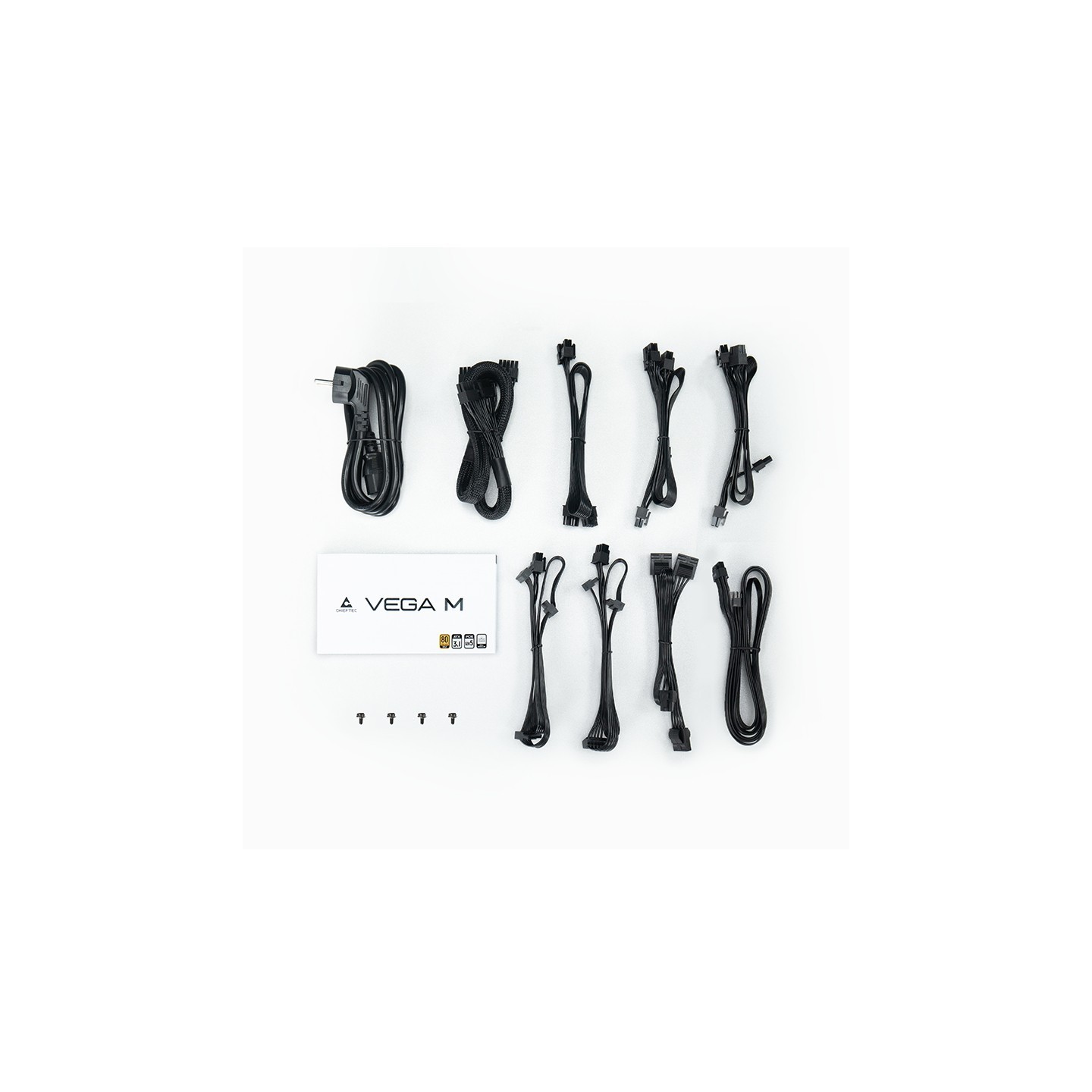

- ✅ Fully modular black cables for clean builds
- ✅ 1x 12V-2x6 (GEN5) + multiple PCIe 6+2 pin connectors
- ✅ 1x 20+4pin ATX, 1x 8-pin EPS, 1x 4+4pin EPS
- ✅ 5-year warranty
- ✅ Weight: 2.3kg (unit) / 2.76kg (boxed)
| Model | PPG-1000-C |
| Power Output | 1000W |
| Efficiency | 80PLUS Gold |
| Form Factor | ATX |
| ATX Standard | ATX 12V 3.1 |
| Modularity | Fully Modular |
| Dimensions (DxWxH) | 150 x 150 x 85 mm |
| Fan | 135mm FDB |
| PFC | Active PFC ≥0.9 |
| AC Input | 100-240V~ / 12A |
| Main ATX Connector | 1x 20+4 PIN |
| EPS Connectors | 1x 8 PIN EPS (8/4+4), 1x 4+4pin EPS/ATX12V |
| PCIe Connectors | 1x 12V-2x6 (GEN5), 6x 8/6 pins (6+2) |
| Protections | AFC, OPP, OTP, OVP, SCP, SIP, UVP, OCP |
| Warranty | 5 Years |
| Weight (unit/box) | 2.30kg / 2.76kg |
