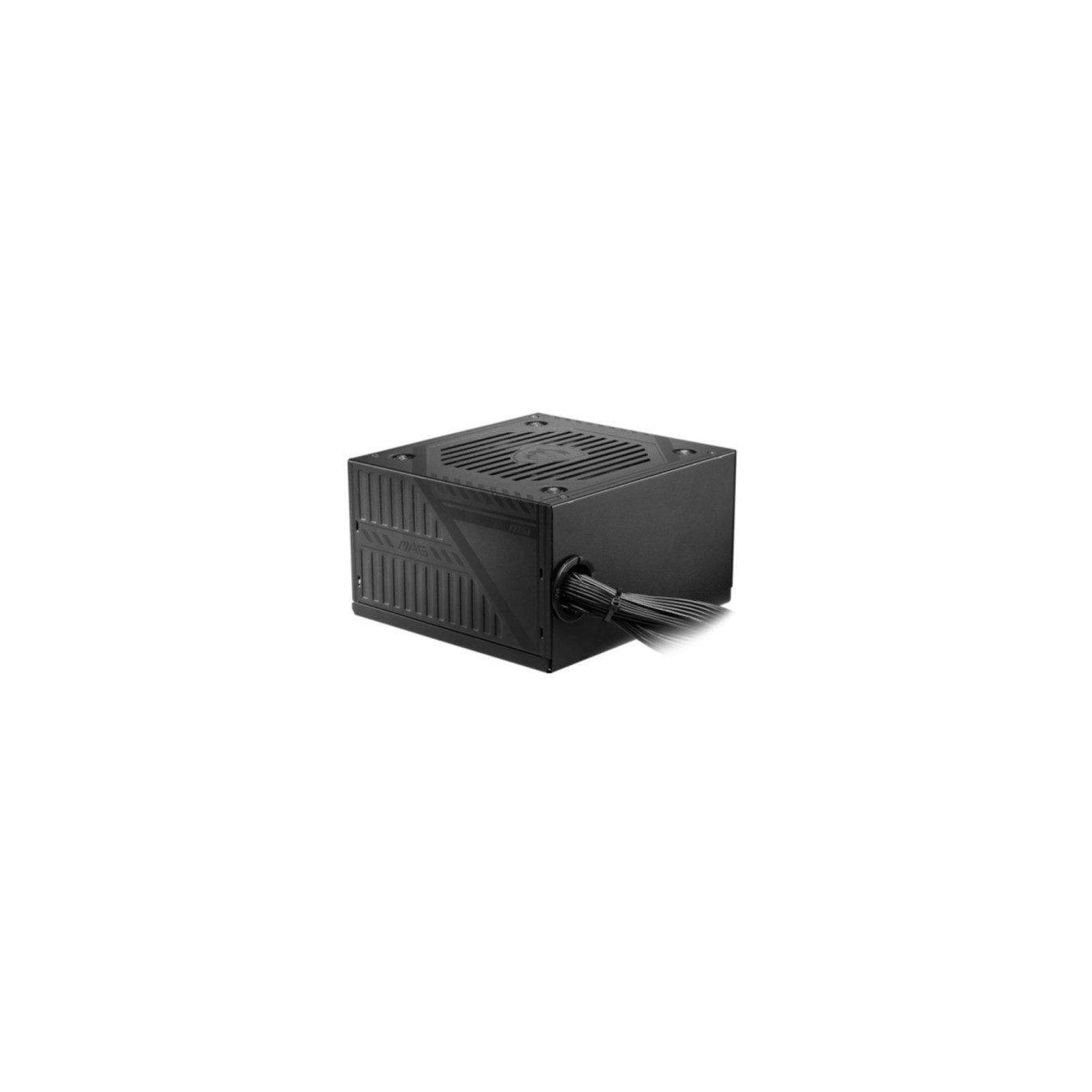

Power Supply MSI MAG A550BNL 550W - 306-7ZPAY11-809 - Black ATX, 80+ Bronze, Non-Modular
550 W non-modular ATX PSU, 80+ Bronze, Active PFC, 24-pin ATX, 4+4 EPS, 2x PCIe, 5x SATA, 2x Molex, 12 cm fan, 140x150x86 mm.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Modularity | Non-modular |
|---|---|
| PSU (Power Supplies) - Length | Up to 140 mm |
The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
The MAG A550BNL’s distinctive design patterns symbolize unity and strength. It unites all the components by reliably and stably supplying power to the entire system. With the MAG A550BNL, any system has the power it needs to survive all challenges.
80 PLUS BRONZE
The efficiency of your power supply directly influences your system’s performance and power consumption. The 80 PLUS certification promises lower energy consumption and qualified efficiency level.
PROTECTION DESIGN
Protection is designed to protect the unit mechanisms and provides comprehensive protection.
TEMPERATURE ADAPTATION
Engineered for reliability, your system operates safely at peak performance even in high-temperature conditions. This rugged power supply ensures sustained operation regardless of your environment.
120mm LOW NOISE FAN
The 120mm fan reduces the noise generated while maintaining excellent heat dissipation.
FLAT CABLE EQUIPMENT
The MAG A550BNL’s cables are flat and in black. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized.
| Total power | 550 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power Factor Correction (PFC) type | Active |
| Efficiency | 85% |
| Power protection features | Over current, Over power, Over voltage, Short circuit |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| EPS power connector (8-pin) | No |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| ATX Power connector (24-pin) | Yes |
| ATX power connector (20+4 pin) | No |
| Floppy disk drive connector | Yes |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS Bronze |
| Supported motherboard form factors | ATX |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| Bearing technology | Hydraulic |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
