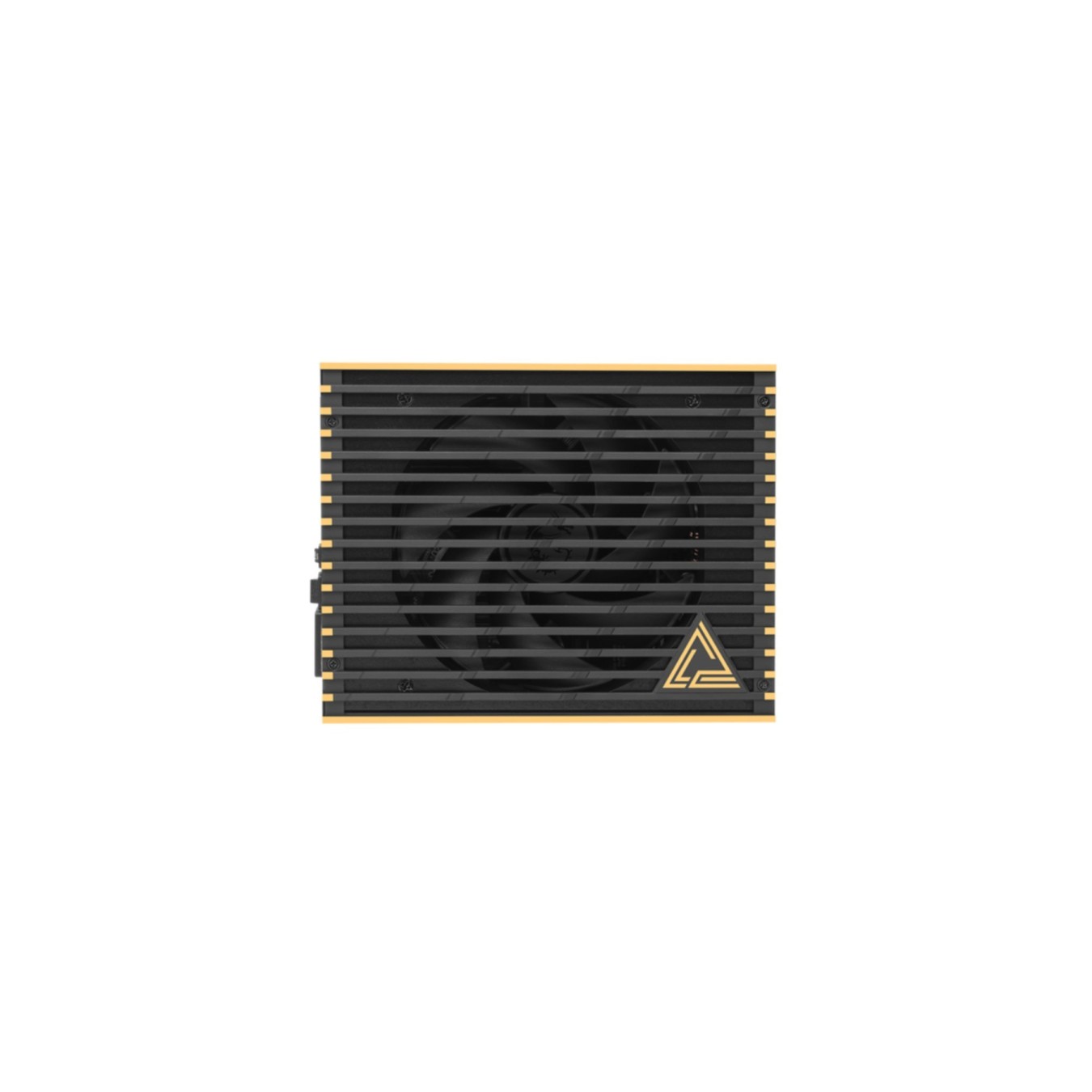

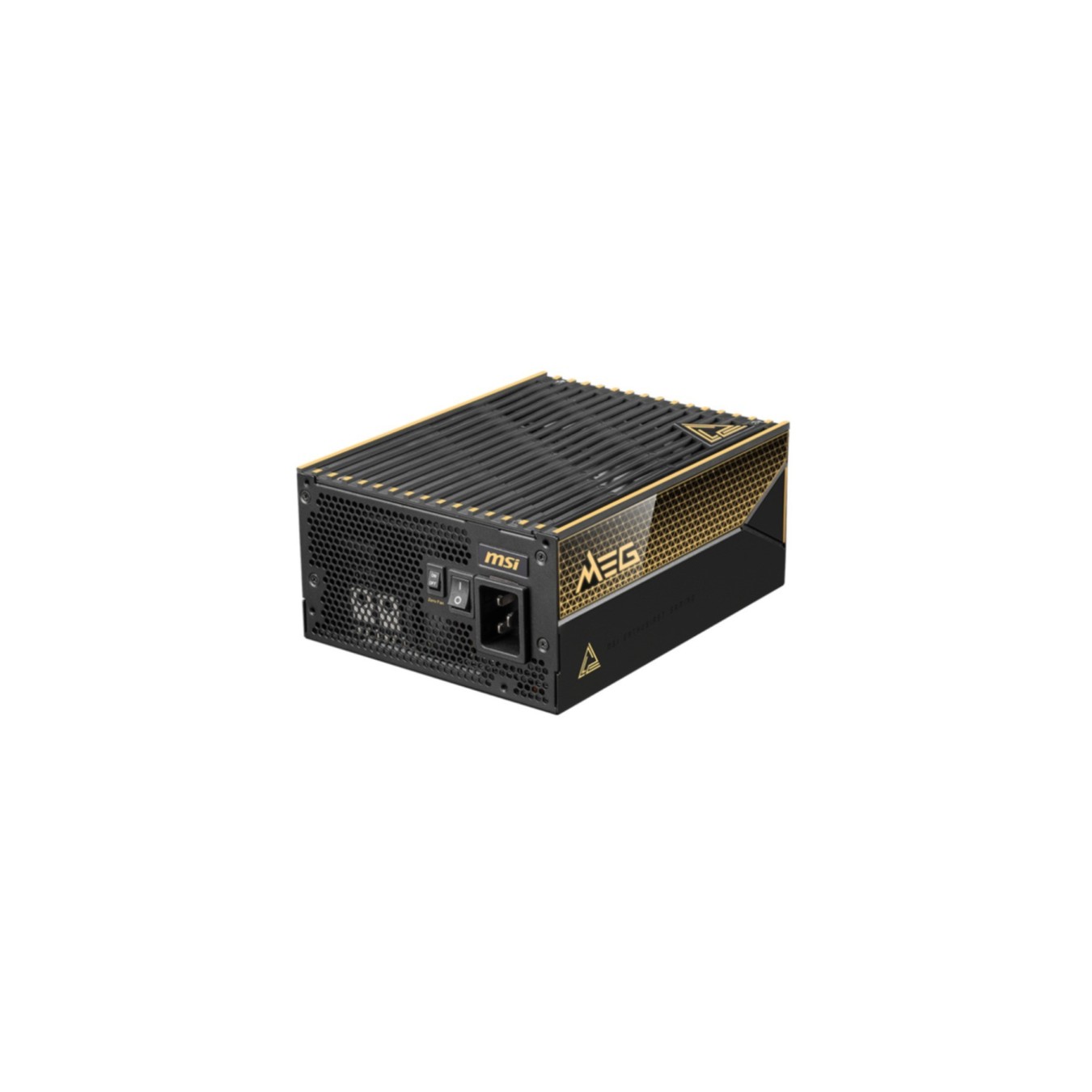

MSI MEG Ai1600T PCIE 5.1 - 306-7ZPEX11-CE0 - Black, 1600 W, Fully-Modular, ATX, 80 PLUS Titanium
MSI MEG Ai1600T PCIE 5.1, 1600 W, fully modular ATX PSU, 80 PLUS Titanium, 24-pin ATX, 9x PCIe, 8x SATA, 13.5 cm fan, 190x150x86 mm
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Modularity | Fully modular |
|---|
MSI's flagship MEG series exemplifies relentless innovation, continuously setting new benchmarks in the gaming hardware space. This trailblazing series employs pioneering technology to push the boundaries of gaming, consistently leading with innovations that redefine what gamers expect.
| Total power | 1600 W |
| AC input voltage | 100 - 240 V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 1600 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V) | 133.3 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 94% |

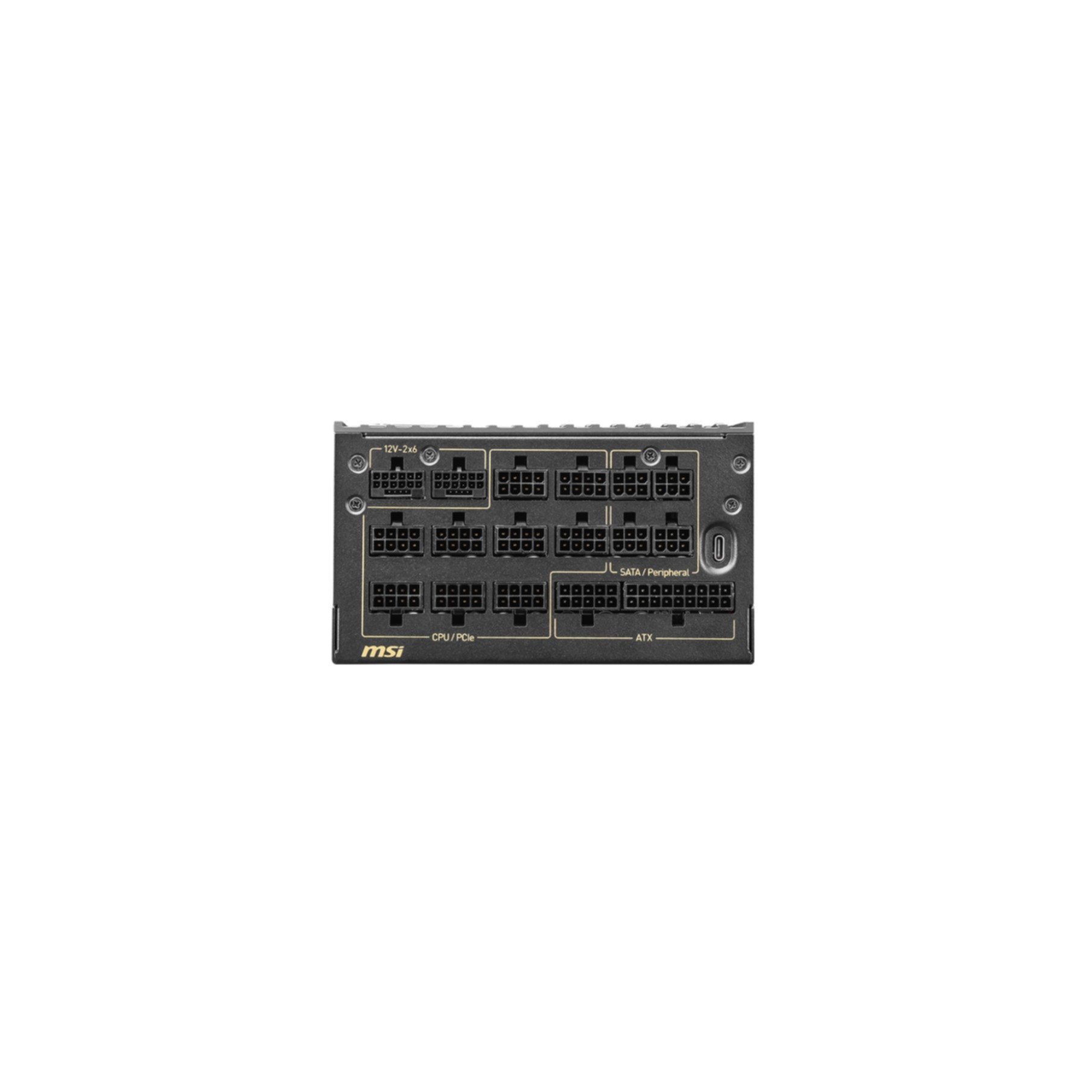

| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 8 |
| EPS power connector (8-pin) | No |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 9 |
| PCI Express power connectors (16-pin) | 2 |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Titanium |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| Bearing technology | DBB |
| Product colour | Black |
| Fan diameter | 13.5 cm |
| Width | 190 mm |
| Depth | 150 mm |
| Height | 86 mm |
