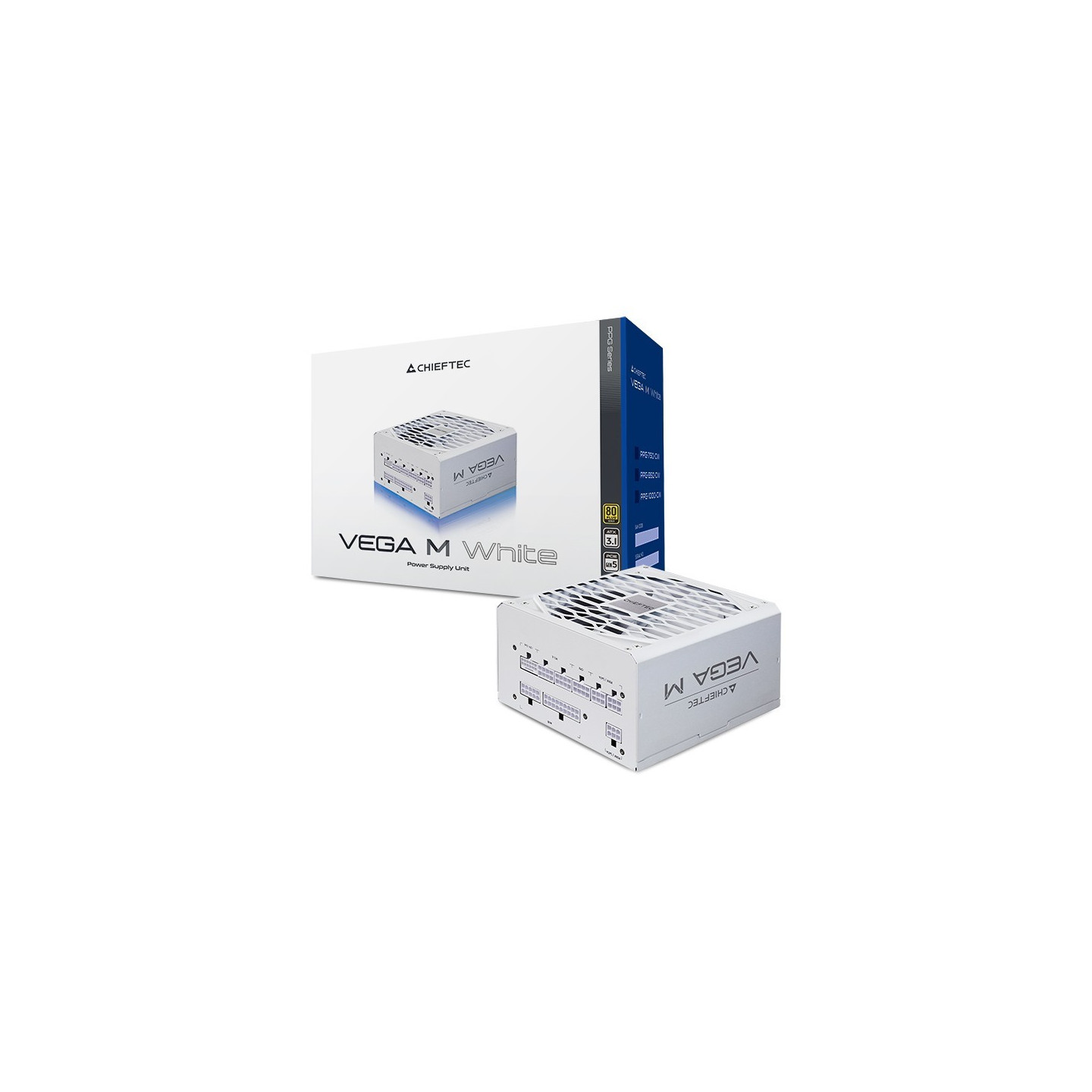

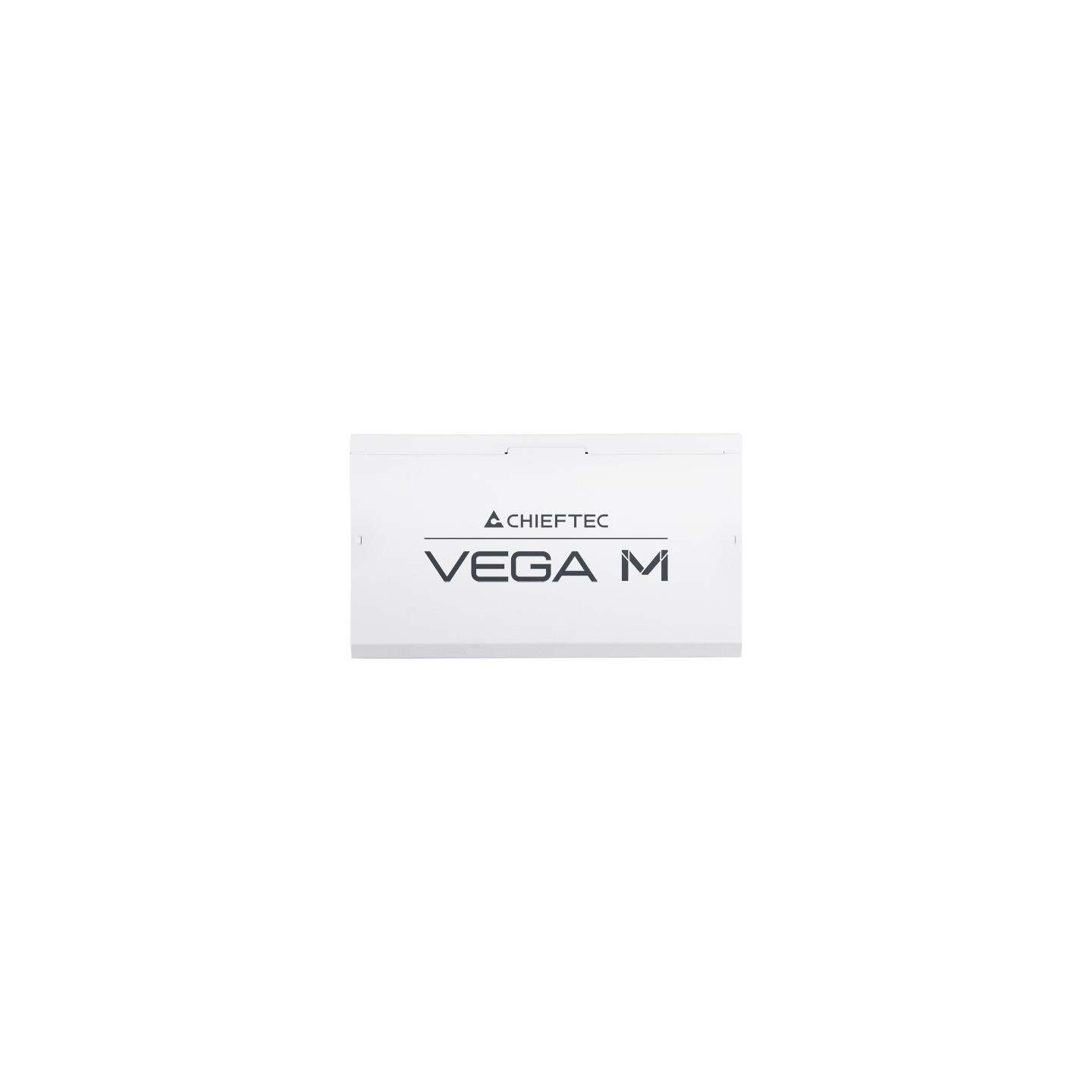

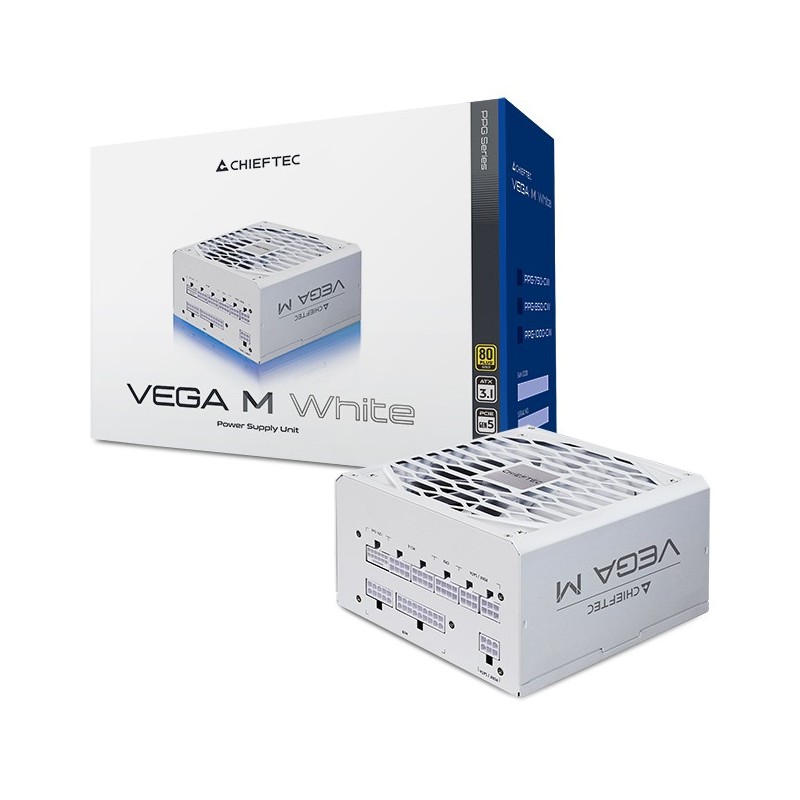

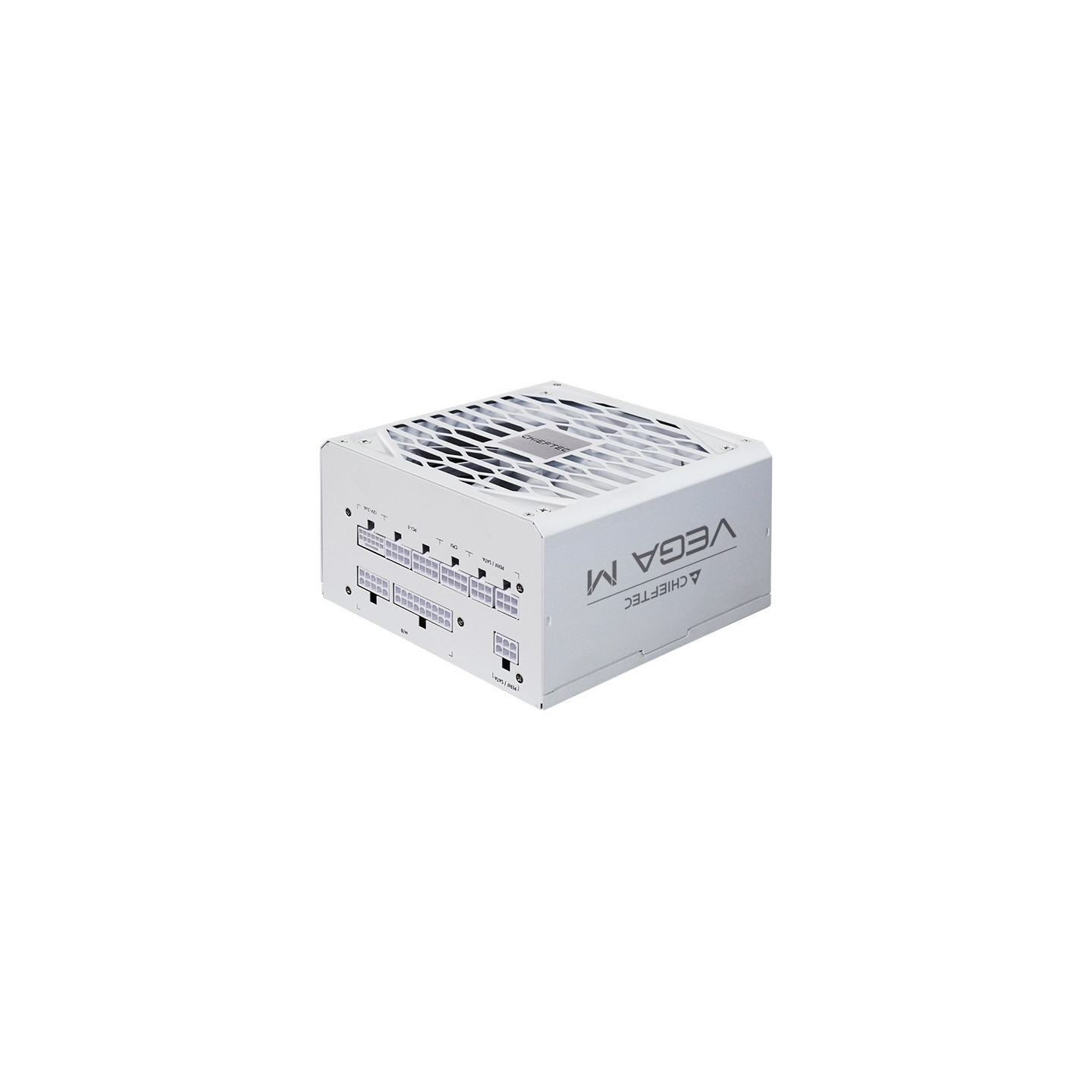

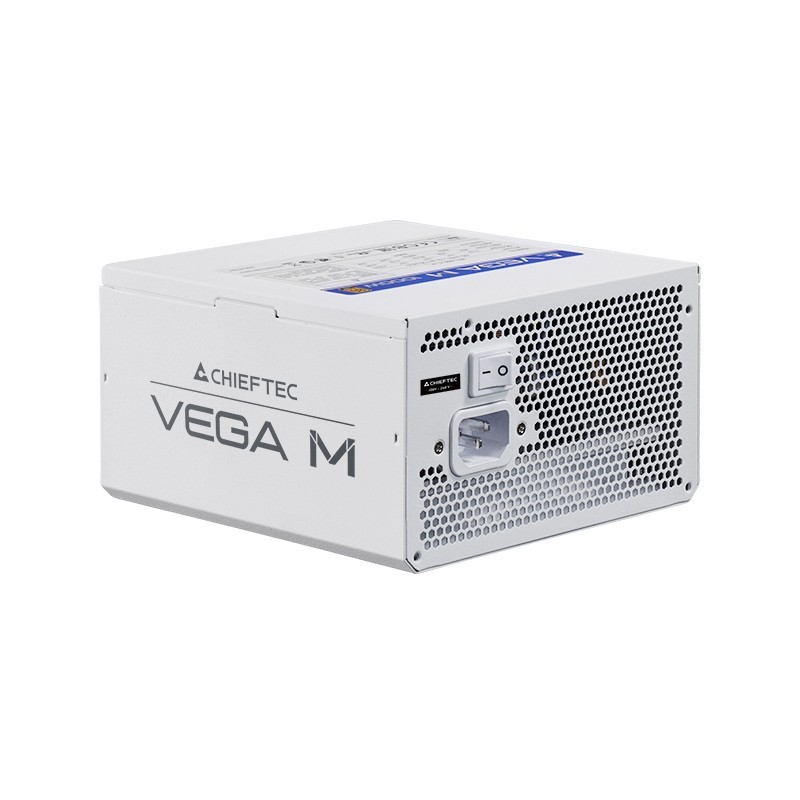

Chieftec VEGA M White 1000W 80Plus Gold - PPG-1000-CW - White ATX PSU
Chieftec Vega M PPG-1000-CW: 1000W fully modular ATX 3.1 PSU, 80PLUS Gold efficiency, white cables. Features 135mm FDB fan, 1x 12+4-pin PCIe GEN5 (600W), 4x 6+2-pin, 2x EPS, active PFC. Ideal for high-end gaming PCs with full protections.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 1000 - 1199 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Gold |
| PSU (Power Supplies) - Color | White |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 12V-2x6 4x 8/6 pins |
| PSU (Power Supplies) - Length | 141-160 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 2x 4+4pin EPS/ATX12V |

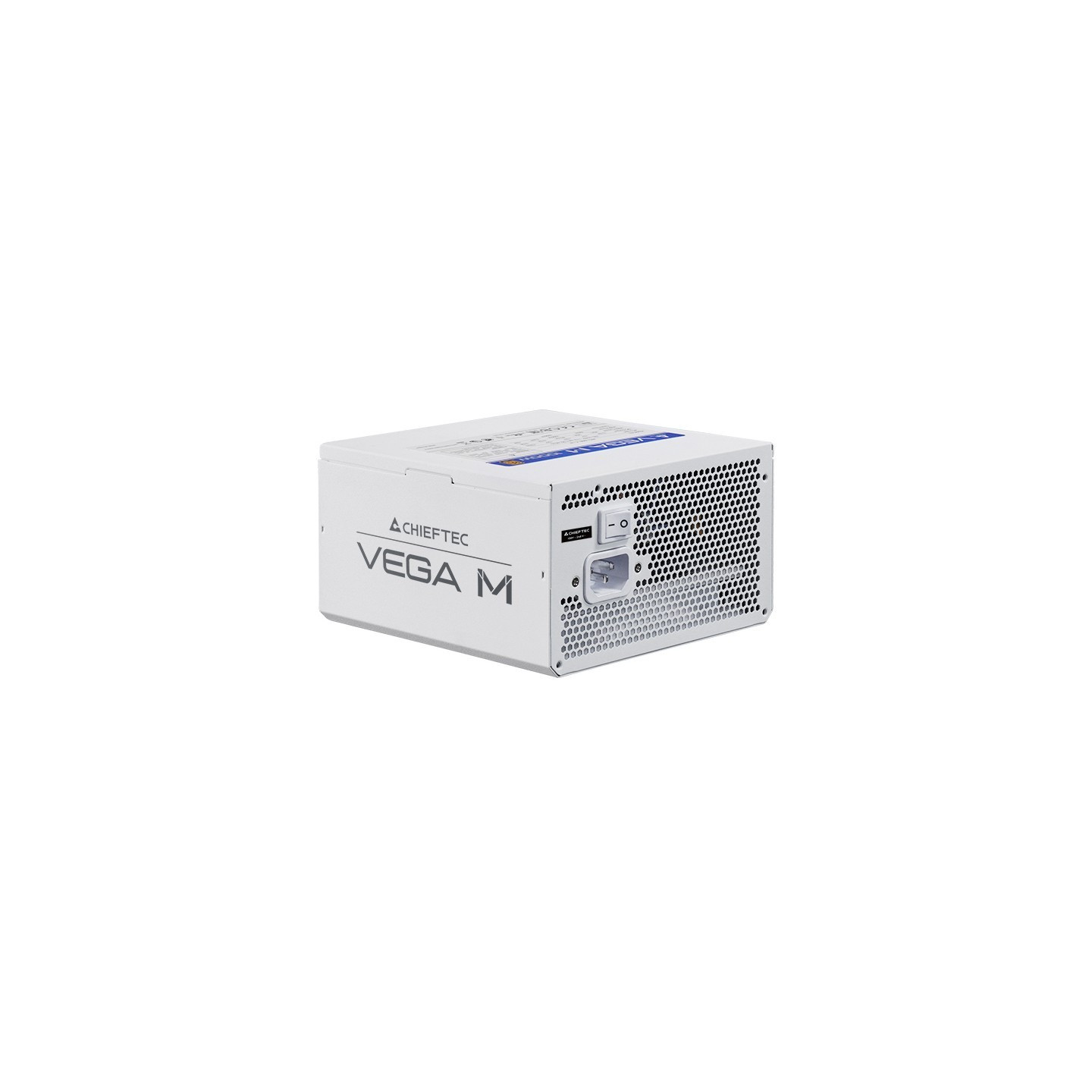

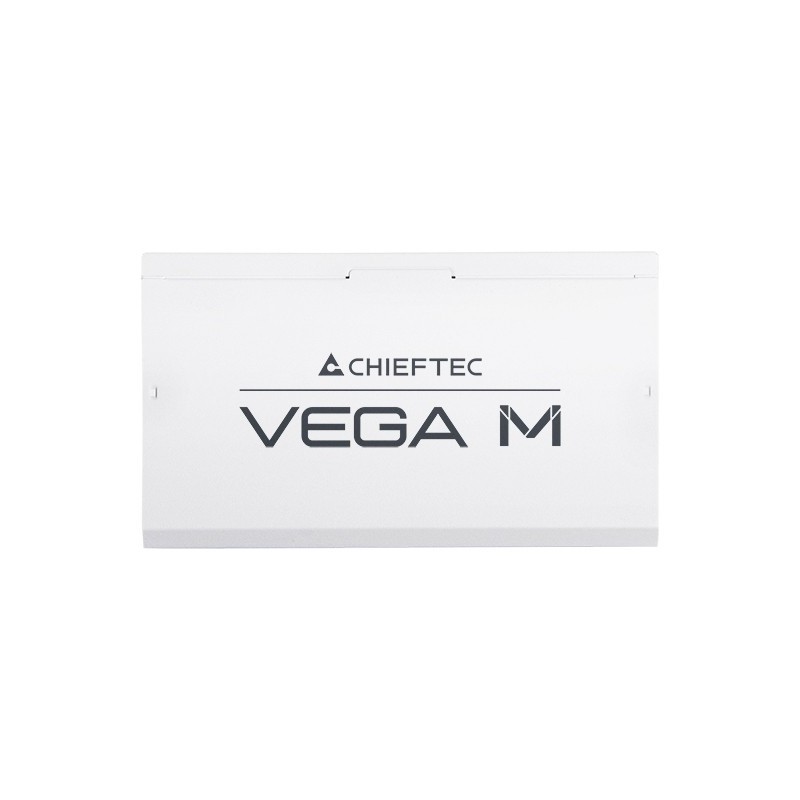

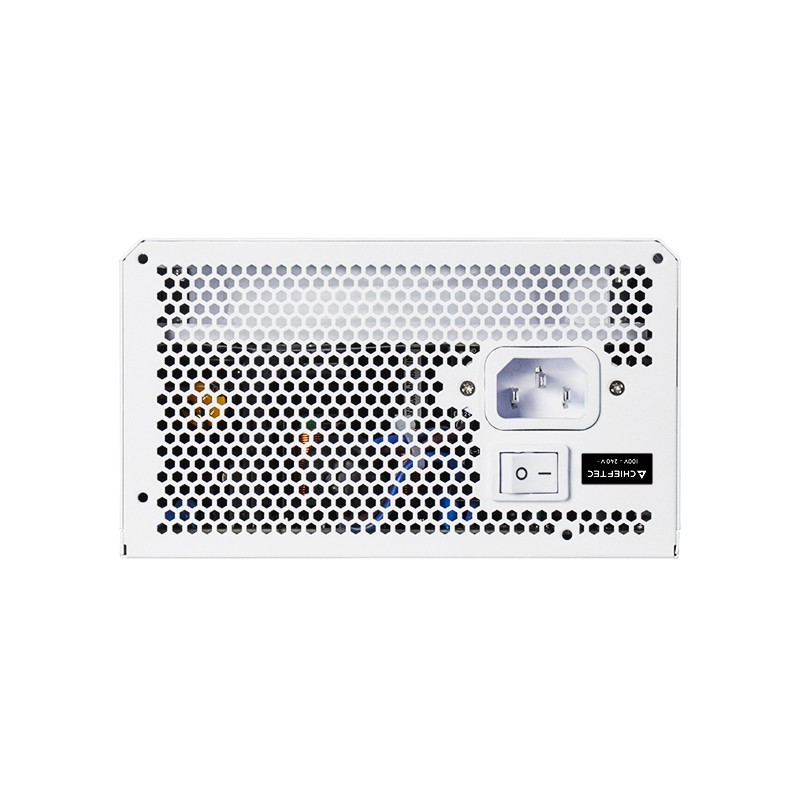

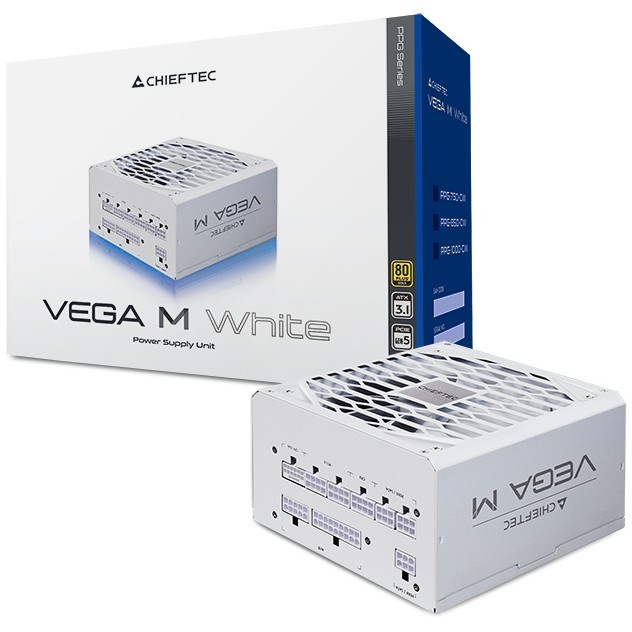

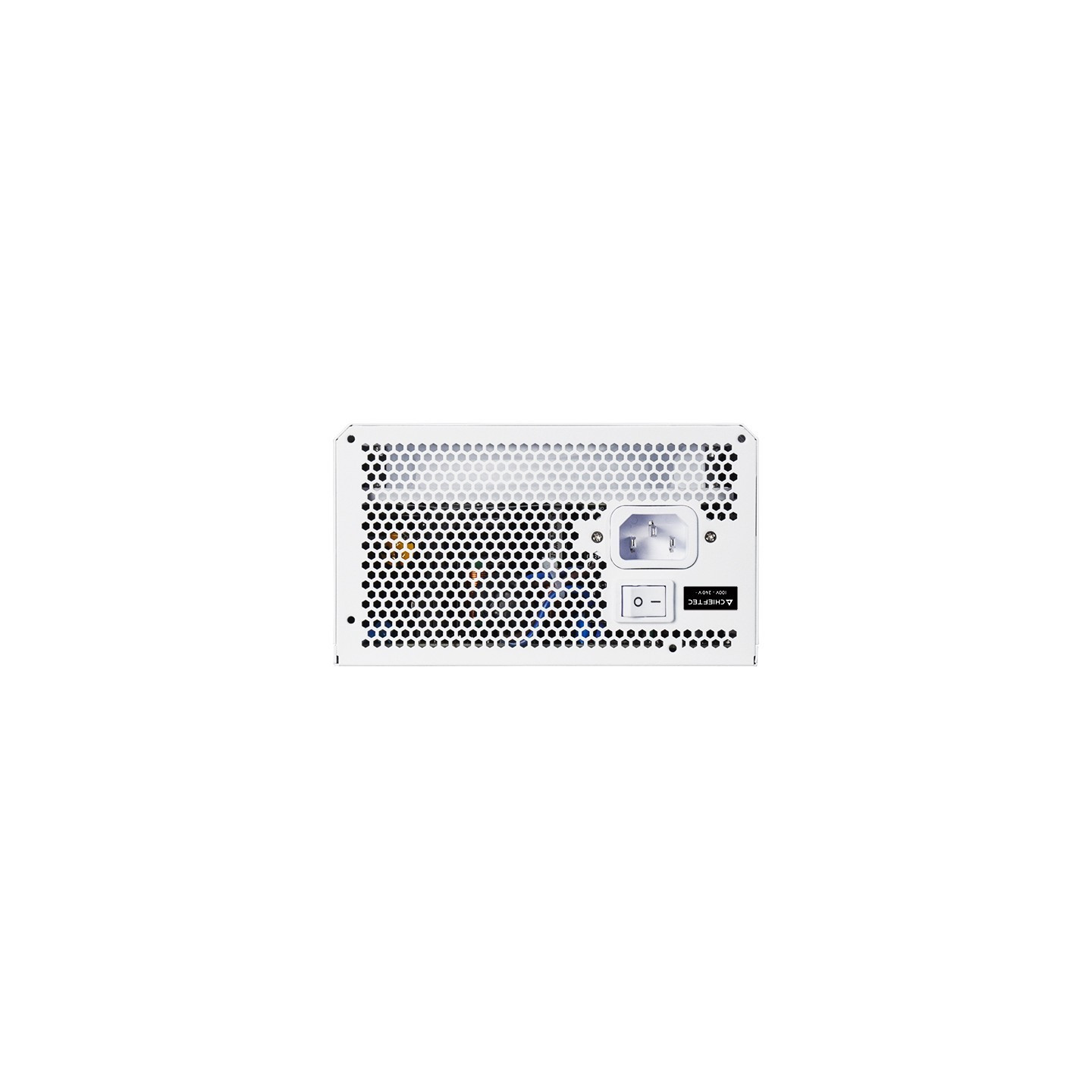

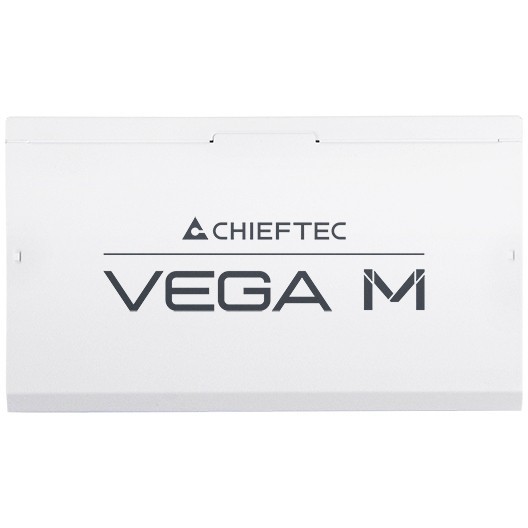

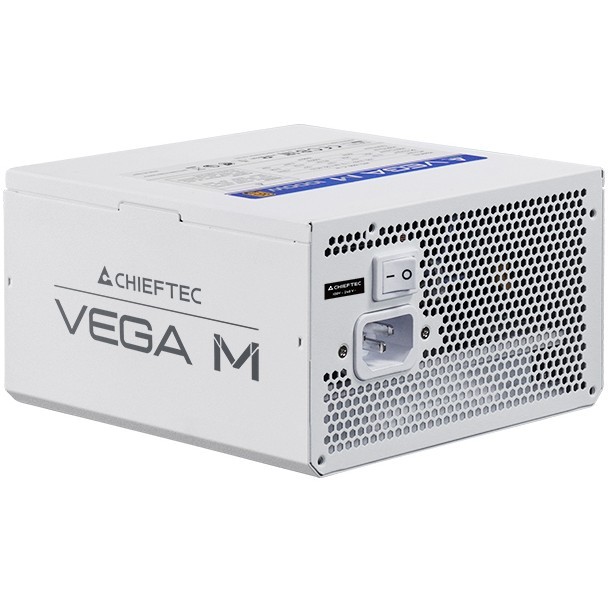

The Chieftec Vega M PPG-1000-CW is a high-performance 1000W power supply unit designed for modern gaming and workstation PCs. Compliant with Intel ATX 12V version 3.1 and PCIe CEM 5.1 standards, it supports next-gen components including a native 12+4-pin (16-pin) PCIe GEN5 connector rated at 600W for high-power GPUs. This fully modular PSU features extra-long white cables for clean builds in large cases, LLC Half-Bridge topology with DC-to-DC conversion for stable power delivery, and 80PLUS Gold certification for excellent efficiency.

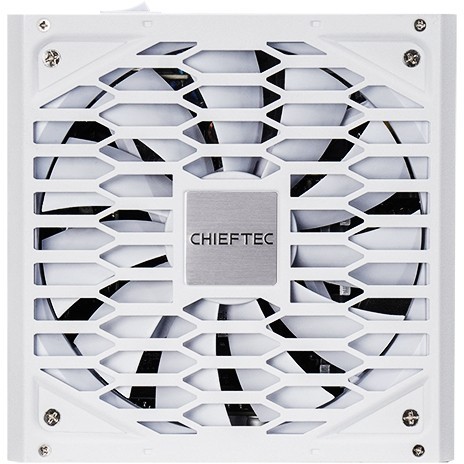

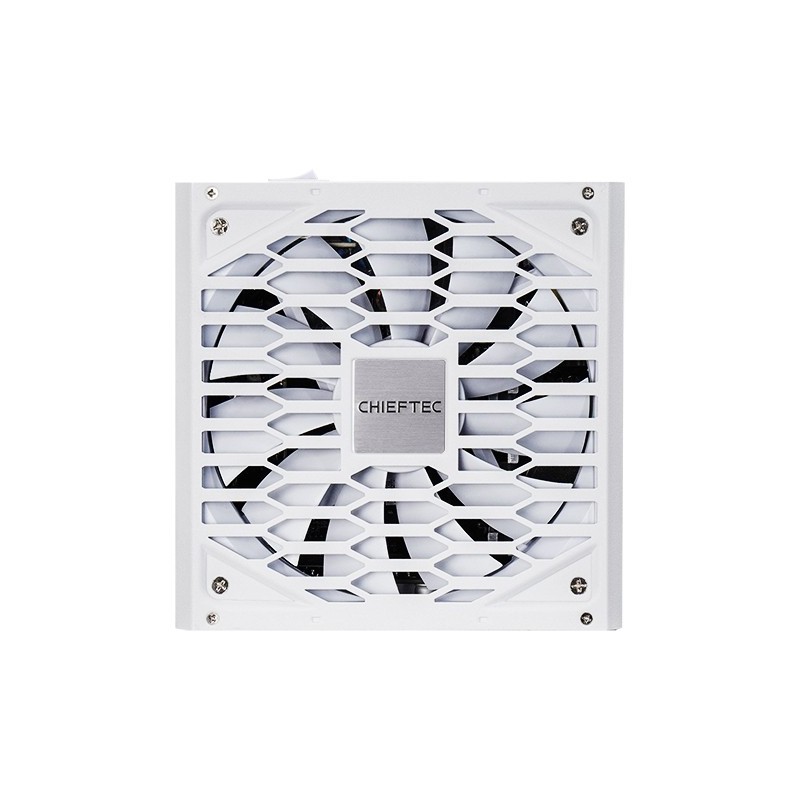

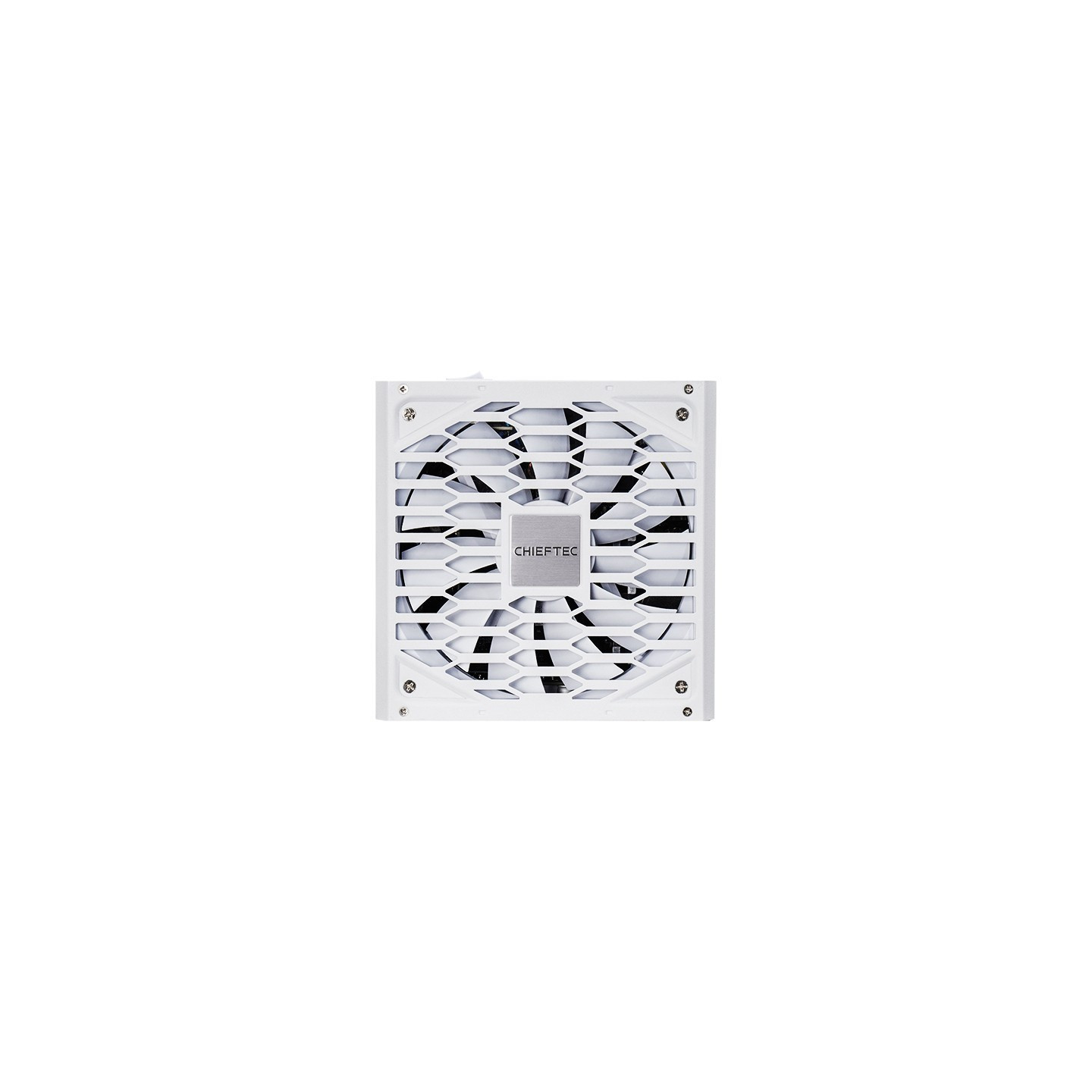

Equipped with a silent 135mm fluid dynamic bearing (FDB) fan and automatic fan speed control, it balances cooling and low noise under various loads. Comprehensive protection features include OVP, UVP, OCP, OPP, OTP, SCP, and SIP, ensuring system safety. With dimensions of 150x150x85mm, it's a compact ATX form factor suitable for most PC cases.
- ✅ 1000W total power, 83.33A on +12V rail

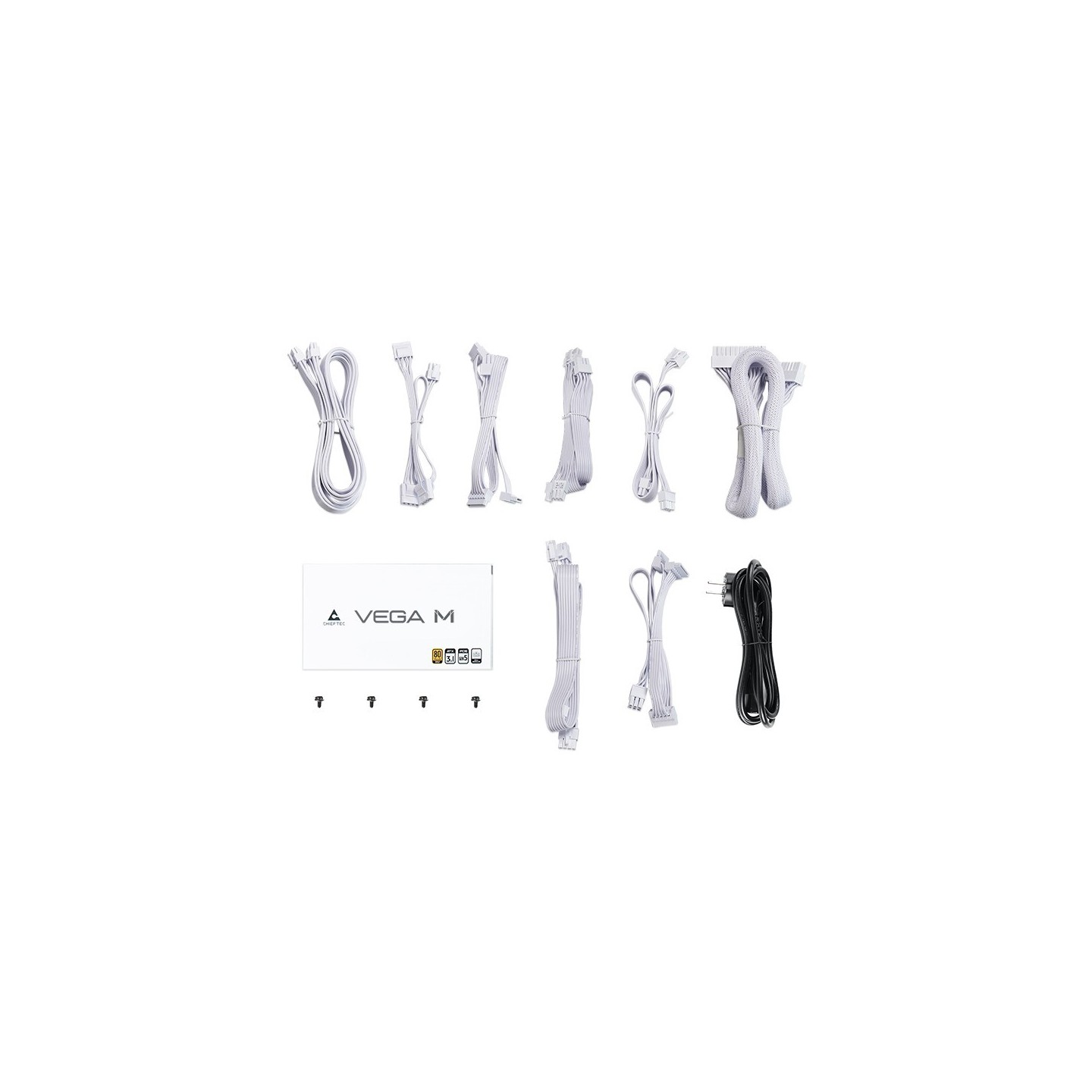

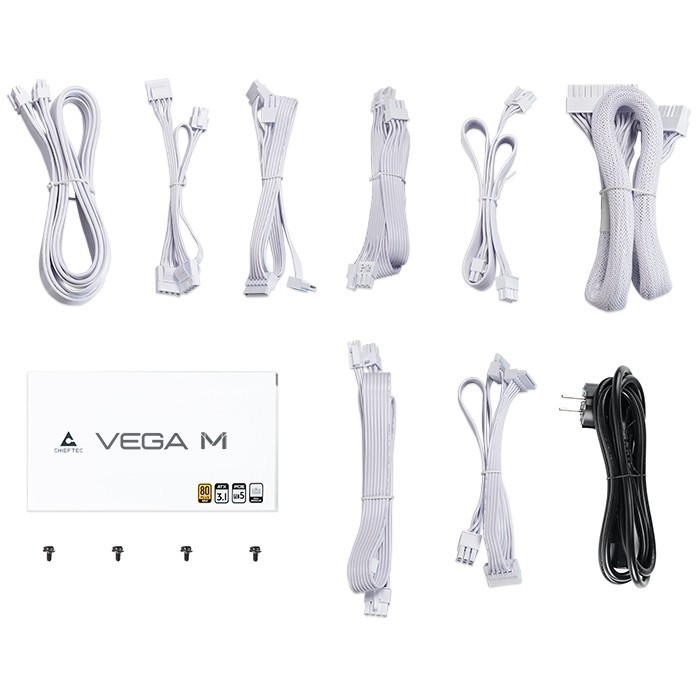

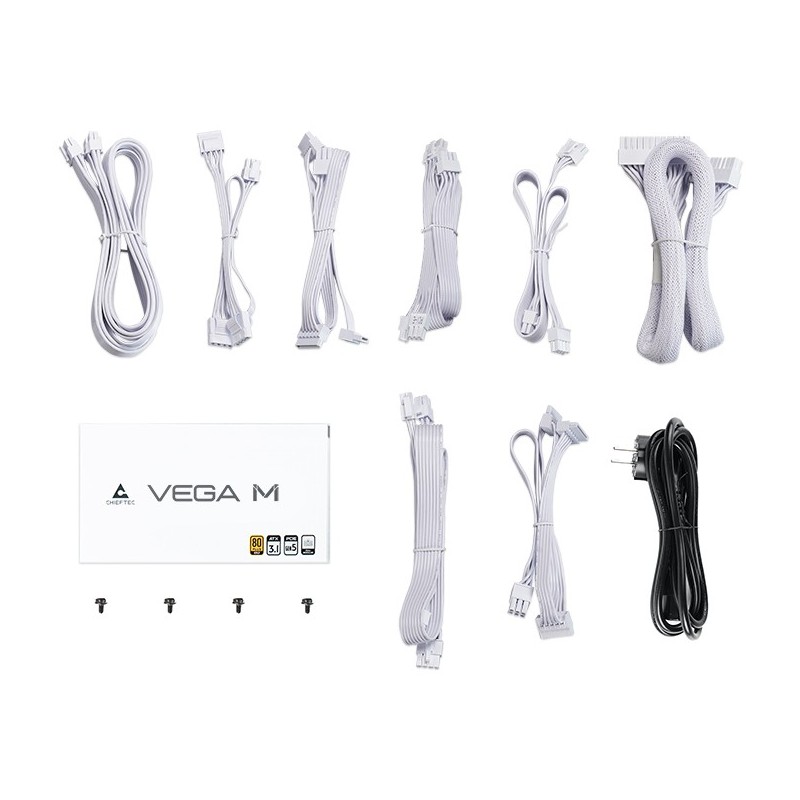

- ✅ Fully modular white cables: 24-pin ATX (60cm), 2x EPS (65cm), 4x 6+2 PCIe (60cm), 1x 12+4 PCIe (600mm), 6x SATA, 3x Molex
- ✅ 80PLUS Gold certified, active PFC (0.9), 100-240V input
- ✅ 135mm FDB fan, 5-year warranty
| Total power | 1000 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 12 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 1000 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 83.33 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over voltage, Overload, Short circuit, Surge and inrush, Under voltage, Over temperature |
| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 6 |
| SATA power cable length | 150.400 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Peripheral (Molex) power cable length | 150.400 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (12+4 pin) | 1 |
| PCI Express power connectors (12+4 pin) cable length | 600 mm |
| PCI Express power cable length | 60 cm |
| CPU power cable length | 65 cm |
| Number of EPS connectors | 2 |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| Bearing technology | FDB |
| Product colour | White |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Certification | 80PLUS Gold |
| Width | 150 mm |
| Depth | 150 mm |
| Height | 85 mm |
| PFC | Active PFC (0.9) |
| Warranty | 5 Years |
