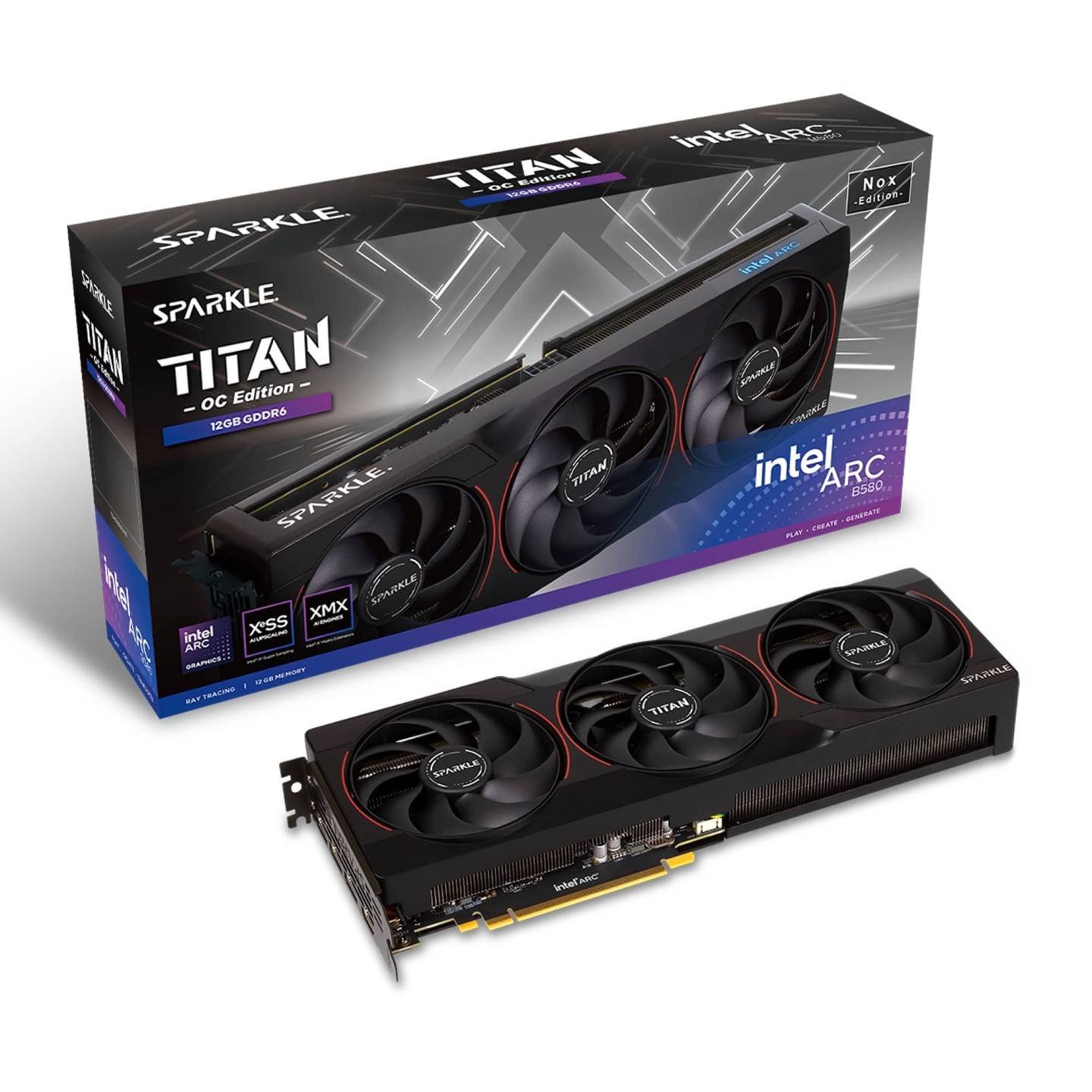

Sparkle Intel Arc B580 TITAN Nox OC 12GB GDDR6 3-Fan (Boxed)
Sparkle Intel Arc B580 TITAN Nox OC: 12GB GDDR6, 2740MHz boost, tri-fan cooling, metal backplate. Supports XeSS AI, ray tracing, 8K. PCIe 4.0 x8, 200W TBP, 1x8-pin. Ideal for 1440p/4K gaming.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | Intel Arc |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 4.0 x16 |
| GPU (Graphics Cards) - Cooler Type | Triple Fan |
| GPU (Graphics Cards) - Color | Black |
| GPU (Graphics Cards) - Backplate | Yes |
| GPU (Graphics Cards) - VRAM Capacity | 12 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR6 |
| GPU (Graphics Cards) - Outputs | DisplayPort HDMI |
| GPU (Graphics Cards) - Power Connector | 1x8-pin |
| GPU (Graphics Cards) - Card Length | Extended (301-320 mm) |
The Sparkle Intel Arc B580 TITAN Nox OC is a high-performance graphics card featuring Intel's Battlemage architecture. Equipped with 12GB GDDR6 memory on a 192-bit bus delivering 456 GB/s bandwidth, it excels in modern gaming with XeSS AI upscaling, hardware ray tracing, and support for up to 8K resolution at 120Hz HDR.

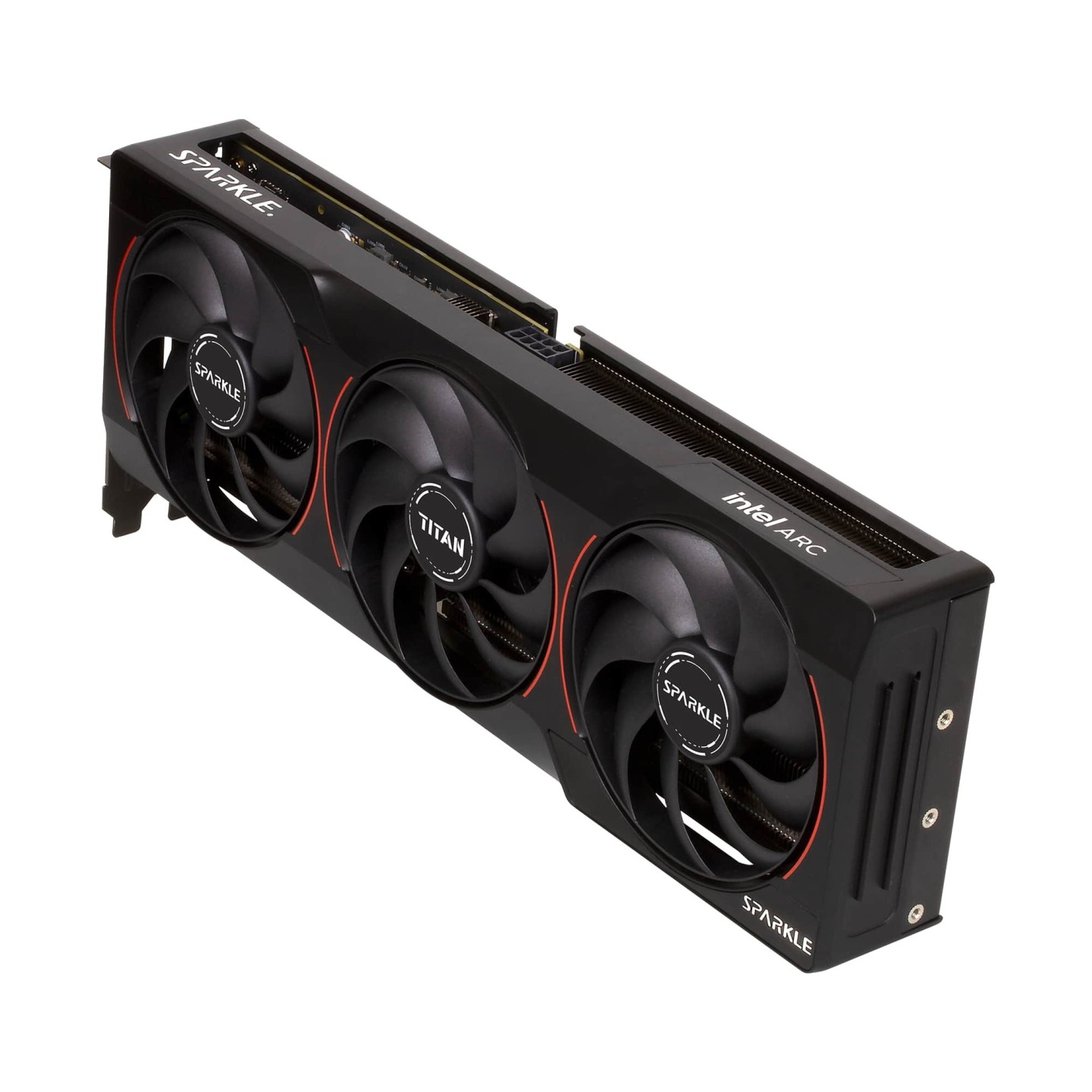

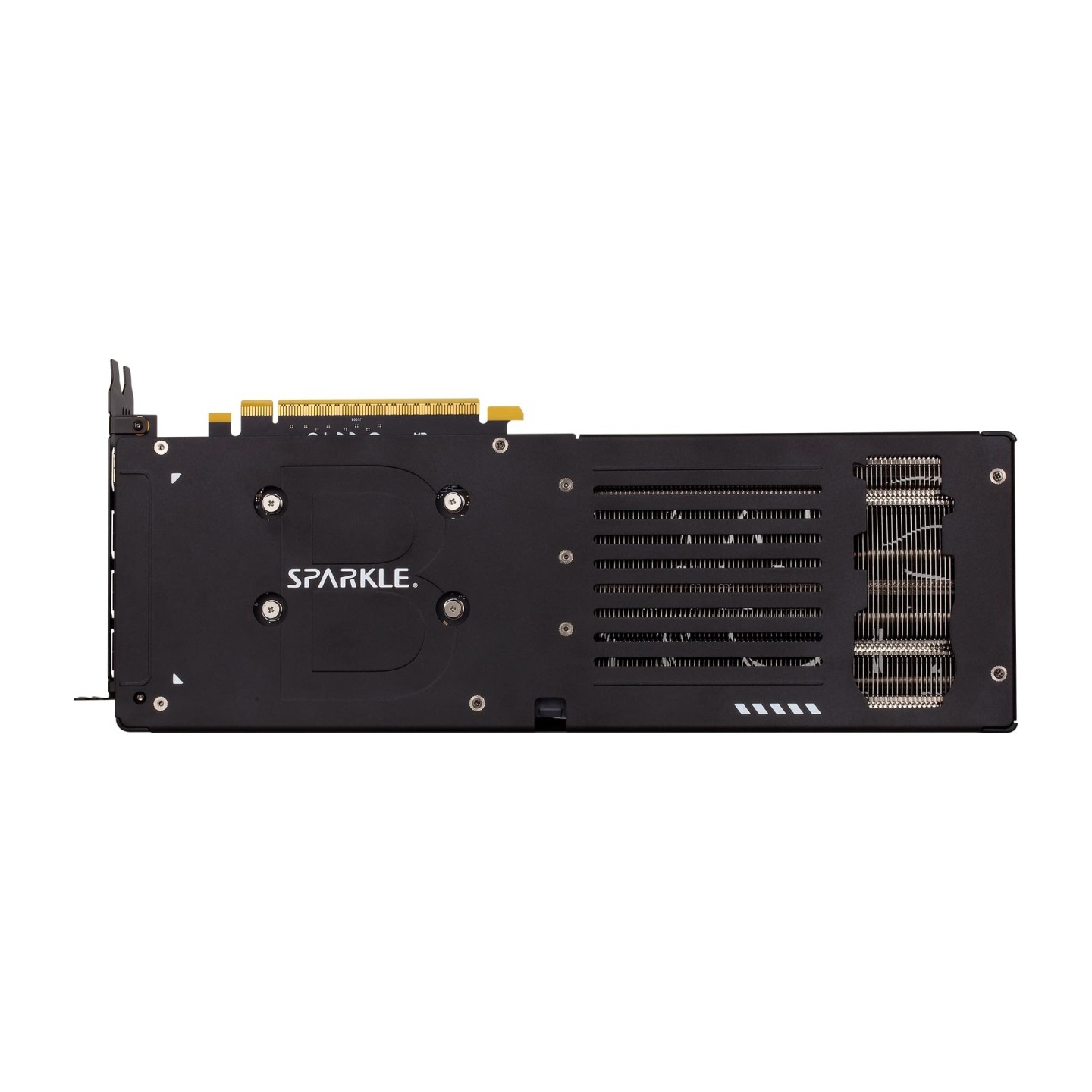

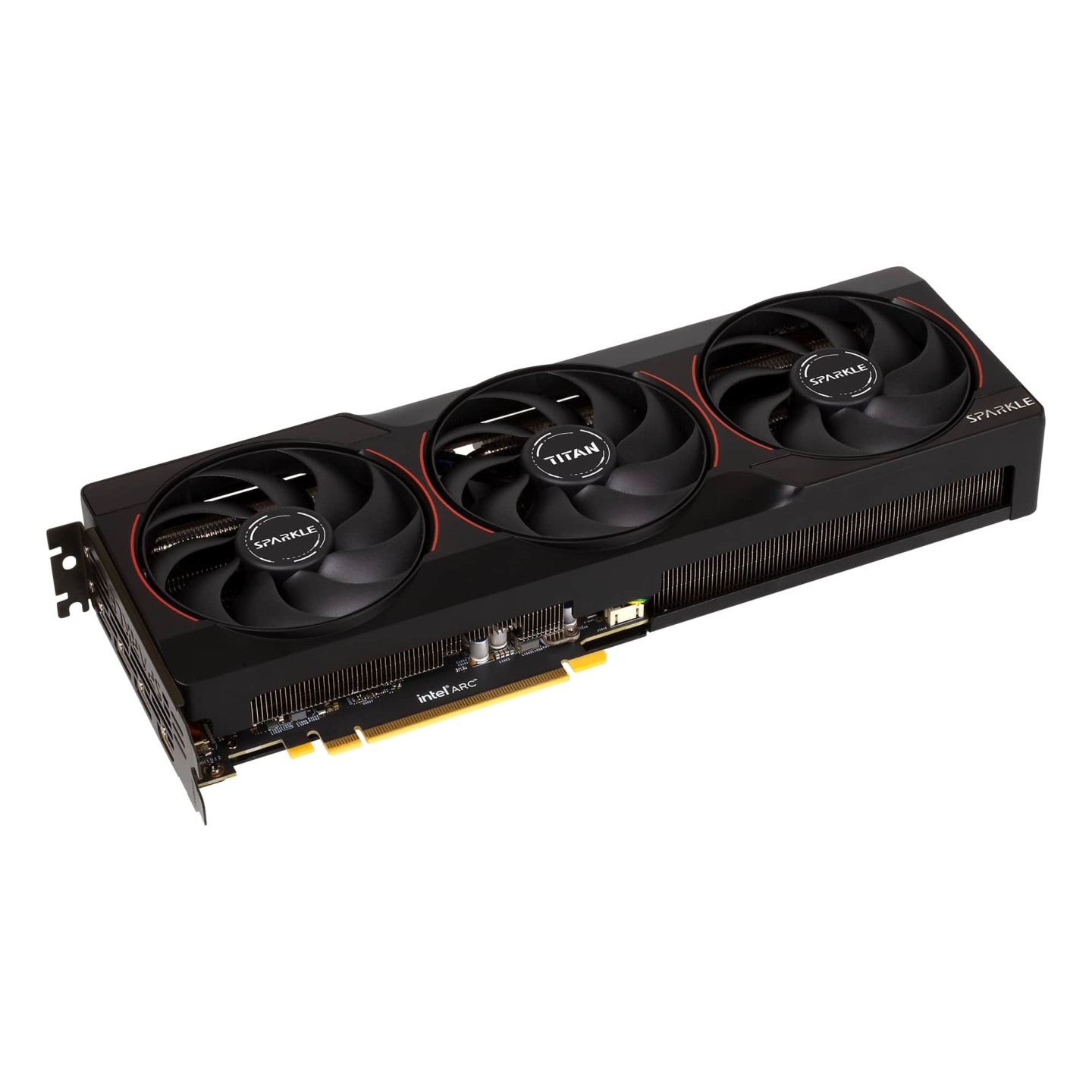

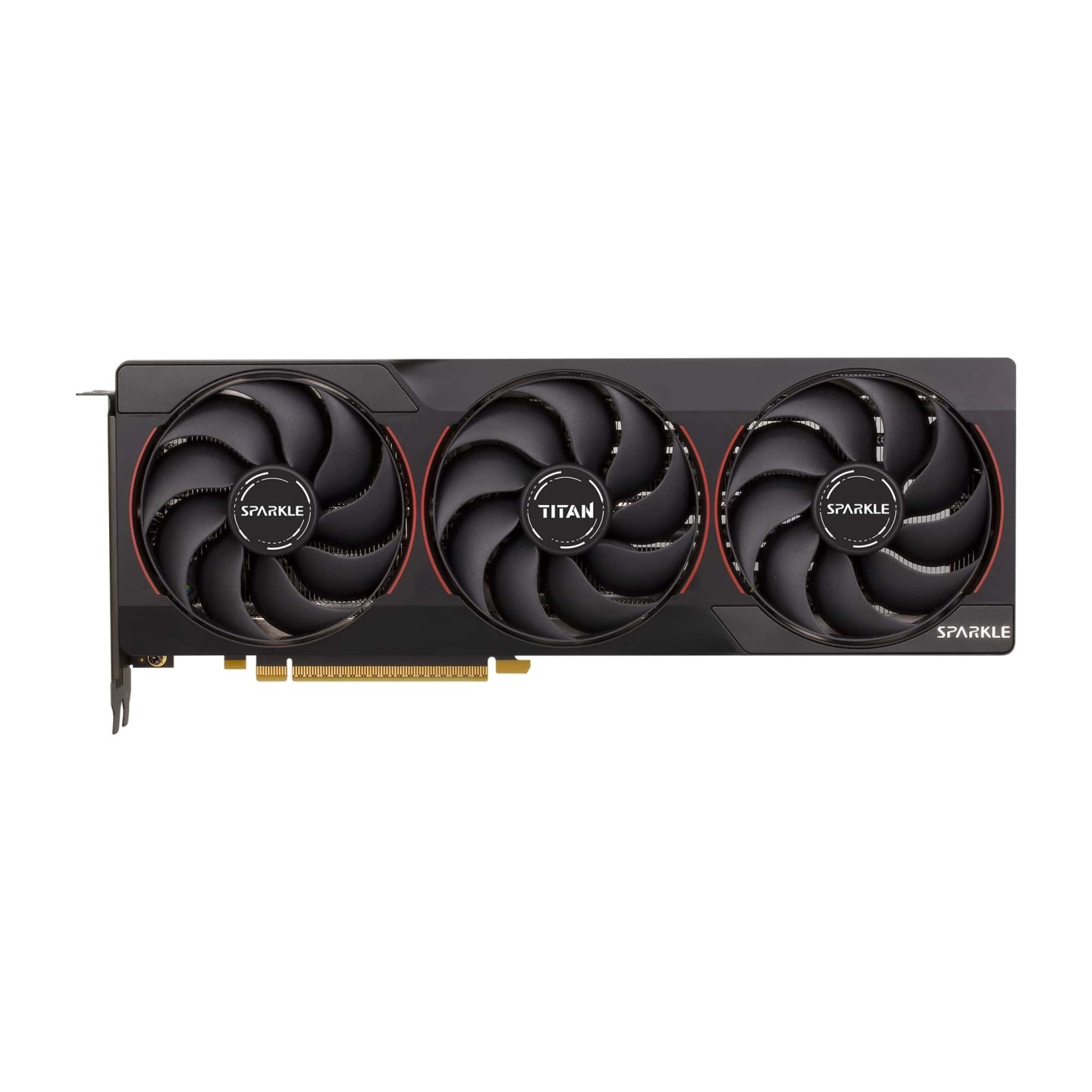

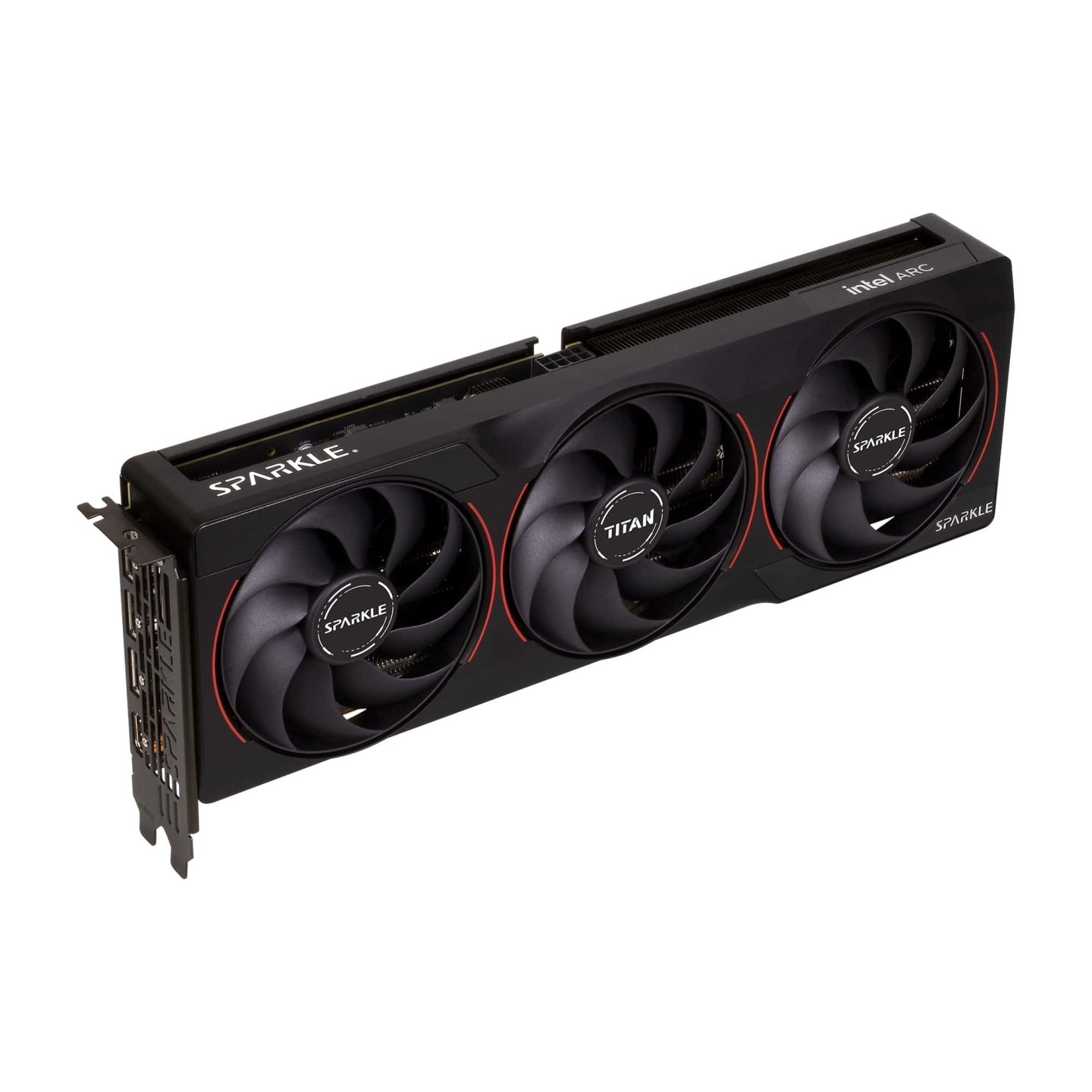

Advanced TORN Cooling 2.0 with triple axial fans, 2.2-slot design, and metal backplate ensures quiet, efficient operation even under load. Boost clock reaches 2740 MHz with 20 Xe-Cores and 160 XMX AI engines. Requires 600W PSU with 1x 8-pin connector and Resizable BAR-enabled system for optimal performance.
- PCIe 4.0 x8 interface

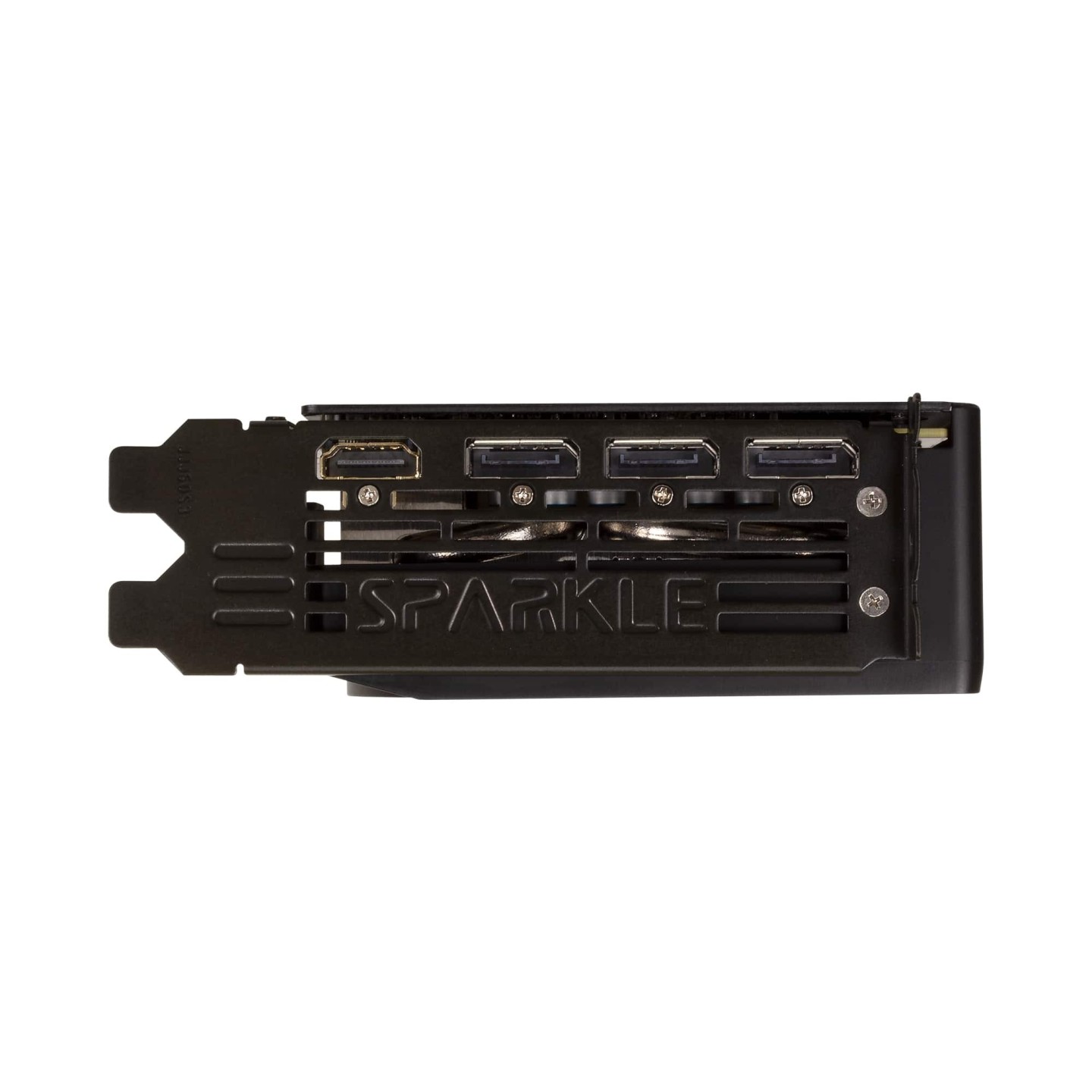

- Outputs: 1x HDMI, 3x DisplayPort
- Dimensions: 315 x 117 x 44 mm; Weight: 954 g
- Compatible with Windows 10/11 64-bit
- Ideal for 1440p/4K gaming and content creation
| Bus-Typ | PCI Express 4.0 |
| Bus-Version | 4.0 |
| Bus-Geschwindigkeit | x8 |
| Hersteller | Intel |
| Serie | Arc |
| Grafikchip Typ | B580 |
| Chiptakt | 2100 MHz |
| Boosttakt | 2740 MHz |
| Anzahl | 1 |
| Shader | 5120 |
| Version | 5 |
| 3D API | 12 Ultimate, 4.6 |
| Speichergröße | 12 GB |
| Type | GDDR6 |
| Takt | 19 Gbit/s, 456 GB/s |
| Anbindung | 192 Bit |
| HDMI | 1 |
| Display Port | 3 |
| DUAL-Link DVI | Nein |
| Anschluss | 1x 8-pin |
| TDP in Watt | 200 W |
| Breite | 117 mm |
| Höhe | 44 mm |
| Länge | 315 mm |
| Gewicht | 954 g |
| Slot | 2.2 |
| Kühlung | aktiv |
| Beleuchtungsfarbe | Multi |
| Besonderheiten | 3 Lüfter, Metal Backplate, TORN Cooling 2.0 |
| Farbe | Schwarz |
