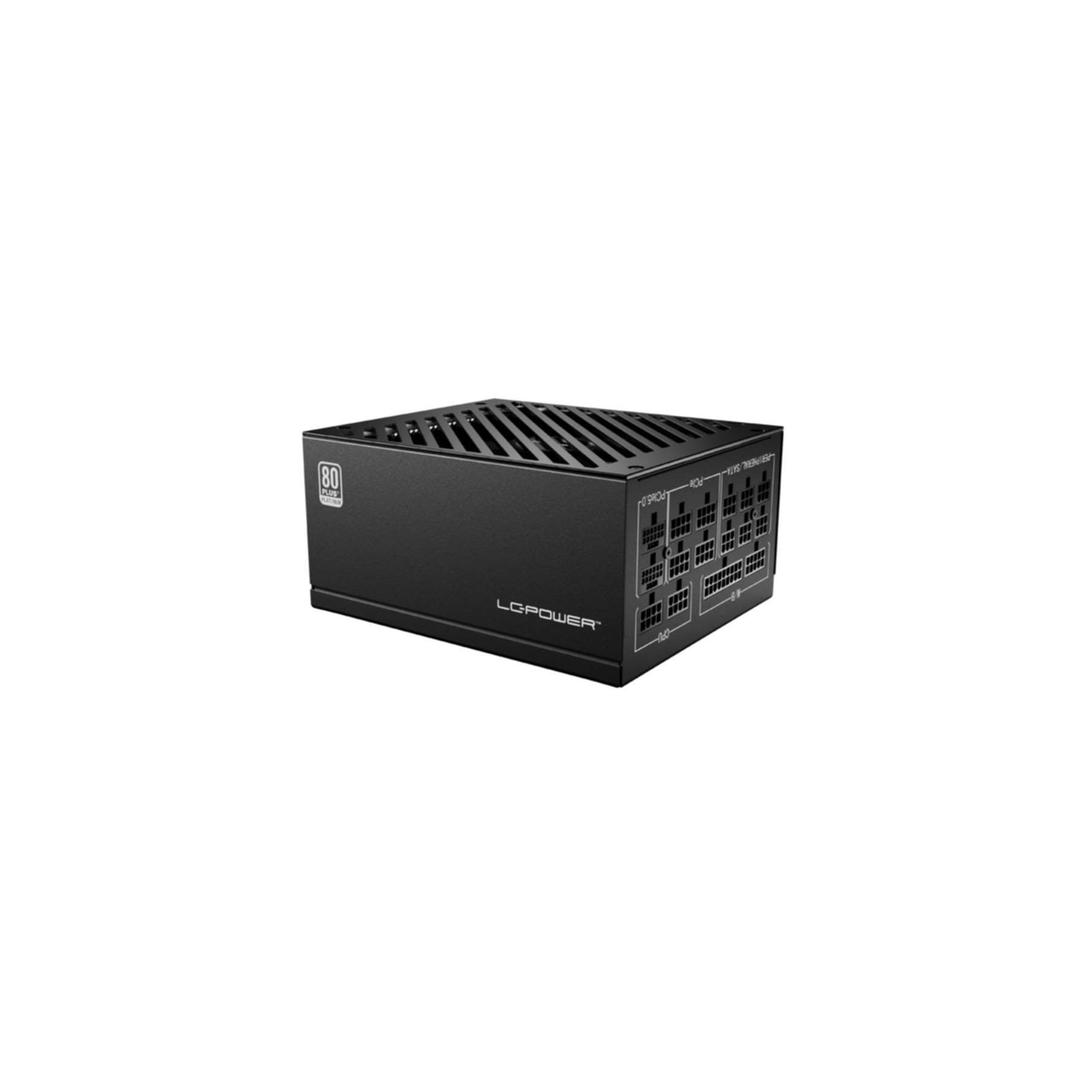

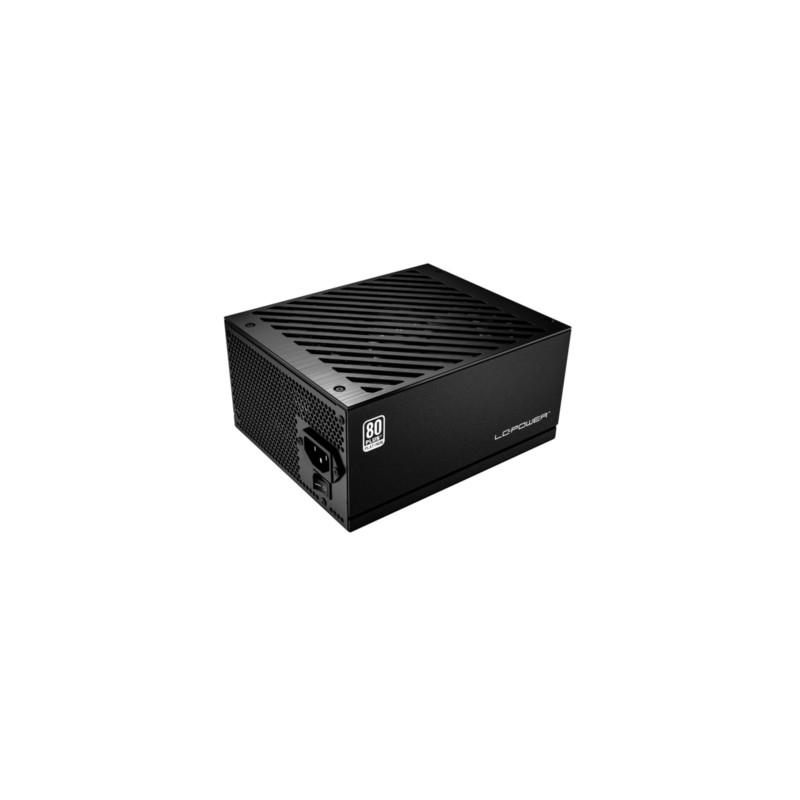

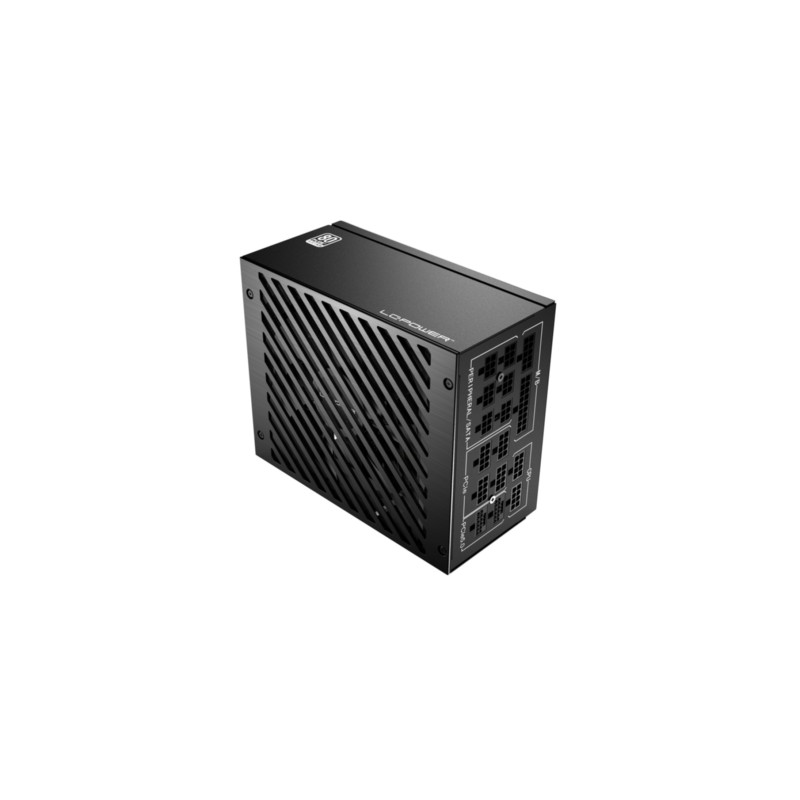

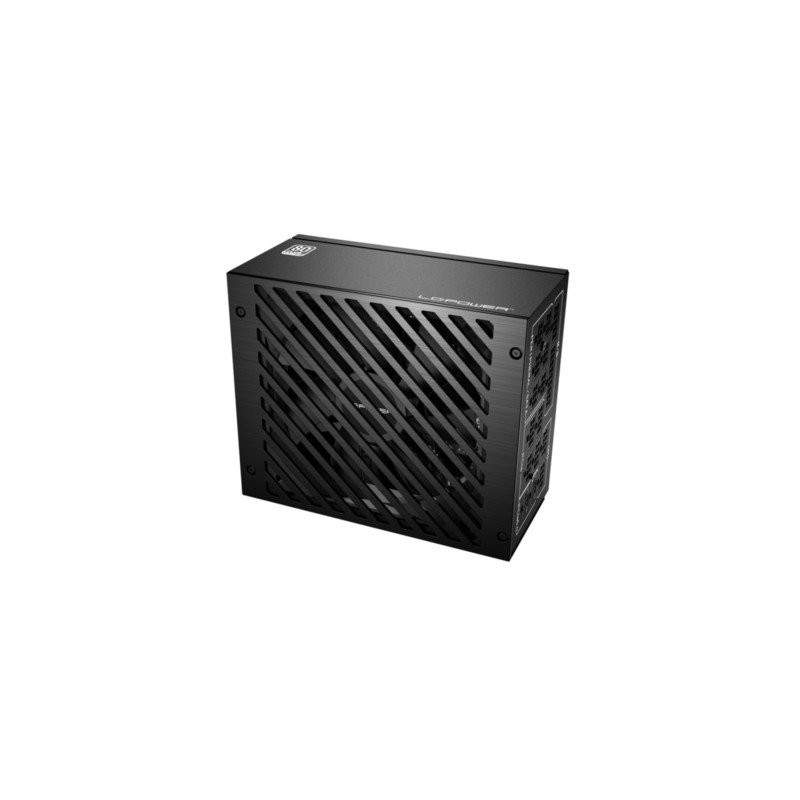

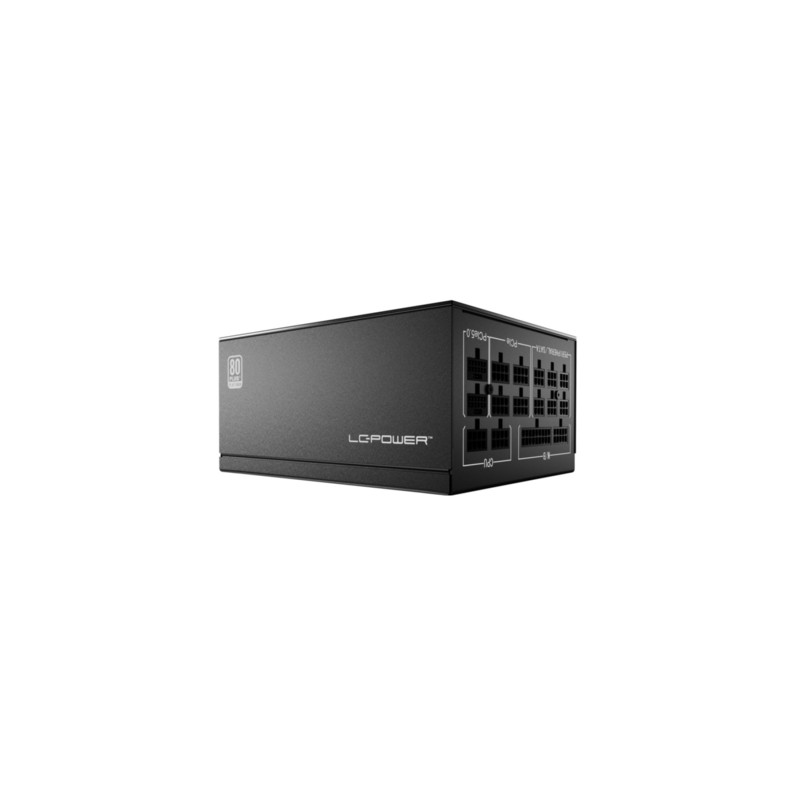

Power Supply LC-Power LC1000P V3.0 - ATX 3.0 Platinum 1000W - Black
LC-Power LC1000P V3.0, 1000W ATX 3.0 PSU, 80 PLUS Platinum, fully modular, 110-240V input, Active PFC, 6x PCIe (6+2), 10x SATA, 5x Molex, Black.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| PSU (Power Supplies) - Wattage | 1000 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80+ Platinum |
| PSU (Power Supplies) - ATX Standard | ATX 3.0 |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - EPS CPU Connectors | 8+4-pin |
| PSU (Power Supplies) - Fan Size | 135 mm |
| PSU (Power Supplies) - Length | 161-180 mm |
The LC1000P V3.0 is an 80 PLUS® PLATINUM certified, fully modular ATX power supply, which offers your system high stability and performance.
| Total power | 1000 W |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50/60 Hz |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 999.6 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 4.8 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 83.3 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.4 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 92% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 65 cm |
| Number of SATA power connectors | 10 |
| Number of PATA power connectors | 5 |
| SATA power cable length | 500, 650, 800, 950 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 500, 800 mm |
| EPS power connector (8-pin) | Yes |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 6 |
| PCI Express power connectors (12+4 pin) | 1 |
| PCI Express power connectors (12+4 pin) cable length | 600 mm |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Platinum |
| Supported motherboard form factors | ATX |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.0 |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Cables included | PATA, PCIe, SATA |
| Compliance certificates | CE, cTUVus |
| Width | 86 mm |
| Depth | 180 mm |
| Height | 150 mm |
| Weight | 3.05 kg |
| Package width | 115 mm |
| Package depth | 310 mm |
| Package height | 225 mm |
| Package weight | 3.39 kg |
| Package type | Box |
| Sustainability compliance | Yes |
| Warranty period | 3 year(s) |
