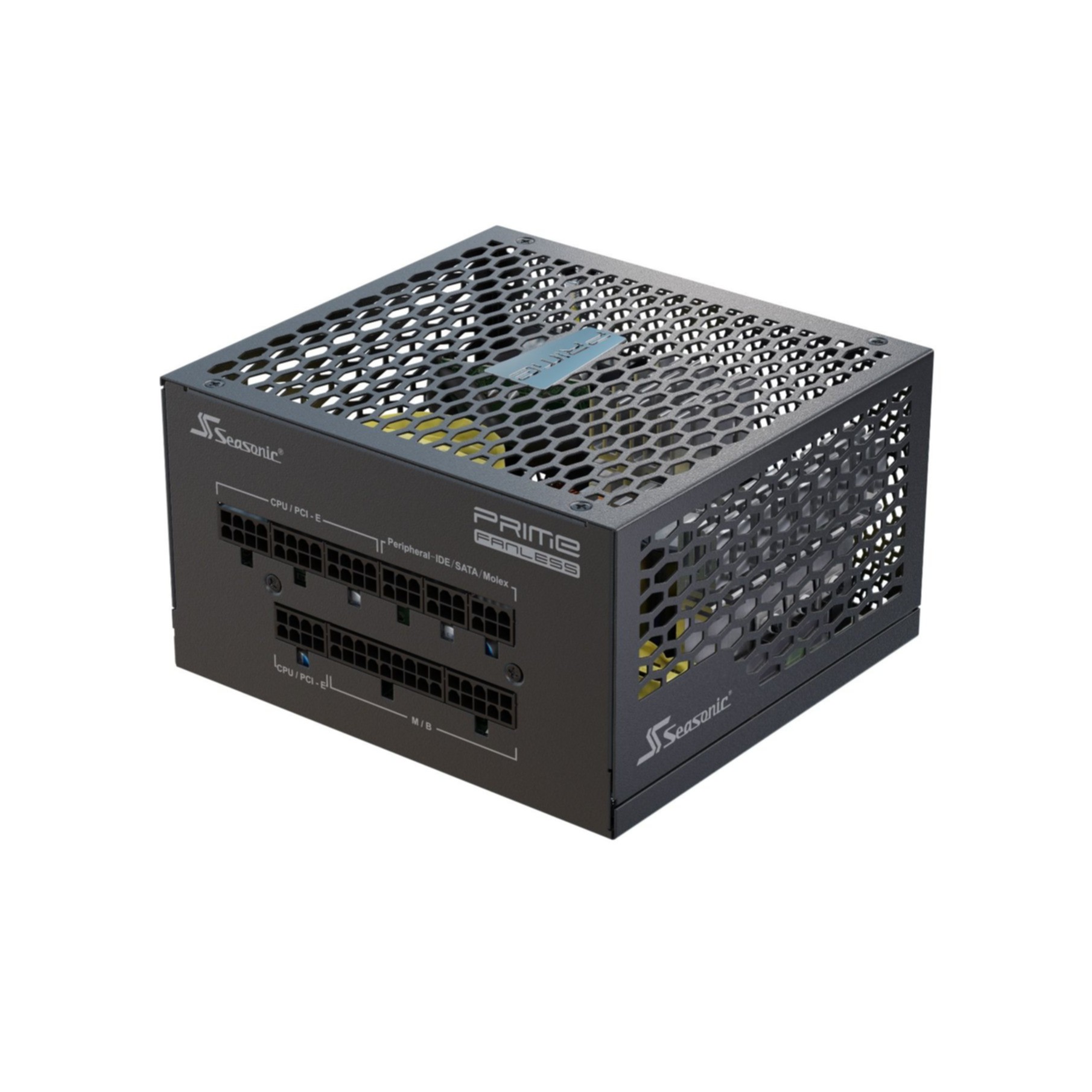

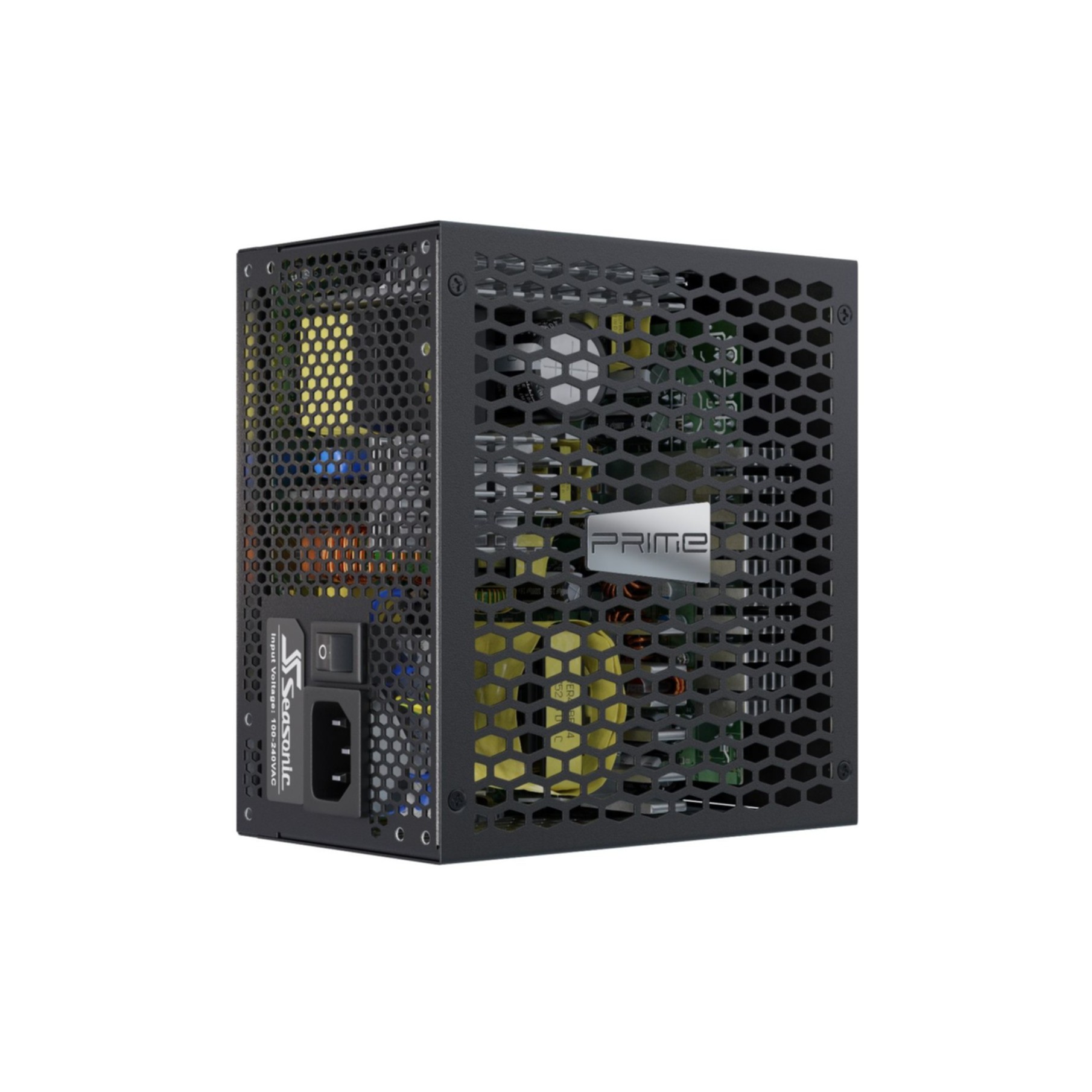

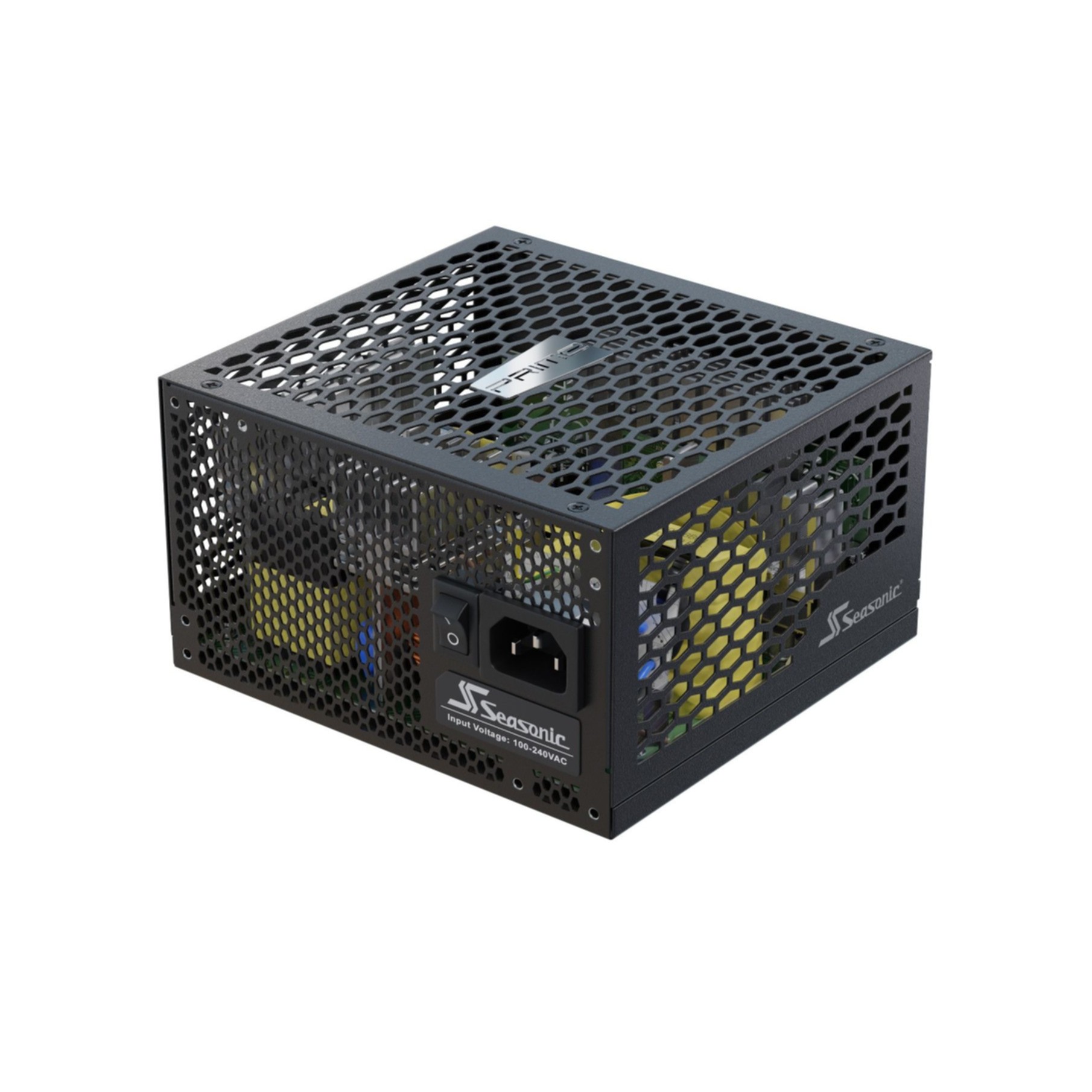

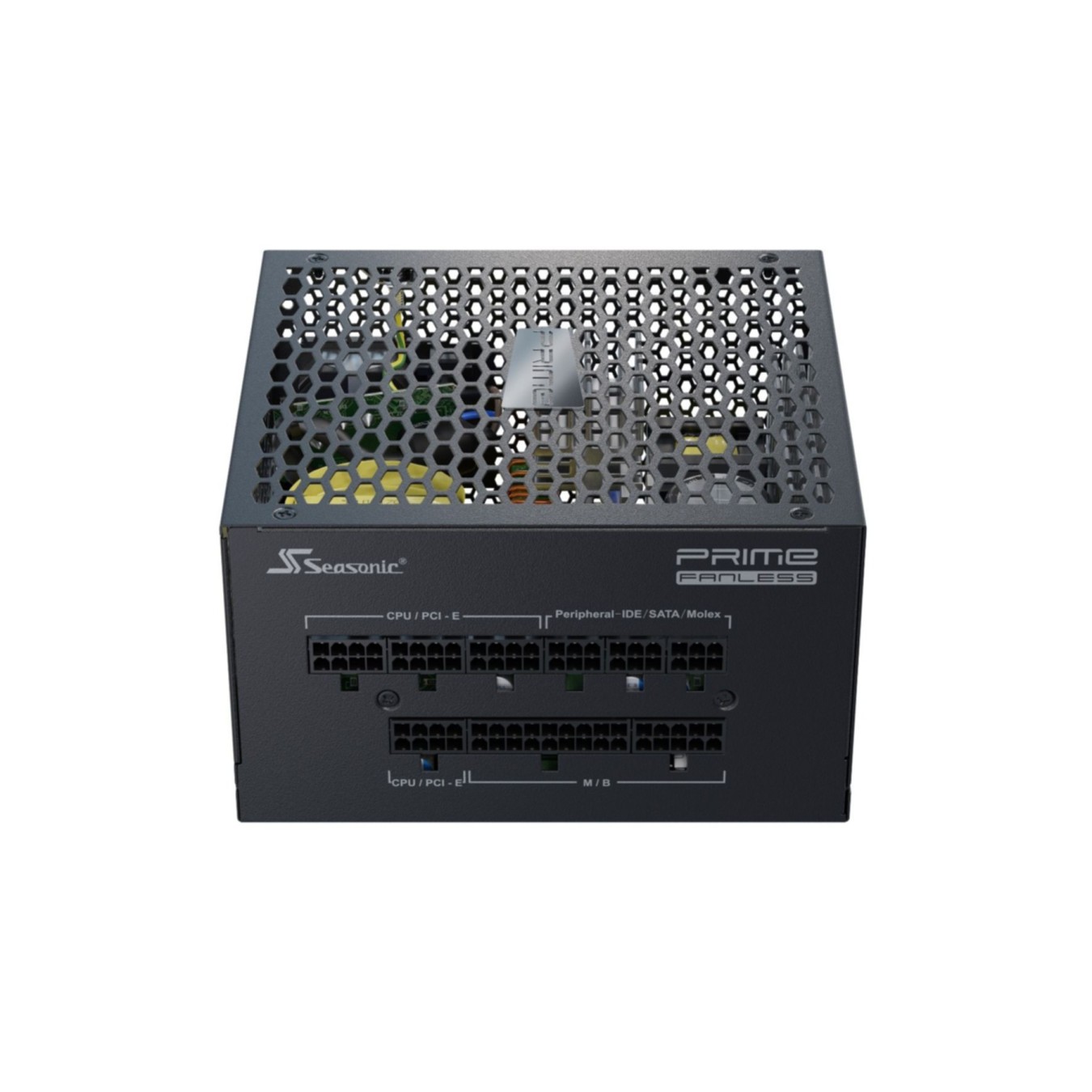

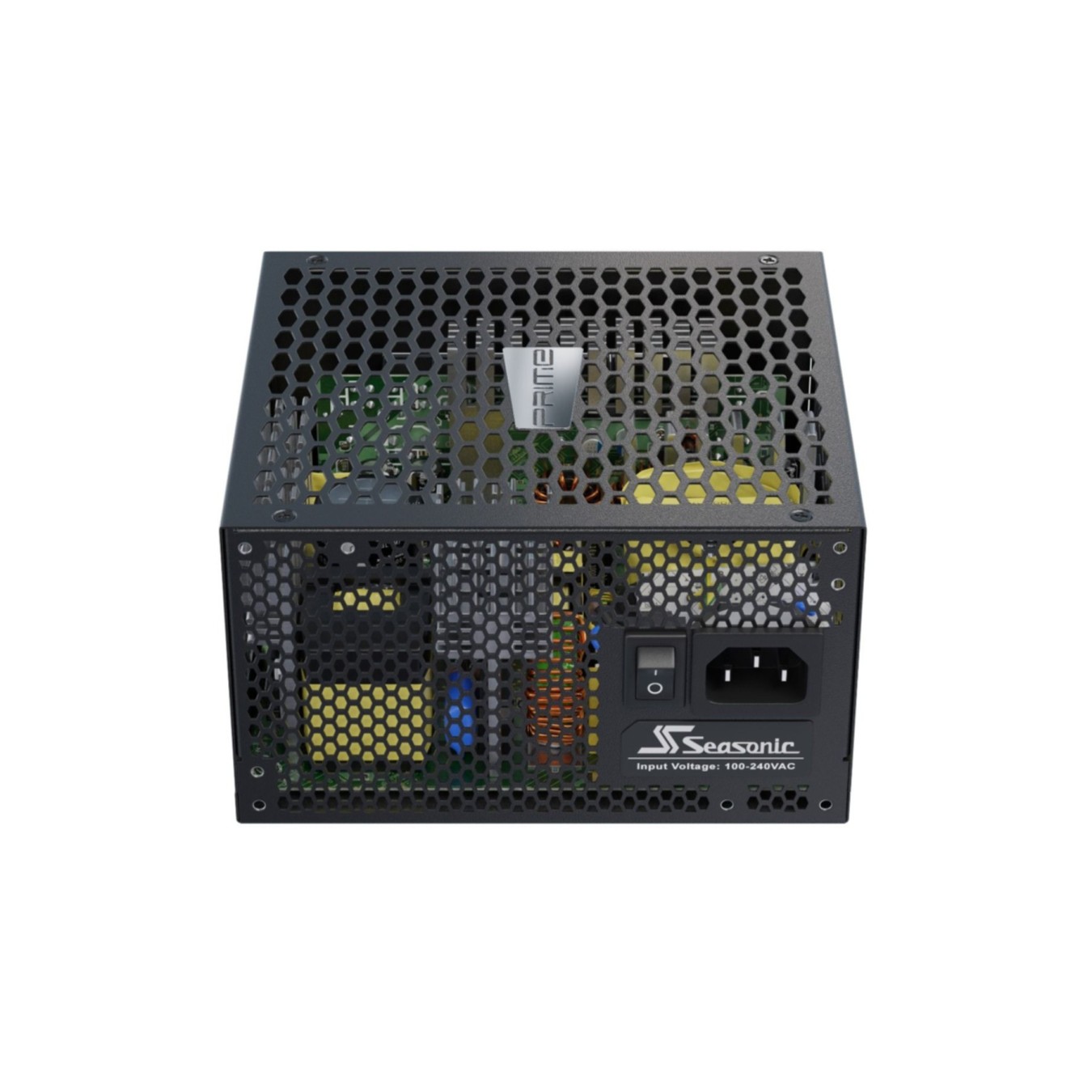

Seasonic PRIME PX-500 500W Fanless Power Supply - PX-500 - ATX, 80+ Platinum, Fully Modular
Seasonic PRIME PX-500 500W fanless ATX power supply with fully modular cabling, 80 PLUS Platinum efficiency, passive cooling, and standard ATX connectivity.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| PSU (Power Supplies) - Efficiency Rating | 80+ Platinum |
|---|---|
| PSU (Power Supplies) - ATX Standard | ATX 2.x |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 12V-2x6 (revised) |
| PSU (Power Supplies) - EPS CPU Connectors | 2x8-pin |
| PSU (Power Supplies) - Length | less than or equal to140 mm |
The PRIME Fanless PX series utilizes the fanless technology, which eliminates the fan noise completely, ensuring truly quiet operation. The unit not only is rated to be 80PLUS Platinum efficient, but it also has the highest power output on the fanless power supply market at the moment. The power supply is ideal any situations that demand silence from the equipment. The high quality components inside and the innovative circuit design result in clean and stable power output. The fully modular cables allow for better cable management in the computer case.
80 PLUS® Platinum
The PRIME Platinum Series achieves 80 PLUS® Platinum certification with its 92 % efficiency at 50 % system load.
Micro Tolerance Load Regulation
Seasonic’s latest design keeps the output voltage within a very tight range, achieving under 0.5 % load regulation. This impressive electrical performance and stability makes this power supply an ideal choice for high-performance systems.

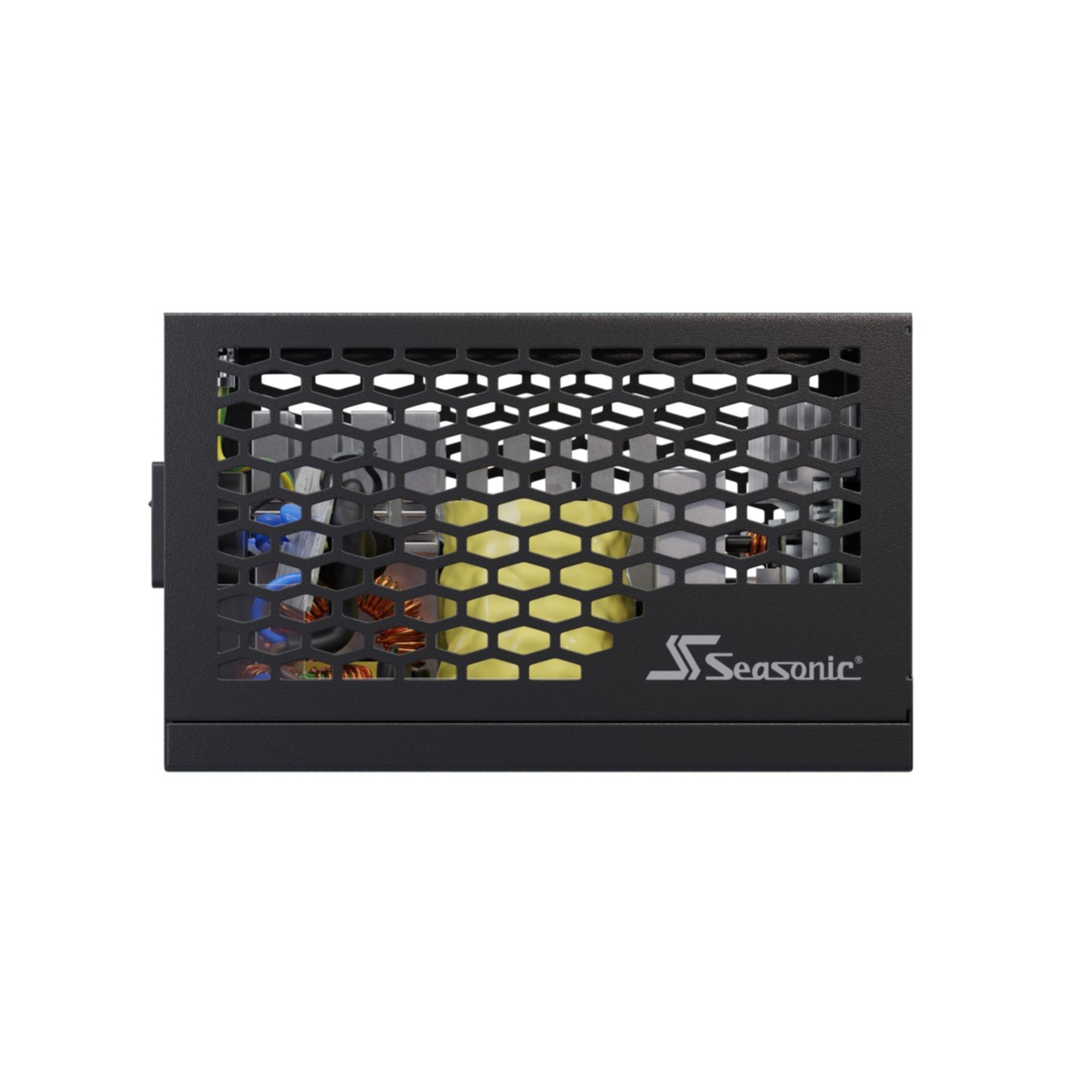

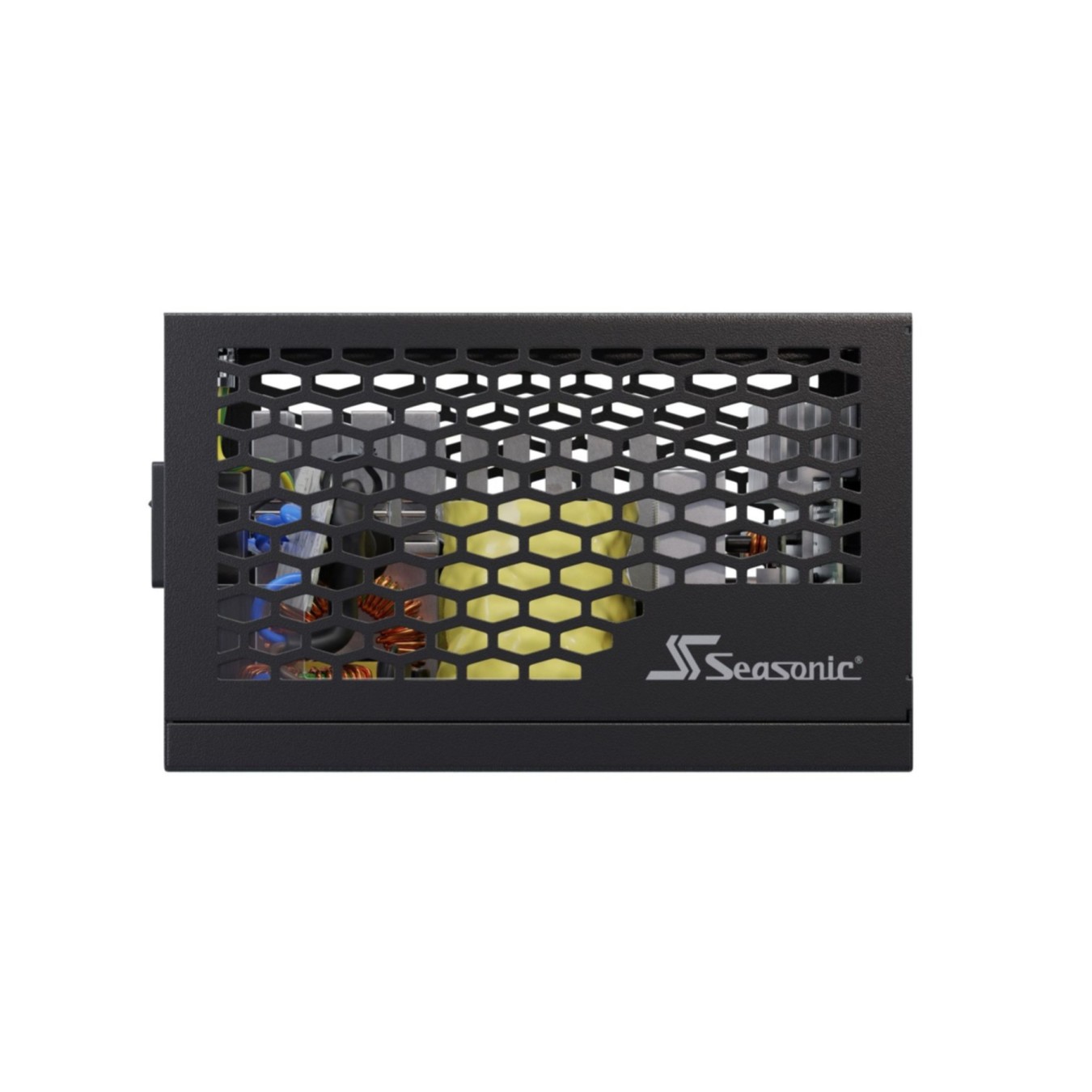

Seasonic Fanless Design
Cooling fans inside the power supply are replaced by passive cooling based on heat dissipation. Silent operation does not only provide a more pleasant working environment but it also results in less power consumption and lower utility bills.
| Total power | 500 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 4 - 7 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 492 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 37 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 2 |
| SATA power cable length | 810, 860 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 470, 690 mm |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power cable length | 75 cm |
| CPU power cable length | 65 cm |
| CPU power connectors (8-pin) | 2 |

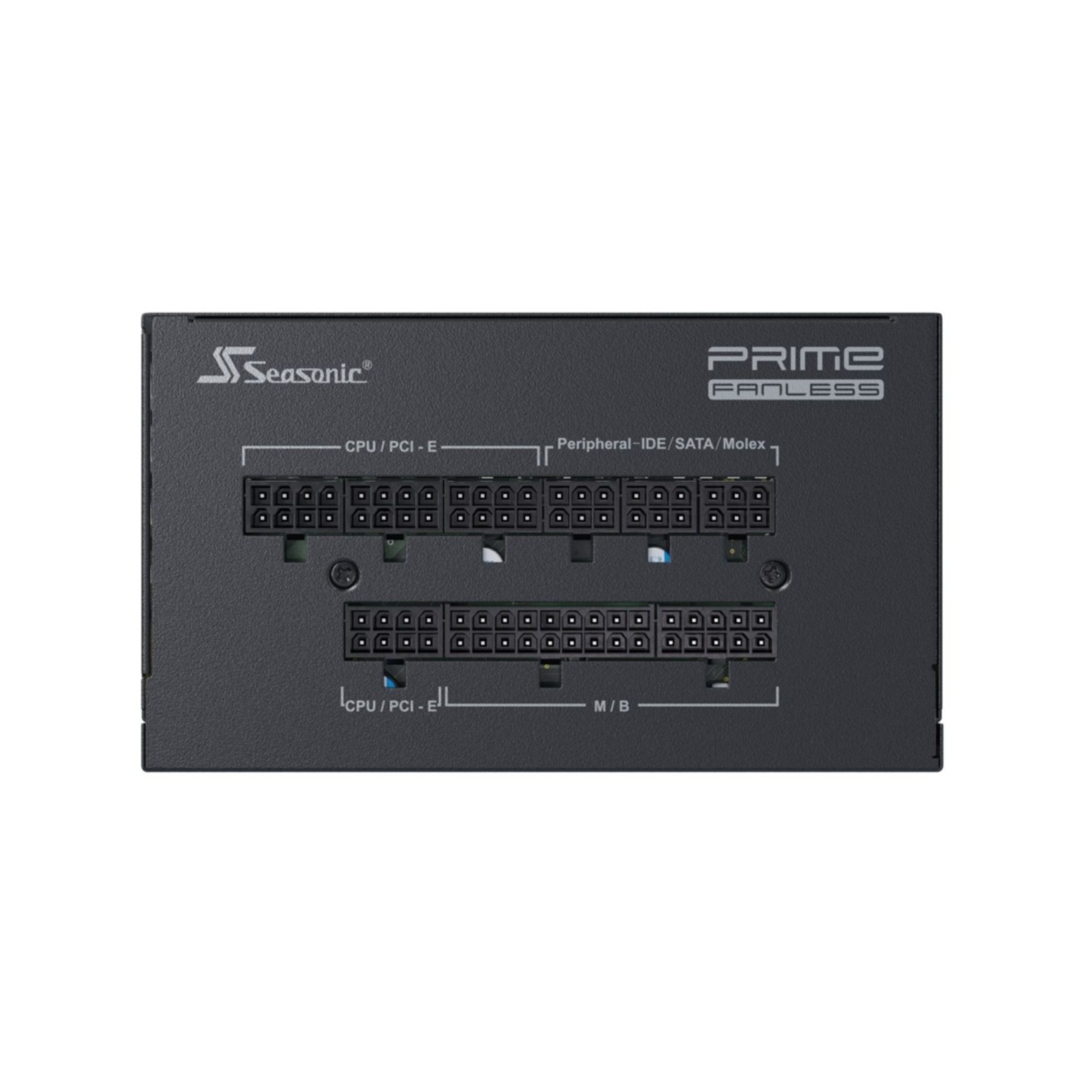

| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Platinum |
| Supported motherboard form factors | ATX |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| Mean time between failures (MTBF) | 150000 h |
| Product colour | Black |
| Cooling type | Passive |
| On/off switch | Yes |
| Operating temperature (T-T) | 0 - 50 °C |
| Compliance certificates | RoHS |
| Certification | cTUVus, TUV, CB, CCC, BSMI, EAC, CE, WEEE, ErP Lot 6, REACH |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Sustainability certificates | ENERGY STAR |
