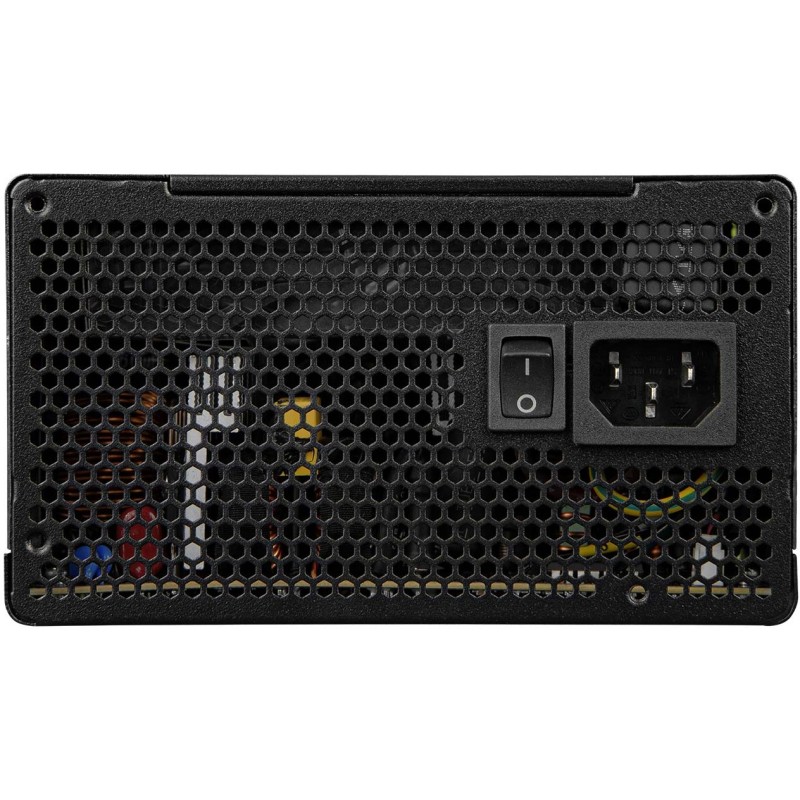

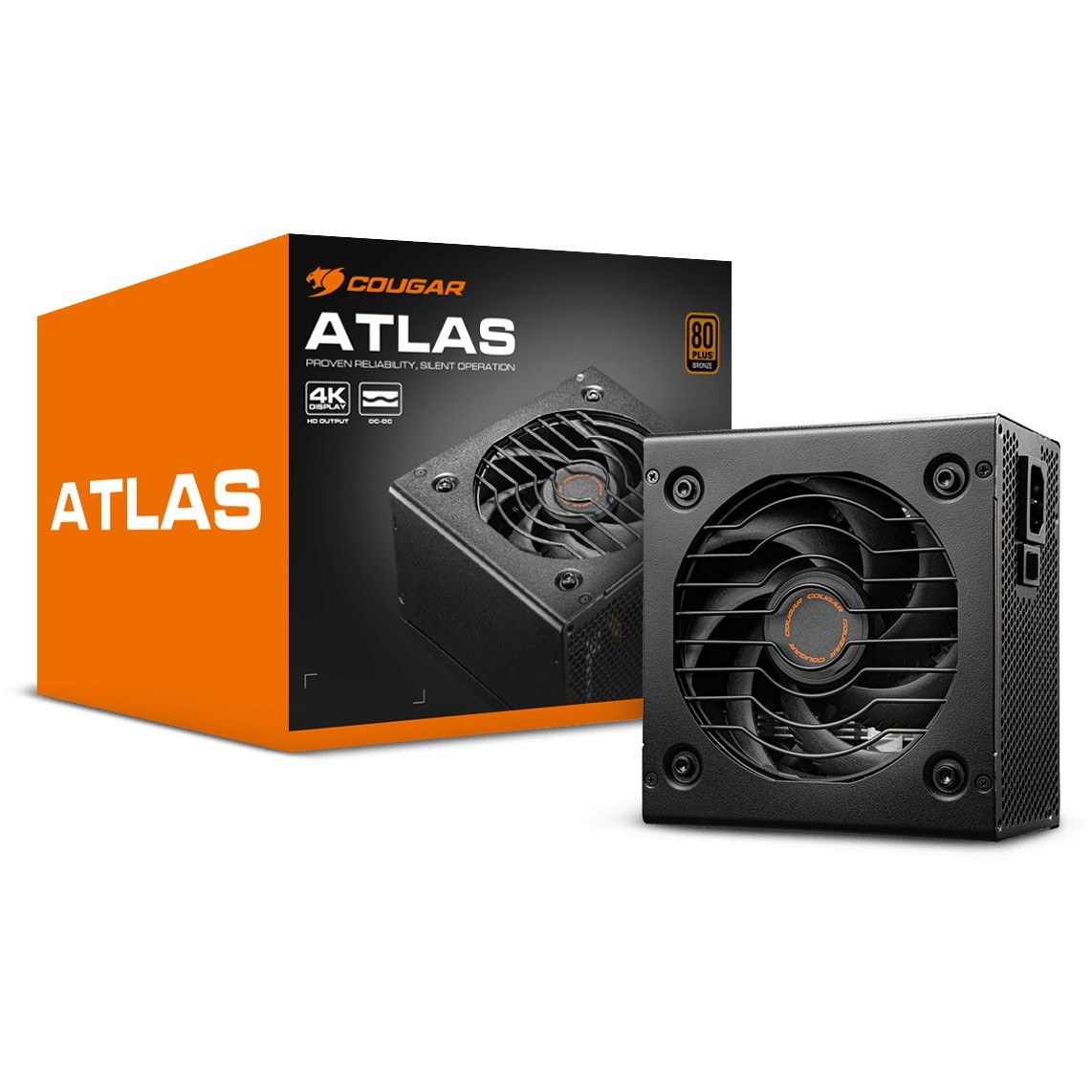

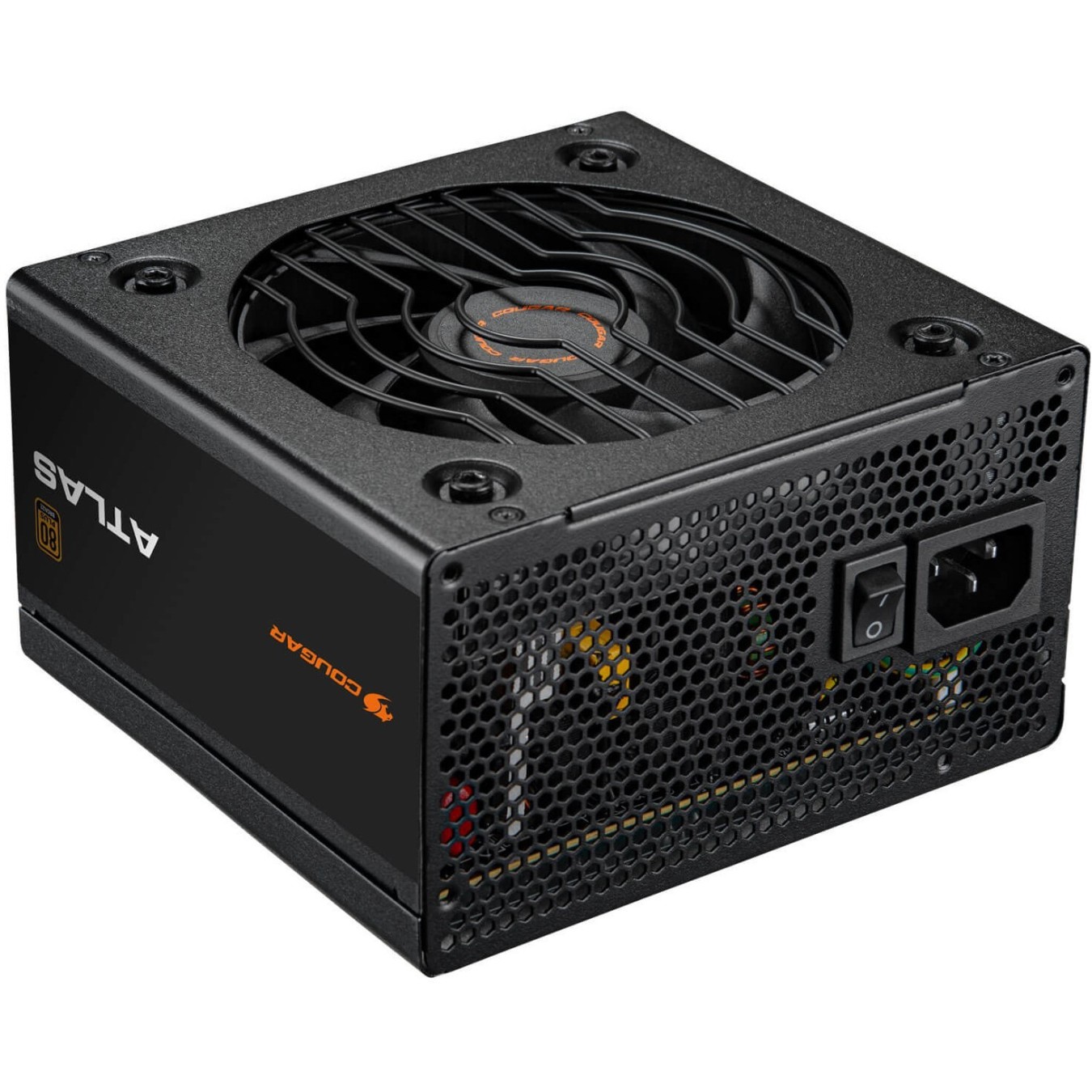

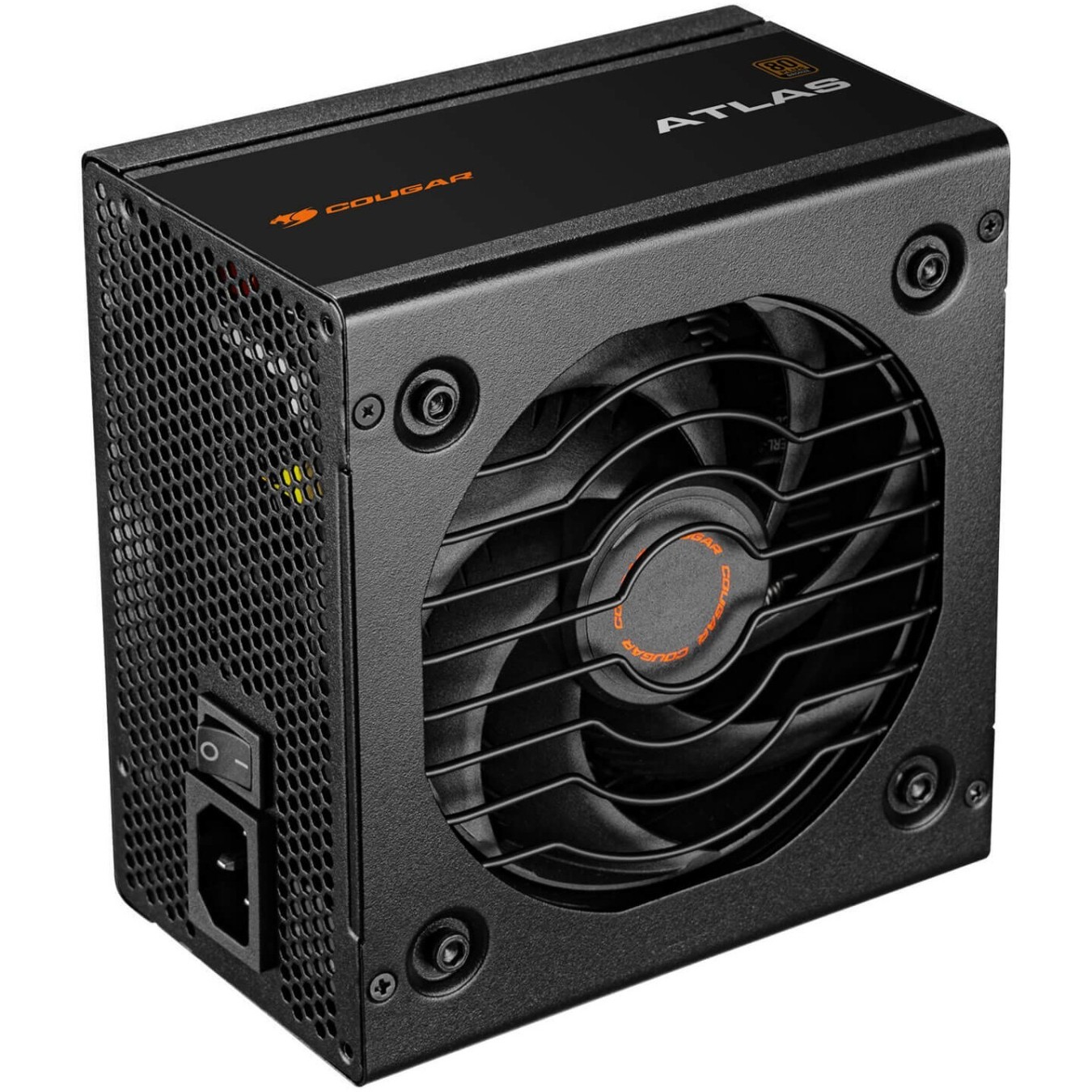

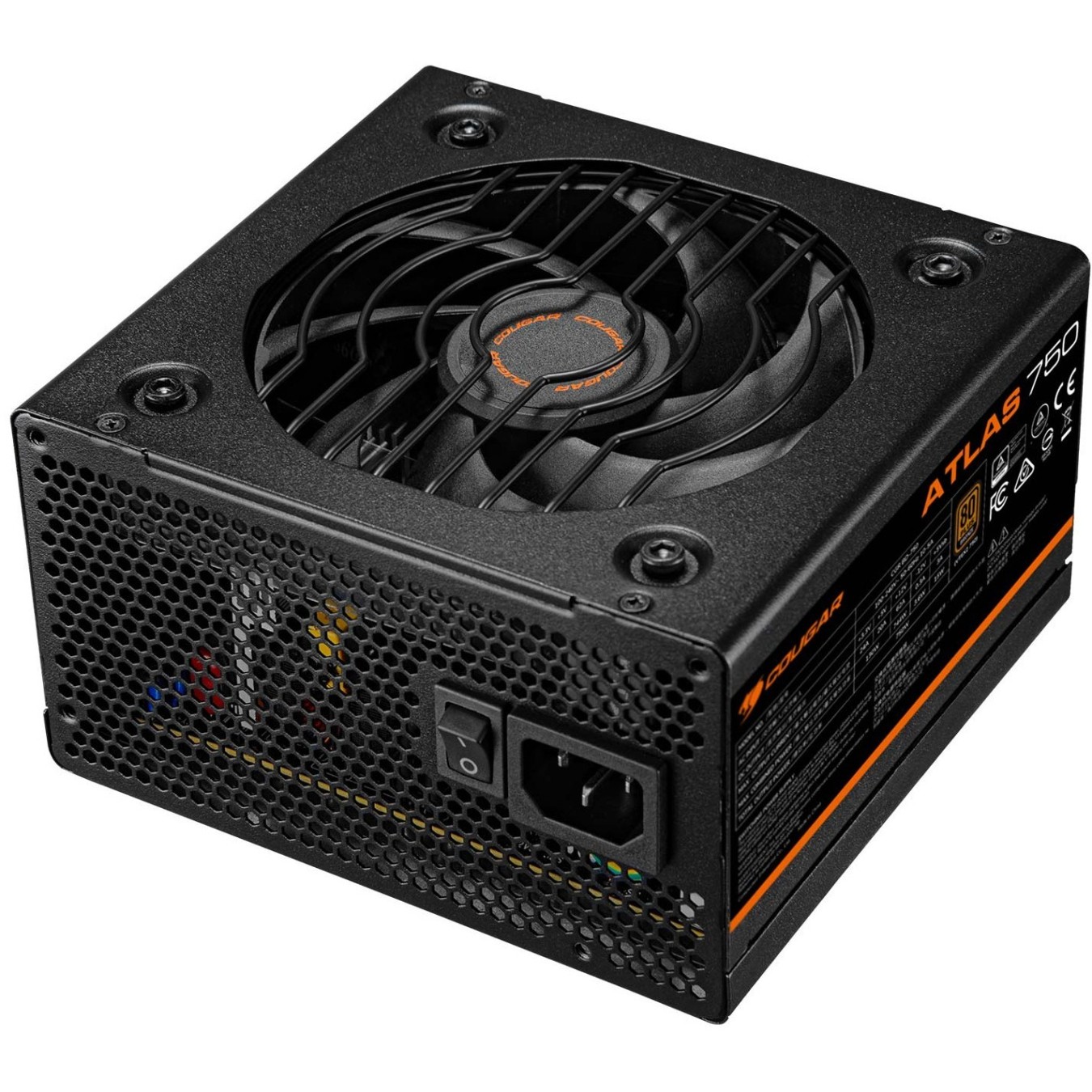

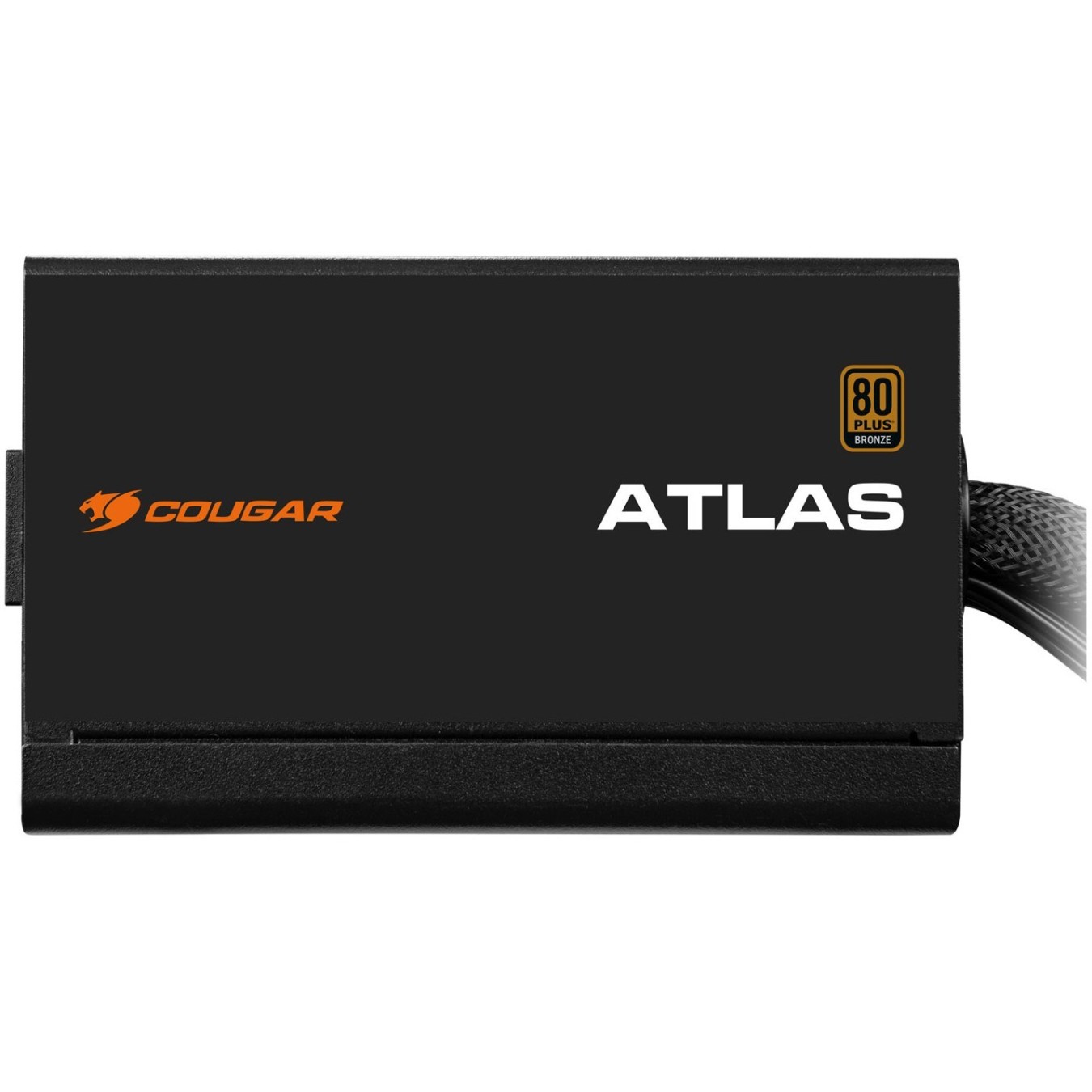

COUGAR Power Supply - ATLAS 750W - 750W ATX 80 Plus Bronze
COUGAR Atlas 750W ATX power supply with 80 Plus Bronze efficiency.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| PSU (Power Supplies) - Wattage | 750 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80+ Bronze |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - Fan Size | 120 mm |
| PSU (Power Supplies) - Length | less than or equal to140 mm |
COUGAR Gaming ATLAS. Total power: 750 W. AC input voltage: 100 - 240 V. AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX. Motherboard power cable length: 55 cm. Peripheral (Molex) power cable length: 450 mm. Purpose: PC/Server. 80 PLUS certification: 80 PLUS Bronze. Product colour: Black. Cooling type: Active. Fan diameter: 12 cm. Compliance certificates: CCC. CE. EAC. Federal Communications Commission (FCC). RoHS
| Total power | 750 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 10 - 5 A |
| Maximum input current (@110V) | 10 A |
| Maximum input current (@220V) | 5 A |
| Combined power (+3.3V) | 140 W |
| Combined power (+12V) | 750 W |
| Combined power (+5V) | 140 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 86% |
| Power protection features | Over current. Over power. Over voltage. Overheating. Short circuit. Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 55 cm |
| Number of PATA power connectors | 1 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Peripheral (Molex) power cable length | 450 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power cable length | 45 cm |
| CPU power cable length | 60 cm |

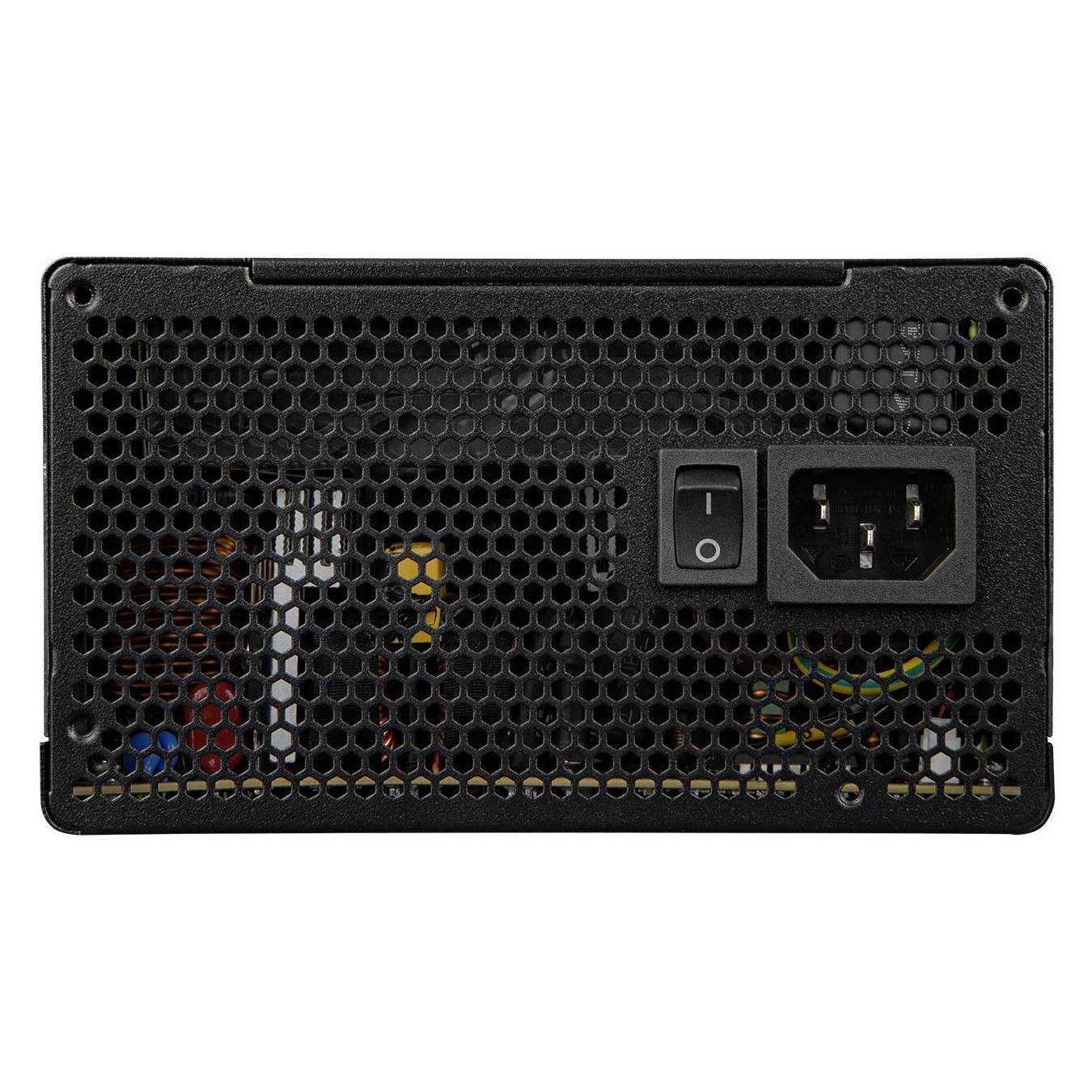

| Feature | On/off switch |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS Bronze |
| Purpose | PC/Server |
| Product colour | Black |
| Cooling type | Active |

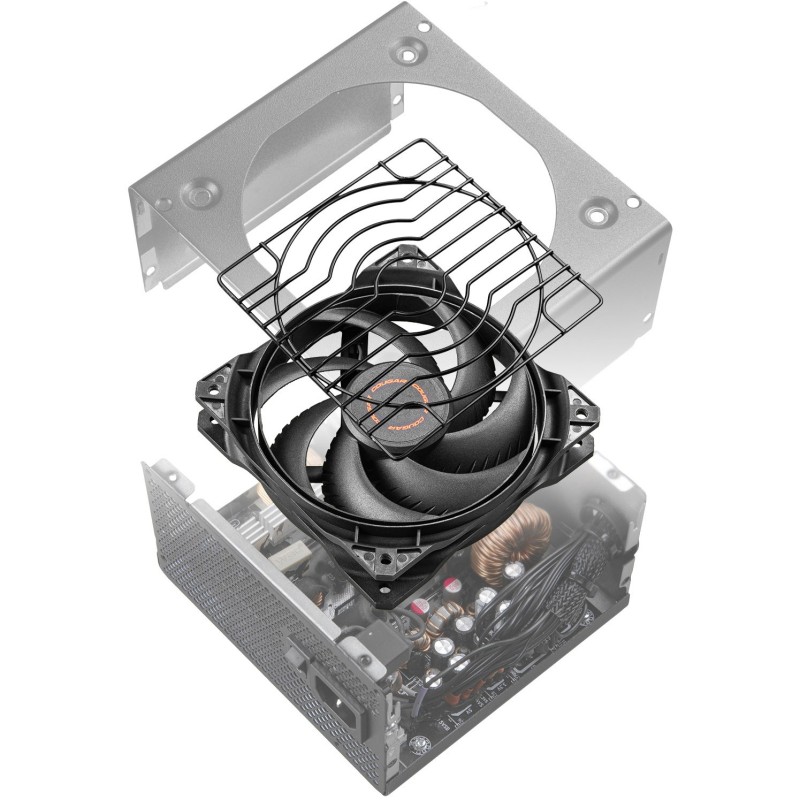

| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Compliance certificates | CCC. CE. EAC. Federal Communications Commission (FCC). RoHS |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 1.89 kg |
| Package width | 158 mm |
| Package depth | 187 mm |
| Package height | 165 mm |
| Package weight | 2.13 kg |

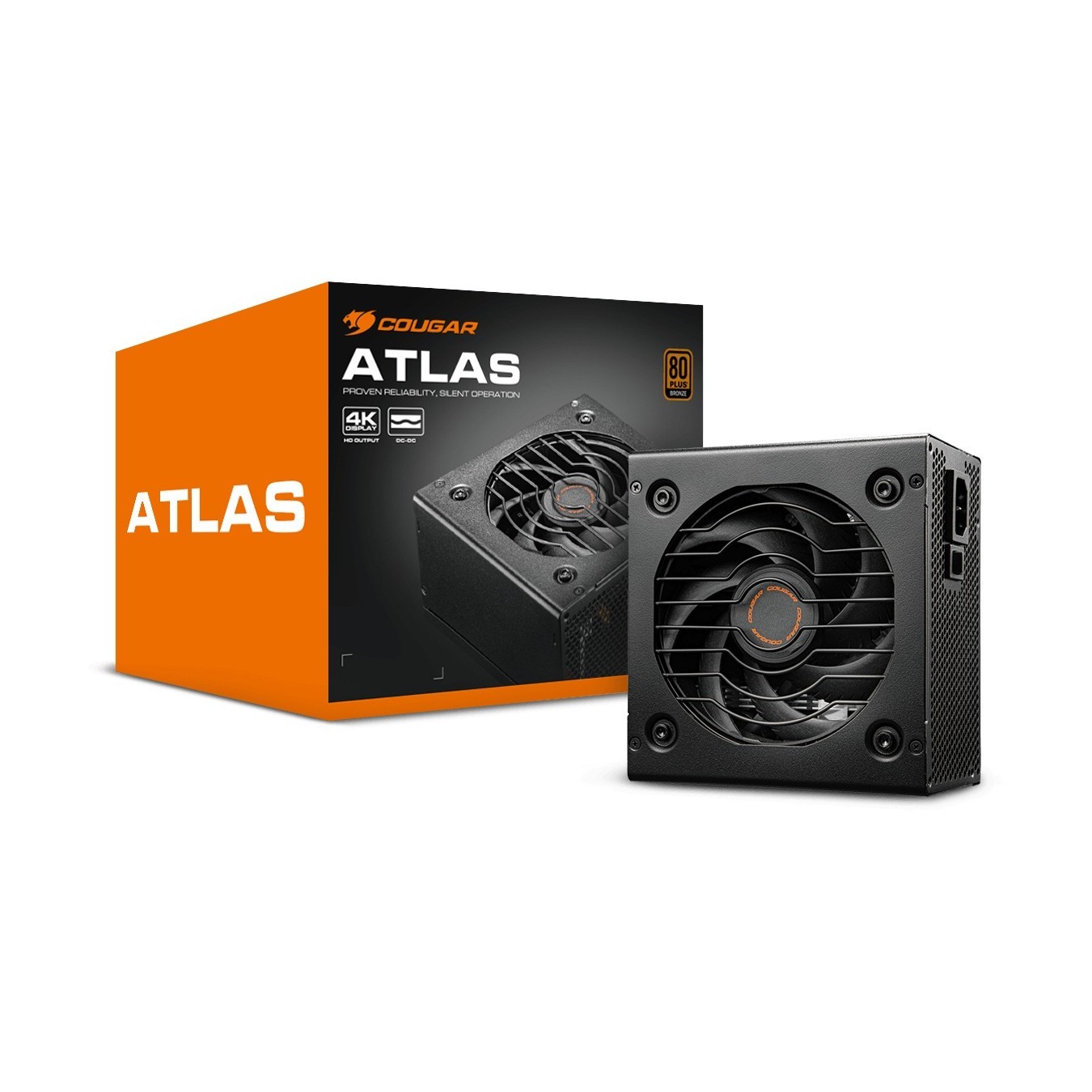

| Package type | Box |
