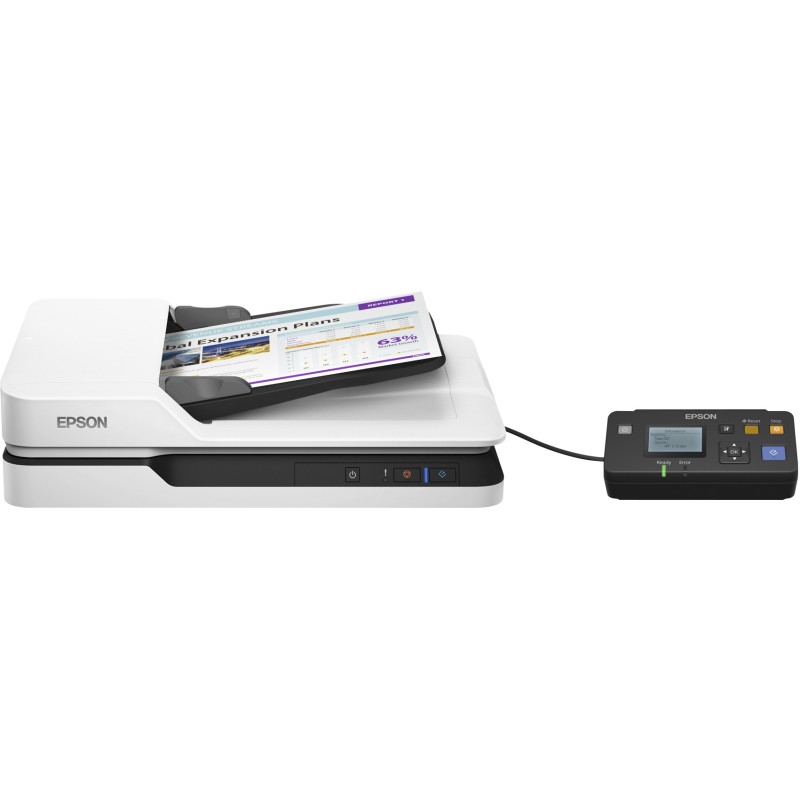

Epson WorkForce Document Scanner - DS-1630
Epson WorkForce DS-1630 Document Scanner with 210 x 297 mm scan area, 1200 x 1200 dpi, 30-bit input / 24-bit output, 10-bit greyscale input / 8-bit greyscale output.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Scanners - Type | Flatbed |
|---|---|
| Scanners - Optical Resolution | 1200 dpi |
| Scanners - Interface | USB |
| Scanners - Scan Size | A4 |
Epson WorkForce DS-1630. Maximum scan size: 210 x 297 mm. Optical scanning resolution: 1200 x 1200 DPI. Input colour depth: 30 bit. Scanner type: Flatbed scanner. Product colour: Black. White. Sensor type: CIS. Daily duty cycle (max): 1500 pages. Light source: RGB LED. Auto document feeder (ADF) input capacity: 50 sheets. Maximum ISO A-series paper size: A4. Auto Document Feeder (ADF) media weight: 50 - 120 g/m². Maximum scan area (ADF): 210 x 3048 mm
| Maximum scan size | 210 x 297 mm |
| Optical scanning resolution | 1200 x 1200 DPI |
| Feature | Drivers included |
| Input colour depth | 30 bit |
| Output colour depth | 24 bit |
| Input greyscale depth | 10 bit |
| Output greyscale depth | 8 bit |
| ADF scan speed (b/w. A4) | 25 ppm |
| ADF scan speed (colour. A4) | 25 ppm |
| Duplex ADF scan speed (b/w. A4) | 10 ipm |
| Scanner type | Flatbed scanner |
| Product colour | Black. White |
| Sensor type | CIS |
| Light source | RGB LED |
| Scan file formats | JPEG. PDF. TIFF |
| Daily duty cycle (max) | 1500 pages |
| Scan to | File. PC |
| Scan drivers | TWAIN. ISIS |
| Auto document feeder (ADF) input capacity | 50 sheets |
| Maximum ISO A-series paper size | A4 |
| Auto Document Feeder (ADF) media weight | 50 - 120 g/m² |
| Maximum scan area (ADF) | 210 x 3048 mm |
| Minimum scan area (ADF) | 89 x 127 mm |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Standard interfaces | USB 3.2 Gen 1 (3.1 Gen 1) |
| Supported network protocols | TCP/IP. DHCP. DNS. SNMP. SLP |
| Power supply type | AC |
| Power consumption (typical) | 11 W |
| Power consumption (standby) | 5.8 W |
| Power consumption (off) | 0.15 W |
| Power consumption (PowerSave) | 0.8 W |
| AC input frequency | 50 - 60 Hz |
| Input voltage | 100 - 120 V |
| Width | 451 mm |
| Depth | 318 mm |
| Height | 121 mm |
| Weight | 3.9 kg |
| Quantity per pack | 1 pc(s) |
| Package width | 195 mm |
| Package depth | 520 mm |
| Package height | 405 mm |
| Package weight | 4.83 kg |
| Cables included | AC |
| Bundled software | Epson Document Capture (Mac only). Epson Document Capture Pro (Windows only). Epson Document Capture Pro Server (on free download). Epson Scan 2 |
| Windows operating systems supported | Windows 10. Windows 7. Windows 7 x64. Windows 8. Windows 8 x64. Windows 8.1. Windows 8.1 x64. Windows Vista. Windows Vista x64 |
| Mac operating systems supported | Mac OS X 10.6 Snow Leopard. Mac OS X 10.7 Lion. Mac OS X 10.8 Mountain Lion. Mac OS X 10.9 Mavericks |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |

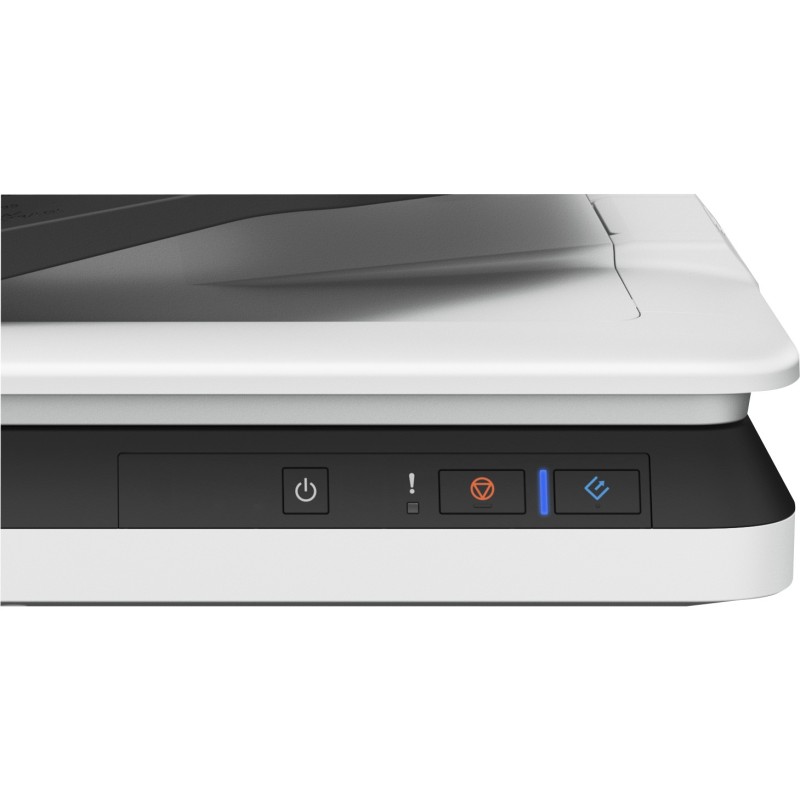

| Control panel | 5-line LCD with Push Scan features |
| Image formats supported | BMP. JPEG. TIFF |
| Cabling technology | 10/100/1000Base-T(X) |
| Compliance certificates | RoHS |
| Products per pallet | 40 pc(s) |
| Country of origin | Indonesia |
| Pallet gross weight | 0 g |
| Pallet gross length | 120 cm |
| Pallet gross width | 80 cm |
| Pallet gross height | 15 cm |
| Products per pallet layer | 8 pc(s) |
| Products per pallet layer (UK) | 10 pc(s) |
| Products per pallet (UK) | 50 pc(s) |
| Pallet weight (UK) | 0 g |
| Pallet length (UK) | 120 cm |
| Pallet width (UK) | 100 cm |
| Pallet height (UK) | 15 cm |
| Harmonized System (HS) code | 84716070 |
