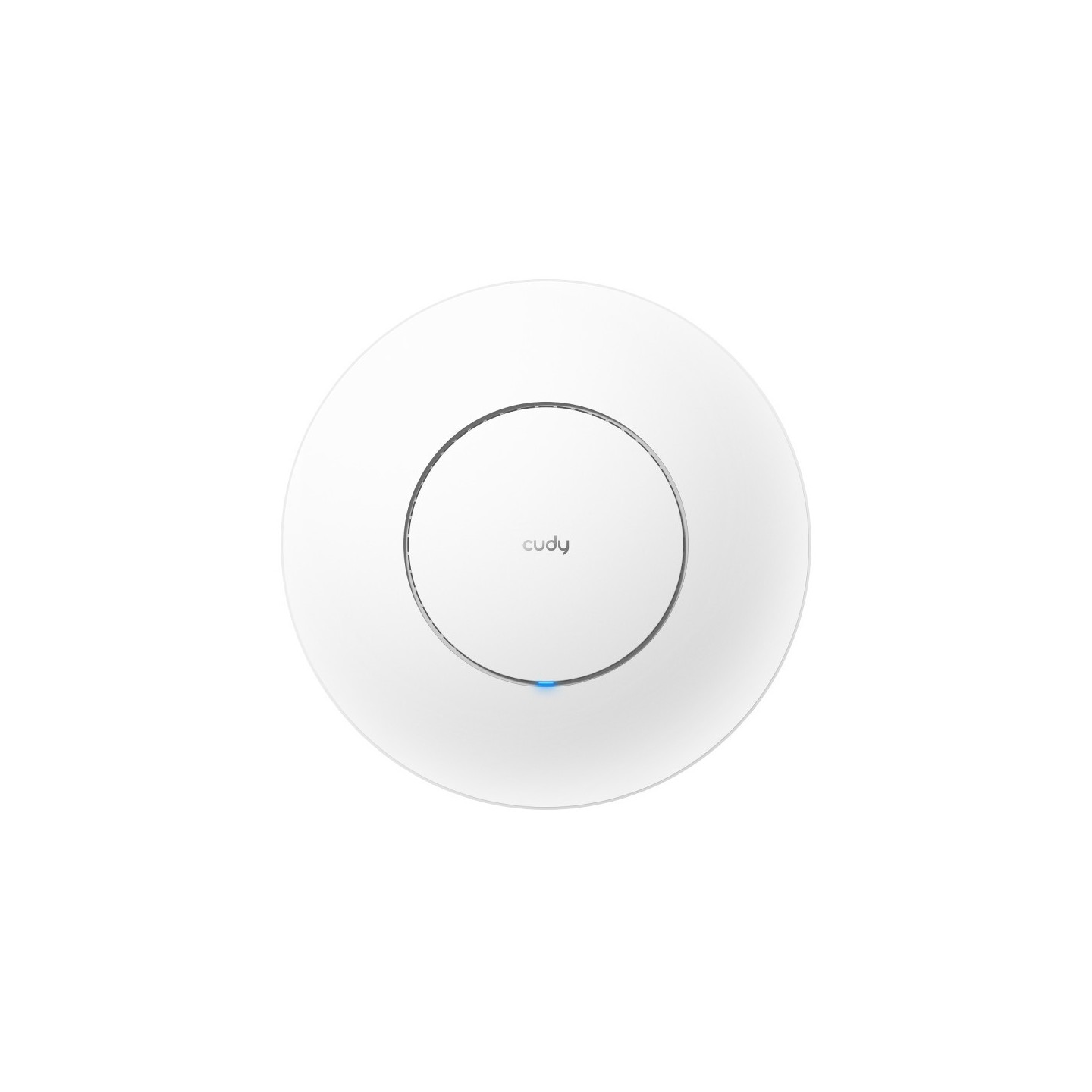

Cudy Access Point - AX3000 - Wi-Fi 6 2.5G
Cudy AX3000 Wi-Fi 6 access point with 2.5 GbE Ethernet, dual-band 2.4/5 GHz, and WPA-PSK/WPA2-PSK/WPA3-SAE security.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Access Points - Wi-Fi Standard | Wi-Fi 6 |
|---|---|
| Access Points - Antennas | Internal |
| Access Points - Ethernet Port | 1x2.5GbE |
| Access Points - Management | Standalone |
Cudy AP3000. 2.4 GHz. 5 GHz. Maximum data transfer rate: 2976 Mbit/s. Security algorithms: WPA-PSK. WPA2-PSK. WPA3-SAE. Ethernet LAN data rates: 100.1000.2500 Mbit/s. Power over Ethernet (PoE). Product colour: White
| Feature | Quick start guide |
| Maximum data transfer rate | 2976 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
| Ethernet LAN data rates | 100.1000.2500 Mbit/s |
| Networking standards | IEEE 802.11a. IEEE 802.11ac. IEEE 802.11ax. IEEE 802.11b. IEEE 802.11g. IEEE 802.11n. IEEE 802.3at |
| Channel bandwidth | 160 MHz |
| MIMO type | Multi User MIMO |
| Spread spectrum method | OFDMA |
| Operating modes | Wireless Access Point. Wireless Router. Wireless Extender. WISP |
| Security algorithms | WPA-PSK. WPA2-PSK. WPA3-SAE |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Ethernet LAN (RJ-45) ports | 1 |
| Power over Ethernet (PoE) type supported | Active PoE |
| Output voltage | 12 V |
| Placement | Ceiling. Wall |
| Product colour | White |
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Antennas quantity | 5 |
| Chipset | MT7981BA+MT7976CN+RTL8221B |
| Processor frequency | 1300 MHz |
| Compatible operating systems | Microso Windows XP. Vista. Windows 7. Windows 8. Windows10. Linux |
| Width | 232 mm |
| Depth | 232 mm |
| Height | 57.1 mm |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
