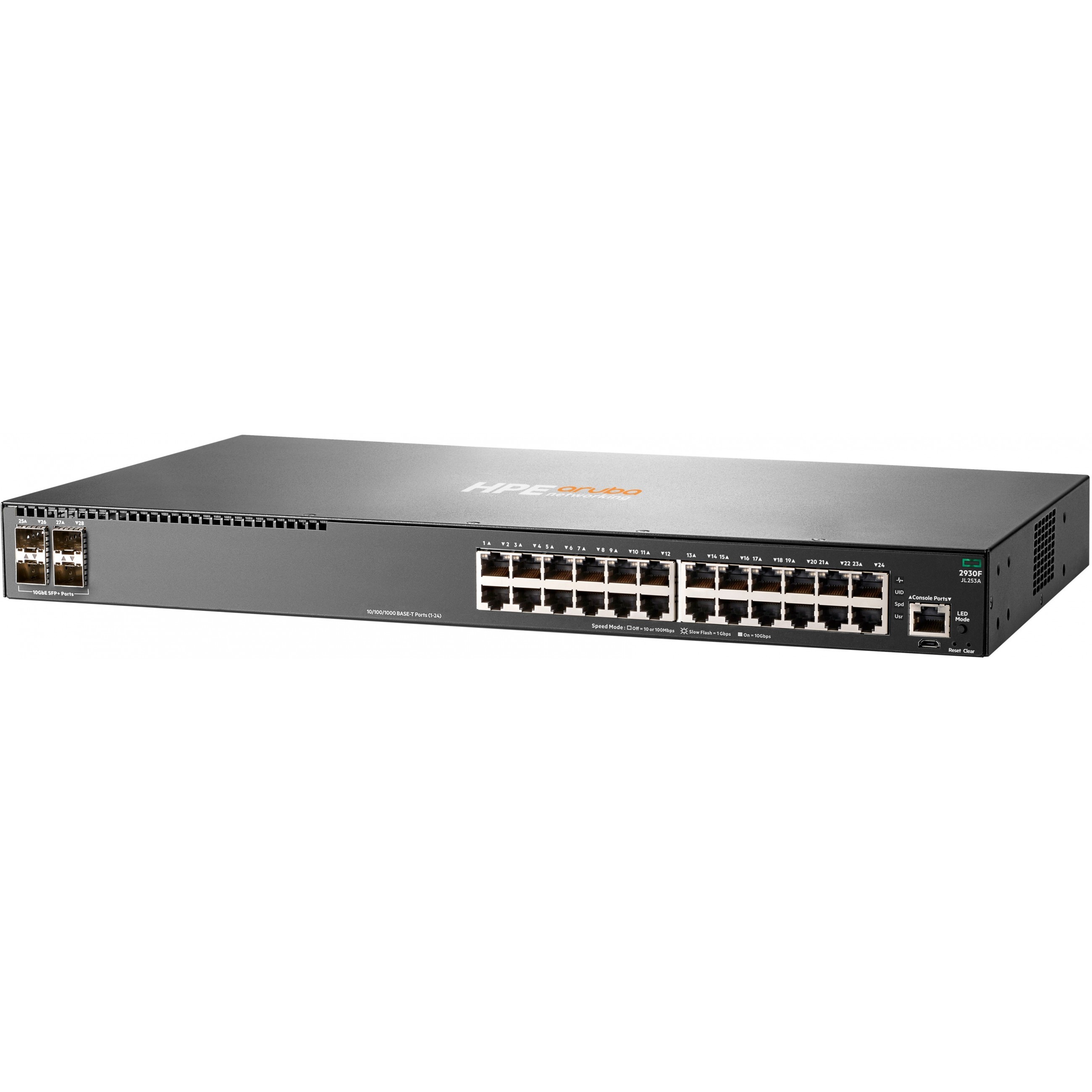

ARUBA Switch - 2930F - 24G 4SFP
Aruba 2930F 24G 4SFP switch; Managed L3, Gigabit Ethernet (10/100/1000); 24x RJ-45 and 4 SFP slots; 1U rack-mount.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Network Switches - Type | Managed L3 |
|---|---|
| Network Switches - Ports | 24 |
| Network Switches - Port Speed | Gigabit (10/100/1000) |
| Network Switches - Rackmount | Yes |
HPE Aruba Networking 2930F 24G 4SFP Switch. Switch type: Managed. Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 24. Console port: RJ-45. Full duplex. MAC address table: 32768 entries. Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.3. IEEE 802.3ab. IEEE 802.3u. Rack mounting. Form factor: 1U
| Switch type | Managed |
| Switch layer | L3 |
| Feature | Power supply included |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 4 |
| Console port | RJ-45 |
| Networking standards | IEEE 802.3. IEEE 802.3ab. IEEE 802.3u |
| Copper ethernet cabling technology | 10BASE-T. 100BASE-TX. 1000BASE-T |
| Routing entries | 10000 |
| Switching capacity | 56 Gbit/s |
| Throughput | 41.7 Mpps |
| MAC address table | 32768 entries |
| Latency (1 Gbps) | 3.8 µs |
| DHCP features | DHCP server |
| Routing protocols | IP |
| IPv4 FIB entries | 10000 |
| IPv6 FIB entries | 5000 |
| Form factor | 1U |
| Product colour | Grey |
| Processor model | ARM Cortex-A9 |
| Processor frequency | 1016 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 1024 MB |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 19.5 W |
| Power consumption (max) | 29.3 W |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Heat dissipation | 100 BTU/h |
| Width | 43.9 mm |
| Depth | 442.5 mm |
| Height | 43.9 mm |
| Weight | 2.41 kg |
| Harmonized System (HS) code | 85176990 |
