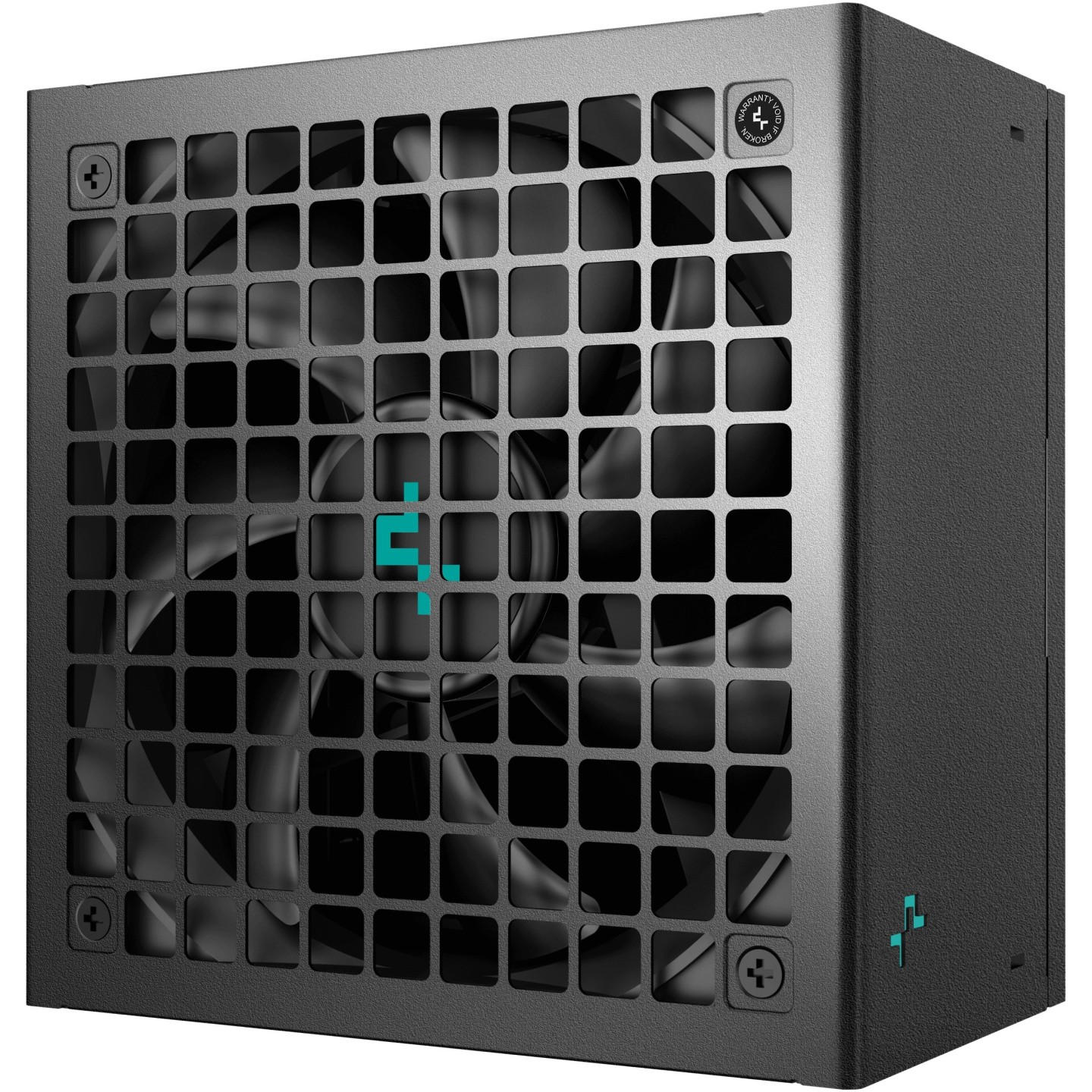

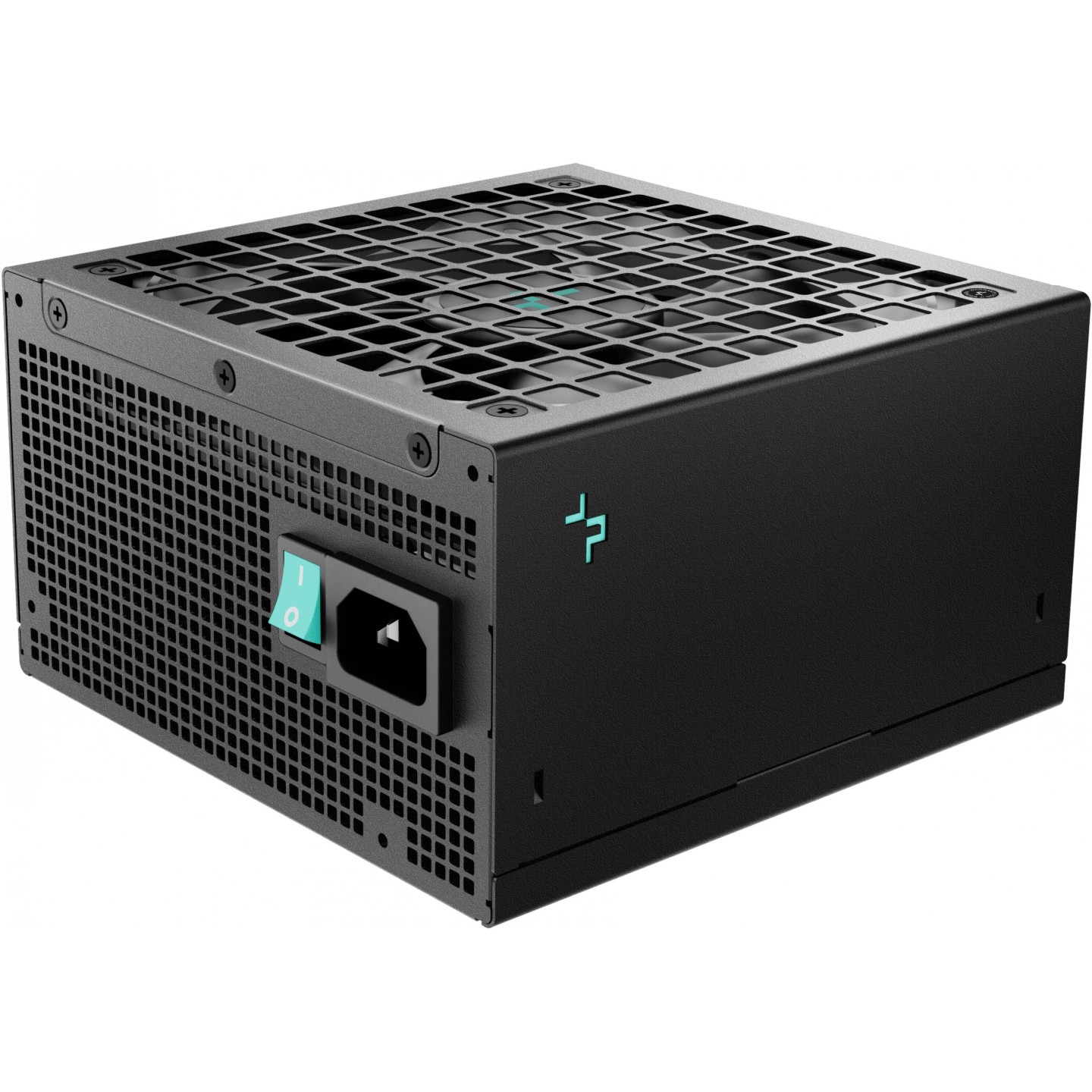

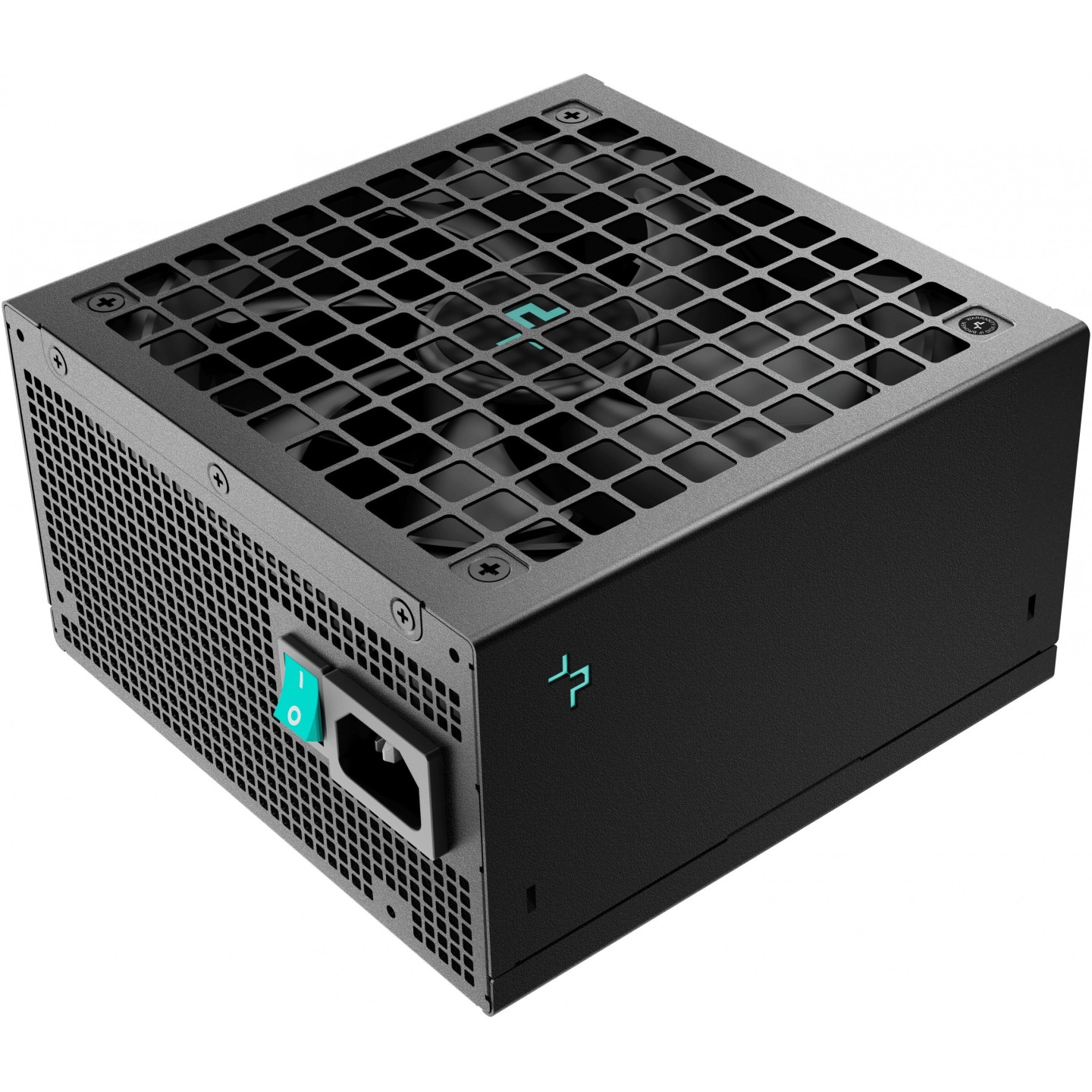

DeepCool PN1200-M 1200W 80 PLUS Gold Fully Modular ATX 3.1 PSU - PN1200M (Boxed)
DeepCool PN1200-M 1200W fully modular ATX 3.1 PSU with 80 PLUS Gold and Cybenetics Gold efficiency, Active PFC, 16ms hold-up time at 80% load, 135mm FDB fan, PCIe 5.1 12V-2x6 connector (600W), Japanese main capacitor, single 12V rail (100A), for high-end gaming PCs with modern GPUs.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 1200 - 1499 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Gold |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 12V-2x6 |
| PSU (Power Supplies) - Length | 141-160 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 3x 4+4pin EPS/ATX12V |

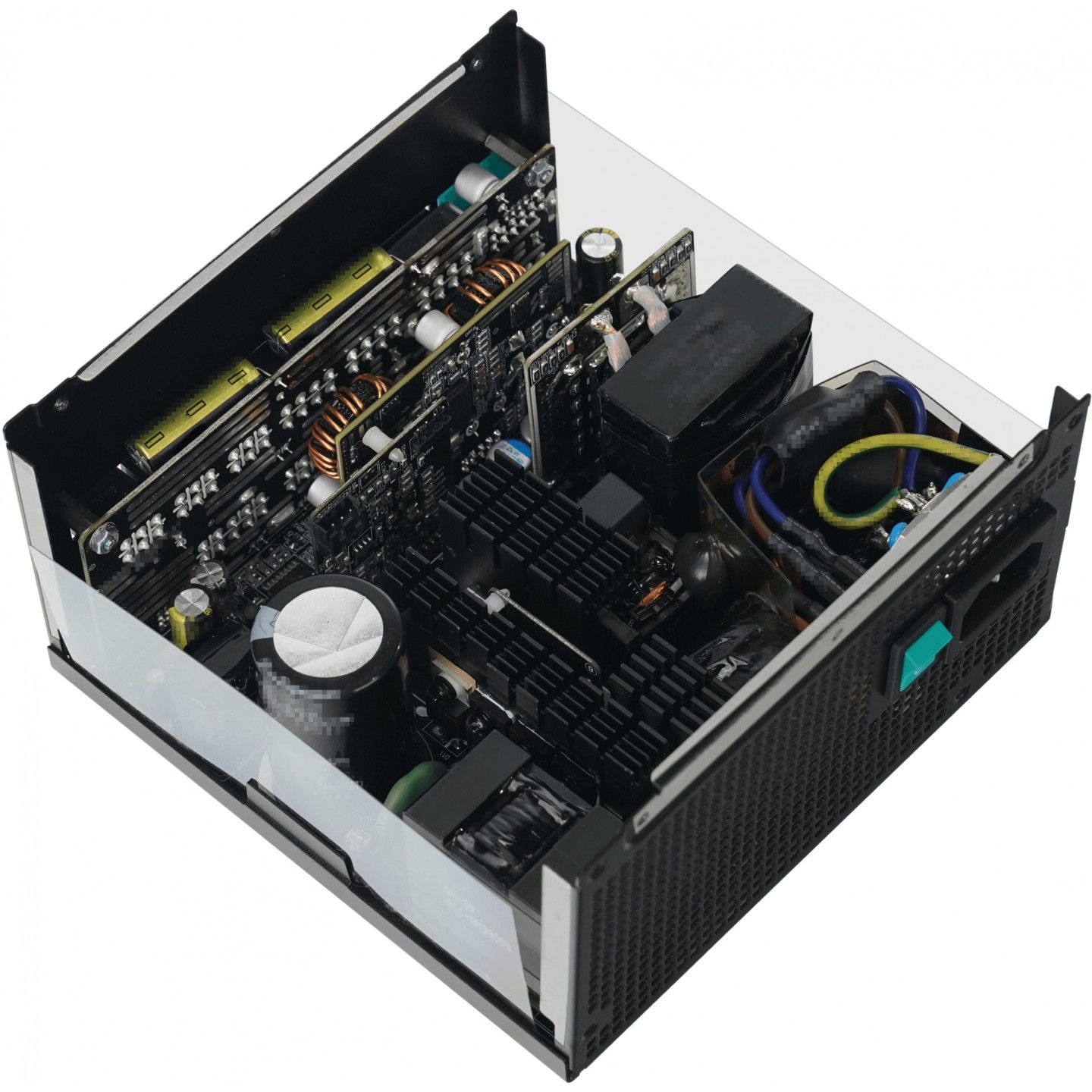

The DeepCool PN1200-M is a high-performance 1200W power supply unit designed for demanding PC builds, fully compliant with Intel ATX 3.1 and PCIe 5.1 standards. It features a fully modular design for clean cable management, 80 PLUS Gold certification ensuring at least 90% efficiency under typical loads, and Cybenetics Gold rating for both efficiency (87-91%) and low noise (Standard++). Equipped with a premium Japanese electrolytic main capacitor, active PFC, full-bridge SRC LLC + DC-to-DC topology, and a dynamic 135mm Fluid Dynamic Bearing (FDB) fan for reliable cooling up to 50°C.

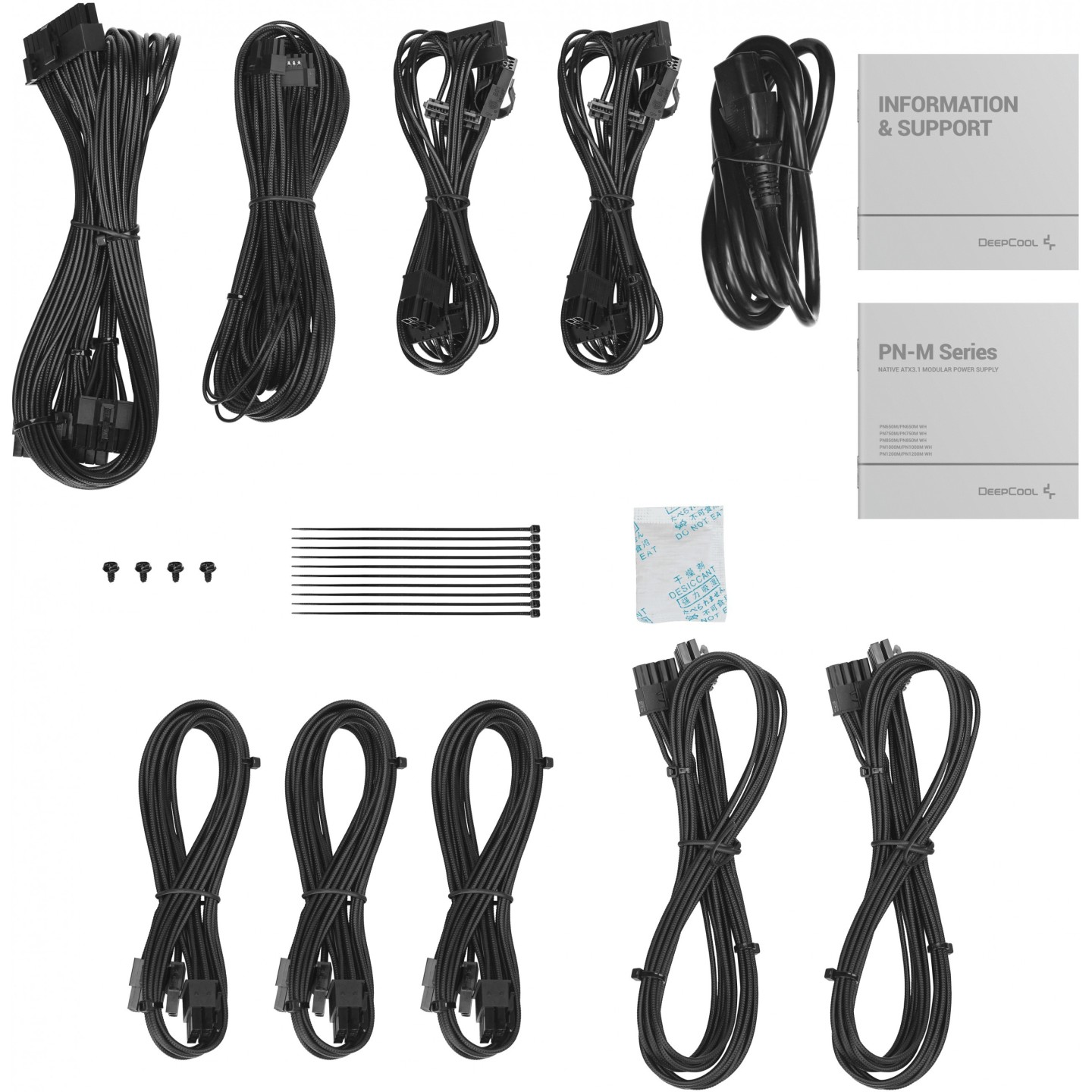

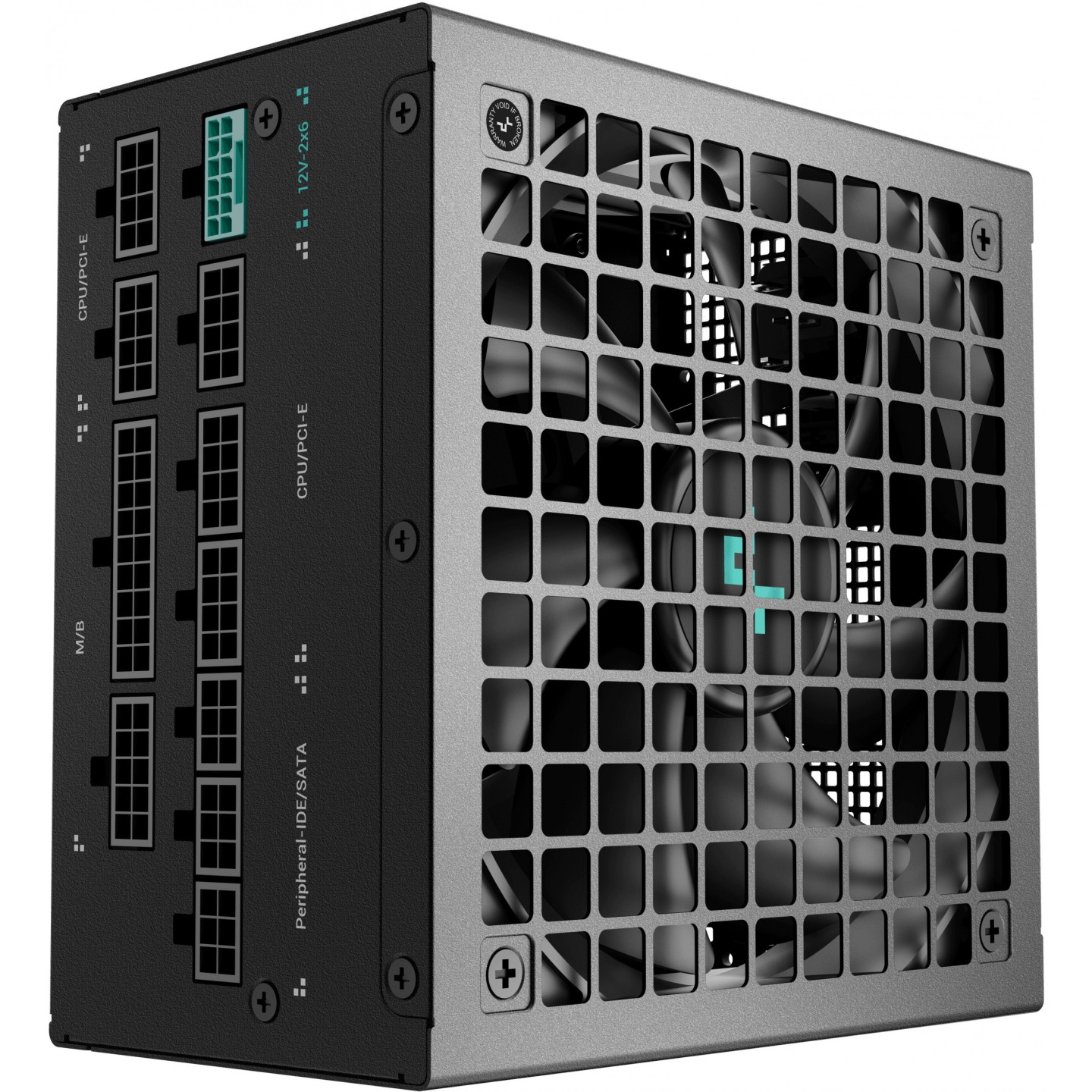

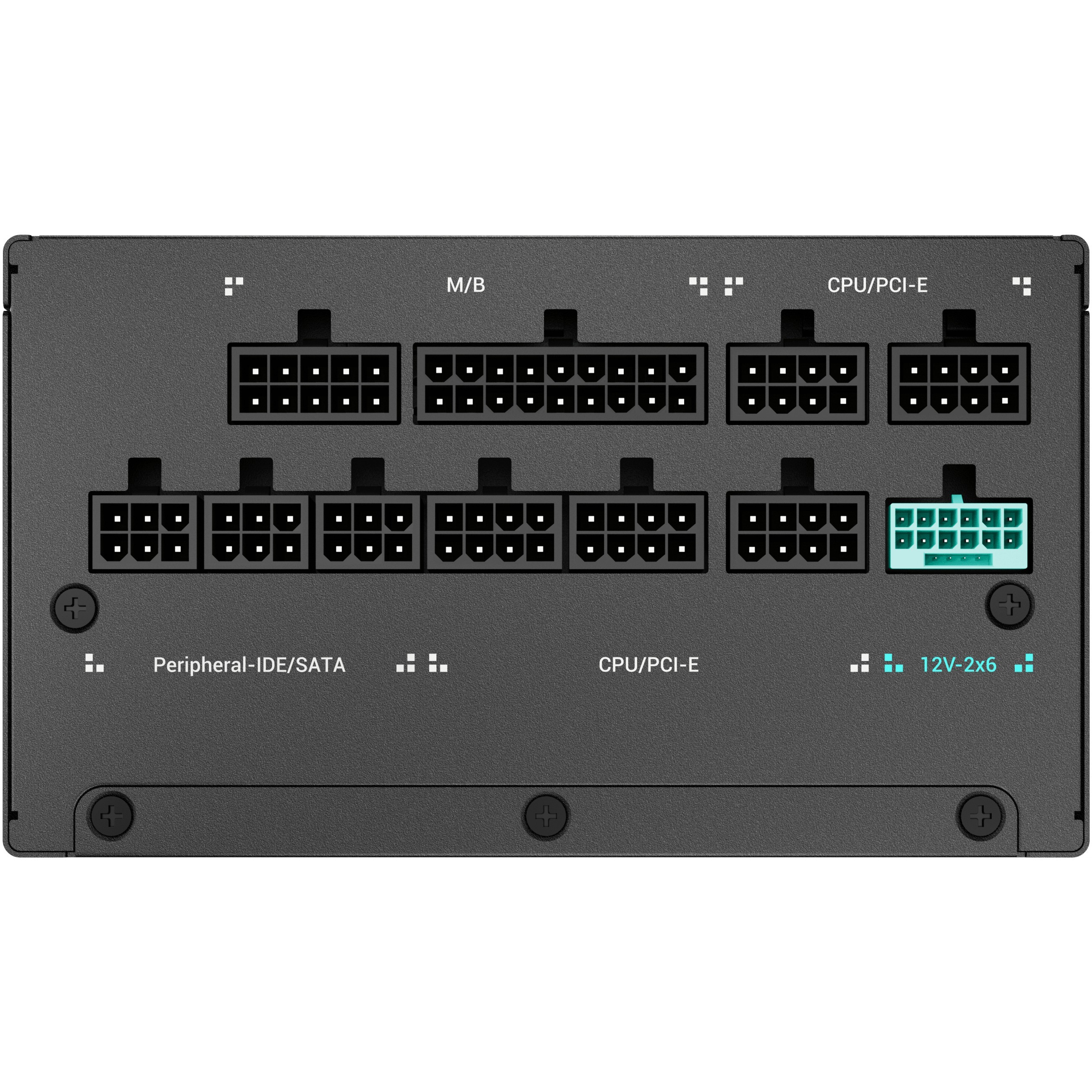

This PSU supports extreme power excursions up to 2200W for 100μs, making it future-proof for next-gen components like RTX 4090 or high-end CPUs. It includes a native 12V-2x6 (16-pin) PCIe connector rated for 600W, three 6+2-pin PCIe cables, dual EPS cables, eight SATA, and two Molex connectors. The single 12V rail delivers full 1200W, with robust protections including OVP, OCP, OPP, SCP, OTP, UVP, SIP, and no-load operation.
- Fully Modular black sleeved cables for premium aesthetics
- ATX 3.1 / PCIe 5.1 ready with 12V-2x6 connector
- 80 PLUS Gold & Cybenetics Gold certified

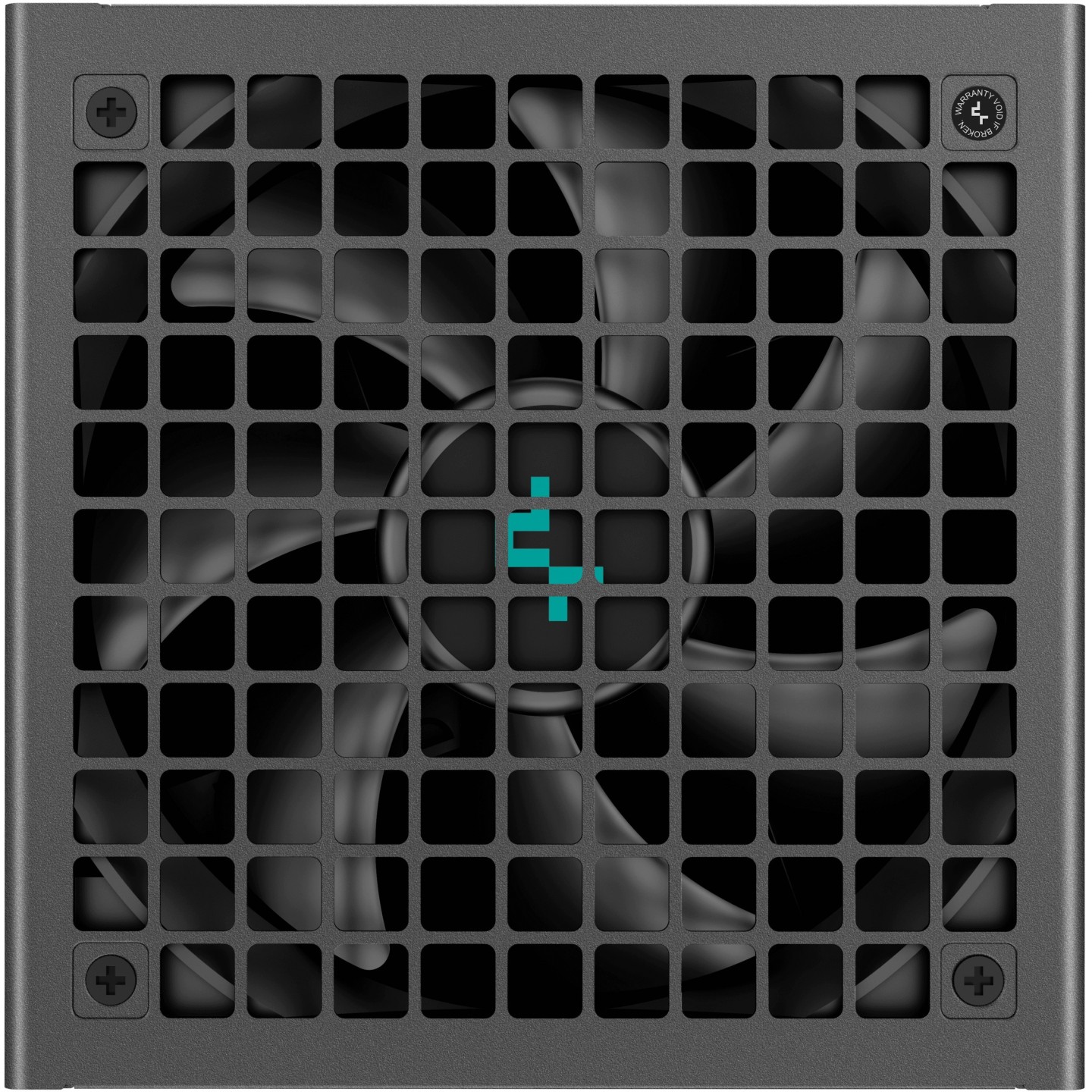

- 135mm FDB fan with dynamic speed adjustment
- Japanese capacitors and 100,000 hours MTBF
- Hold-up time ≥16ms at 80% load
| Total power | 1200 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power Factor Correction (PFC) type | Active |
| Hold time | ≥16 ms (80% load) |
| Efficiency | ≥90% (80 PLUS Gold / Cybenetics Gold 87-91%) |
| Power Good signal delay range | 100 - 150 ms |
| Power protection features | No load operation, Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 55 cm |
| Number of SATA power connectors | 8 |
| SATA power cable length | 450,570,690,810 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 930 mm |
| PCI Express power connectors (6+2 pin) | 3 |
| PCI Express power connectors (16-pin) | 1x 12V-2x6 (600W) |
| CPU power connectors | 2x 8-pin EPS |
| CPU power cable length | 70 cm |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Cybenetics certification | Gold Efficiency (87-91%), Standard++ Noise |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| Bearing technology | FDB (Fluid Dynamic Bearing) |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Operating temperature (T-T) | 0 - 50 °C |
| Compliance certificates | RoHS, WEEE |
| Certification | CE/FCC/CCC/TUV-RH/cTUVus/RCM/EAC/BIS |
| Width | 150 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Sustainability certificates | ErP, Triman |
| 12V rail amps | 100 A (1200 W) |
| Main capacitor | Japanese 105°C |
| Topology | Active PFC + Half Bridge SRC LLC + DC to DC |
