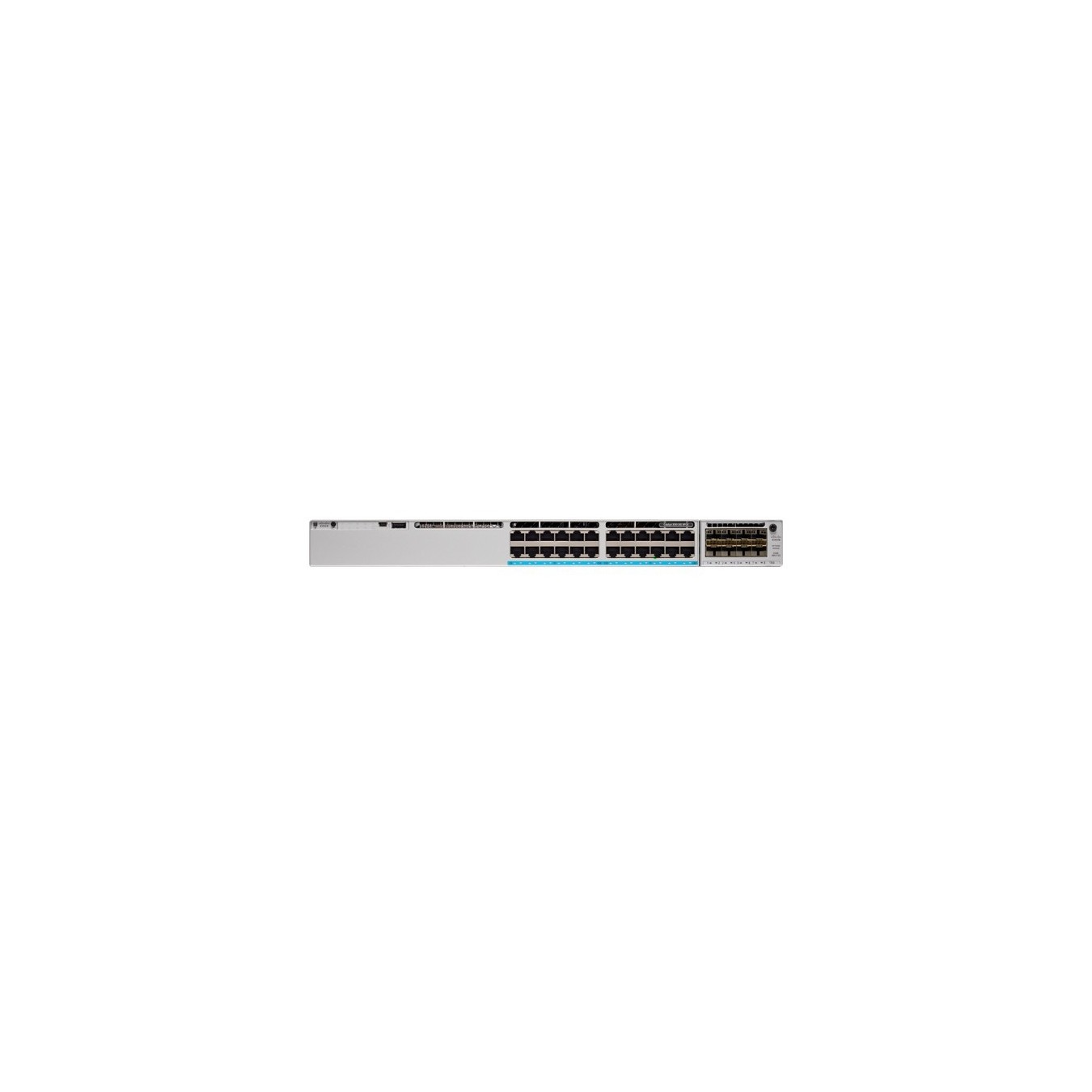

Cisco Network Switch - 9300L - 24P 8MGIG
Cisco Catalyst C9300L-24UXG-4X-A. Managed L2/L3 PoE switch; 24 RJ-45 ports; 10G Ethernet (100/1000/10000); rack-mountable 1U.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Cisco Catalyst C9300L-24UXG-4X-A. Switch type: Managed. Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000). Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 32000 entries. Switching capacity: 272 Gbit/s. Networking standards: IEEE 802.1D. IEEE 802.1Q. IEEE 802.1p. IEEE 802.1s. IEEE 802.1w. IEEE 802.1x. IEEE 802.3ad. IEEE.... Power over Ethernet (PoE). Rack mounting. Form factor: 1U
| Switch type | Managed |
| Switch layer | L2/L3 |
| Feature | Power over Ethernet (PoE) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| 10G Ethernet (copper) ports quantity | 8 |
| Number of VLANs | 4094 |
| Switching capacity | 272 Gbit/s |
| Forwarding rate | 202.38 Mpps |
| MAC address table | 32000 entries |
| Jumbo frames | 9198 |
| DHCP features | DHCP snooping |
| Access Control List (ACL) rules | 5120 |
| Form factor | 1U |
| Product colour | Grey |
| Internal memory | 8000 MB |
| Flash memory | 16000 MB |
| Mean time between failures (MTBF) | 332640 h |
| Total Power over Ethernet (PoE) budget | 880 W |
| Operating temperature (T-T) | -5 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Width | 445 mm |
| Depth | 448 mm |
| Height | 44 mm |
| Weight | 7.13 kg |
