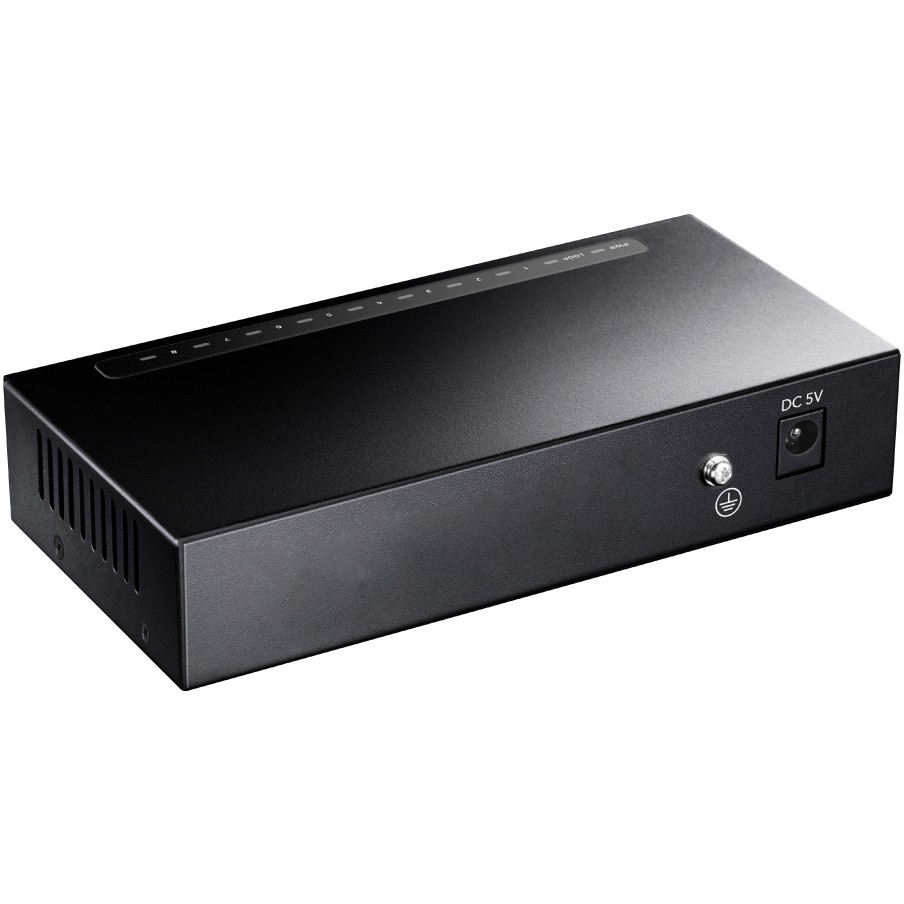

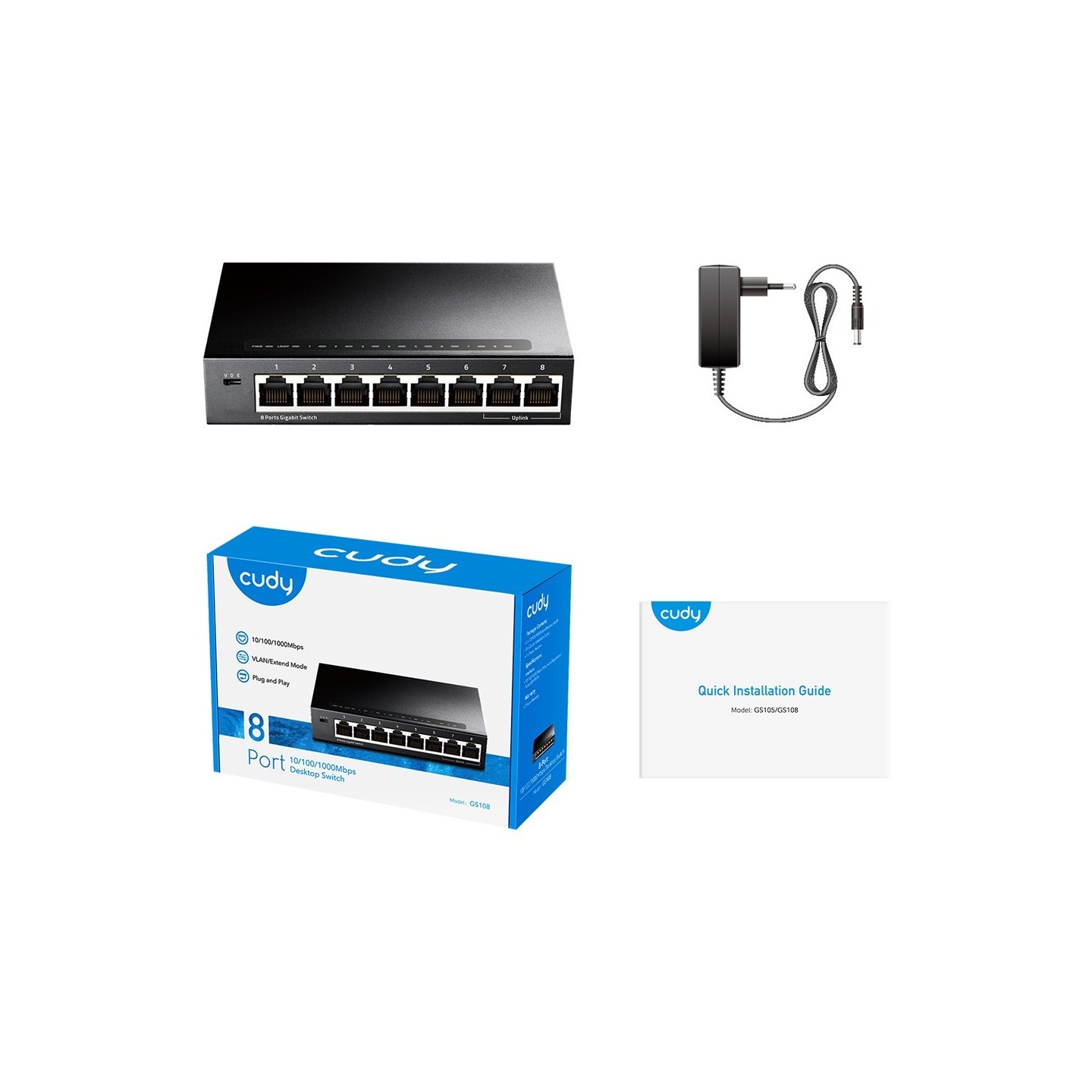

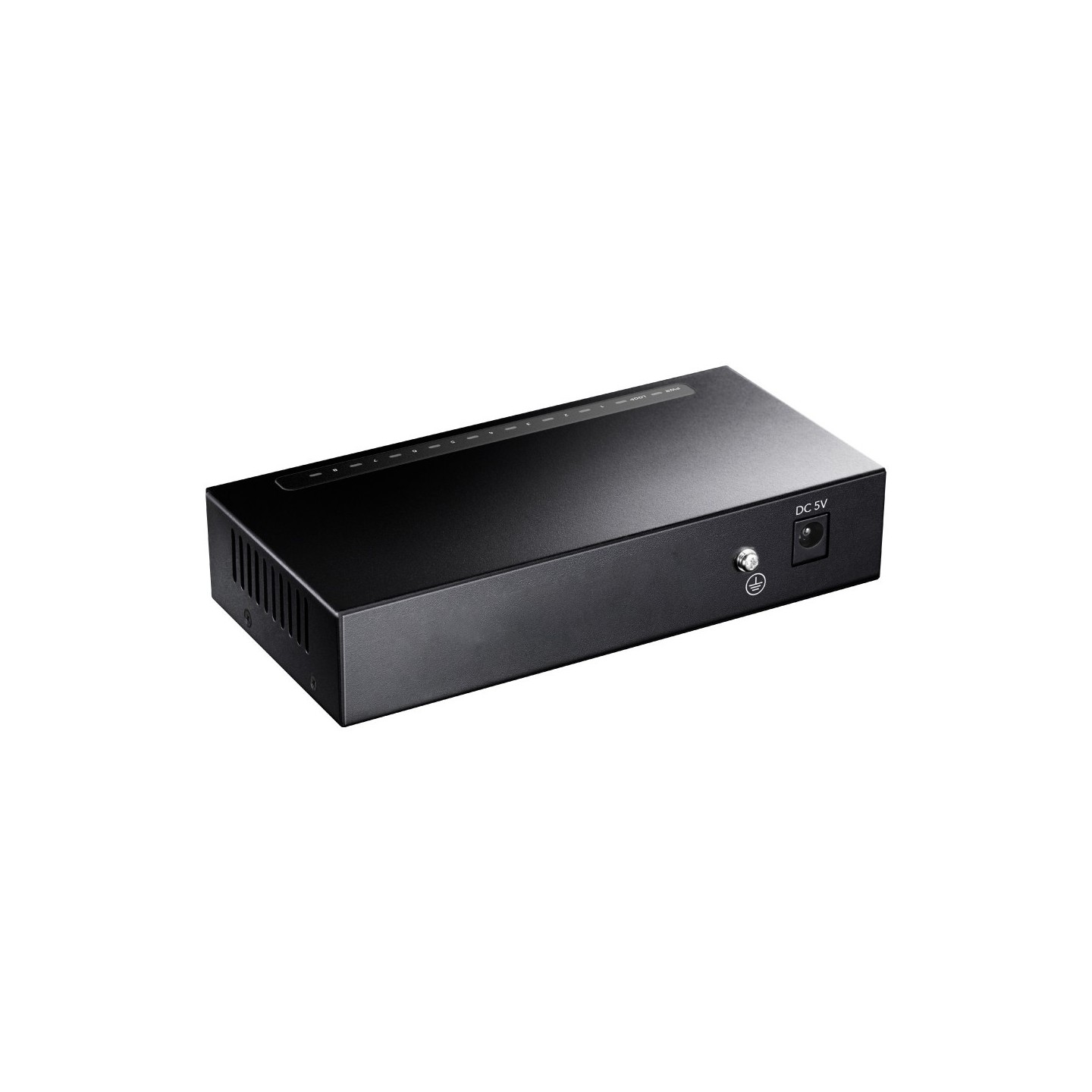

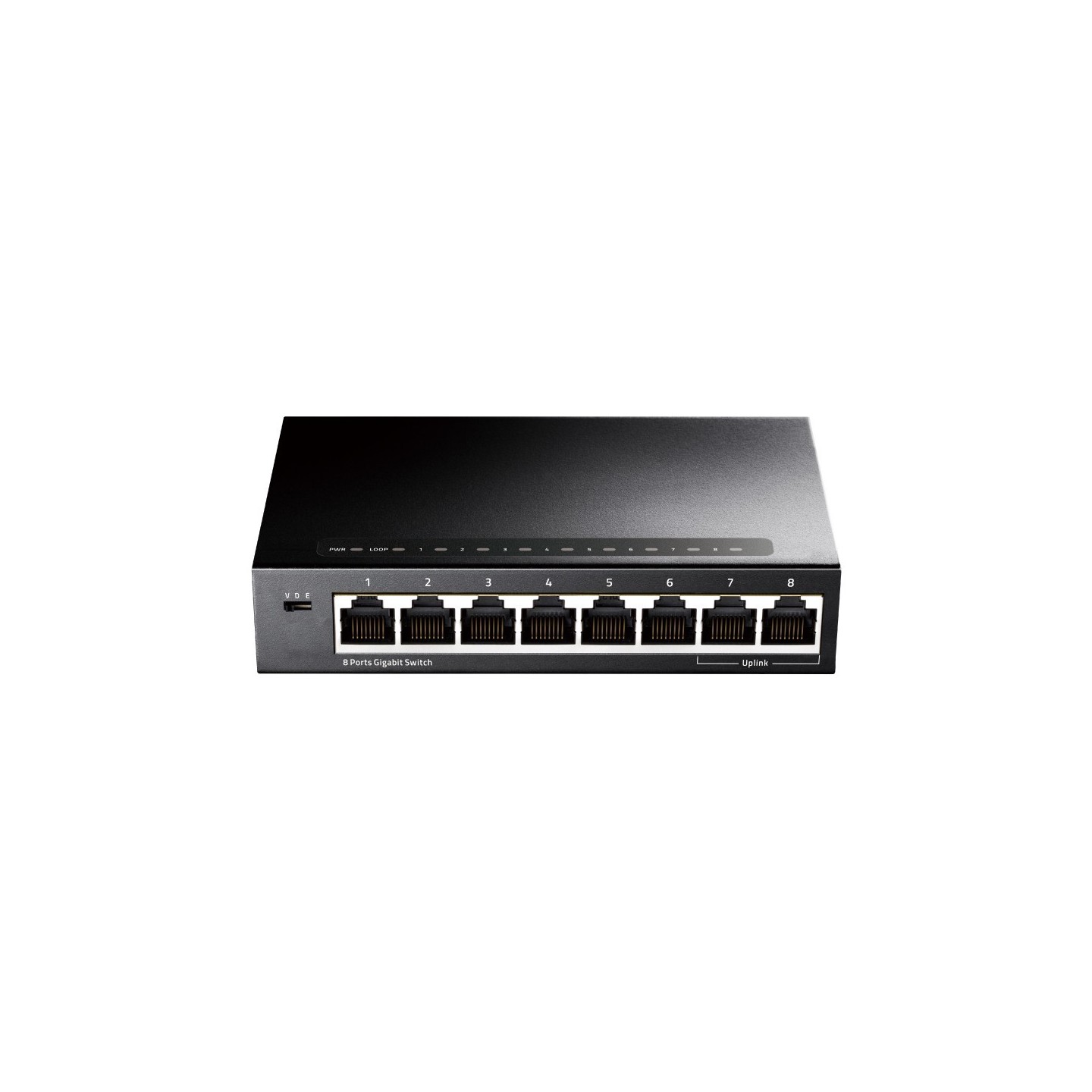

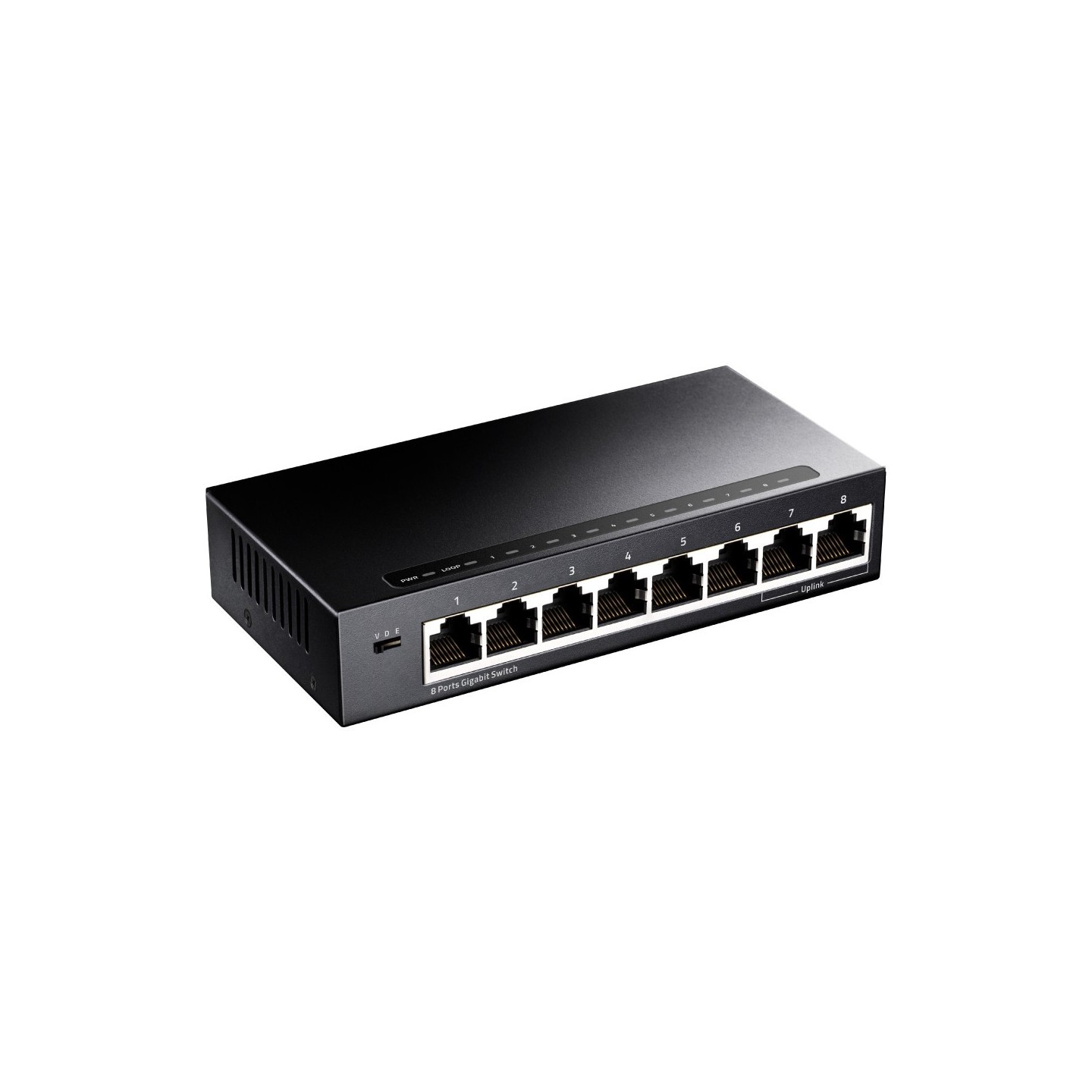

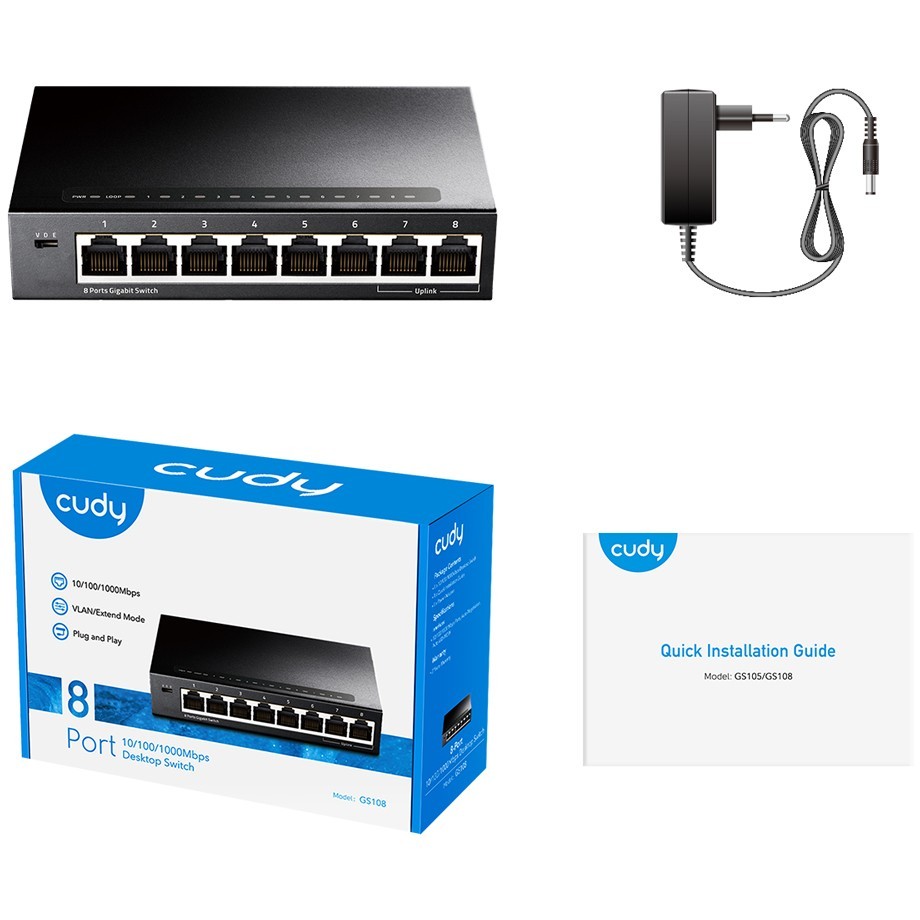

Cudy - GS108 - 8P
8P Cudy GS108 – 8-port Gigabit Ethernet switch (10/100/1000) with full duplex.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Network Switches - Ports | 8 |
|---|---|
| Network Switches - Port Speed | Gigabit (10/100/1000) |
Cudy GS108. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 1000 entries. Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.3. IEEE 802.3ab. IEEE 802.3u. IEEE 802.3x. DC input voltage: 5 V
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.3. IEEE 802.3ab. IEEE 802.3u. IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T. 100BASE-TX. 1000BASE-TX |
| Cable types supported | Cat3. Cat4. Cat5. Cat5e. Cat6. Cat6+. Cat6a. Cat6e. Cat7. Cat7e. Cat8. Cat8.1 |
| Feature | Quick start guide |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Switching capacity | 16 Gbit/s |
| Throughput | 11.9 Mpps |
| MAC address table | 1000 entries |
| Jumbo frames | 2000 |
| Packet buffer memory | 2.5 MB |
| Product colour | Black |
| LED indicators | Loop. Link. Power |
| Mean time between failures (MTBF) | 100000 h |
| Power source | AC/DC |
| AC input voltage | 100 - 240 V |
| DC input voltage | 5 V |
| Operating temperature (T-T) | -10 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating altitude | 0 - 3048 m |
| Width | 137 mm |
| Depth | 77 mm |
| Height | 25 mm |
| Weight | 300 g |
| Cables included | DC |
| Package type | Box |
| Package width | 175 mm |
| Package depth | 120 mm |
| Package height | 63 mm |
| Package weight | 500 g |
| Master (outer) case width | 505 mm |
| Master (outer) case length | 320 mm |
| Master (outer) case height | 400 mm |
| Master (outer) case gross weight | 21 kg |
| Products per master (outer) case | 40 pc(s) |
