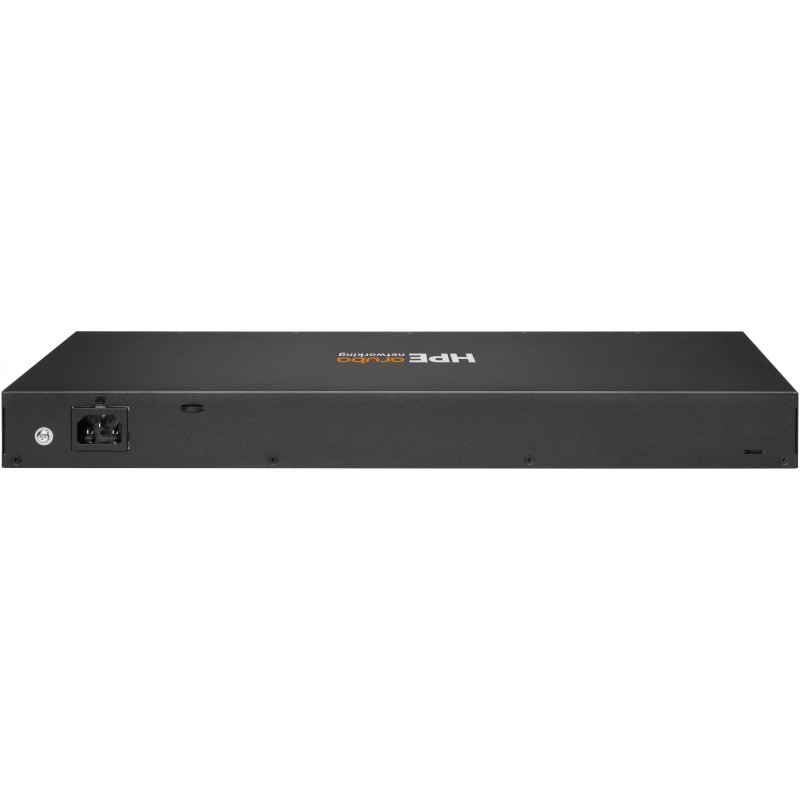

HP Enterprise Aruba - 6100 - 48G PoE+ (370W) 4SFP+ Switch M RM
Managed L3 PoE+ switch with 48 Gigabit ports, 4 SFP+ uplinks, 370W PoE budget, rack-mount, 1U.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Network Switches - Type | Managed L3 |
|---|---|
| Network Switches - Ports | 48 |
| Network Switches - Port Speed | Gigabit (10/100/1000) |
| Network Switches - PoE Budget | greater than250 W |
| Network Switches - Rackmount | Yes |
HPE Aruba Networking CX 6100 48G Class4 PoE 4SFP+ 370W Switch. Switch type: Managed. Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 48. MAC address table: 8192 entries. Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D. IEEE 802.1Q. IEEE 802.1p. IEEE 802.1s. IEEE 802.1w. IEEE 802.3. IEEE 802.3ab. IEEE.... Power over Ethernet (PoE). Rack mounting. Form factor: 1U
| Switch type | Managed |
| Switch layer | L3 |
| Feature | Power over Ethernet (PoE) |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 4 |
| Switching capacity | 176 Gbit/s |
| Throughput | 98.6 Mpps |
| MAC address table | 8192 entries |
| Latency (1 Gbps) | 1.9 µs |
| Latency (10 Gbps) | 1.8 µs |
| Packet buffer memory | 12.38 MB |
| DHCP features | DHCP client |
| Authentication | MAC-based authentication |
| Authentication type | RADIUS. TACACS+ |
| Form factor | 1U |
| Product colour | Black |
| Airflow direction | Side-to-side airflow |
| Virtual stacking (units) | 16 |
| Processor model | ARM Cortex-A9 |
| Processor frequency | 1016 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 4096 MB |
| Flash memory | 16 MB |
| Power source | AC |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 45 W |
| Total Power over Ethernet (PoE) budget | 370 W |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Storage relative humidity (H-H) | 15 - 90% |
| Operating altitude | 0 - 3000 m |
| Width | 442 mm |
| Depth | 305 mm |
| Height | 44 mm |
| Weight | 5 kg |
| Harmonized System (HS) code | 85176990 |
