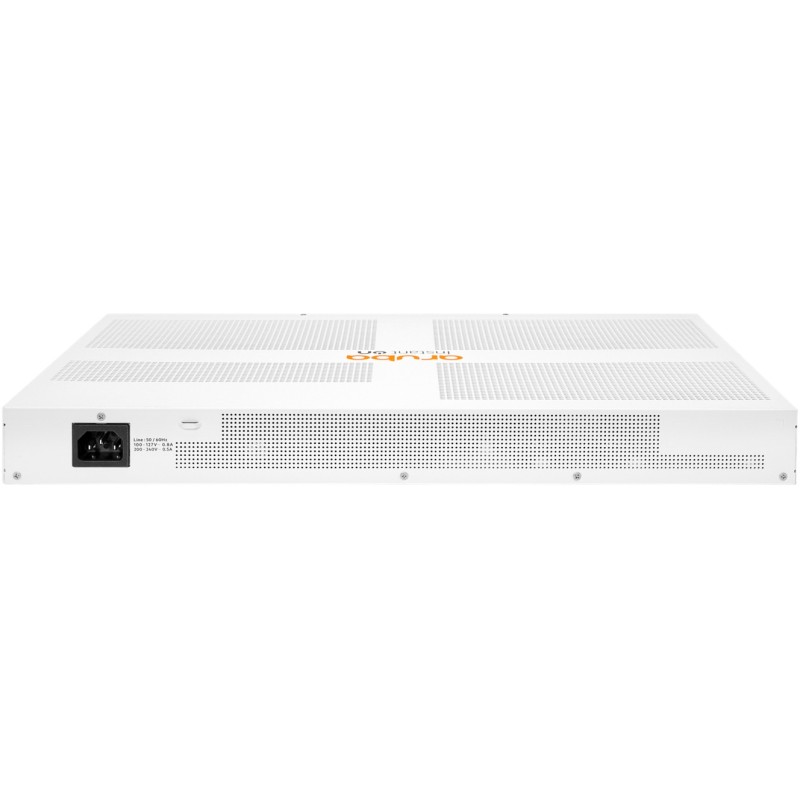

HP Enterprise Instant On - 1930M RM - 48+4P 4SFP
Aruba Instant On 1930M RM switch: Managed, L2+, Gigabit Ethernet, full duplex, 1U rack-mount.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Network Switches - Ports | 48 |
|---|---|
| Network Switches - Port Speed | Gigabit (10/100/1000) |
| Network Switches - Rackmount | Yes |
HPE Aruba Networking Aruba Instant On 1930. Switch type: Managed. Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 16000 entries. Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1Q. IEEE 802.1p. IEEE 802.1x. IEEE 802.3. IEEE 802.3ab. IEEE 802.3x. IEEE 802.3z. Rack mounting. Form factor: 1U
| Switch type | Managed |
| Switch layer | L2+ |
| Feature | Power supply included |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 4 |
| Networking standards | IEEE 802.1Q. IEEE 802.1p. IEEE 802.1x. IEEE 802.3. IEEE 802.3ab. IEEE 802.3x. IEEE 802.3z |
| Copper ethernet cabling technology | 10BASE-T. 100BASE-TX. 1000BASE-T |
| Number of VLANs | 256 |
| Switching capacity | 176 Gbit/s |
| Throughput | 130.95 Mpps |
| MAC address table | 16000 entries |
| Latency (10-100 Mbps) | 4.5 µs |
| Latency (1 Gbps) | 2.2 µs |
| Latency (10 Gbps) | 1.2 µs |
| Packet buffer memory | 1.5 MB |
| Form factor | 1U |
| Product colour | White |
| Processor model | ARM Cortex-A9 |
| Processor frequency | 800 MHz |
| Memory type | SDRAM |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 36.9 W |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Storage relative humidity (H-H) | 15 - 95% |
| Width | 442.5 mm |
| Depth | 282.4 mm |
| Height | 43.9 mm |
| Weight | 3.13 kg |
| Harmonized System (HS) code | 85176990 |
